BGS-FW7215 200KV/245KV/270KV 14KG Payload bldc motor for 20inch Aerial drone_BOGONG SUN | Professional UAV Motor Manufacturer

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW7215 KV200 19*10	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	44.25	1833	0.532	5.64	3494	249.81	7.34	/
	45.%	44.22	2312	0.650	7.41	3890	327.75	7.05
	50.%	44.15	2878	0.795	10.26	4356	453.08	6.35
	55.%	44.08	3477	0.946	13.28	4813	585.57	5.94
	60.%	44.02	4086	1.110	16.59	5206	730.16	5.60
	65.%	43.91	4903	1.337	21.80	5698	957.40	5.12
	70.%	43.79	5710	1.562	27.16	6128	1189.47	4.80
	75.%	43.66	6582	1.821	33.60	6547	1466.85	4.49
	80.%	43.53	7366	2.050	39.60	6882	1723.40	4.27
	90.%	43.23	8911	2.537	53.83	7599	2327.01	3.83
	100.%	42.84	10555	3.126	71.55	8208	3065.09	3.44
BGS-FW7215 KV200 19*10	40.%	47.85	2144	0.628	6.24	3754	298.61	7.18	97
	45.%	47.81	2664	0.745	8.24	4168	394.17	6.76
	50.%	47.74	3309	0.896	11.29	4655	538.84	6.14
	55.%	47.65	4028	1.070	15.05	5130	717.02	5.62
	60.%	47.54	4961	1.326	20.64	5702	981.02	5.06
	65.%	47.44	5646	1.540	24.88	6099	1180.30	4.78
	70.%	47.31	6599	1.845	31.04	6539	1468.57	4.49
	75.%	47.16	7656	2.164	38.37	6967	1809.84	4.23
	80.%	47.01	8595	2.450	45.66	7338	2146.37	4.00
	90.%	46.64	10449	3.018	63.09	8077	2942.14	3.55
	100.%	46.17	11572	3.758	84.64	8681	3907.52	2.96
BGS-FW7215 KV200 20*10	40.%	36.92	1561	0.453	4.81	2959	177.64	8.79	/
	45.%	36.89	1932	0.549	6.29	3295	231.88	8.33
	50.%	36.83	2434	0.676	8.69	3712	319.91	7.61
	55.%	36.78	2926	0.794	11.26	4096	414.10	7.07
	60.%	36.72	3411	0.917	14.08	4437	517.13	6.60
	65.%	36.65	3919	1.046	16.99	4739	622.72	6.29
	70.%	36.57	4533	1.221	21.17	5108	773.99	5.86
	75.%	36.44	5452	1.465	27.50	5548	1002.10	5.44
	80.%	36.32	6155	1.677	32.85	5848	1192.97	5.16
	90.%	36.06	7553	2.089	44.99	6452	1622.41	4.66
	100.%	35.78	8906	2.483	58.37	6984	2088.34	4.26
BGS-FW7215 KV200 20*10	40.%	41.86	1730	0.544	5.71	3308	239.01	8.03	83
	45.%	41.81	2387	0.654	7.58	3679	316.78	7.54
	50.%	41.75	3008	0.807	10.44	4124	435.94	6.90
	55.%	41.69	3649	0.967	13.63	4544	568.04	6.43
	60.%	41.60	4278	1.121	17.16	4917	713.87	5.99
	65.%	41.54	4954	1.298	20.64	5262	857.26	5.78
	70.%	41.37	5987	1.597	28.11	5778	1162.88	5.15
	75.%	41.24	6856	1.847	34.52	6165	1423.40	4.82
	80.%	41.10	7725	2.095	41.04	6491	1686.80	4.58
	90.%	40.78	9423	2.593	56.18	7147	2291.12	4.11
	100.%	40.42	11037	3.082	72.81	7726	2943.12	3.75
BGS-FW7215 KV200 20*10	40.%	44.27	2145	0.617	6.15	3468	272.19	7.88	/
	45.%	44.23	2677	0.744	8.16	3862	360.87	7.42
	50.%	44.16	3363	0.910	11.30	4322	499.16	6.74
	55.%	44.06	4093	1.083	15.29	4748	673.65	6.08
	60.%	43.99	4769	1.253	18.76	5157	825.33	5.78
	65.%	43.86	5773	1.535	25.02	5641	1097.33	5.26
	70.%	43.74	6646	1.813	30.86	6051	1349.86	4.93
	75.%	43.59	7630	2.108	37.90	6466	1652.12	4.62
	80.%	43.45	8479	2.350	44.57	6803	1936.48	4.38
	90.%	43.08	10381	2.901	61.70	7474	2658.50	3.90
	100.%	42.67	12188	3.439	80.63	8063	3440.97	3.54
BGS-FW7215 KV200 20*10	40.%	47.89	2464	0.692	6.97	3713	333.95	7.38	115
	45.%	47.85	3066	0.834	9.16	4124	438.13	7.00
	50.%	47.77	3842	1.024	12.53	4602	598.59	6.42
	55.%	47.69	4629	1.227	16.62	5082	792.70	5.84
	60.%	47.54	5721	1.527	23.11	5647	1098.68	5.21
	65.%	47.44	6549	1.785	28.18	6031	1336.89	4.90
	70.%	47.30	7535	2.095	34.76	6468	1644.07	4.58
	75.%	47.12	8706	2.431	43.28	6884	2039.31	4.27
	80.%	46.95	9693	2.714	51.19	7247	2403.45	4.03
	90.%	46.52	11886	3.354	71.10	7946	3307.89	3.59
	100.%	46.02	13850	3.978	93.67	8522	4310.69	3.21
BGS-FW7215 KV200 21*10	40.%	36.93	1822	0.528	5.36	2917	198.12	9.20	/
	45.%	36.88	2286	0.655	7.22	3244	266.16	8.59
	50.%	36.82	2920	0.856	10.16	3654	374.05	7.81
	55.%	36.75	3542	1.031	13.47	4025	495.18	7.16
	60.%	36.67	4198	1.221	17.10	4360	626.99	6.70
	65.%	36.59	4762	1.361	20.60	4664	753.95	6.32
	70.%	36.48	5492	1.561	25.92	5010	945.36	5.81
	75.%	36.36	6361	1.810	31.98	5380	1162.81	5.47
	80.%	36.20	7214	2.072	39.17	5722	1418.05	5.09
	90.%	35.89	8808	2.607	53.72	6296	1928.39	4.57
	100.%	35.54	10457	3.102	70.32	6784	2499.01	4.18
BGS-FW7215 KV200 21*10	40.%	41.86	2290	0.621	6.55	3247	274.18	8.35	121
	45.%	41.81	2847	0.754	8.77	3613	366.60	7.77
	50.%	41.74	3561	0.930	12.04	4054	502.43	7.09
	55.%	41.66	4341	1.156	16.10	4466	670.60	6.48
	60.%	41.56	5126	1.378	20.57	4845	854.77	6.00
	65.%	41.46	5836	1.585	24.84	5168	1029.64	5.67
	70.%	41.28	7058	1.981	33.57	5658	1385.77	5.09
	75.%	41.12	8047	2.284	41.07	6026	1688.61	4.77
	80.%	40.96	8992	2.568	48.72	6332	1995.51	4.51
	90.%	40.57	10998	3.167	67.08	6930	2721.25	4.04
	100.%	40.12	12869	3.739	87.84	7450	3523.62	3.65
BGS-FW7215 KV220 19*10	40.%	43.93	1956	0.492	6.27	3667	275.62	7.10	89
	45.%	43.88	2469	0.612	8.37	4086	367.29	6.72
	50.%	43.82	3066	0.769	11.23	4542	492.26	6.23
	55.%	43.72	3795	0.948	15.46	5037	675.76	5.62
	60.%	43.62	4709	1.173	20.91	5583	911.80	5.16
	65.%	43.50	5408	1.349	25.56	5972	1111.85	4.86
	70.%	43.39	6277	1.579	31.66	6408	1373.76	4.57
	75.%	43.25	7139	1.798	38.52	6839	1665.86	4.29
	80.%	43.11	7991	2.019	45.43	7206	1958.91	4.08
	90.%	42.66	9688	2.511	62.78	7909	2678.19	3.62
	100.%	42.23	10729	3.102	84.85	8476	3582.90	2.99
BGS-FW7215 KV220 19*10	40.%	47.54	2301	0.574	7.13	3976	338.88	6.79	/
	45.%	47.48	2879	0.718	9.50	4414	451.09	6.38
	50.%	47.40	3584	0.899	12.85	4901	609.30	5.88
	55.%	47.25	4582	1.144	18.81	5513	888.73	5.16
	60.%	47.16	5435	1.360	23.96	5999	1129.80	4.81
	65.%	46.92	6257	1.569	29.01	6410	1361.27	4.60
	70.%	46.78	7181	1.806	35.26	6840	1649.36	4.35
	75.%	46.64	8218	2.086	43.92	7301	2048.81	4.01
	80.%	46.47	9185	2.353	52.44	7698	2436.89	3.77
	90.%	46.04	10521	3.016	74.62	8381	3435.64	3.06
	100.%	45.62	11865	3.611	98.87	9002	4510.54	2.63
BGS-FW7215 KV220 20*10	40.%	36.63	1648	0.417	5.48	3130	200.90	8.20	/
	45.%	36.58	2068	0.518	7.23	3484	264.33	7.82
	50.%	36.53	2609	0.651	9.91	3904	361.83	7.21
	55.%	36.44	3207	0.798	13.37	4302	487.14	6.58
	60.%	36.36	3782	0.942	16.56	4649	602.21	6.28
	65.%	36.35	4300	1.074	19.42	4965	705.98	6.09
	70.%	36.18	4998	1.241	24.65	5335	892.04	5.60
	75.%	36.02	5953	1.482	32.28	5803	1162.80	5.12
	80.%	35.80	6588	1.642	37.57	6109	1344.80	4.90
	90.%	35.57	8054	2.018	50.95	6738	1812.52	4.44
	100.%	35.27	9551	2.405	66.48	7277	2344.83	4.07
BGS-FW7215 KV220 20*10	40.%	41.55	2091	0.523	6.52	3502	270.85	7.72	83
	45.%	41.50	2607	0.650	8.64	3887	358.67	7.27
	50.%	41.42	3279	0.815	11.86	4341	491.36	6.67
	55.%	41.30	3995	0.994	15.88	4777	655.99	6.09
	60.%	41.22	4702	1.167	19.80	5168	816.29	5.76
	65.%	40.99	5585	1.392	25.92	5642	1062.24	5.26
	70.%	40.86	6459	1.611	32.05	6041	1309.67	4.93
	75.%	40.72	7418	1.855	39.64	6446	1614.06	4.60
	80.%	40.61	8248	2.066	46.34	6785	1881.77	4.38
	90.%	40.26	10122	2.555	63.70	7455	2564.62	3.95
	100.%	39.89	11884	3.031	83.10	8027	3314.87	3.59
BGS-FW7215 KV220 20*10	40.%	43.91	2279	0.570	7.02	3669	308.23	7.40	/
	45.%	43.87	2844	0.710	9.22	4071	404.34	7.03
	50.%	43.75	3565	0.887	12.76	4535	558.30	6.39
	55.%	43.64	4346	1.082	17.56	5000	766.54	5.67
	60.%	43.52	5367	1.338	23.53	5544	1024.26	5.24
	65.%	43.31	6114	1.530	28.33	5913	1226.94	4.98
	70.%	43.18	7065	1.775	35.07	6339	1514.33	4.67
	75.%	43.04	8106	2.033	42.91	6753	1846.71	4.39
	80.%	42.90	9042	2.279	50.75	7107	2177.07	4.15
	90.%	42.52	11019	2.814	69.80	7789	2967.96	3.71
	100.%	42.10	12900	3.363	91.96	8365	3871.53	3.33
BGS-FW7215 KV220 20*10	40.%	47.54	2626	0.659	7.87	3926	373.90	7.02	87
	45.%	47.48	3261	0.809	10.47	4344	496.90	6.56
	50.%	47.40	4054	1.008	14.16	4820	671.27	6.04
	55.%	47.19	5025	1.249	20.06	5358	946.89	5.31
	60.%	46.98	6179	1.536	26.61	5900	1250.14	4.94
	65.%	46.82	7102	1.775	32.71	6320	1531.71	4.64
	70.%	46.72	8184	2.049	39.99	6759	1868.31	4.38
	75.%	46.56	9348	2.351	49.17	7188	2289.33	4.08
	80.%	46.36	10505	2.655	59.21	7570	2745.12	3.83
	90.%	45.96	12511	3.239	80.46	8264	3697.56	3.38
	100.%	45.48	14307	3.872	106.60	8859	4848.68	2.95
BGS-FW7215 KV220 20*10	40.%	36.58	1925	0.500	6.27	3085	229.40	8.39	/
	45.%	36.52	2416	0.624	8.34	3427	304.46	7.94
	50.%	36.43	3076	0.793	11.87	3839	432.36	7.11
	55.%	36.35	3743	0.966	15.49	4224	563.21	6.65
	60.%	36.26	4422	1.140	19.70	4576	714.16	6.19
	65.%	36.15	5030	1.294	23.55	4881	851.35	5.91
	70.%	35.94	5849	1.505	29.26	5228	1051.67	5.56
	75.%	35.76	6923	1.781	38.20	5665	1365.89	5.07
	80.%	35.62	7740	1.995	45.04	5958	1604.00	4.83
	90.%	35.32	9407	2.442	61.32	6541	2165.99	4.34
	100.%	34.98	10944	2.857	78.82	7040	2756.77	3.97
BGS-FW7215 KV220 20*10	40.%	41.53	2419	0.622	7.47	3442	310.30	7.80	84
	45.%	41.46	3025	0.778	9.94	3822	412.31	7.34
	50.%	41.30	3763	0.970	13.73	4247	567.18	6.63
	55.%	41.13	4635	1.192	18.57	4678	763.90	6.07
	60.%	41.01	5465	1.409	23.67	5063	970.90	5.63
	65.%	40.85	6568	1.688	31.16	5534	1272.87	5.16
	70.%	40.76	7540	1.941	38.06	5916	1551.35	4.86
	75.%	40.55	8605	2.223	46.97	6293	1904.43	4.52
	80.%	40.40	9542	2.479	55.28	6608	2233.35	4.27
	90.%	40.03	11585	3.042	75.93	7216	3039.83	3.81
	100.%	39.59	13551	3.615	99.67	7726	3945.57	3.43
BGS-FW7215 KV245 18*10	40.%	36.88	1721	0.508	6.74	3681	248.78	6.92	/
	45.%	36.83	2207	0.705	9.24	4147	340.17	6.49
	50.%	36.75	2763	0.862	12.77	4629	469.25	5.89
	55.%	36.68	3291	1.009	15.99	5048	586.52	5.61
	60.%	36.56	4015	1.215	21.67	5568	792.09	5.07
	65.%	36.45	4703	1.391	26.84	6014	978.43	4.81
	70.%	36.33	5324	1.550	32.57	6451	1183.31	4.50
	75.%	36.18	5832	1.779	39.66	6807	1434.73	4.07
	80.%	36.04	6425	1.989	46.63	7180	1680.64	3.82
	90.%	35.66	7610	2.449	64.50	7864	2299.79	3.31
	100.%	35.57	7821	2.524	67.85	7977	2413.58	3.24
BGS-FW7215 KV245 18*10	40.%	41.84	2137	0.567	7.90	4114	330.42	6.47	74
	45.%	41.77	2721	0.730	10.92	4638	456.05	5.97
	50.%	41.67	3402	0.918	15.09	5175	629.07	5.41
	55.%	41.54	4282	1.174	20.97	5769	871.01	4.92
	60.%	41.45	4969	1.314	25.77	6209	1068.30	4.65
	65.%	41.31	5797	1.569	32.54	6707	1344.19	4.31
	70.%	41.12	6344	1.859	41.06	7150	1688.62	3.76
	75.%	40.94	7040	2.124	49.54	7554	2028.15	3.47
	80.%	40.76	7765	2.379	58.37	7949	2379.15	3.26
	90.%	40.24	8817	3.062	82.34	8659	3313.24	2.66
	100.%	40.14	9037	3.161	86.09	8775	3455.73	2.62
BGS-FW7215 KV245 18*10	40.%	43.99	2015	0.504	7.00	3993	307.94	6.54	/
	45.%	43.93	2520	0.626	9.34	4450	410.23	6.14
	50.%	43.88	3104	0.769	12.31	4934	540.14	5.75
	55.%	43.74	3984	0.990	17.92	5570	784.05	5.08
	60.%	43.65	4558	1.215	23.09	6033	1007.86	4.52
	65.%	43.55	5090	1.411	28.07	6440	1222.32	4.16
	70.%	43.42	5830	1.628	34.50	6882	1497.91	3.89
	75.%	43.26	6674	1.880	42.65	7350	1844.98	3.62
	80.%	43.12	7392	2.103	50.14	7756	2161.86	3.42
	90.%	42.70	8268	2.660	70.56	8461	3013.03	2.74
	100.%	42.28	9570	3.149	91.76	9113	3879.71	2.47
BGS-FW7215 KV245 18*10	40.%	47.61	2347	0.582	7.86	4301	374.23	6.27	102
	45.%	47.55	2893	0.724	10.34	4777	491.65	5.89
	50.%	47.46	3586	0.896	14.05	5307	666.98	5.38
	55.%	47.34	4455	1.163	20.34	5942	962.73	4.63
	60.%	47.22	5157	1.423	26.29	6457	1241.45	4.15
	65.%	47.11	5842	1.637	32.06	6888	1510.05	3.87
	70.%	46.97	6691	1.886	39.37	7369	1848.91	3.62
	75.%	46.78	7644	2.184	48.87	7855	2286.20	3.34
	80.%	46.58	7992	2.523	59.46	8232	2769.41	2.89
	90.%	46.10	9486	3.124	82.27	8987	3793.00	2.50
	100.%	45.61	10835	3.648	105.95	9660	4832.76	2.24
BGS-FW7215 KV245 19*10	40.%	30.02	1343	0.364	5.56	3037	167.04	8.04	/
	45.%	29.96	1735	0.461	7.93	3453	237.48	7.31
	50.%	29.91	2169	0.572	10.57	3856	316.06	6.86
	55.%	29.85	2588	0.673	13.32	4192	397.41	6.52
	60.%	29.78	3019	0.781	16.28	4523	484.90	6.23
	65.%	29.70	3560	0.917	20.48	4890	608.15	5.85
	70.%	29.58	4167	1.080	25.75	5281	761.79	5.47
	75.%	29.46	4813	1.256	31.75	5653	935.15	5.15
	80.%	29.34	5392	1.409	37.38	5969	1096.73	4.92
	90.%	29.06	6559	1.744	50.51	6566	1467.90	4.47
	100.%	29.01	6750	1.802	52.79	6661	1531.50	4.41
BGS-FW7215 KV245 19*10	40.%	33.30	1611	0.406	6.35	3332	211.62	7.62	54
	45.%	33.24	2087	0.524	8.96	3771	297.74	7.01
	50.%	33.18	2613	0.651	12.23	4208	405.85	6.44
	55.%	33.10	3133	0.777	15.64	4589	517.67	6.05
	60.%	33.02	3621	0.915	18.94	4930	625.47	5.79
	65.%	32.92	4262	1.089	23.78	5348	782.80	5.45
	70.%	32.75	5114	1.318	31.64	5840	1036.33	4.93
	75.%	32.63	5760	1.492	37.45	6183	1222.02	4.71
	80.%	32.50	6436	1.681	44.11	6516	1433.33	4.49
	90.%	32.16	7842	2.113	59.75	7143	1921.70	4.08
	100.%	32.10	8041	2.184	62.45	7248	2004.76	4.01
BGS-FW7215 KV245 19*10	40.%	37.00	1948	0.486	7.40	3658	273.79	7.12	/
	45.%	36.93	2518	0.629	10.27	4120	379.20	6.64
	50.%	36.84	3157	0.795	14.26	4600	525.52	6.01
	55.%	36.77	3759	0.956	17.98	5010	661.26	5.68
	60.%	36.64	4599	1.186	24.24	5528	888.21	5.18
	65.%	36.49	5368	1.392	30.52	5964	1113.70	4.82
	70.%	36.35	6188	1.629	37.40	6386	1359.62	4.55
	75.%	36.20	6950	1.850	44.44	6748	1608.74	4.32
	80.%	36.04	7726	2.079	52.24	7102	1882.53	4.10
	90.%	35.63	9385	2.579	71.46	7768	2545.65	3.69
	100.%	35.55	9647	2.666	74.97	7871	2664.69	3.62
BGS-FW7215 KV245 19*10	40.%	41.89	2455	0.660	8.79	4076	368.04	6.67	83
	45.%	41.83	3130	0.824	12.07	4585	505.00	6.20
	50.%	41.70	3907	1.015	17.43	5112	726.73	5.38
	55.%	41.57	4923	1.285	23.82	5706	990.34	4.97
	60.%	41.45	5716	1.517	29.40	6148	1218.66	4.69
	65.%	41.30	6667	1.802	36.78	6626	1519.01	4.39
	70.%	41.11	7603	2.075	45.43	7072	1867.76	4.07
	75.%	40.93	8527	2.344	54.28	7471	2221.67	3.84
	80.%	40.71	9541	2.657	64.61	7843	2630.00	3.63
	90.%	40.16	10850	3.421	90.00	8525	3614.52	3.00
	100.%	40.03	11060	3.570	95.30	8608	3814.64	2.90
BGS-FW7215 KV245 20*10	40.%	29.90	1537	0.407	6.16	2998	184.06	8.35	/
	45.%	29.86	1987	0.523	8.62	3407	257.51	7.72
	50.%	29.77	2497	0.651	11.98	3802	356.53	7.01
	55.%	29.72	2970	0.778	14.81	4142	440.11	6.75
	60.%	29.65	3450	0.902	18.10	4464	536.68	6.43
	65.%	29.55	4054	1.076	22.83	4830	674.59	6.01
	70.%	29.43	4746	1.256	28.57	5205	840.65	5.65
	75.%	29.29	5431	1.434	35.23	5565	1031.77	5.26
	80.%	29.16	6037	1.610	41.33	5870	1205.08	5.01
	90.%	28.85	7360	2.021	55.92	6440	1613.41	4.56
	100.%	28.79	7601	2.094	58.61	6526	1687.36	4.50
BGS-FW7215 KV245 20*10	40.%	33.18	1850	0.460	7.02	3286	232.98	7.94	63
	45.%	33.12	2392	0.600	9.88	3719	327.13	7.31
	50.%	33.04	2993	0.770	13.41	4152	443.15	6.76
	55.%	32.95	3579	0.920	17.21	4535	566.99	6.31
	60.%	32.87	4140	1.067	21.01	4867	690.54	6.00
	65.%	32.74	4889	1.265	27.05	5278	885.64	5.52
	70.%	32.57	5817	1.530	35.23	5743	1147.73	5.07
	75.%	32.43	6525	1.737	41.83	6073	1356.65	4.81
	80.%	32.27	7267	1.952	49.37	6395	1593.39	4.56
	90.%	31.91	8804	2.384	66.33	6996	2116.60	4.16
	100.%	31.83	9116	2.474	69.76	7086	2220.66	4.11
BGS-FW7215 KV245 20*10	40.%	36.68	1899	0.470	6.54	3340	239.88	7.92	/
	45.%	36.63	2359	0.580	8.63	3718	316.20	7.46
	50.%	36.56	2939	0.723	11.65	4141	426.05	6.90
	55.%	36.48	3599	0.888	15.52	4576	565.99	6.36
	60.%	36.41	4195	1.040	19.16	4933	697.70	6.01
	65.%	36.32	4813	1.191	23.31	5270	846.73	5.69
	70.%	36.14	5813	1.445	31.45	5772	1136.53	5.11
	75.%	35.93	6658	1.651	38.30	6131	1375.97	4.84
	80.%	35.76	7416	1.848	44.97	6458	1608.22	4.61
	90.%	35.43	8984	2.243	60.66	7078	2149.47	4.18
	100.%	35.11	10560	2.662	78.26	7626	2748.16	3.84
BGS-FW7215 KV245 20*10	40.%	41.61	2366	0.586	7.78	3708	323.73	7.31	94
	45.%	41.54	2940	0.732	10.33	4123	429.13	6.85
	50.%	41.47	3625	0.900	13.98	4581	579.51	6.26
	55.%	41.35	4423	1.096	19.09	5059	789.10	5.61
	60.%	41.22	5468	1.360	25.67	5600	1058.16	5.17
	65.%	41.11	6296	1.565	31.22	5979	1283.48	4.91
	70.%	40.91	7247	1.804	38.23	6388	1564.16	4.63
	75.%	40.70	8236	2.068	46.80	6796	1904.86	4.32
	80.%	40.51	9170	2.295	54.90	7132	2224.03	4.12
	90.%	40.13	11017	2.803	74.50	7809	2990.04	3.68
	100.%	39.71	12745	3.299	96.51	8387	3831.99	3.33
BGS-FW7215 KV245 21*10	40.%	29.94	1864	0.506	7.03	2959	210.53	8.86	/
	45.%	29.87	2412	0.674	10.07	3362	300.93	8.02
	50.%	29.79	3004	0.854	13.81	3747	411.35	7.31
	55.%	29.71	3603	1.019	17.70	4084	525.93	6.85
	60.%	29.63	4170	1.185	21.58	4398	639.36	6.52
	65.%	29.51	4883	1.367	27.36	4747	807.45	6.05
	70.%	29.35	5660	1.586	34.63	5109	1016.60	5.57
	75.%	29.21	6415	1.808	41.61	5433	1215.49	5.28
	80.%	29.04	7184	2.043	49.77	5730	1445.12	4.97
	90.%	28.68	8620	2.508	66.70	6267	1912.94	4.51
	100.%	28.60	8911	2.593	69.91	6343	1999.91	4.46
BGS-FW7215 KV245 21*10	40.%	33.18	2210	0.567	8.13	3236	269.92	8.19	71
	45.%	33.10	2867	0.757	11.79	3662	390.28	7.35
	50.%	33.03	3582	0.947	15.73	4080	519.42	6.90
	55.%	32.93	4266	1.155	20.39	4462	671.49	6.35
	60.%	32.83	4941	1.342	25.14	4786	825.14	5.99
	65.%	32.68	5826	1.607	32.12	5174	1049.62	5.55
	70.%	32.47	6897	1.933	42.07	5614	1365.93	5.05
	75.%	32.31	7710	2.181	49.79	5924	1608.72	4.79
	80.%	32.12	8552	2.429	58.67	6225	1884.23	4.54
	90.%	31.70	10240	2.926	78.55	6785	2489.66	4.11
	100.%	31.59	10597	3.034	82.89	6860	2618.52	4.05
BGS-FW7215 KV270 19*10	40.%	29.94	1350	0.429	5.73	2998	171.50	7.87	/
	45.%	29.90	1698	0.516	7.50	3342	224.23	7.57
	50.%	29.85	2120	0.642	10.11	3741	301.62	7.03
	55.%	29.78	2641	0.826	13.49	4140	401.66	6.58
	60.%	29.71	3088	0.947	16.68	4471	495.44	6.23
	65.%	29.64	3527	1.059	20.01	4778	592.91	5.95
	70.%	29.54	4072	1.218	24.64	5144	727.72	5.60
	75.%	29.40	4798	1.401	31.45	5591	924.50	5.19
	80.%	29.28	5309	1.553	36.82	5900	1078.25	4.92
	90.%	29.02	6481	1.899	49.51	6497	1437.06	4.51
	100.%	28.72	7615	2.226	63.80	7014	1832.15	4.16
BGS-FW7215 KV270 19*10	40.%	32.95	1608	0.412	6.46	3285	212.77	7.56	67
	45.%	32.91	2013	0.510	8.45	3656	278.05	7.24
	50.%	32.84	2528	0.665	11.47	4080	376.84	6.71
	55.%	32.76	3073	0.810	15.30	4510	501.32	6.13
	60.%	32.69	3622	0.950	18.89	4855	617.46	5.87
	65.%	32.60	4131	1.090	22.71	5190	740.50	5.58
	70.%	32.45	4925	1.302	29.88	5692	969.63	5.08
	75.%	32.32	5613	1.509	36.42	6070	1177.06	4.77
	80.%	32.18	6249	1.697	42.86	6405	1379.00	4.53
	90.%	31.87	7567	2.074	57.48	7033	1831.87	4.13
	100.%	31.51	8937	2.471	74.61	7570	2350.55	3.80
BGS-FW7215 KV270 19*10	40.%	36.63	1888	0.474	7.08	3576	259.20	7.28	/
	45.%	36.56	2368	0.594	9.48	3987	346.78	6.83
	50.%	36.48	2938	0.730	12.79	4437	466.66	6.30
	55.%	36.42	3610	0.902	17.00	4906	619.02	5.83
	60.%	36.34	4203	1.047	21.14	5294	768.40	5.47
	65.%	36.18	5051	1.262	28.09	5789	1016.33	4.97
	70.%	36.06	5840	1.463	34.64	6207	1249.20	4.68
	75.%	35.92	6639	1.671	41.92	6599	1505.67	4.41
	80.%	35.79	7372	1.857	48.88	6935	1749.38	4.21
	90.%	35.44	8886	2.265	66.10	7602	2342.85	3.79
	100.%	35.03	10098	2.704	86.05	8172	3014.02	3.35
BGS-FW7215 KV270 19*10	40.%	41.59	2363	0.590	8.51	4011	353.76	6.68	91
	45.%	41.52	2944	0.730	11.30	4459	469.14	6.28
	50.%	41.45	3671	0.911	15.44	4941	640.07	5.74
	55.%	41.27	4668	1.163	22.58	5581	931.98	5.01
	60.%	41.16	5552	1.386	28.47	6054	1171.87	4.74
	65.%	41.04	6396	1.597	34.55	6470	1417.85	4.51
	70.%	40.88	7275	1.825	42.19	6889	1724.90	4.22
	75.%	40.70	8292	2.104	51.67	7325	2103.00	3.94
	80.%	40.42	9151	2.329	60.75	7690	2455.86	3.73
	90.%	39.96	10434	2.907	84.33	8352	3370.15	3.10
	100.%	39.43	11327	3.430	108.82	8928	4290.65	2.64
BGS-FW7215 KV270 20*10	40.%	29.98	1565	0.418	6.21	2993	186.13	8.41	/
	45.%	29.94	1939	0.510	8.13	3329	243.29	7.97
	50.%	29.88	2447	0.632	11.10	3722	331.58	7.38
	55.%	29.78	2998	0.775	14.93	4107	444.56	6.75
	60.%	29.72	3506	0.913	18.34	4441	544.92	6.44
	65.%	29.64	4008	1.048	22.15	4744	656.50	6.11
	70.%	29.52	4643	1.210	27.46	5088	810.81	5.73
	75.%	29.36	5479	1.461	35.52	5527	1042.99	5.25
	80.%	29.23	6072	1.636	41.46	5820	1211.91	5.01
	90.%	28.93	7363	2.016	55.63	6396	1609.59	4.57
	100.%	28.61	8596	2.357	71.05	6895	2032.55	4.23
BGS-FW7215 KV270 20*10	40.%	32.94	1844	0.516	7.07	3248	232.92	7.92	69
	45.%	32.89	2323	0.634	9.32	3606	306.70	7.57
	50.%	32.81	2892	0.789	12.72	4034	417.47	6.93
	55.%	32.73	3528	0.964	16.90	4446	552.97	6.38
	60.%	32.64	4103	1.124	20.87	4801	681.29	6.02
	65.%	32.54	4692	1.277	25.43	5128	827.45	5.67
	70.%	32.36	5643	1.545	33.85	5614	1095.59	5.15
	75.%	32.22	6410	1.771	40.93	5973	1318.92	4.86
	80.%	32.07	7123	1.987	47.90	6298	1536.21	4.64
	90.%	31.72	8607	2.409	64.49	6898	2045.83	4.21
	100.%	31.33	10127	2.869	83.09	7414	2602.92	3.89
BGS-FW7215 KV270 20*10	55.%	36.36	4077	1.014	19.03	4848	691.89	5.89	/
	60.%	36.27	4756	1.181	23.56	5228	854.41	5.57
	65.%	36.12	5736	1.423	31.31	5724	1131.13	5.07
	70.%	35.98	6627	1.651	38.64	6121	1390.30	4.77
	75.%	35.82	7502	1.870	46.65	6499	1671.18	4.49
	80.%	35.68	8290	2.077	54.59	6836	1947.46	4.26
	90.%	35.28	10056	2.540	73.61	7461	2597.12	3.87
	100.%	34.81	11553	2.945	93.89	8007	3268.51	3.53
BGS-FW7215 KV270 20*10	40.%	41.57	2704	0.668	9.36	3963	388.95	6.95	106
	45.%	41.51	3333	0.822	12.32	4394	511.23	6.52
	50.%	41.41	4126	1.025	16.87	4877	698.68	5.91
	55.%	41.22	5334	1.324	25.28	5495	1041.92	5.12
	60.%	41.11	6329	1.578	31.76	5956	1305.57	4.85
	65.%	40.97	7262	1.801	38.69	6366	1584.90	4.58
	70.%	40.78	8248	2.062	47.43	6779	1934.11	4.26
	75.%	40.62	9303	2.337	57.09	7188	2318.59	4.01
	80.%	40.39	10329	2.607	67.27	7552	2716.96	3.80
	90.%	39.87	12202	3.138	90.82	8205	3621.32	3.37
	100.%	39.30	13795	3.680	117.24	8749	4607.41	2.99
BGS-FW7215 KV270 21*10	40.%	29.96	1847	0.514	7.05	2940	211.16	8.75	/
	45.%	29.91	2293	0.640	9.31	3268	278.39	8.24
	50.%	29.84	2894	0.834	12.72	3659	379.42	7.63
	55.%	29.74	3567	1.004	17.29	4028	514.30	6.94
	60.%	29.64	4191	1.196	21.72	4353	643.59	6.51
	65.%	29.57	4783	1.343	25.78	4654	762.18	6.28
	70.%	29.43	5462	1.539	32.17	4983	946.56	5.77
	75.%	29.27	6291	1.776	39.95	5341	1169.08	5.38
	80.%	29.09	7135	2.028	48.66	5676	1415.29	5.04
	90.%	28.72	8621	2.510	65.82	6204	1890.49	4.56
	100.%	28.34	9978	2.937	83.88	6666	2376.88	4.20
BGS-FW7215 KV270 21*10	40.%	32.85	2174	0.579	8.14	3188	267.46	8.13	73
	45.%	32.80	2705	0.720	10.72	3544	351.52	7.70
	50.%	32.71	3393	0.900	14.62	3951	478.24	7.10
	55.%	32.60	4163	1.136	20.05	4354	653.47	6.37
	60.%	32.49	4810	1.308	24.87	4711	808.15	5.95
	65.%	32.39	5509	1.517	30.11	5022	975.42	5.65
	70.%	32.19	6601	1.868	39.62	5464	1275.07	5.18
	75.%	32.01	7474	2.139	48.45	5819	1550.77	4.82
	80.%	31.83	8272	2.375	56.47	6119	1797.79	4.60
	90.%	31.42	9918	2.871	75.90	6672	2384.96	4.16
	100.%	30.97	11428	3.336	96.81	7156	2998.16	3.81

AT7215 Basic Data
Test Item:Long Shaft KV200	Weight (Incl. Cable):550g

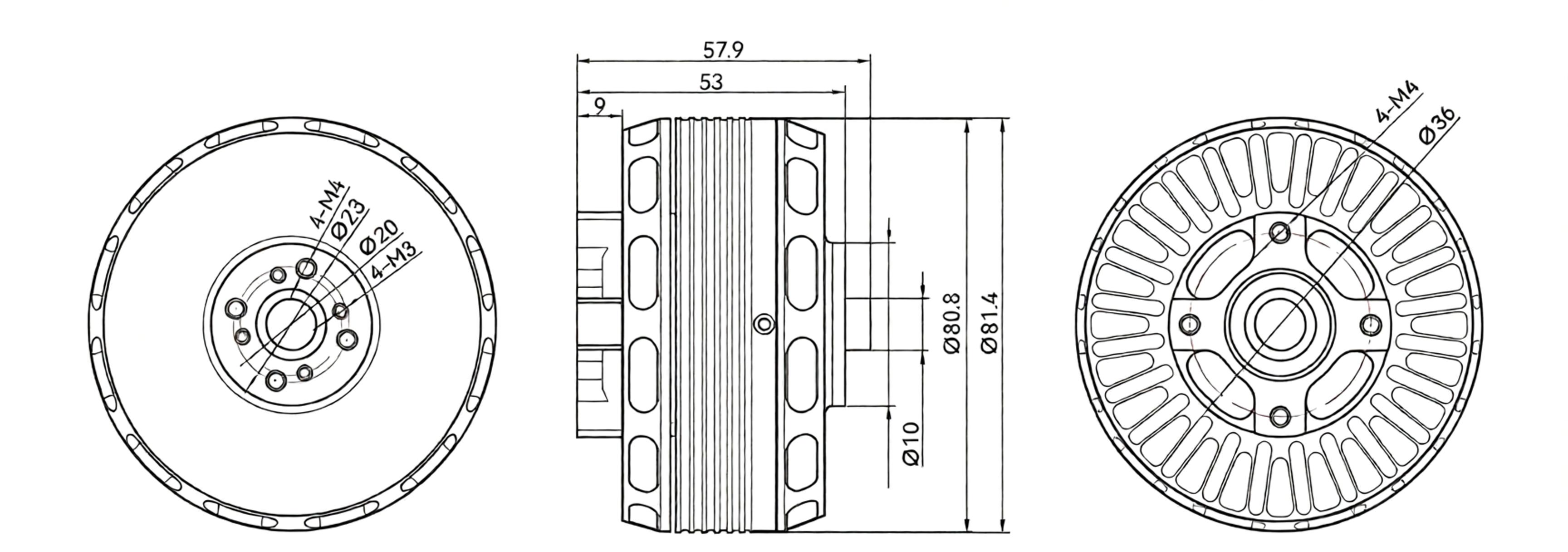

Motor Dimensions:Φ81.4*57.9mm	Internal Resistance:27mΩ
Shaft Diameter:IN: IN：10mm;OUT：10mm	Configuration:24N22P
Idle Current(10V):2.4A	Rated Voltage(Lipo)：10-12S

Fixed-Wing Motors

BGS-FW7215 200KV/245KV/270KV 14KG Payload bldc motor for 20inch Aerial drone

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Compare

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW7215	KV	W	A	g	g/W	/	S	A
	200	3065.09	71.55	10555	3.44	APC19*10	6	40
	200	3907.52	84.64	11572	2.96	APC19*10	6	40
	200	2088.34	58.37	8906	4.26	APC20*10	6	40
	200	2943.12	72.81	11037	3.75	APC20*10	6	40
	200	3440.97	80.63	12188	3.54	APC20*10	6	40
	200	4310.69	93.67	13850	3.21	APC20*10	6	40
	200	2499.01	70.32	10457	4.18	APC21*10	6	40
	200	3523.62	87.84	12869	3.65	APC21*10	6	40
	220	3582.90	84.85	10729	2.99	APC19*10	6	40
	220	4510.54	98.87	11865	2.63	APC19*10	6	40
	220	2344.83	66.48	9551	4.07	APC20*10	6	40
	220	3314.87	83.10	11884	3.59	APC20*10	6	40
	220	3871.53	91.96	12900	3.33	APC20*10	6	40
	220	4848.68	106.60	14307	2.95	APC20*10	6	40
	220	2756.77	78.82	10944	3.97	APC20*10	6	40
	220	3945.57	99.67	13551	3.43	APC20*10	6	40
	245	2413.58	67.85	7821	3.24	APC18*10	6	40
	245	3455.73	86.09	9037	2.62	APC18*10	6	40
	245	3879.71	91.76	9570	2.47	APC18*10	6	40
	245	4832.76	105.95	10835	2.24	APC18*10	6	40
	245	1531.50	52.79	6750	4.41	APC19*10	6	40
	245	2004.76	62.45	8041	4.01	APC19*10	6	40
	245	2664.69	74.97	9647	3.62	APC19*10	6	40
	245	3814.64	95.30	11060	2.90	APC19*10	6	40
	245	1687.36	58.61	7601	4.50	APC20*10	6	40
	245	2220.66	69.76	9116	4.11	APC20*10	6	40
	245	2748.16	78.26	10560	3.84	APC20*10	6	40
	245	3831.99	96.51	12745	3.33	APC20*10	6	40
	245	1999.91	69.91	8911	4.46	APC21*10	6	40
	245	2618.52	82.89	10597	4.05	APC21*10	6	40
	270	1832.15	63.80	7615	4.16	APC19*10	6	40
	270	2350.55	74.61	8937	3.80	APC19*10	6	40
	270	3014.02	86.05	10098	3.35	APC19*10	6	40
	270	4290.65	108.82	11327	2.64	APC19*10	6	40
	270	2032.55	71.05	8596	4.23	APC21*10	6	40
	270	2602.92	83.09	10127	3.89	APC21*10	6	40
	270	3268.51	93.89	11553	3.53	APC21*10	6	40
	270	4607.41	117.24	13795	2.99	APC21*10	6	40
	270	2376.88	83.88	9978	4.20	APC21*10	6	40
	270	2998.16	96.81	11428	3.81	APC21*10	6	40

Fixed-Wing Motors

BGS-FW7215 200KV/245KV/270KV 14KG Payload bldc motor for 20inch Aerial drone

CONTACT FORM

ANYTHING YOU COULDN’T FIND？ Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？ Talk with one of our sales representatives

Compare

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives
