Home > Product > Fixed-Wing Motors > BGS-FW2310 1450KV 2200KV 1.2KG Payload UAV Motor for 7inch drones

Fixed-Wing Motors

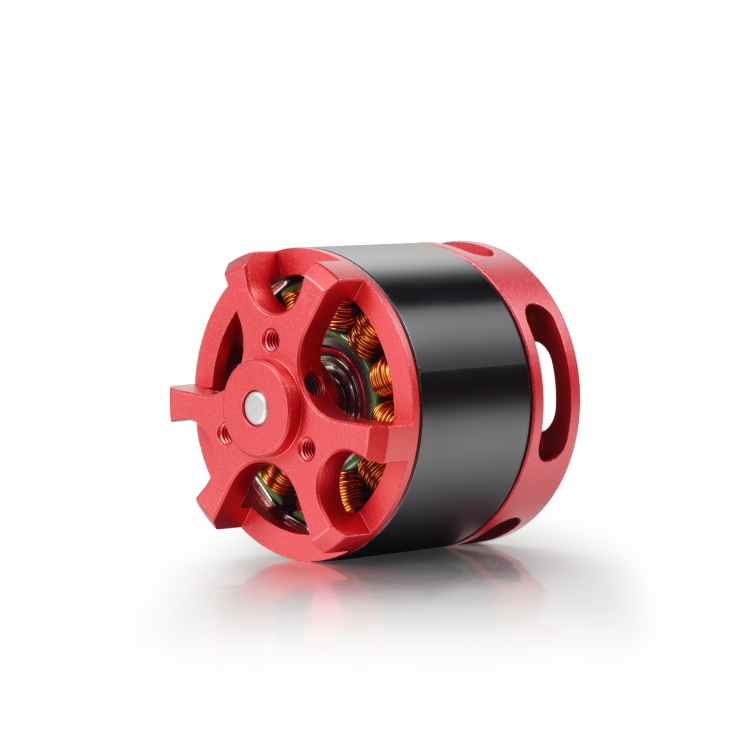

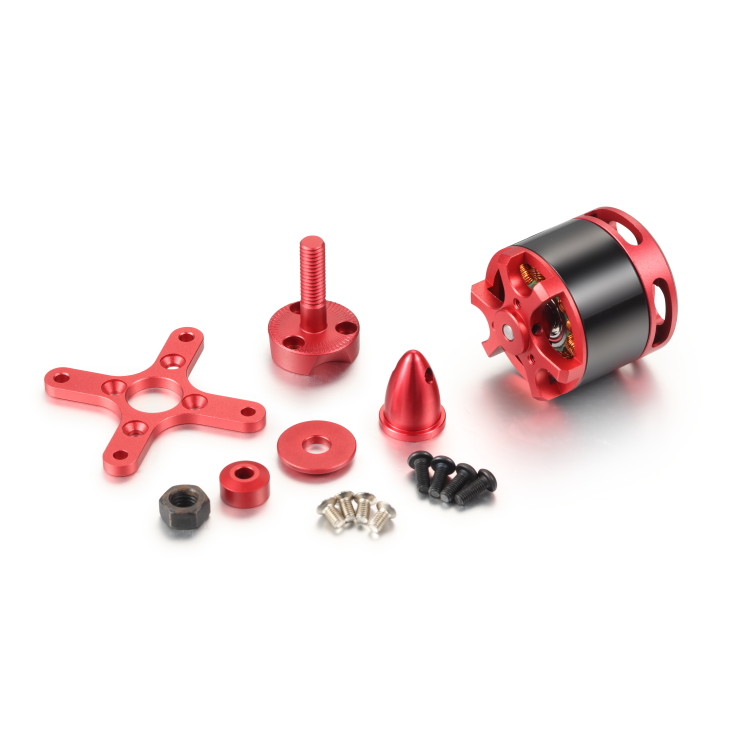

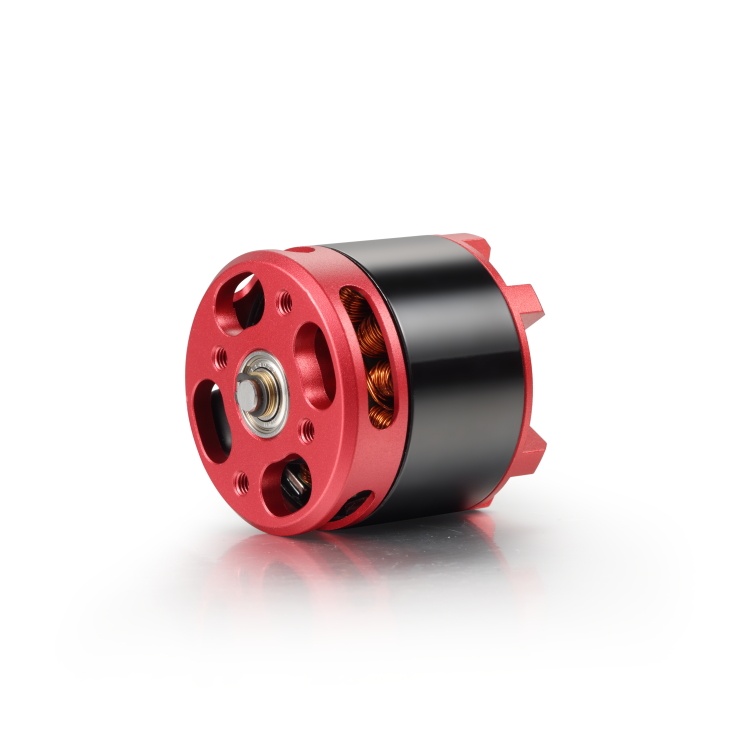

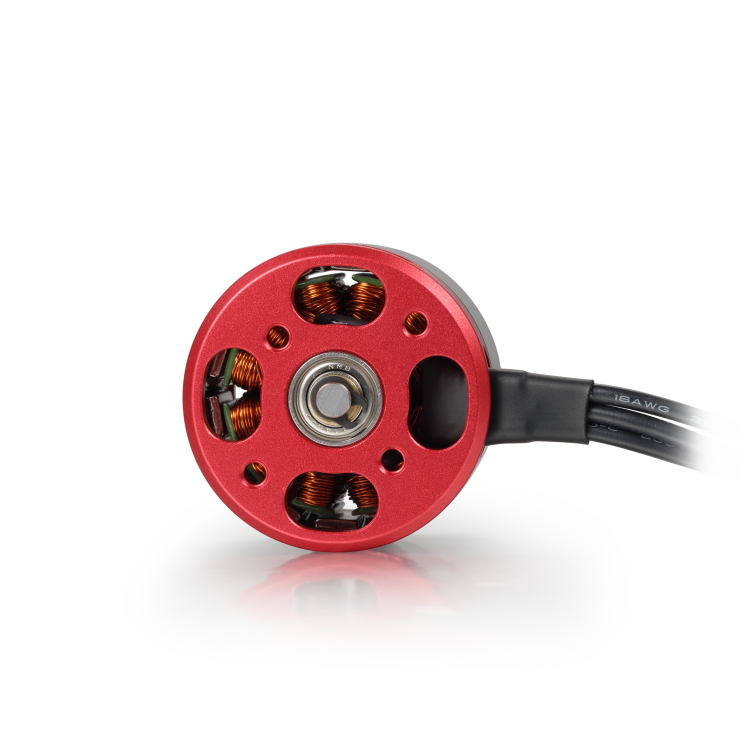

BGS-FW2310 1450KV 2200KV 1.2KG Payload UAV Motor for 7inch drones

Product Number:FW2310

get free solutions compare

These long-shaft brushless motors include KV1450 and KV2600 variants with 12N14P slot-pole structure. Lightweight 47/48g units run on 2-4S LiPo, delivering steady 23A/28A max current for compact small fixed-wing aircraft.

Motor dimensions
28.8*40.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
4mm
Motor weight
47g
Service life
＞1000h

Technical Specifications

AT2308 Basic Data
Motor Dimensions:28.8*40.5mm	Lead Wire Specification:AWG 100mm
Shaft Diameter:4mm	No-load Current (10V):0.8A
Maximum Continuous Power:87W	Weight (with Wire):47g
Phase-to-phase Internal Resistance:90m	Slot-pole Configuration:12N14P
Rated Operating Voltage (Lipo):2-4S	Maximum Current (180s):23A

test data

Model	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency
AT2310KV1450	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)
	40%	11.32	4.21	47.47	5990	0.049	294	6.19
	45%	11.31	4.97	56.05	6347	0.055	333	5.93
	50%	11.29	5.78	65.13	6699	0.06	371	5.69
	55%	11.26	6.79	76.33	7108	0.068	419	5.48
	60%	11.24	7.95	89.12	7586	0.074	481	5.39
	65%	11.21	9.27	103.65	7978	0.083	554	5.34
	70%	11.18	10.57	117.97	8343	0.091	607	5.15
	75%	11.14	12.11	134.73	8709	0.1	666	4.94
	80%	11.09	13.98	154.89	9099	0.11	730	4.72
	90%	11	17.98	197.61	9737	0.128	843	4.27
	100%	10.97	19.07	209.07	9858	0.132	867	4.15

Compared with multirotor aircraft, fixed-wing UAVs typically operate for longer durations, fly over greater distances, and maintain higher cruising speeds. These mission profiles place greater demands on propulsion efficiency and continuous power output. BGS motors are optimized to operate efficiently across a wide RPM range, helping improve flight endurance while maintaining stable performance throughout extended missions.

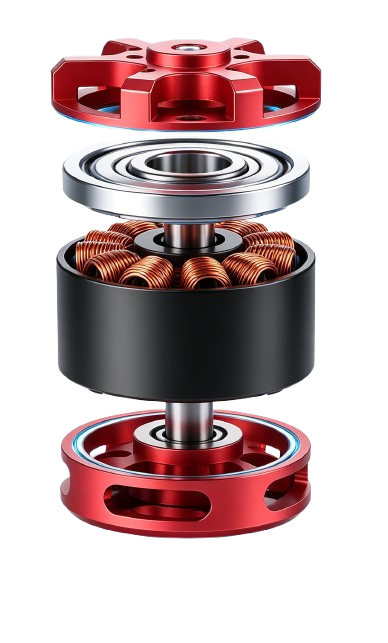

Each motor is manufactured using high-grade permanent magnets, precision CNC-machined aluminum components, premium bearings, and high-temperature copper windings. The lightweight yet robust structure reduces overall aircraft weight while ensuring excellent mechanical strength and vibration resistance, even under continuous high-load operation.

Our fixed-wing UAV motors are compatible with various propeller sizes, ESC configurations, and battery systems, allowing seamless integration into different aircraft platforms. Whether used in hand-launched UAVs, VTOL fixed-wing aircraft, mapping drones, surveillance systems, environmental monitoring platforms, or long-range logistics UAVs, they deliver dependable propulsion and smooth flight characteristics.

To meet diverse project requirements, BGS also offers OEM and ODM customization services, including KV value adjustment, shaft configuration, mounting dimensions, winding optimization, waterproof protection, and other application-specific modifications. Every motor undergoes rigorous quality inspection and dynamic balancing before shipment to ensure consistent performance, low vibration, and reliable operation in demanding environments.

Built for efficiency, durability, and precision, BGS fixed-wing UAV motors provide a dependable propulsion solution for next-generation autonomous and industrial UAV applications.
