BGS-FW1030 90KV 29KG Payload drone motor for 27inch Vertical Takeoff and Landing Drone

Product Number:FW1030

get free solutions compare

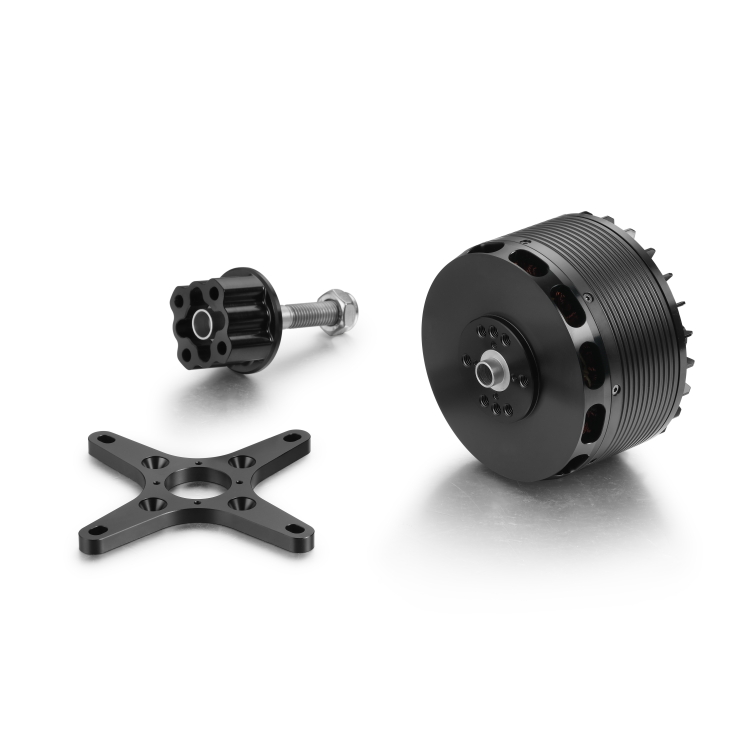

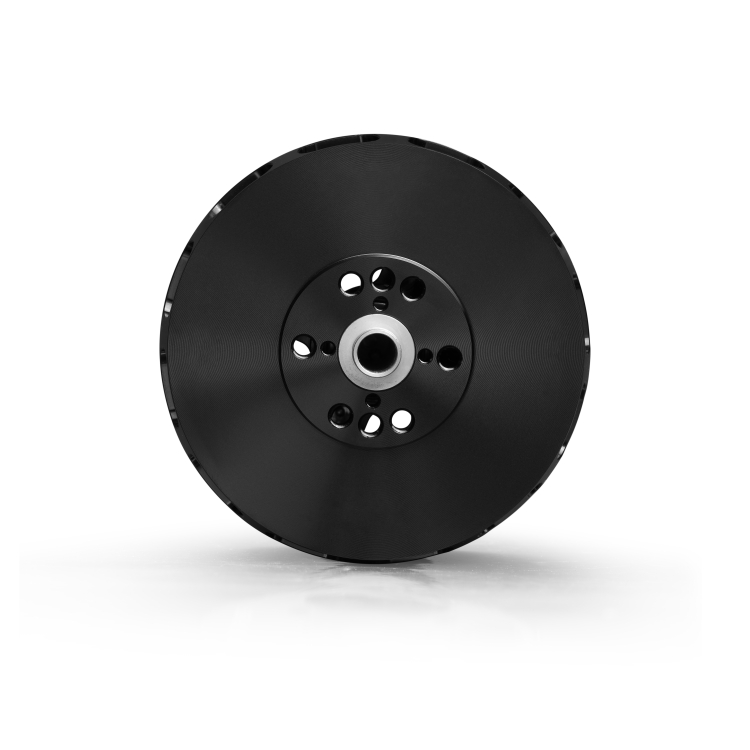

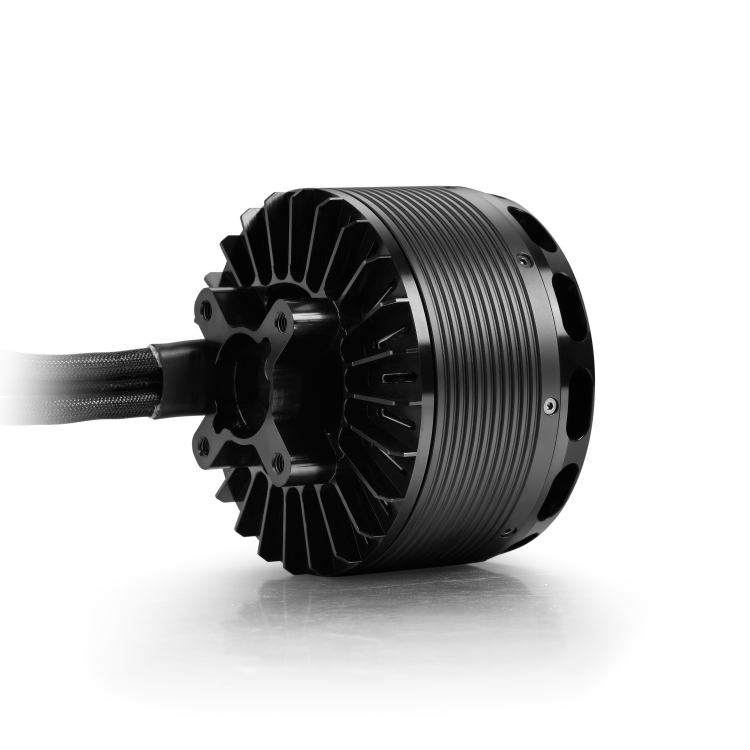

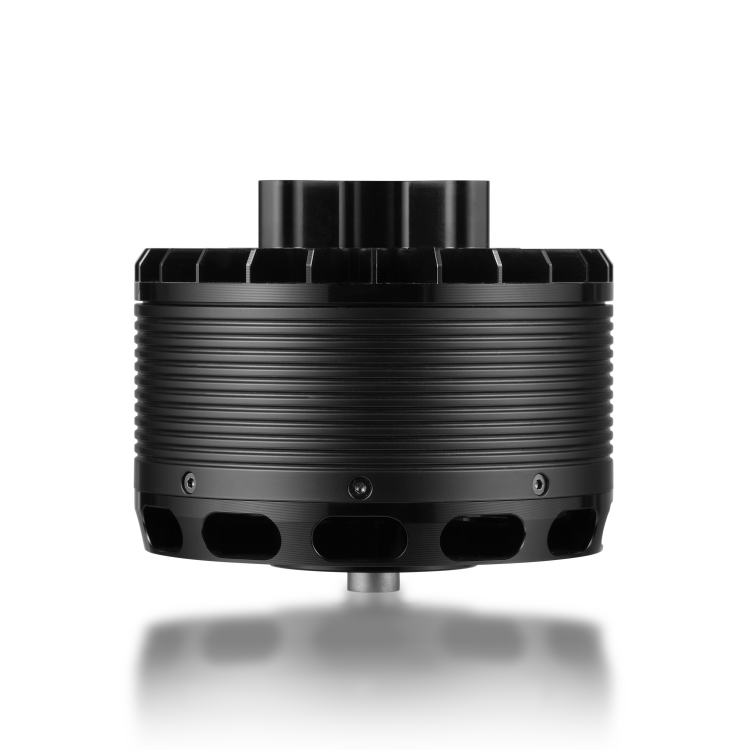

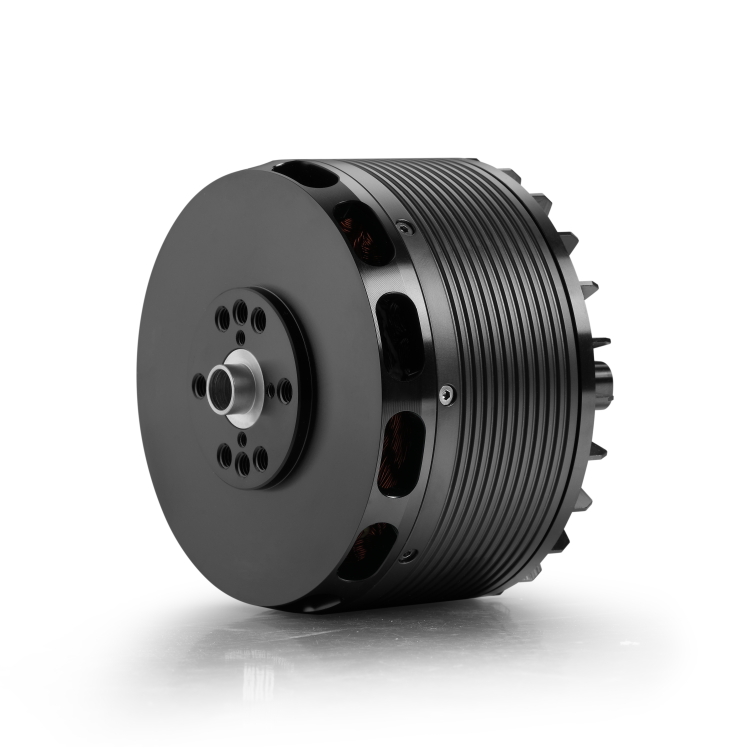

AT1030 high-torque brushless motor adopts 24N28P slot-pole structure, supports 24S LiPo power, outputs 3911W continuous power with 28kg maximum thrust for super heavy-lift UAVs.

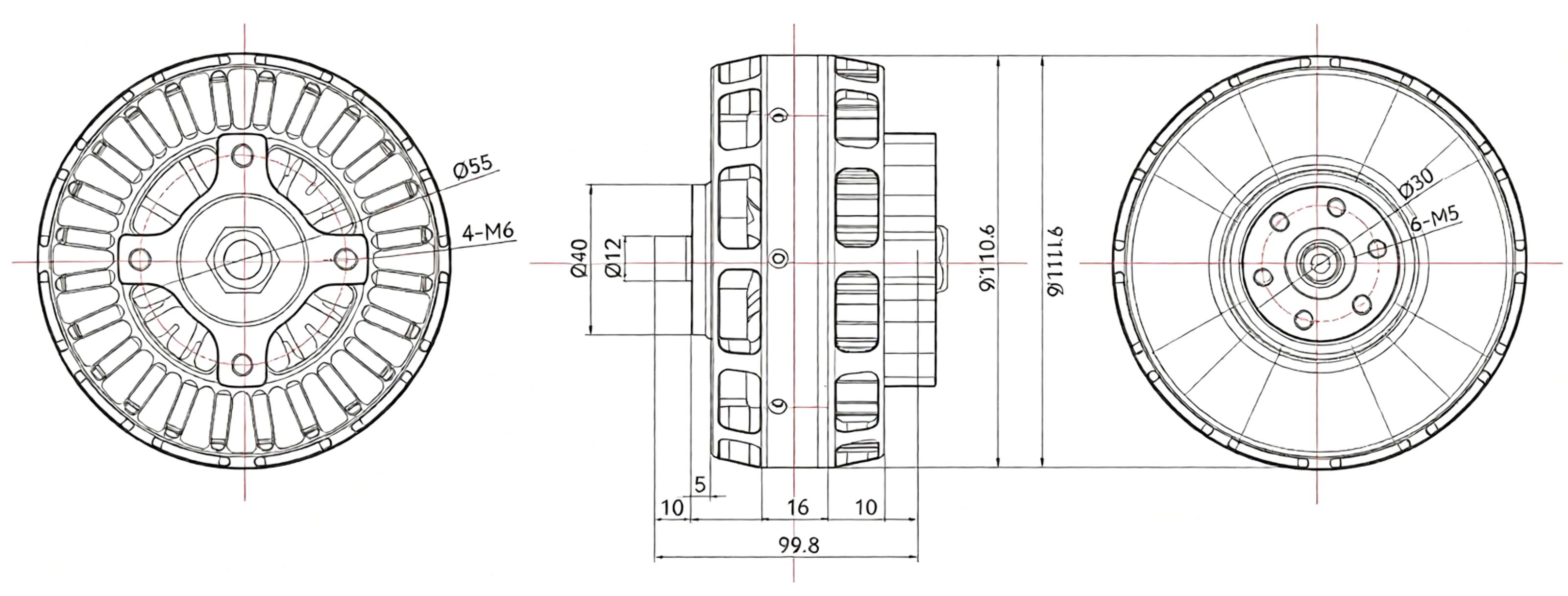

Motor dimensions
110.6*99.8mm
Number of slots
24N28P
Copper wire grade
220℃
Shaft diameter
12mm
Motor weight
1800g
Service life
＞1000h

Technical Specifications

AT1030 Basic Data
Coil Withstand Voltage：1000V/5s	Rotor Dynamic Balance Standard：≤30mg
Motor Model：AT1030	Packaging Dimensions：246162139mm
Motor Overall Dimensions：Φ110.6*99.8mm	KV Value:90
Stator Process：150°C High Temperature Resistant Coating	Maximum Continuous Power:3911W
Slot/Pole Count：24N28P	Rated Operating Voltage (LiPo):24S
Motor Shaft Diameter：24N28P	Maximum Thrust:28kg
Bearing Model：6902/6202ZZ Bearings	No-Load Current (15V):3.6A
Magnet Temperature Resistance Grade：180°C	Maximum Current:93A
Lead Wire Specification × Length：Enameled Wire 100mm	Phase-to-Phase Internal Resistance：12mΩ
Enameled Wire Temperature Resistance Grade：220°C	Motor Weight (with Wire)：1800g

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW1030	KV	W	A	g	g/W	/	S	A
	90	8067.00	92.39	27938	3.46	APC26*12	6	40
	90	8015.00	91.90	28638	3.57	APC27*10	6	40
	90	9122.00	104.67	29968	3.29	APC27*12	6	40

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW1030 KV90 26*12	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	88.47	8927	3.06	19.48	3954	1723	5.18	103
	45.%	88.40	10400	3.56	23.95	4272	2117	4.91
	50.%	88.26	13202	4.53	32.86	4801	2900	4.55
	55.%	88.15	15096	5.22	39.57	5127	3488	4.33
	60.%	88.09	15999	5.52	42.71	5272	3763	4.25
	65.%	88.02	17229	5.95	47.13	5460	4148	4.15
	70.%	87.94	18583	6.41	52.14	5651	4585	4.05
	75.%	87.86	19867	6.86	57.06	5824	5013	3.96
	80.%	87.80	20990	7.26	61.28	5965	5380	3.90
	90.%	87.61	23911	8.25	72.93	6299	6390	3.74
	100.%	87.31	27938	9.75	92.39	6733	8067	3.46
BGS-FW1030 KV90 27*10	40.%	88.43	9365	3.03	19.62	4043	1735	5.40	109
	45.%	88.35	10856	3.51	23.70	4340	2094	5.19
	50.%	88.17	14816	4.81	35.94	5029	3169	4.68
	55.%	88.11	15812	5.13	39.04	5181	3440	4.60
	60.%	88.05	16830	5.47	42.43	5335	3736	4.51
	65.%	87.98	18146	5.91	46.87	5527	4123	4.40
	70.%	87.89	19478	6.36	51.80	5714	4553	4.28
	75.%	87.82	20688	6.77	56.27	5872	4941	4.19
	80.%	87.74	21843	7.17	60.45	6021	5304	4.12
	90.%	87.53	24970	8.27	73.77	6400	6457	3.87
	100.%	87.22	28638	9.66	91.90	6811	8015	3.57
BGS-FW1030 KV90 27*12	40.%	88.45	9948	3.39	20.68	3877	1829	5.44	HOT
	45.%	88.36	11579	3.98	25.56	4188	2259	5.13
	50.%	88.24	14205	4.88	33.47	4620	2953	4.81
	55.%	88.06	17398	6.04	44.42	5080	3911	4.45
	60.%	87.98	18740	6.50	49.06	5260	4316	4.34
	65.%	87.89	20191	7.01	54.24	5439	4767	4.24
	70.%	87.79	21616	7.52	59.86	5618	5256	4.11
	75.%	87.70	23032	8.01	65.39	5784	5735	4.02
	80.%	87.61	24321	8.52	71.18	5943	6236	3.90
	90.%	87.40	27258	9.60	84.54	6261	7389	3.69
	100.%	87.14	29968	11.15	104.67	6674	9122	3.29


The 1030 Brushless Outrunner Motor is engineered for extra heavy-lift fixed-wing UAVs, delivering exceptional thrust, outstanding efficiency, and reliable performance for the most demanding industrial missions. Available in 90KV, it provides up to 29 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 12–14S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for large fixed-wing drones, VTOL UAVs, cargo UAVs, agricultural UAVs, mapping aircraft, surveillance platforms, and industrial long-range UAV applications. Custom shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
