60*120mm
24N28P
100mm
8mm
450g/465g
＞1000h
| AT5220-B Basic Data | |
| Parameter：KV220 | Weight (with leads):450g/465g |
| KV Value：KV220/KV380 | Phase-to-phase Internal Resistance:450g/465g |
| Motor Dimensions:KV220/KV380 | Slot-pole Configuration：24N28P |
| Lead Specification：100mm | Rated Operating Voltage (Lipo)：6-12S |
| Shaft Diameter：IN: 10mm OUT: 8mm | Maximum Current (180s)：70A/100A |
| No-load Current (10V)：1.8A/4.0A | Maximum Continuous Power：610W/568W |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW5220 | KV | W | A | g | g/W | / | S | A | |
| 220 | 2116.80 | 48.86 | 8185 | 3.87 | APC18*8 | 6 | 40 | ||
| 220 | 2364.75 | 54.71 | 7806 | 3.30 | APC18*10 | 6 | 40 | ||
| 380 | 2566.74 | 59.53 | 9499 | 3.70 | APC19*10 | 4 | 40 | ||
| 380 | 1680.38 | 82.27 | 6733 | 4.01 | APC18*8 | 4 | 40 | ||
| 380 | 1833.17 | 90.14 | 6328 | 3.45 | APC18*10 | 4 | 40 | ||
| 380 | 1956.90 | 96.83 | 7516 | 3.84 | APC19*10 | 4 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW5220-B KV220 APC18*8 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40.% | 44.30 | 1469 | 0.383 | 4.27 | 3585 | 189.20 | 7.77 | 81 | |
| 45.% | 44.27 | 1818 | 0.460 | 5.57 | 3980 | 246.66 | 7.37 | ||
| 50.% | 44.20 | 2446 | 0.600 | 8.59 | 4592 | 379.74 | 6.44 | ||
| 55.% | 44.13 | 3009 | 0.745 | 11.17 | 5055 | 492.86 | 6.11 | ||
| 60.% | 44.08 | 3502 | 0.857 | 13.86 | 5473 | 611.06 | 5.73 | ||
| 65.% | 44.01 | 4080 | 0.991 | 16.93 | 5839 | 611.06 | 5.48 | ||
| 70.% | 43.93 | 4668 | 1.131 | 20.49 | 6232 | 900.27 | 5.19 | ||
| 75.% | 43.84 | 5323 | 1.326 | 24.92 | 6656 | 1092.62 | 4.87 | ||
| 80.% | 43.75 | 5924 | 1.466 | 29.00 | 6969 | 1092.62 | 4.67 | ||
| 90.% | 43.54 | 7142 | 1.757 | 38.65 | 7614 | 1682.85 | 4.24 | ||
| 100.% | 43.33 | 8185 | 2.037 | 48.86 | 8141 | 2116.80 | 3.87 | ||
| BGS-FW5220-B KV220 FALCON18*10 | 40.% | 44.30 | 1529 | 0.435 | 4.71 | 3526 | 208.48 | 7.33 | 95 |
| 45.% | 44.26 | 1899 | 0.530 | 6.17 | 3909 | 272.92 | 6.96 | ||
| 50.% | 44.18 | 2555 | 0.697 | 9.60 | 4500 | 424.00 | 6.03 | ||
| 55.% | 44.13 | 3100 | 0.871 | 12.30 | 4957 | 542.84 | 5.71 | ||
| 60.% | 44.06 | 3670 | 1.055 | 15.45 | 5393 | 680.69 | 5.39 | ||
| 65.% | 43.98 | 4218 | 1.185 | 18.85 | 5756 | 829.10 | 5.09 | ||
| 70.% | 43.91 | 4818 | 1.328 | 22.54 | 6131 | 989.79 | 4.87 | ||
| 75.% | 43.79 | 5470 | 1.486 | 27.63 | 6541 | 1210.20 | 4.52 | ||
| 80.% | 43.69 | 5725 | 1.634 | 32.51 | 6817 | 1420.65 | 4.03 | ||
| 90.% | 43.46 | 6819 | 2.049 | 43.51 | 7420 | 1891.09 | 3.61 | ||
| 100.% | 43.22 | 7806 | 2.354 | 54.71 | 7936 | 2364.75 | 3.30 | ||
| BGS-FW5220-B KV220 FALCON19*10 | 40.% | 44.27 | 1730 | 0.482 | 5.10 | 3480 | 225.98 | 7.66 | 106 |
| 45.% | 44.24 | 2172 | 0.578 | 6.73 | 3853 | 297.83 | 7.29 | ||
| 50.% | 44.15 | 2894 | 0.779 | 10.39 | 4423 | 458.61 | 6.31 | ||
| 55.% | 44.07 | 3525 | 0.929 | 13.85 | 4895 | 610.43 | 5.78 | ||
| 60.% | 43.99 | 4220 | 1.099 | 17.53 | 5314 | 771.33 | 5.47 | ||
| 65.% | 43.92 | 4817 | 1.240 | 21.04 | 5651 | 924.14 | 5.21 | ||
| 70.% | 43.82 | 5554 | 1.422 | 25.78 | 6007 | 1129.54 | 4.92 | ||
| 75.% | 43.71 | 6236 | 1.585 | 30.89 | 6387 | 1350.43 | 4.62 | ||
| 80.% | 43.61 | 6884 | 1.790 | 35.84 | 6691 | 1562.82 | 4.41 | ||
| 90.% | 43.37 | 8240 | 2.132 | 47.17 | 7289 | 2045.77 | 4.03 | ||
| 100.% | 43.11 | 9499 | 2.468 | 59.53 | 7781 | 2566.74 | 3.70 | ||
| BGS-FW5220-B KV380 APC18*8 | 40.% | 22.02 | 1426 | 0.373 | 8.48 | 3491 | 186.80 | 7.63 | 74 |
| 45.% | 21.96 | 1757 | 0.470 | 11.05 | 3867 | 242.62 | 7.24 | ||
| 50.% | 21.83 | 2367 | 0.614 | 17.22 | 4437 | 375.97 | 6.29 | ||
| 55.% | 21.74 | 2787 | 0.724 | 21.32 | 4818 | 463.48 | 6.01 | ||
| 60.% | 21.63 | 3273 | 0.854 | 26.63 | 5238 | 576.14 | 5.68 | ||
| 65.% | 21.53 | 3696 | 0.939 | 31.43 | 5536 | 676.66 | 5.46 | ||
| 70.% | 21.41 | 4117 | 1.054 | 37.34 | 5876 | 799.35 | 5.15 | ||
| 75.% | 21.24 | 4560 | 1.260 | 44.95 | 6211 | 954.74 | 4.78 | ||
| 80.% | 21.09 | 5000 | 1.518 | 51.43 | 6476 | 1084.83 | 4.61 | ||
| 90.% | 20.78 | 5903 | 1.698 | 66.45 | 7006 | 1380.62 | 4.28 | ||
| 100.% | 20.43 | 6733 | 1.900 | 82.27 | 7422 | 1680.38 | 4.01 | ||
| BGS-FW5220-B KV380 FALCON18*10 | 40.% | 22.02 | 1452 | 0.387 | 9.29 | 3393 | 204.46 | 7.10 | 81 |
| 45.% | 21.97 | 1741 | 0.461 | 11.85 | 3748 | 260.37 | 6.69 | ||
| 50.% | 21.87 | 2215 | 0.587 | 16.83 | 4203 | 368.06 | 6.02 | ||
| 55.% | 21.73 | 2734 | 0.733 | 23.19 | 4676 | 503.81 | 5.43 | ||
| 60.% | 21.61 | 3267 | 0.885 | 28.99 | 5080 | 626.57 | 5.21 | ||
| 65.% | 21.50 | 3687 | 1.024 | 34.13 | 5385 | 733.94 | 5.02 | ||
| 70.% | 21.37 | 4162 | 1.139 | 40.60 | 5700 | 867.53 | 4.80 | ||
| 75.% | 21.21 | 4651 | 1.259 | 48.06 | 6003 | 1019.47 | 4.56 | ||
| 80.% | 21.07 | 5092 | 1.370 | 54.89 | 6270 | 1156.66 | 4.40 | ||
| 90.% | 20.70 | 5636 | 1.629 | 72.94 | 6723 | 1509.93 | 3.73 | ||
| 100.% | 20.34 | 6328 | 1.853 | 90.14 | 7128 | 1833.17 | 3.45 | ||
| BGS-FW5220-B KV380 FALCON19*10 | 40.% | 22.00 | 1718 | 0.459 | 10.36 | 3370 | 227.99 | 7.54 | 91 |
| 45.% | 21.94 | 2038 | 0.537 | 13.29 | 3739 | 291.53 | 6.99 | ||
| 50.% | 21.84 | 2584 | 0.685 | 18.44 | 4155 | 402.67 | 6.42 | ||
| 55.% | 21.67 | 3168 | 0.842 | 26.22 | 4635 | 568.26 | 5.58 | ||
| 60.% | 21.53 | 3807 | 1.014 | 33.20 | 5031 | 714.61 | 5.33 | ||
| 65.% | 21.42 | 4233 | 1.114 | 38.67 | 5325 | 828.27 | 5.11 | ||
| 70.% | 21.28 | 4684 | 1.226 | 45.61 | 5624 | 970.30 | 4.83 | ||
| 75.% | 21.10 | 5250 | 1.364 | 54.16 | 5924 | 1142.78 | 4.59 | ||
| 80.% | 20.95 | 5697 | 1.479 | 61.71 | 6172 | 1292.68 | 4.41 | ||
| 90.% | 20.58 | 6703 | 1.716 | 79.40 | 6640 | 1634.41 | 4.10 | ||
| 100.% | 20.21 | 7516 | 1.921 | 96.83 | 7020 | 1956.90 | 3.84 |

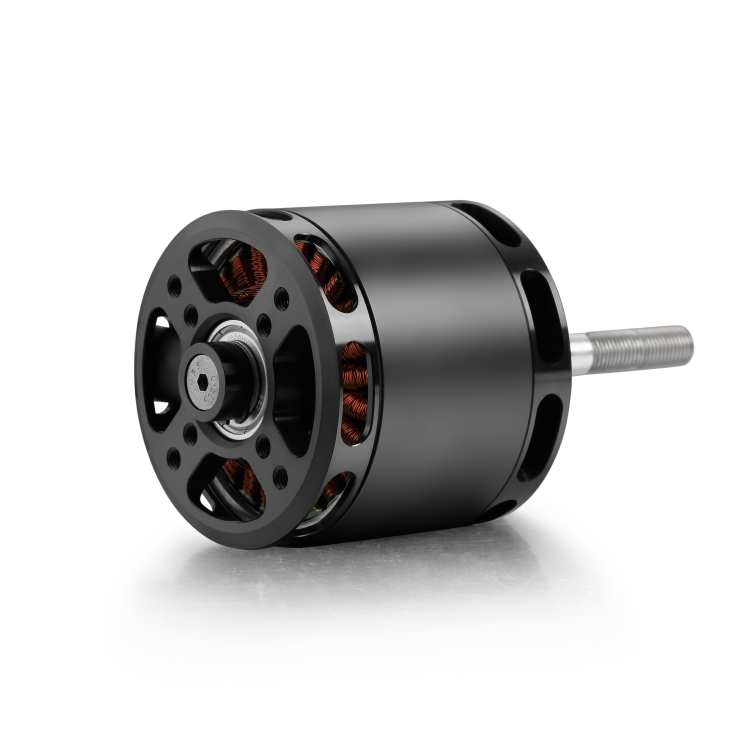

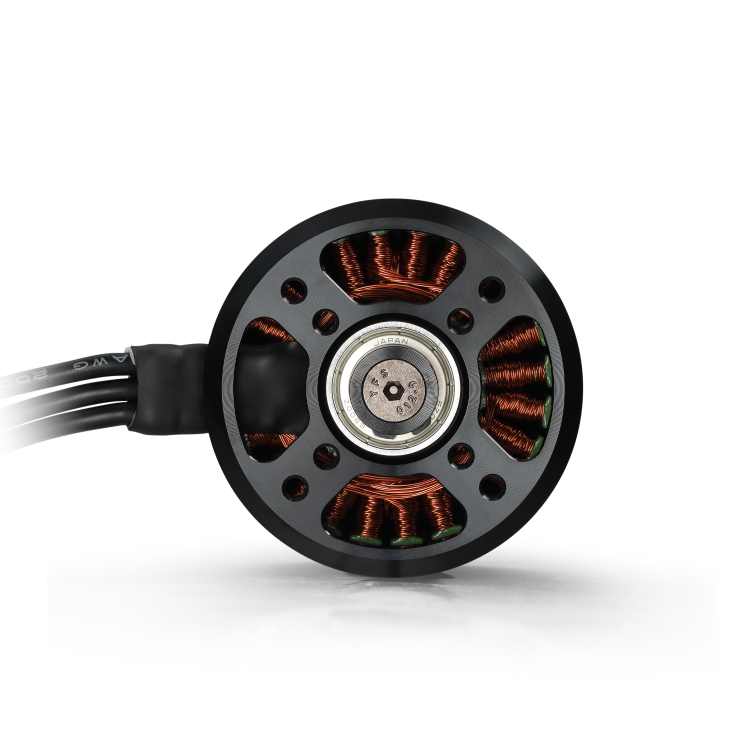

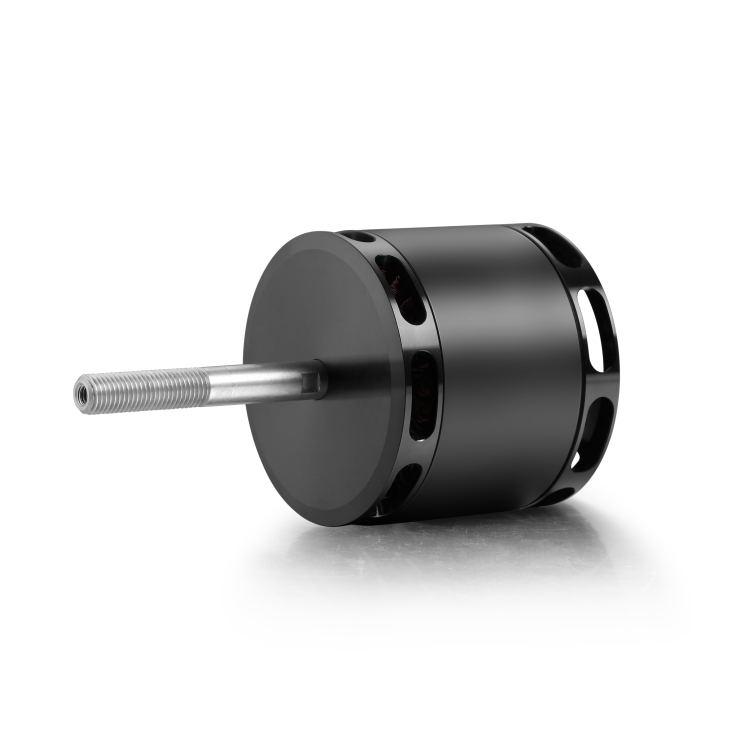

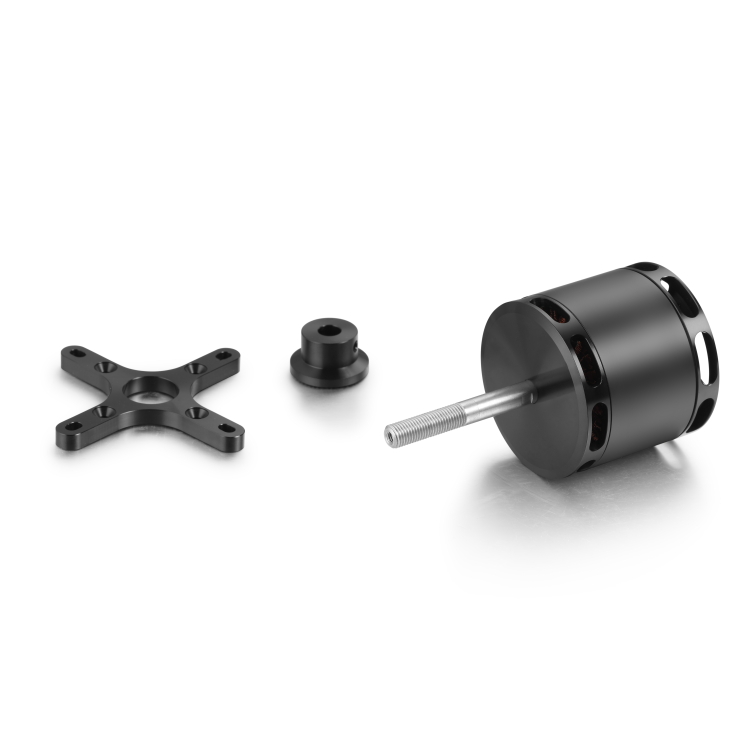

The 5220 Brushless Outrunner Motor is engineered for heavy-duty fixed-wing UAVs, delivering exceptional thrust, high efficiency, and reliable performance for long-endurance and high-payload missions. Available in 220KV and 380KV (customizable), it provides up to 9.4 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 6–12S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for fixed-wing drones, VTOL UAVs, cargo UAVs, mapping aircraft, surveillance platforms, and industrial long-range UAV applications. Custom KV ratings, shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
