BGS-FW3530 580KV 4.8KG Payload fixed-wing motor for 13inch/14inch Mapping Drone

Product Number:FW3530

The long shaft KV580 brushless motor adopts 12N14P slot-pole design with 298g total weight. It supports stable 65A max current under 4-6S LiPo power for heavy-load industrial fixed-wing drones.

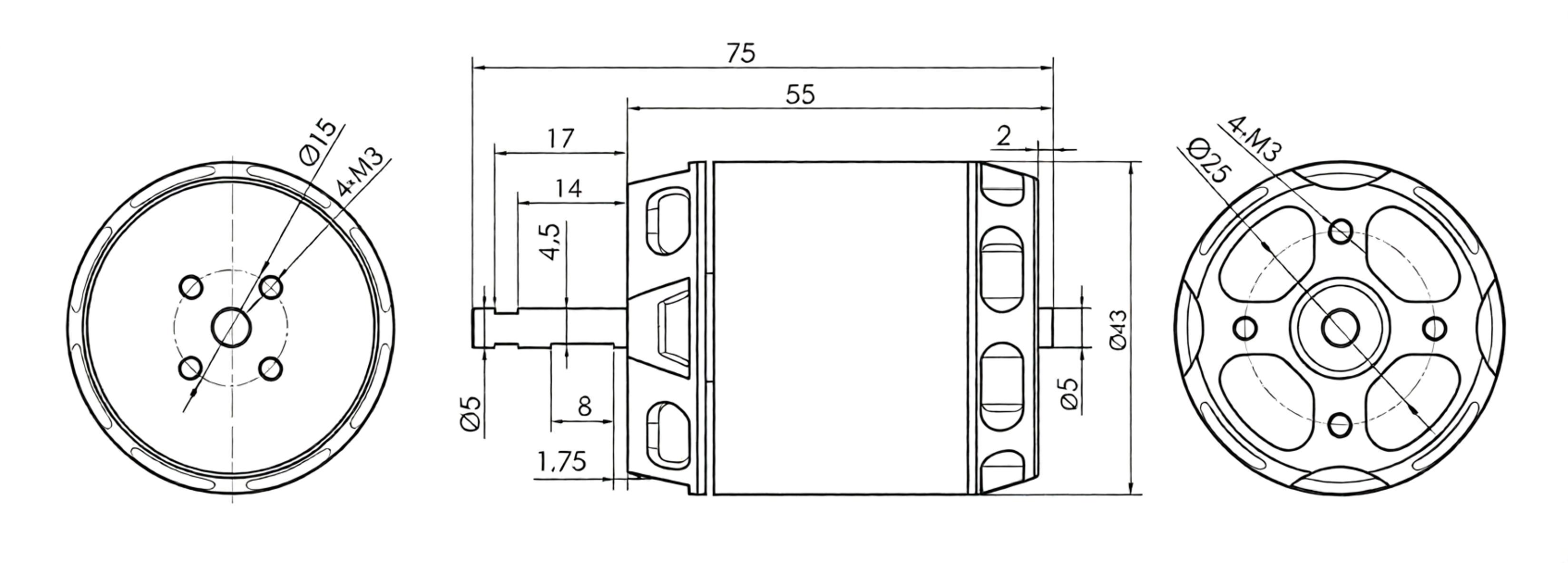

Motor dimensions
43*75mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5mm
Motor weight
298g
Service life
＞1000h

Technical Specifications

AT3530 Basic Data
Parameter:Specification	Weight (with Wire):298g
Test Model:KV580	Phase-to-phase Internal Resistance:18mΩ
Motor Dimensions:φ43*75mm	Slot-pole Configuration:12N14P
Lead Wire Specification: 100mm	Rated Operating Voltage (Lipo):4-6S
Shaft Diameter:IN: 5mm, OUT: 5mm	Maximum Current (180s):65A
No-load Current (10V):1.9A	Maximum Continuous Power:334W

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW3530	KV	W	A	g	g/W	/	S	A
	580	1171.88	54.04	4082	3.48	APC13*8	6	40
	580	1263.33	58.46	4805	3.80	APC14*7	6	40

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW3530 KV580 APC13*8	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	22.45	1263	0.245	8.28	5419	186.02	6.79	/
	45.%	22.42	1448	0.282	10.02	5815	224.67	6.45
	50.%	22.39	1653	0.324	11.88	6160	265.99	6.22
	55.%	22.36	1852	0.365	13.93	6492	311.31	5.95
	60.%	22.31	2107	0.414	16.71	6911	372.77	5.65
	65.%	22.24	2439	0.482	20.48	7379	455.55	5.35
	70.%	22.18	2723	0.541	24.14	7782	535.51	5.08
	75.%	22.11	3062	0.614	28.75	8243	635.48	4.82
	80.%	22.02	3265	0.690	33.81	8637	744.61	4.38
	85.%	21.90	3429	0.801	41.07	8998	899.42	3.81
	90.%	21.80	3743	0.880	47.32	9378	1031.51	3.63
	100.%	21.69	4082	0.968	54.04	9678	1171.88	3.48
BGS-FW3530 KV580 APC13*8	40.%	22.44	1382	0.262	8.67	5297	194.49	7.11	74
	45.%	22.41	1581	0.301	10.30	5615	230.82	6.85
	50.%	22.37	1795	0.344	12.36	5965	276.51	6.49
	55.%	22.33	2063	0.398	15.00	6352	334.90	6.16
	60.%	22.28	2369	0.460	18.33	6775	408.36	5.80
	65.%	22.20	2736	0.536	22.60	7255	501.85	5.45
	70.%	22.12	3104	0.611	27.38	7686	605.52	5.13
	75.%	22.05	3450	0.686	31.93	8073	704.03	4.90
	80.%	21.96	3826	0.766	37.14	8436	815.64	4.69
	85.%	21.84	4265	0.864	44.15	8863	964.40	4.42
	90.%	21.72	4660	0.958	51.40	9246	1116.61	4.17
	100.%	21.61	4805	1.052	58.46	9496	1263.33	3.80


The 3530 Brushless Outrunner Motor is designed for high-performance fixed-wing UAVs, providing exceptional thrust, high efficiency, and reliable power for demanding flight missions. Available in 580KV, it delivers up to 4.8 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 4–6S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for fixed-wing drones, VTOL UAVs, mapping aircraft, surveillance platforms, long-endurance UAVs, and industrial UAV applications. Custom shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
