BGS-FW5330A 220KV 11KG Payload BLDC Motor for 19inch/20inch Large UAV

Product Number:FW5330

get free solutions compare

The AT5330 KV220 brushless motor features a 12N14P slot-pole structure and weighs 685g with wires. Powered by 12S LiPo batteries, it provides a stable continuous current of 75A for 180 seconds. Matched with 18~20-inch propellers, it is ideal for heavy-lift tail-pusher fixed-wing UAVs.

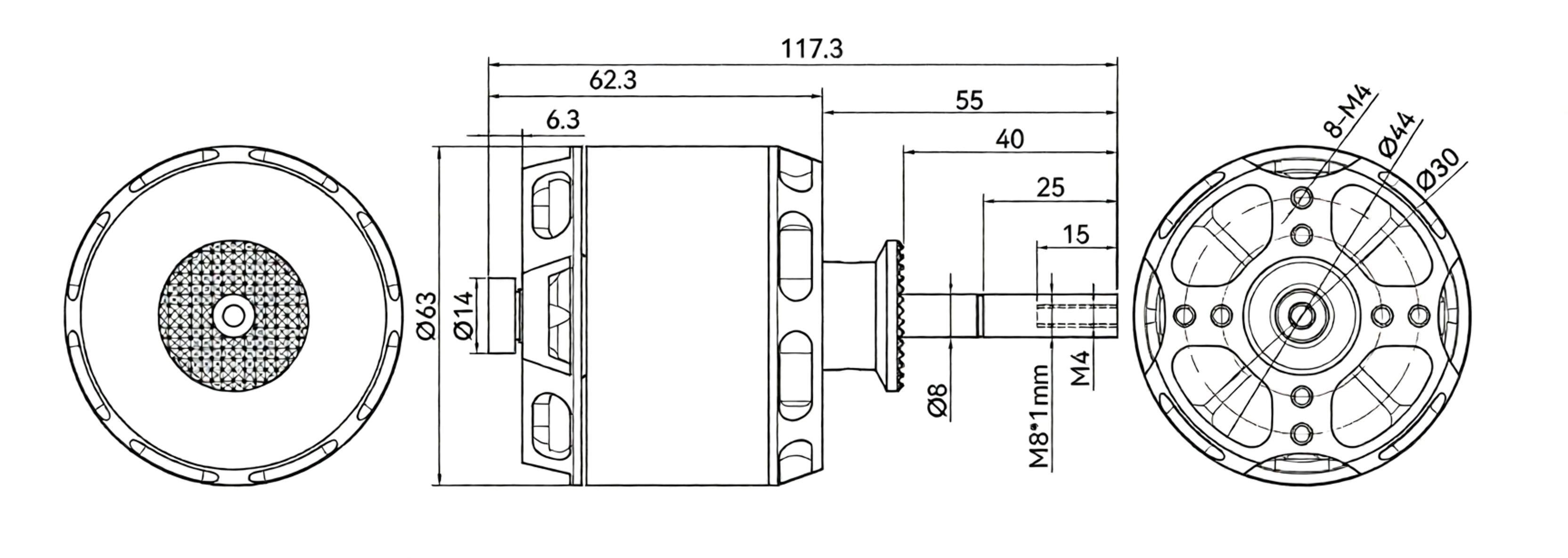

Motor dimensions
60*130mm
Number of slots
24N28P
Copper wire grade
100mm
Shaft diameter
8mm
Motor weight
610g
Service life
＞1000h

Technical Specifications

AT5330 Basic Data
Parameter Item:Parameter Value	Recommended VTOL ESC 80A 12S V2.0
Pusher Motor / KV Value:KV220	Recommended Pusher Battery (LiPo) / Voltage：12S
Recommended VTOL Motor / KV Value:V605 KV210	Recommended VTOL Battery (LiPo) / Voltage;12S
Recommended Pusher Propeller:18~20	Recommended Pusher Thrust (kg):20~25
Recommended VTOL Propeller；V22*7.4	Recommended VTOL Single-axis Thrust (kg)：4.5~6
Recommended Pusher ESC：AT115A (6~12S)	Maximum Takeoff Weight (4-axis) (kg)18~24

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW5330	KV	W	A	g	g/W	/	S	A
	220	2814.25	65.34	8276	2.94	APC18*10	6	40
	220	2947.27	68.92	10518	3.57	APC19*10	6	40
	220	3215.34	75.34	11913	3.70	APC20*10	6	40

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW5330 KV220 18*10	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	44.20	1665	0.41	5.44	3555	240.50	6.92	77℃
	45.%	44.17	2066	0.51	7.04	3949	310.84	6.65
	50.%	44.11	2568	0.62	9.44	4390	416.30	6.17
	55.%	44.03	3202	0.78	13.06	4885	574.96	5.57
	60.%	43.98	3754	0.93	16.21	5277	712.74	5.27
	65.%	43.92	4285	1.07	19.45	5642	854.21	5.02
	70.%	43.82	4763	1.29	24.48	6040	1072.85	4.44
	75.%	43.73	5409	1.49	29.84	6448	1304.90	4.15
	80.%	43.62	6067	1.68	35.33	6803	1540.79	3.94
	90.%	43.40	7404	2.08	47.89	7488	2078.38	3.56
	100.%	43.07	8276	2.61	65.34	8075	2814.25	2.94
BGS-FW5330 KV220 19*10	40.%	44.18	1936	0.48	6.20	3509	273.70	7.08	91℃
	45.%	44.13	2403	0.59	8.01	3899	353.38	6.80
	50.%	44.04	2967	0.73	10.86	4324	478.30	6.20
	55.%	43.74	3702	0.92	15.10	4807	660.32	5.61
	60.%	43.65	4324	1.07	18.49	5185	806.94	5.36
	65.%	43.61	4958	1.22	21.93	5538	956.50	5.18
	70.%	43.52	5729	1.41	27.05	5934	1177.09	4.87
	75.%	43.43	6581	1.63	32.99	6340	1433.07	4.59
	80.%	43.31	7329	1.82	38.51	6664	1668.08	4.39
	90.%	43.06	8964	2.25	52.12	7313	2244.06	3.99
	100.%	42.76	10518	2.73	68.92	7898	2947.27	3.57
BGS-FW5330 KV220 20*10	40.%	44.06	2201	0.54	6.71	3471	295.50	7.45	102℃
	45.%	43.94	2733	0.67	8.96	3852	393.75	6.94
	50.%	43.86	3371	0.83	11.91	4267	522.49	6.45
	55.%	43.66	4156	1.02	16.38	4728	715.04	5.81
	60.%	43.55	4883	1.20	20.41	5115	888.92	5.49
	65.%	43.51	5591	1.37	24.49	5465	1065.78	5.25
	70.%	43.44	6444	1.59	29.82	5842	1295.52	4.97
	75.%	43.28	7399	1.82	36.33	6223	1572.19	4.71
	80.%	43.17	8248	2.04	42.50	6544	1834.72	4.50
	90.%	43.00	10062	2.51	57.58	7189	2475.76	4.06
	100.%	42.68	11913	3.00	75.34	7756	3215.34	3.70


The 5330 Brushless Outrunner Motor is engineered for large fixed-wing UAVs that require maximum thrust, high efficiency, and dependable performance under heavy payload conditions. Available in 220KV, it delivers up to 11 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 6–12S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for fixed-wing drones, VTOL UAVs, cargo UAVs, mapping aircraft, surveillance platforms, agricultural UAVs, and industrial long-range UAV applications. Custom shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
