90*70.8mm
24N28P
200℃
12mm
865g
＞1000h
| AT8020 Basic Data | |
| Parameter：KV180 | Maximum Continuous Power；1251W/1293W |
| Test Model：KV180/KV210 | Weight (with Leads)：865g/870g |

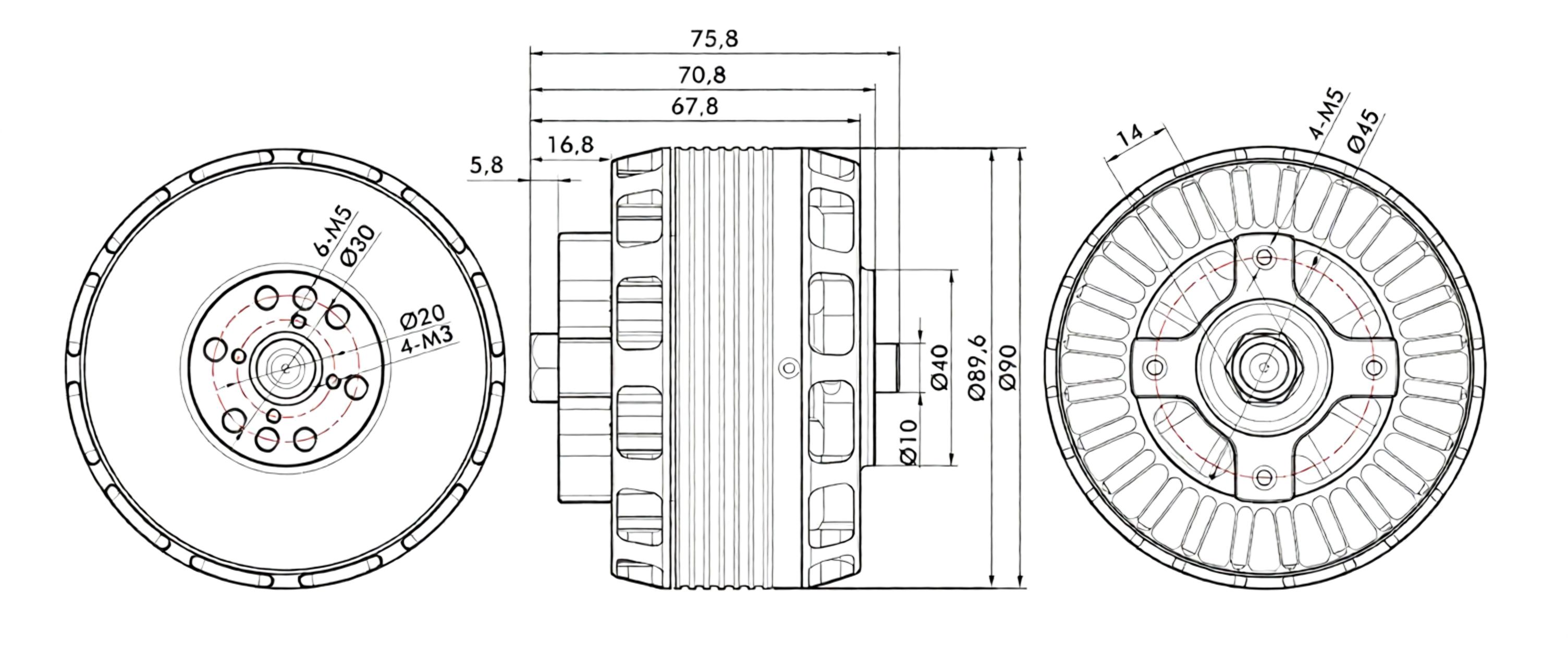

| Motor Dimensions：90*70.8mm | Phase-to-phase Internal Resistance：16m |
| Lead Specification;00mm | Slot/Pole Configuration：24N28P |
| Shaft Diameter:IN: 12mm | Operating Rated Voltage (LiPo)：10-14S |
| No-load Current (10V):4.6A/5.3A | Maximum Current (180s)：120A/135A |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW8020 | KV | W | A | g | g/W | / | S | A | |
| 180 | 3801.10 | 89.84 | 14996 | 3.90 | APC23*10 | 6 | 40 | ||
| 180 | 4284.30 | 102.08 | 16889 | 3.90 | APC24*10 | 6 | 40 | ||
| 180 | 4620.20 | 111.25 | 18121 | 3.90 | APC25*10 | 6 | 40 | ||
| 180 | 5090.70 | 103.47 | 17436 | 3.40 | APC22*10 | 6 | 40 | ||
| 180 | 5550.30 | 113.55 | 18706 | 3.40 | APC23*10 | 6 | 40 | ||
| 210 | 4899.60 | 118.95 | 16950 | 3.50 | APC22*10 | 6 | 40 | ||
| 210 | 5391.80 | 131.38 | 18227 | 3.40 | APC23*10 | 6 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW8020 KV180 23*10 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40.% | 44.40 | 2451 | 0.85 | 9.68 | 3030 | 429.80 | 5.70 | 63 | |
| 45.% | 44.53 | 3169 | 1.06 | 12.54 | 3360 | 558.40 | 5.70 | ||
| 50.% | 44.45 | 3962 | 1.30 | 15.97 | 3690 | 709.90 | 5.60 | ||
| 55.% | 44.42 | 4782 | 1.53 | 19.37 | 3990 | 860.40 | 5.60 | ||
| 60.% | 44.06 | 5849 | 1.86 | 25.00 | 4350 | 1101.50 | 5.30 | ||
| 65.% | 44.01 | 6880 | 2.16 | 30.35 | 4680 | 1335.70 | 5.20 | ||
| 70.% | 43.66 | 7968 | 2.48 | 35.97 | 4980 | 1570.50 | 5.10 | ||
| 75.% | 43.72 | 9075 | 2.81 | 43.17 | 5280 | 1887.40 | 4.80 | ||
| 80.% | 43.45 | 10163 | 3.15 | 50.77 | 5580 | 2206.00 | 4.60 | ||
| 90.% | 42.82 | 12514 | 3.90 | 68.97 | 6090 | 2953.30 | 4.20 | ||
| 100.% | 42.31 | 14996 | 4.71 | 89.84 | 6660 | 3801.10 | 3.90 | ||
| BGS-FW8020 KV180 24*10 | 40.% | 44.48 | 2844 | 0.98 | 10.59 | 3000 | 471.00 | 6.00 | 77 |
| 45.% | 44.45 | 3681 | 1.24 | 13.91 | 3330 | 618.30 | 6.00 | ||
| 50.% | 44.62 | 4553 | 1.50 | 17.67 | 3660 | 788.40 | 5.80 | ||
| 55.% | 43.99 | 5427 | 1.77 | 22.01 | 3930 | 968.20 | 5.60 | ||
| 60.% | 44.00 | 6615 | 2.12 | 27.49 | 4320 | 1209.60 | 5.50 | ||
| 65.% | 43.79 | 7739 | 2.46 | 33.26 | 4590 | 1456.50 | 5.30 | ||
| 70.% | 43.67 | 8992 | 2.85 | 40.37 | 4920 | 1763.00 | 5.10 | ||
| 75.% | 43.62 | 10215 | 3.21 | 48.29 | 5190 | 2106.40 | 4.80 | ||
| 80.% | 43.19 | 11447 | 3.58 | 56.56 | 5490 | 2442.80 | 4.70 | ||
| 90.% | 42.50 | 13980 | 4.38 | 76.01 | 6000 | 3230.40 | 4.30 | ||
| 100.% | 41.97 | 16889 | 5.31 | 102.08 | 6510 | 4284.30 | 3.90 | ||
| BGS-FW8020 KV180 25*10 | 40.% | 44.68 | 3277 | 1.14 | 11.61 | 2970 | 518.70 | 6.30 | 93 |
| 45.% | 44.31 | 4226 | 1.44 | 15.40 | 3330 | 682.40 | 6.20 | ||
| 50.% | 44.35 | 5154 | 1.72 | 19.36 | 3600 | 858.60 | 6.00 | ||
| 55.% | 44.16 | 6120 | 2.01 | 24.25 | 3870 | 1070.90 | 5.70 | ||
| 60.% | 44.07 | 7307 | 2.37 | 30.09 | 4170 | 1326.10 | 5.50 | ||
| 65.% | 43.72 | 8699 | 2.81 | 37.41 | 4500 | 1635.60 | 5.30 | ||
| 70.% | 43.77 | 10085 | 3.23 | 45.69 | 4830 | 1999.90 | 5.00 | ||
| 75.% | 43.26 | 11455 | 3.62 | 53.95 | 5100 | 2333.90 | 4.90 | ||
| 80.% | 43.17 | 12741 | 4.03 | 63.48 | 5400 | 2740.40 | 4.60 | ||
| 90.% | 42.40 | 15371 | 4.89 | 84.18 | 5880 | 3569.20 | 4.30 | ||
| 100.% | 41.53 | 18121 | 5.80 | 111.25 | 6330 | 4620.20 | 3.90 | ||
| BGS-FW8020 KV180 22*10 | 40.% | 51.76 | 2971 | 0.96 | 10.62 | 3510 | 549.70 | 5.40 | 85 |
| 45.% | 51.66 | 3776 | 1.19 | 13.66 | 3870 | 705.70 | 5.40 | ||
| 50.% | 51.77 | 4632 | 1.43 | 16.94 | 4200 | 877.00 | 5.30 | ||
| 55.% | 51.38 | 5859 | 1.79 | 22.17 | 4650 | 1139.10 | 5.10 | ||
| 60.% | 51.19 | 7130 | 2.14 | 27.80 | 5100 | 1423.10 | 5.00 | ||
| 65.% | 51.11 | 8253 | 2.47 | 33.74 | 5430 | 1724.50 | 4.80 | ||
| 70.% | 50.89 | 9448 | 2.83 | 40.94 | 5790 | 2083.40 | 4.50 | ||
| 75.% | 50.60 | 10709 | 3.21 | 49.32 | 6150 | 2495.60 | 4.30 | ||
| 80.% | 50.48 | 11875 | 3.55 | 57.52 | 6450 | 2903.60 | 4.10 | ||
| 90.% | 49.83 | 14487 | 4.37 | 75.64 | 7050 | 3769.10 | 3.80 | ||
| 100.% | 49.20 | 17436 | 5.32 | 103.47 | 7560 | 5090.70 | 3.40 | ||
| BGS-FW8020 KV180 23*10 | 40.% | 51.80 | 3457 | 1.12 | 11.77 | 3450 | 609.70 | 5.70 | HOT |
| 45.% | 51.79 | 4383 | 1.40 | 15.06 | 3810 | 780.00 | 5.60 | ||
| 50.% | 51.62 | 5330 | 1.67 | 19.29 | 4140 | 995.70 | 5.40 | ||
| 55.% | 51.36 | 6546 | 2.03 | 24.37 | 4560 | 1251.60 | 5.20 | ||
| 60.% | 51.31 | 7891 | 2.45 | 31.66 | 4980 | 1624.50 | 4.90 | ||
| 65.% | 51.03 | 9114 | 2.80 | 38.55 | 5340 | 1967.20 | 4.60 | ||
| 70.% | 50.82 | 10413 | 3.21 | 45.67 | 5640 | 2320.90 | 4.50 | ||
| 75.% | 50.61 | 11857 | 3.66 | 55.87 | 6030 | 2827.60 | 4.20 | ||
| 80.% | 50.31 | 13230 | 4.10 | 64.08 | 6300 | 3223.90 | 4.10 | ||
| 90.% | 49.80 | 15916 | 4.97 | 87.38 | 6870 | 4351.50 | 3.70 | ||
| 100.% | 48.88 | 18706 | 5.91 | 113.55 | 7410 | 5550.30 | 3.40 | ||
| BGS-FW8020 KV210 22*10 | 40.% | 44.11 | 2879 | 0.96 | 12.97 | 3510 | 572.10 | 5.00 | 86 |
| 45.% | 44.09 | 3693 | 1.19 | 16.65 | 3840 | 734.10 | 5.00 | ||
| 50.% | 44.04 | 4598 | 1.45 | 20.79 | 4290 | 915.60 | 5.00 | ||
| 55.% | 43.82 | 5624 | 1.74 | 26.64 | 4680 | 1167.40 | 4.80 | ||
| 60.% | 43.53 | 6822 | 2.08 | 32.77 | 5070 | 1426.50 | 4.80 | ||
| 65.% | 43.50 | 7906 | 2.40 | 39.92 | 5400 | 1736.50 | 4.60 | ||
| 70.% | 43.10 | 9125 | 2.76 | 46.75 | 5760 | 2014.90 | 4.50 | ||
| 75.% | 43.17 | 10446 | 3.16 | 58.51 | 6120 | 2525.90 | 4.10 | ||
| 80.% | 42.40 | 11630 | 3.51 | 68.72 | 6450 | 2913.70 | 4.00 | ||
| 90.% | 42.04 | 14129 | 4.29 | 90.18 | 7020 | 3791.20 | 3.70 | ||
| 100.% | 41.19 | 16950 | 5.18 | 118.95 | 7620 | 4899.60 | 3.50 | ||
| BGS-FW8020 KV210 23*10 | 40.% | 44.20 | 3301 | 1.16 | 14.08 | 3510 | 622.30 | 5.30 | HOT |
| 45.% | 43.95 | 4221 | 1.43 | 18.53 | 3900 | 814.40 | 5.20 | ||
| 50.% | 43.74 | 5160 | 1.71 | 23.48 | 4200 | 1027.00 | 5.00 | ||
| 55.% | 43.81 | 6357 | 2.07 | 29.53 | 4590 | 1293.70 | 4.90 | ||
| 60.% | 43.56 | 7650 | 2.45 | 38.02 | 4980 | 1656.20 | 4.60 | ||
| 65.% | 43.40 | 8928 | 2.83 | 45.26 | 5340 | 1964.30 | 4.50 | ||
| 70.% | 43.06 | 10211 | 3.22 | 55.18 | 5640 | 2376.10 | 4.30 | ||
| 75.% | 42.57 | 11594 | 3.67 | 64.34 | 5970 | 2739.00 | 4.20 | ||
| 80.% | 42.37 | 12942 | 4.09 | 77.79 | 6300 | 3296.00 | 3.90 | ||
| 90.% | 41.64 | 15486 | 4.91 | 103.74 | 6870 | 4319.70 | 3.60 | ||
| 100.% | 41.04 | 18227 | 5.85 | 131.38 | 7350 | 5391.80 | 3.40 |
The 8020 Brushless Outrunner Motor is engineered for heavy-lift fixed-wing UAVs, delivering exceptional thrust, high efficiency, and reliable performance for demanding industrial missions. Available in 180KV and 210KV (customizable), it provides up to 18 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 12–14S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for large fixed-wing drones, VTOL UAVs, cargo UAVs, agricultural UAVs, mapping aircraft, surveillance platforms, and industrial long-range UAV applications. Custom KV ratings, shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
