35.2*69.5mm
12N14P
200℃
5mm
175g
＞1000h
| AT2826 Basic Data | |
| Test Model：AT2826 900KV | Weight (with Wire)：175g |
| Motor Dimensions：35.2*69.5mm | Phase-to-phase Internal Resistance：24m/110m |
| Lead Specification：100mm | Slot/Pole Configuration：12N14P |
| Shaft Diameter：5mm | Rated Operating Voltage (Lipo)：3-4S |
| No-load Current (10V)：2.2A/2.9A | Maximum Current (180s)：57A/59A |
| Maximum Power (180s)：110W | Maximum Continuous Power：172W/252W |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW2826 | KV | W | A | g | g/W | / | S | A | |
| 900 | 685.84 | 47.28 | 2992 | 4.36 | APC12*6 | 3 | 40 | ||
| 900 | 820.02 | 57.16 | 3409 | 4.16 | APC13*6.5 | 3 | 40 | ||
| 900 | 475.59 | 44.15 | 2447 | 5.14 | APC14*7 | 3 | 40 | ||
| 900 | 550.80 | 51.81 | 2844 | 5.16 | APC15*8 | 3 | 40 | ||
| 1100 | 535.03 | 50.12 | 2531 | 4.73 | APC12*6 | 3 | 40 | ||
| 1100 | 622.02 | 59.09 | 2810 | 4.52 | APC13*6.5 | 3 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW2826 KV900 APC12*6 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40.% | 15.11 | 1117 | 0.188 | 11.43 | 6258 | 172.61 | 6.47 | 98 | |
| 45.% | 15.07 | 1272 | 0.213 | 13.63 | 6634 | 205.47 | 6.19 | ||
| 50.% | 15.03 | 1406 | 0.236 | 15.68 | 6950 | 235.81 | 5.96 | ||
| 55.% | 15.00 | 1528 | 0.256 | 17.71 | 7263 | 265.69 | 5.75 | ||
| 60.% | 14.97 | 1670 | 0.281 | 19.84 | 7509 | 296.86 | 5.63 | ||
| 65.% | 14.93 | 1779 | 0.300 | 21.92 | 7782 | 327.20 | 5.44 | ||
| 70.% | 14.88 | 1933 | 0.323 | 24.53 | 8080 | 365.16 | 5.29 | ||
| 75.% | 14.82 | 2155 | 0.370 | 28.51 | 8468 | 422.43 | 5.10 | ||
| 80.% | 14.74 | 2397 | 0.411 | 33.36 | 8879 | 491.67 | 4.87 | ||
| 90.% | 14.58 | 2810 | 0.489 | 42.72 | 9556 | 622.90 | 4.51 | ||
| 100.% | 14.50 | 2992 | 0.524 | 47.28 | 9798 | 685.84 | 4.36 | ||
| BGS-FW2826 KV900 APC13*6.5 | 40.% | 15.10 | 1216 | 0.216 | 12.19 | 5611 | 183.97 | 6.61 | HOT |
| 45.% | 15.05 | 1388 | 0.247 | 14.84 | 6012 | 223.29 | 6.22 | ||
| 50.% | 15.01 | 1541 | 0.276 | 17.32 | 6345 | 259.98 | 5.93 | ||
| 55.% | 14.97 | 1698 | 0.304 | 19.81 | 6638 | 296.47 | 5.73 | ||
| 60.% | 14.91 | 1885 | 0.338 | 22.84 | 6948 | 340.67 | 5.53 | ||
| 65.% | 14.85 | 2091 | 0.376 | 26.58 | 7297 | 394.75 | 5.30 | ||
| 70.% | 14.79 | 2291 | 0.415 | 30.38 | 7656 | 449.24 | 5.10 | ||
| 75.% | 14.71 | 2513 | 0.456 | 34.95 | 8000 | 514.23 | 4.89 | ||
| 80.% | 14.63 | 2745 | 0.510 | 39.79 | 8325 | 582.14 | 4.71 | ||
| 90.% | 14.44 | 3212 | 0.594 | 51.45 | 8953 | 743.02 | 4.32 | ||
| 100.% | 14.35 | 3409 | 0.637 | 57.16 | 9183 | 820.02 | 4.16 | ||
| BGS-FW2826 KV900 APC14*7 | 40.% | 11.36 | 826 | 0.157 | 8.96 | 4170 | 101.76 | 8.11 | 87 |
| 45.% | 11.33 | 943 | 0.179 | 10.62 | 4435 | 120.33 | 7.84 | ||
| 50.% | 11.29 | 1061 | 0.202 | 12.63 | 4709 | 142.61 | 7.44 | ||
| 55.% | 11.26 | 1189 | 0.227 | 14.76 | 4952 | 166.16 | 7.16 | ||
| 60.% | 11.23 | 1298 | 0.249 | 16.66 | 5173 | 187.02 | 6.94 | ||
| 65.% | 11.18 | 1444 | 0.278 | 19.33 | 5457 | 216.15 | 6.68 | ||
| 70.% | 11.13 | 1624 | 0.313 | 22.74 | 5738 | 252.95 | 6.42 | ||
| 75.% | 11.06 | 1798 | 0.349 | 26.62 | 6067 | 294.42 | 6.11 | ||
| 80.% | 10.99 | 1971 | 0.385 | 30.69 | 6338 | 337.39 | 5.84 | ||
| 90.% | 10.82 | 2350 | 0.466 | 41.07 | 6906 | 444.58 | 5.29 | ||
| 100.% | 10.77 | 2447 | 0.488 | 44.15 | 7048 | 475.59 | 5.14 | ||
| BGS-FW2826 KV900 APC15*8 | 40.% | 11.34 | 921 | 0.188 | 8.92 | 3745 | 101.10 | 9.11 | HOT |
| 45.% | 11.31 | 1030 | 0.210 | 10.56 | 3949 | 119.50 | 8.62 | ||
| 50.% | 11.28 | 1168 | 0.239 | 12.69 | 4182 | 143.14 | 8.16 | ||
| 55.% | 11.23 | 1328 | 0.269 | 15.35 | 4465 | 172.38 | 7.70 | ||
| 60.% | 11.17 | 1534 | 0.312 | 19.17 | 4805 | 214.08 | 7.17 | ||
| 65.% | 11.10 | 1730 | 0.354 | 23.09 | 5095 | 256.38 | 6.75 | ||
| 70.% | 11.04 | 1914 | 0.393 | 27.02 | 5372 | 298.20 | 6.42 | ||
| 75.% | 10.95 | 2140 | 0.441 | 32.45 | 5650 | 355.28 | 6.02 | ||
| 80.% | 10.88 | 2317 | 0.476 | 36.74 | 5879 | 399.67 | 5.80 | ||
| 90.% | 10.71 | 2680 | 0.557 | 46.75 | 6277 | 500.90 | 5.35 | ||
| 100.% | 10.63 | 2844 | 0.592 | 51.81 | 6424 | 550.80 | 5.16 | ||
| BGS-FW2826 KV1100 APC12*6 | 40.% | 11.28 | 978 | 0.162 | 13.27 | 5858 | 149.72 | 6.53 | 86 |
| 45.% | 11.24 | 1094 | 0.182 | 15.55 | 6211 | 174.83 | 6.26 | ||
| 50.% | 11.20 | 1228 | 0.205 | 18.01 | 6507 | 201.81 | 6.09 | ||
| 55.% | 11.17 | 1329 | 0.224 | 20.15 | 6799 | 225.04 | 5.91 | ||
| 60.% | 11.13 | 1457 | 0.245 | 22.60 | 7036 | 251.45 | 5.79 | ||
| 65.% | 11.09 | 1559 | 0.262 | 24.78 | 7242 | 274.73 | 5.68 | ||
| 70.% | 11.05 | 1663 | 0.281 | 27.21 | 7478 | 300.54 | 5.53 | ||
| 75.% | 10.99 | 1826 | 0.308 | 30.65 | 7806 | 336.94 | 5.42 | ||
| 80.% | 10.91 | 2028 | 0.344 | 35.65 | 8206 | 388.97 | 5.21 | ||
| 90.% | 10.76 | 2363 | 0.406 | 45.19 | 8837 | 486.11 | 4.86 | ||
| 100.% | 10.67 | 2531 | 0.435 | 50.12 | 9037 | 535.03 | 4.73 | ||
| BGS-FW2826 KV1100 APC13*6.5 | 40.% | 11.27 | 1053 | 0.188 | 14.15 | 5279 | 159.46 | 6.60 | HOT |
| 45.% | 11.22 | 1197 | 0.213 | 16.89 | 5621 | 189.50 | 6.32 | ||
| 50.% | 11.18 | 1337 | 0.238 | 19.58 | 5915 | 218.84 | 6.11 | ||
| 55.% | 11.13 | 1482 | 0.265 | 22.69 | 6220 | 252.39 | 5.87 | ||
| 60.% | 11.09 | 1585 | 0.284 | 24.86 | 6409 | 275.62 | 5.75 | ||
| 65.% | 11.03 | 1751 | 0.314 | 28.58 | 6726 | 315.17 | 5.55 | ||
| 70.% | 10.96 | 1922 | 0.346 | 32.83 | 7051 | 359.69 | 5.34 | ||
| 75.% | 10.89 | 2095 | 0.378 | 37.14 | 7358 | 404.41 | 5.18 | ||
| 80.% | 10.80 | 2285 | 0.413 | 42.24 | 7672 | 456.37 | 5.01 | ||
| 90.% | 10.61 | 2675 | 0.488 | 53.95 | 8207 | 572.57 | 4.67 | ||
| 100.% | 10.53 | 2810 | 0.511 | 59.09 | 8415 | 622.02 | 4.52 |
Compared with multirotor aircraft, fixed-wing UAVs typically operate for longer durations, fly over greater distances, and maintain higher cruising speeds. These mission profiles place greater demands on propulsion efficiency and continuous power output. BGS motors are optimized to operate efficiently across a wide RPM range, helping improve flight endurance while maintaining stable performance throughout extended missions.

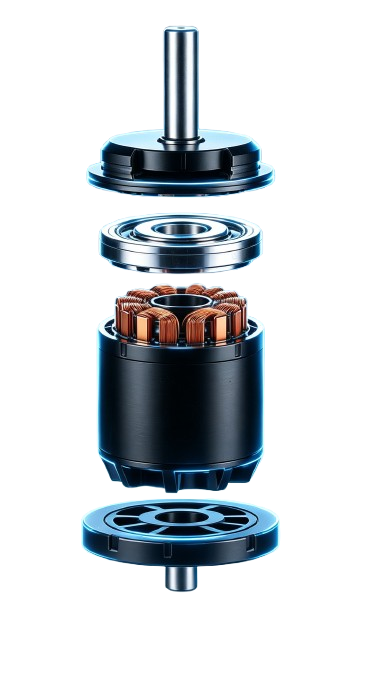

Each motor is manufactured using high-grade permanent magnets, precision CNC-machined aluminum components, premium bearings, and high-temperature copper windings. The lightweight yet robust structure reduces overall aircraft weight while ensuring excellent mechanical strength and vibration resistance, even under continuous high-load operation.
Our fixed-wing UAV motors are compatible with various propeller sizes, ESC configurations, and battery systems, allowing seamless integration into different aircraft platforms. Whether used in hand-launched UAVs, VTOL fixed-wing aircraft, mapping drones, surveillance systems, environmental monitoring platforms, or long-range logistics UAVs, they deliver dependable propulsion and smooth flight characteristics.
To meet diverse project requirements, BGS also offers OEM and ODM customization services, including KV value adjustment, shaft configuration, mounting dimensions, winding optimization, waterproof protection, and other application-specific modifications. Every motor undergoes rigorous quality inspection and dynamic balancing before shipment to ensure consistent performance, low vibration, and reliable operation in demanding environments.
Built for efficiency, durability, and precision, BGS fixed-wing UAV motors provide a dependable propulsion solution for next-generation autonomous and industrial UAV applications.
