90*80.8mm
24N28P
220℃
10mm
1110g
＞1000h
| AT8030 Basic Data | |
| Model：AT8030 | Maximum Continuous Power (180s)：1433W/1394W |
| KV Value：KV160/KV190 | Weight (with Wire)：1110g/1115g |

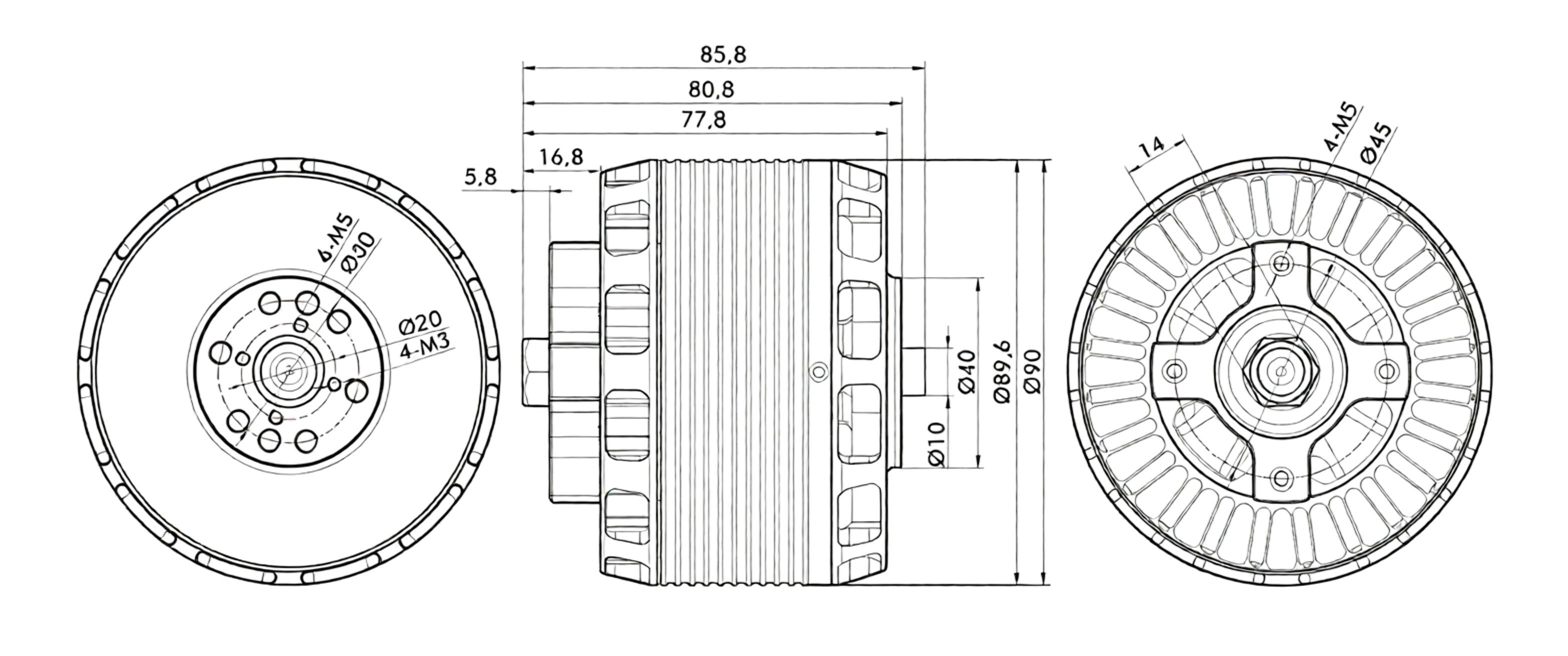

| Motor Dimensions：90*80.8mm | Phase-to-Phase Internal Resistance：10.5m/8m |
| Lead Wire Specification：Enameled Wire Lead-out 100mm | Slot/Pole Count：24N28P |
| Shaft Diameter：IN: 12mm, OUT: 10mm | Rated Operating Voltage (LiPo):10-14S/10-12S |
| No-Load Current (10V)：4.5A/5.2A | Maximum Current (180s):135A, 155A/165A |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW8030 | KV | W | A | g | g/W | / | S | A | |
| 160 | 3990.09 | 94.69 | 17986 | 4.51 | APC25*10 | 6 | 40 | ||
| 160 | 4929.33 | 118.78 | 21122 | 4.29 | APC26*12 | 6 | 40 | ||
| 160 | 5451.19 | 132.60 | 23374 | 4.29 | APC27*12 | 6 | 40 | ||
| 160 | 5328.67 | 107.82 | 21240 | 3.99 | APC 24*10 | 6 | 40 | ||
| 160 | 5962.41 | 121.53 | 23158 | 3.88 | APC25*10 | 6 | 40 | ||
| 190 | 5085.05 | 122.00 | 20207 | 3.97 | APC 24*10 | 6 | 40 | ||
| 190 | 5565.41 | 135.87 | 21988 | 3.95 | APC25*10 | 6 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW8030 KV160 25*10 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40.% | 44.35 | 3665 | 1.13 | 12.08 | 2969 | 535.61 | 6.84 | 72 | |
| 45.% | 44.19 | 4338 | 1.34 | 14.87 | 3182 | 657.18 | 6.60 | ||
| 50.% | 43.90 | 5154 | 1.57 | 17.75 | 3454 | 779.14 | 6.61 | ||
| 55.% | 43.85 | 6103 | 1.87 | 21.99 | 3727 | 964.31 | 6.33 | ||
| 60.% | 44.04 | 7157 | 2.16 | 26.20 | 4030 | 1154.02 | 6.20 | ||
| 65.% | 43.75 | 8319 | 2.53 | 32.70 | 4333 | 1430.68 | 5.81 | ||
| 70.% | 43.79 | 9607 | 2.91 | 39.31 | 4606 | 1721.42 | 5.58 | ||
| 75.% | 43.42 | 10976 | 3.33 | 45.50 | 4878 | 1975.71 | 5.56 | ||
| 80.% | 43.26 | 12342 | 3.72 | 54.00 | 5181 | 2335.99 | 5.28 | ||
| 85.% | 42.91 | 13757 | 4.17 | 63.78 | 5424 | 2736.83 | 5.03 | ||
| 90.% | 42.68 | 15126 | 4.60 | 73.92 | 5696 | 3154.88 | 4.79 | ||
| 100.% | 42.14 | 17986 | 5.48 | 94.69 | 6151 | 3990.09 | 4.51 | ||
| BGS-FW8030 KV160 26*12 | 40.% | 44.25 | 4329 | 1.45 | 13.47 | 2757 | 596.23 | 7.26 | 87 |
| 45.% | 44.12 | 5349 | 1.78 | 17.21 | 3060 | 759.19 | 7.05 | ||
| 50.% | 44.08 | 6454 | 2.13 | 22.17 | 3333 | 977.47 | 6.60 | ||
| 55.% | 43.92 | 7655 | 2.54 | 27.64 | 3636 | 1214.04 | 6.31 | ||
| 60.% | 43.73 | 8966 | 2.96 | 33.30 | 3939 | 1456.34 | 6.16 | ||
| 65.% | 43.52 | 10381 | 3.41 | 41.46 | 4212 | 1804.47 | 5.75 | ||
| 70.% | 43.30 | 11910 | 3.92 | 49.03 | 4484 | 2123.06 | 5.61 | ||
| 75.% | 43.00 | 13402 | 4.41 | 59.47 | 4727 | 2557.04 | 5.24 | ||
| 80.% | 42.77 | 15057 | 4.93 | 70.68 | 5000 | 3022.80 | 4.98 | ||
| 85.% | 42.55 | 16586 | 5.45 | 78.50 | 5242 | 3340.14 | 4.97 | ||
| 90.% | 42.34 | 18128 | 5.99 | 92.54 | 5454 | 3918.34 | 4.63 | ||
| 100.% | 41.50 | 21122 | 7.06 | 118.78 | 5878 | 4929.33 | 4.29 | ||
| BGS-FW8030 KV160 27*12 | 40.% | 44.40 | 4751 | 1.61 | 14.57 | 2727 | 646.71 | 7.35 | 105 |
| 45.% | 44.04 | 5942 | 2.01 | 19.26 | 3030 | 848.10 | 7.01 | ||
| 50.% | 44.18 | 7237 | 2.44 | 24.50 | 3333 | 1082.43 | 6.69 | ||
| 55.% | 43.79 | 8617 | 2.89 | 30.31 | 3575 | 1327.47 | 6.49 | ||
| 60.% | 43.74 | 10045 | 3.37 | 37.88 | 3848 | 1656.99 | 6.06 | ||
| 65.% | 43.33 | 11552 | 3.86 | 45.00 | 4121 | 1949.95 | 5.92 | ||
| 70.% | 43.11 | 13241 | 4.43 | 55.35 | 4394 | 2385.93 | 5.55 | ||
| 75.% | 43.06 | 14872 | 4.98 | 64.35 | 4666 | 2770.99 | 5.37 | ||
| 80.% | 42.44 | 16602 | 5.59 | 76.40 | 4909 | 3242.33 | 5.12 | ||
| 85.% | 42.32 | 18346 | 6.17 | 91.31 | 5151 | 3864.26 | 4.75 | ||
| 90.% | 41.91 | 20101 | 6.76 | 104.84 | 5363 | 4393.66 | 4.58 | ||
| 100.% | 41.11 | 23374 | 7.92 | 132.60 | 5757 | 5451.19 | 4.29 | ||
| BGS-FW8030 KV160 24*10 | 40.% | 51.88 | 4490 | 1.35 | 13.92 | 3454 | 722.33 | 6.22 | 89 |
| 45.% | 51.83 | 5289 | 1.57 | 16.87 | 3727 | 874.41 | 6.05 | ||
| 50.% | 51.87 | 6289 | 1.86 | 20.75 | 4000 | 1076.14 | 5.84 | ||
| 55.% | 51.82 | 7414 | 2.19 | 25.39 | 4333 | 1315.60 | 5.64 | ||
| 60.% | 51.53 | 8656 | 2.58 | 30.48 | 4666 | 1570.51 | 5.51 | ||
| 65.% | 51.38 | 10131 | 2.99 | 37.36 | 5060 | 1919.69 | 5.28 | ||
| 70.% | 50.89 | 11782 | 3.46 | 45.94 | 5363 | 2337.93 | 5.04 | ||
| 75.% | 50.77 | 13400 | 3.96 | 55.26 | 5727 | 2805.73 | 4.78 | ||
| 80.% | 50.49 | 15092 | 4.46 | 64.67 | 6030 | 3265.09 | 4.62 | ||
| 85.% | 50.40 | 16654 | 4.91 | 73.61 | 6302 | 3710.12 | 4.49 | ||
| 90.% | 50.05 | 18266 | 5.43 | 84.74 | 6605 | 4241.32 | 4.31 | ||
| 100.% | 49.42 | 21240 | 6.42 | 107.82 | 7121 | 5328.67 | 3.99 | ||
| BGS-FW8030 KV160 25*10 | 40.% | 51.96 | 4763 | 1.48 | 14.54 | 3363 | 755.24 | 6.31 | 107 |
| 45.% | 51.68 | 5723 | 1.74 | 17.65 | 3666 | 911.95 | 6.28 | ||
| 50.% | 51.53 | 6885 | 2.10 | 22.55 | 3969 | 1162.11 | 5.92 | ||
| 55.% | 51.65 | 8226 | 2.49 | 27.75 | 4303 | 1433.50 | 5.74 | ||
| 60.% | 51.25 | 9643 | 2.92 | 34.07 | 4606 | 1745.99 | 5.52 | ||
| 65.% | 51.28 | 11221 | 3.39 | 42.45 | 4969 | 2176.96 | 5.15 | ||
| 70.% | 50.87 | 12921 | 3.92 | 49.65 | 5303 | 2525.88 | 5.12 | ||
| 75.% | 50.53 | 14702 | 4.46 | 60.46 | 5606 | 3054.81 | 4.81 | ||
| 80.% | 50.53 | 16458 | 5.01 | 69.88 | 5939 | 3531.05 | 4.66 | ||
| 85.% | 50.16 | 18201 | 5.55 | 81.96 | 6212 | 4110.96 | 4.43 | ||
| 90.% | 49.83 | 19949 | 6.12 | 95.88 | 6454 | 4777.70 | 4.18 | ||
| 100.% | 49.06 | 23158 | 7.29 | 121.53 | 6969 | 5962.41 | 3.88 | ||
| BGS-FW8030 KV190 24*10 | 40.% | 44.17 | 4234 | 1.26 | 15.71 | 3394 | 693.82 | 6.10 | 89 |
| 45.% | 44.29 | 5056 | 1.51 | 19.25 | 3666 | 852.47 | 5.93 | ||
| 50.% | 44.07 | 6019 | 1.78 | 23.14 | 3969 | 1019.95 | 5.90 | ||
| 55.% | 43.89 | 7196 | 2.12 | 28.73 | 4272 | 1261.11 | 5.71 | ||
| 60.% | 43.72 | 8351 | 2.47 | 35.63 | 4606 | 1557.68 | 5.36 | ||
| 65.% | 43.39 | 9702 | 2.86 | 43.12 | 4939 | 1870.78 | 5.19 | ||
| 70.% | 43.16 | 11213 | 3.30 | 50.96 | 5272 | 2199.40 | 5.10 | ||
| 75.% | 43.08 | 12756 | 3.76 | 62.34 | 5575 | 2685.71 | 4.75 | ||
| 80.% | 42.71 | 14259 | 4.19 | 72.88 | 5909 | 3112.66 | 4.58 | ||
| 85.% | 42.60 | 15821 | 4.69 | 83.43 | 6151 | 3553.94 | 4.45 | ||
| 90.% | 42.22 | 17268 | 5.14 | 94.58 | 6424 | 3993.36 | 4.32 | ||
| 100.% | 41.68 | 20207 | 6.08 | 122.00 | 6939 | 5085.05 | 3.97 | ||
| BGS-FW8030 KV190 25*10 | 40.% | 44.29 | 4613 | 1.42 | 16.49 | 3333 | 730.49 | 6.32 | 102 |
| 45.% | 44.12 | 5550 | 1.69 | 20.42 | 3606 | 900.95 | 6.16 | ||
| 50.% | 44.07 | 6685 | 2.03 | 25.19 | 3909 | 1110.30 | 6.02 | ||
| 55.% | 43.85 | 7927 | 2.40 | 31.80 | 4242 | 1394.59 | 5.68 | ||
| 60.% | 43.66 | 9367 | 2.84 | 38.88 | 4575 | 1697.61 | 5.52 | ||
| 65.% | 43.22 | 10897 | 3.30 | 47.95 | 4909 | 2072.41 | 5.26 | ||
| 70.% | 43.06 | 12552 | 3.78 | 57.19 | 5212 | 2462.66 | 5.10 | ||
| 75.% | 42.77 | 14156 | 4.28 | 67.65 | 5515 | 2893.24 | 4.89 | ||
| 80.% | 42.47 | 15831 | 4.78 | 79.24 | 5818 | 3365.48 | 4.70 | ||
| 85.% | 42.20 | 17416 | 5.29 | 93.56 | 6090 | 3948.43 | 4.41 | ||
| 90.% | 41.97 | 18941 | 5.78 | 105.22 | 6333 | 4416.22 | 4.29 | ||
| 100.% | 40.96 | 21988 | 6.84 | 135.87 | 6787 | 5565.41 | 3.95 |
The 8030 Brushless Outrunner Motor is engineered for heavy-duty fixed-wing UAVs, delivering exceptional thrust, high efficiency, and reliable performance for long-endurance and high-payload missions. Available in 160KV and 190KV (customizable), it provides up to 23 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 12–14S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for large fixed-wing drones, VTOL UAVs, cargo UAVs, agricultural UAVs, mapping aircraft, surveillance platforms, and industrial long-range UAV applications. Custom KV ratings, shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
