28.8*52mm
12N14P
200℃
4mm
79g
＞1000h
| AT2312 Basic Data | |

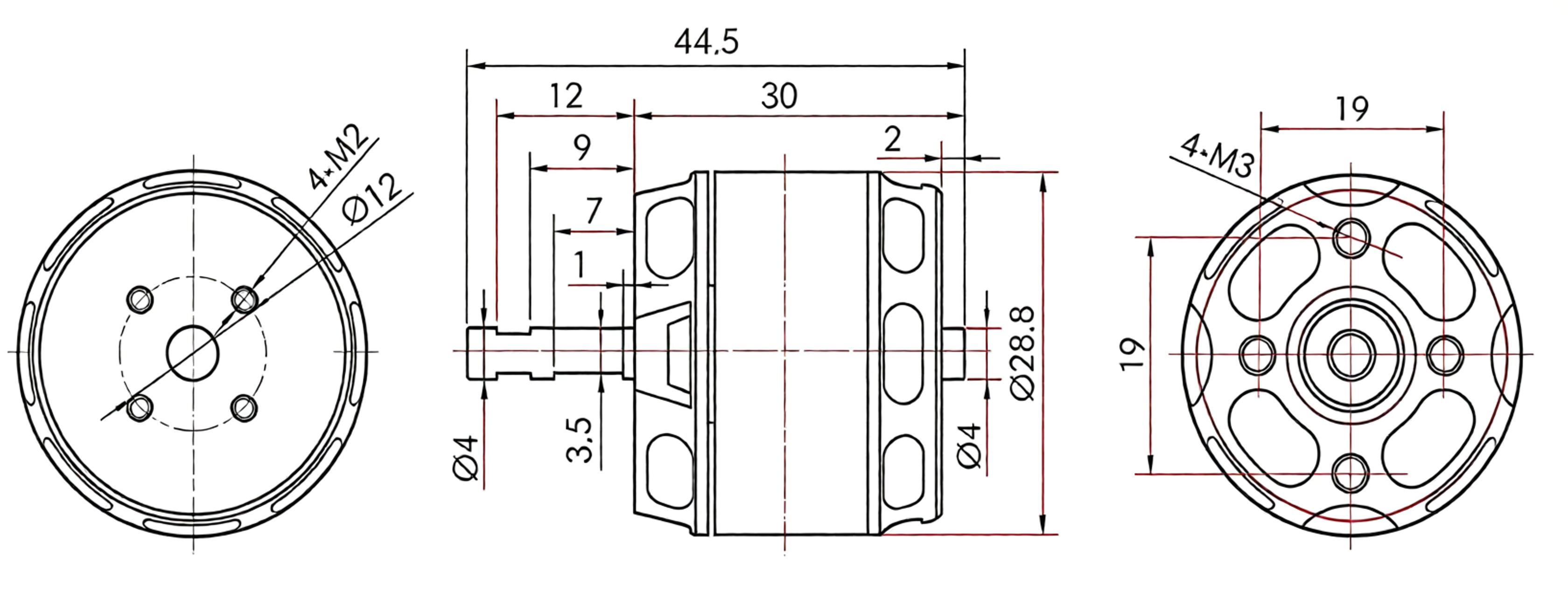

| Test Model:Long Shaft KV880 | Motor Dimensions:28.8*52mm |
| Lead Specification:AWG 100mm | Shaft Diameter:4mm |
| No-load Current (10V):0.9A | Maximum Continuous Power:85W |
| Weight (with wires):79g | Phase-to-phase Internal Resistance：82m |
| Slot-pole Configuration：12N14P | Rated Operating Voltage (Lipo)：2-4S |
| Maximum Current (180s)：25A | Recommended Matching：/ |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW2312 | KV | W | A | g | g/W | / | S | A | |
| 1150 | 1222.00 | 11400.00 | 22.44 | 3.75 | APC 8*6 | 3 | 40 | ||
| 1150 | 1029.00 | 8960.00 | 18.03 | 5.14 | APC 9*6 | 3 | 40 | ||
| 1150 | 1244.00 | 7656.00 | 22.63 | 5.10 | APC 10*4.7 | 3 | 40 | ||
| 1400 | 1050.00 | 10709.00 | 23.34 | 4.18 | APC 8*6 | 3 | 40 | ||
| 1400 | 1278.00 | 9851.00 | 28.58 | 4.13 | APC 9*6 | 3 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW2312 KV1150 APC 8*6 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 14.96 | 5.26 | 78.57 | 7213.00 | 0.07 | 448.00 | 5.70 | 74 | |
| 45% | 14.94 | 6.10 | 90.87 | 7686.00 | 0.08 | 509.00 | 5.61 | ||
| 50% | 14.93 | 7.04 | 104.93 | 8093.00 | 0.09 | 575.00 | 5.48 | ||
| 55% | 14.91 | 8.03 | 119.61 | 8461.00 | 0.10 | 634.00 | 5.30 | ||
| 60% | 14.90 | 9.17 | 136.48 | 8808.00 | 0.11 | 692.00 | 5.07 | ||
| 65% | 14.86 | 10.32 | 153.04 | 9186.00 | 0.12 | 754.00 | 4.93 | ||
| 70% | 14.83 | 11.60 | 171.92 | 9554.00 | 0.13 | 821.00 | 4.78 | ||
| 75% | 14.77 | 13.60 | 200.64 | 10069.00 | 0.14 | 907.00 | 4.52 | ||
| 80% | 14.69 | 15.88 | 233.04 | 10479.00 | 0.16 | 1005.00 | 4.31 | ||
| 90% | 14.59 | 21.03 | 306.57 | 11205.00 | 0.19 | 1181.00 | 3.85 | ||
| 100% | 14.53 | 22.44 | 326.02 | 11400.00 | 0.20 | 1222.00 | 3.75 | ||
| BGS-FW2312 KV1150 APC 9*6 | 0.40 | 11.45 | 3.90 | 44.53 | 5239 | 0.053 | 329 | 7.38 | 53 |
| 45.% | 11.44 | 4.58 | 52.33 | 5554 | 0.061 | 371 | 7.08 | ||
| 50.% | 11.42 | 5.32 | 60.59 | 5867 | 0.068 | 418 | 6.90 | ||
| 55.% | 11.40 | 6.11 | 69.53 | 6211 | 0.075 | 474 | 6.84 | ||
| 60.% | 11.38 | 6.92 | 78.63 | 6508 | 0.082 | 529 | 6.73 | ||
| 65.% | 11.36 | 8.11 | 92.00 | 6885 | 0.092 | 598 | 6.50 | ||
| 70.% | 11.32 | 9.55 | 108.06 | 7258 | 0.103 | 677 | 6.26 | ||
| 75.% | 11.29 | 10.88 | 122.68 | 7595 | 0.113 | 742 | 6.05 | ||
| 80.% | 11.25 | 12.58 | 141.40 | 7987 | 0.126 | 817 | 5.78 | ||
| 90.% | 11.16 | 16.45 | 183.48 | 8665 | 0.151 | 976 | 5.32 | ||
| 100.% | 11.12 | 18.03 | 200.43 | 8960 | 0.160 | 1029 | 5.14 | ||
| BGS-FW2312 KV1150 APC 10*4.7 | 40.% | 11.31 | 4.26 | 48.00 | 4537 | 0.065 | 416 | 8.67 | 71 |
| 45.% | 11.26 | 5.10 | 57.25 | 4818 | 0.074 | 476 | 8.31 | ||
| 50.% | 11.27 | 6.17 | 69.40 | 5147 | 0.085 | 548 | 7.90 | ||
| 55.% | 11.17 | 7.44 | 82.92 | 5489 | 0.097 | 625 | 7.54 | ||
| 60.% | 11.19 | 9.05 | 101.23 | 5860 | 0.112 | 713 | 7.05 | ||
| 65.% | 11.12 | 10.80 | 119.93 | 6189 | 0.126 | 804 | 6.70 | ||
| 70.% | 11.06 | 12.66 | 139.79 | 6493 | 0.140 | 888 | 6.35 | ||
| 75.% | 10.99 | 14.59 | 160.19 | 6777 | 0.154 | 971 | 6.06 | ||
| 80.% | 10.93 | 16.71 | 182.41 | 7055 | 0.167 | 1054 | 5.78 | ||
| 90.% | 10.81 | 21.36 | 230.82 | 7548 | 0.194 | 1211 | 5.25 | ||
| 100.% | 10.78 | 22.63 | 243.92 | 7656 | 0.199 | 1244 | 5.10 | ||
| BGS-FW2312 KV1400 APC 8*6 | 40.% | 11.17 | 5.85 | 65.19 | 6709 | 0.062 | 376 | 5.77 | 42 |
| 45.% | 11.12 | 6.75 | 74.94 | 7075 | 0.069 | 422 | 5.63 | ||
| 50.% | 11.16 | 7.75 | 86.32 | 7531 | 0.076 | 480 | 5.56 | ||
| 55.% | 11.13 | 8.82 | 97.91 | 7870 | 0.083 | 533 | 5.46 | ||
| 60.% | 11.10 | 9.91 | 109.88 | 8179 | 0.090 | 592 | 5.39 | ||
| 65.% | 11.06 | 11.16 | 123.29 | 8530 | 0.098 | 648 | 5.26 | ||
| 70.% | 11.03 | 12.52 | 137.88 | 8825 | 0.106 | 703 | 5.10 | ||
| 75.% | 10.96 | 14.37 | 157.37 | 9238 | 0.117 | 777 | 4.94 | ||
| 80.% | 10.92 | 16.62 | 181.38 | 9731 | 0.130 | 853 | 4.70 | ||
| 90.% | 10.81 | 21.79 | 235.27 | 10530 | 0.155 | 1009 | 4.29 | ||
| 100.% | 10.77 | 23.34 | 251.15 | 10709 | 0.161 | 1050 | 4.18 | ||
| BGS-FW2312 KV1400 APC 9*6 | 40.% | 11.41 | 6.15 | 69.96 | 5984 | 0.070 | 440 | 6.30 | 65 |
| 45.% | 11.38 | 7.22 | 82.07 | 6392 | 0.078 | 511 | 6.23 | ||
| 50.% | 11.36 | 8.40 | 95.22 | 6713 | 0.087 | 569 | 5.98 | ||
| 55.% | 11.32 | 9.94 | 112.42 | 7131 | 0.098 | 643 | 5.72 | ||
| 60.% | 11.28 | 11.74 | 132.12 | 7537 | 0.110 | 725 | 5.49 | ||
| 65.% | 11.23 | 13.75 | 154.20 | 7898 | 0.123 | 811 | 5.26 | ||
| 70.% | 11.19 | 15.75 | 176.02 | 8292 | 0.137 | 896 | 5.09 | ||
| 75.% | 11.14 | 17.93 | 199.52 | 8646 | 0.150 | 978 | 4.90 | ||
| 80.% | 11.07 | 20.52 | 227.04 | 9015 | 0.164 | 1065 | 4.69 | ||
| 90.% | 10.91 | 26.10 | 284.43 | 9646 | 0.190 | 1222 | 4.30 | ||
| 100.% | 10.82 | 28.58 | 309.06 | 9851 | 0.199 | 1278 | 4.13 |
The 2312 Brushless Outrunner Motor is designed for fixed-wing UAVs, RC airplanes, and VTOL platforms, delivering efficient power output and smooth flight performance. Available in 1000KV / 1400KV / 1800KV (customizable), it provides up to XX kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 2–4S LiPo battery systems, the motor features a precision-balanced rotor, high-efficiency magnetic circuit, and premium bearings for low vibration, quiet operation, and extended service life. Ideal for trainer aircraft, gliders, sport airplanes, FPV fixed-wing drones, and lightweight VTOL UAVs. Custom KV ratings, shaft dimensions, cable length, and mounting configurations are available for OEM and ODM projects.
