BGS-FW2820 880KV/1050KV 2.7KG Payload Drone Motor for 12inch/13inch Vertical Takeoff and Landing Drone_BOGONG SUN | Professional UAV Motor Manufacturer

Technical Specifications

AT2820 Basic Data
Test Model：KV880/KV1050/KV1250	Weight (with wire)：139g/139g/141g

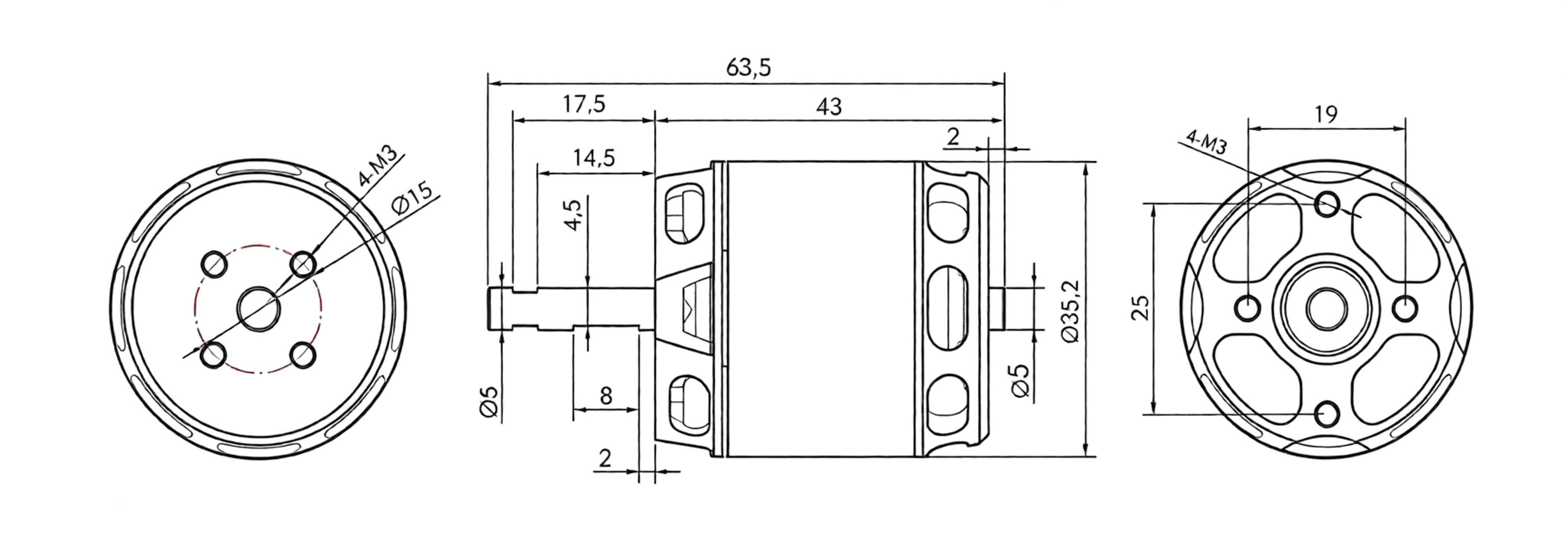

Motor Dimensions：35.2*63.5mm	Phase-to-phase Internal Resistance：39m
Lead Wire Specification：100mm	Slot-pole Configuration：12N14P
Shaft Diameter：5mm	Rated Operating Voltage (Lipo)：3-4S

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW2820	KV	W	A	g	g/W	/	S	A
	880	571.30	39.03	2362	4.13	APC11*7	3	40
	880	612.71	42.00	2755	4.50	APC12*6	3	40
	880	359.09	32.73	2039	5.68	APC13*6.5	3	40
	880	428.63	39.48	2269	5.29	APC14*7	3	40
	1050	755.33	52.39	2860	3.79	APC11*5.5	3	40
	1050	867.87	60.78	2823	3.25	APC11*8	3	40
	1050	433.53	40.02	2215	5.11	APC12*6	3	40
	1050	510.55	47.69	2496	4.89	APC13*6.5	3	40
	1250	885.82	62.15	2419	2.73	APC13*6.5	3	40
	1250	981.39	69.57	3136	3.20	APC10*5.5	3	40
	1250	639.56	60.92	2358	3.69	APC11*8	3	40
	1250	645.73	61.59	2712	4.20	APC12*6	3	40

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW2820 长轴 KV880APC 11*7	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	15.15	856	0.152	8.76	5981	132.79	6.44	91
	45.%	15.12	955	0.171	10.26	6333	155.22	6.15
	50.%	15.10	1064	0.190	11.91	6675	179.75	5.92
	55.%	15.07	1162	0.209	13.53	6990	203.93	5.70
	60.%	15.04	1266	0.227	15.15	7255	227.85	5.56
	65.%	15.00	1390	0.245	17.47	7596	261.99	5.30
	70.%	14.96	1543	0.278	20.06	7975	300.02	5.14
	75.%	14.91	1707	0.312	23.03	8330	343.28	4.97
	80.%	14.84	1893	0.348	26.77	8709	397.30	4.77
	90.%	14.70	2275	0.415	35.62	9448	523.47	4.35
	100.%	14.64	2362	0.443	39.03	9685	571.30	4.13
BGS-FW2820 长轴 KV880APC 12*6	40.%	15.15	946	0.157	8.88	5738	134.43	7.04	HOT
	45.%	15.12	1077	0.176	10.58	6114	159.95	6.73
	50.%	15.09	1194	0.195	12.29	6461	185.48	6.44
	55.%	15.06	1320	0.215	14.01	6734	211.03	6.25
	60.%	15.03	1437	0.242	15.95	7033	239.66	6.00
	65.%	14.98	1616	0.270	18.74	7422	280.67	5.76
	70.%	14.93	1793	0.303	21.84	7801	326.02	5.50
	75.%	14.87	1992	0.337	25.25	8141	375.36	5.31
	80.%	14.80	2230	0.382	29.60	8514	438.01	5.09
	90.%	14.66	2596	0.444	37.97	9174	556.43	4.67
	100.%	14.59	2755	0.472	42.00	9413	612.71	4.50
BGS-FW2820 长轴 KV880APC 13*6.5	40.%	11.41	642	0.104	6.59	4168	75.22	8.53	81
	45.%	11.39	736	0.114	7.88	4441	89.74	8.21
	50.%	11.36	831	0.132	9.29	4692	105.54	7.87
	55.%	11.34	923	0.148	10.67	4951	120.98	7.63
	60.%	11.31	1026	0.167	12.23	5211	138.37	7.42
	65.%	11.28	1143	0.189	14.17	5524	159.82	7.15
	70.%	11.23	1303	0.216	16.88	5862	189.66	6.87
	75.%	11.18	1450	0.245	19.77	6162	221.17	6.56
	80.%	11.14	1614	0.274	22.83	6464	254.25	6.35
	90.%	11.02	1922	0.332	29.90	7018	329.38	5.84
	100.%	10.97	2039	0.349	32.73	7225	359.09	5.68
BGS-FW2820 长轴 KV880APC 14*7	40.%	11.39	708	0.135	7.12	3856	81.15	8.73	94
	45.%	11.37	796	0.151	8.37	4090	95.19	8.36
	50.%	11.35	900	0.172	9.86	4326	111.92	8.04
	55.%	11.32	1023	0.197	11.67	4557	132.04	7.75
	60.%	11.27	1188	0.229	14.49	4905	163.33	7.27
	65.%	11.22	1341	0.259	17.27	5238	193.82	6.92
	70.%	11.17	1504	0.292	20.42	5515	228.16	6.59
	75.%	11.11	1678	0.326	24.03	5807	266.95	6.29
	80.%	11.04	1864	0.365	28.30	6093	312.38	5.97
	90.%	10.91	2154	0.424	36.09	6534	393.87	5.47
	100.%	10.86	2269	0.447	39.48	6691	428.63	5.29
BGS-FW2820 长轴 KV1050APC 11*5.5	40.%	15.10	1045	0.168	11.63	7044	175.58	5.95	96
	45.%	15.06	1184	0.192	13.78	7454	207.57	5.71
	50.%	15.02	1314	0.213	16.06	7836	241.26	5.44
	55.%	14.98	1448	0.235	18.36	8161	275.07	5.27
	60.%	14.94	1577	0.253	20.74	8483	309.94	5.09
	65.%	14.91	1699	0.277	22.92	8741	341.60	4.97
	70.%	14.85	1847	0.302	25.91	9093	384.80	4.80
	75.%	14.78	2070	0.343	30.29	9548	447.71	4.62
	80.%	14.71	2266	0.379	34.91	9976	513.46	4.41
	90.%	14.53	2691	0.459	45.49	10726	661.09	4.07
	100.%	14.42	2860	0.502	52.39	11048	755.33	3.79
BGS-FW2820 长轴 KV1050APC 11*8	40.%	15.08	1034	0.197	12.57	6316	189.55	5.46	HOT
	45.%	15.03	1190	0.228	15.40	6775	231.52	5.14
	50.%	14.99	1324	0.254	17.93	7162	268.71	4.93
	55.%	14.94	1476	0.282	20.73	7452	309.74	4.77
	60.%	14.89	1615	0.311	23.85	7826	355.09	4.55
	65.%	14.82	1789	0.347	27.90	8247	413.55	4.33
	70.%	14.77	1931	0.375	31.10	8570	459.34	4.20
	75.%	14.68	2135	0.419	36.36	8998	533.78	4.00
	80.%	14.59	2331	0.460	42.03	9405	613.13	3.80
	90.%	14.39	2695	0.547	54.37	10043	782.26	3.45
	100.%	14.28	2823	0.581	60.78	10356	867.87	3.25
BGS-FW2820 长轴 KV1050APC 12*6	40.%	11.35	765	0.129	8.84	5187	100.36	7.62	82
	45.%	11.32	864	0.147	10.43	5476	118.07	7.32
	50.%	11.29	969	0.165	12.23	5790	138.14	7.01
	55.%	11.26	1064	0.181	13.94	6095	156.96	6.78
	60.%	11.23	1161	0.197	15.61	6344	175.35	6.62
	65.%	11.20	1249	0.212	17.40	6609	194.97	6.41
	70.%	11.16	1399	0.237	20.23	6963	225.72	6.20
	75.%	11.11	1539	0.262	23.16	7254	257.21	5.98
	80.%	11.04	1739	0.297	27.34	7636	301.75	5.76
	90.%	10.90	2077	0.356	35.69	8269	389.18	5.34
	100.%	10.83	2215	0.385	40.02	8549	433.53	5.11
BGS-FW2820 长轴 KV1050APC 13*6.5	40.%	11.34	809	0.147	9.19	4624	104.22	7.76	97
	45.%	11.31	931	0.168	11.11	4954	125.63	7.41
	50.%	11.27	1063	0.191	13.29	5268	149.84	7.10
	55.%	11.24	1192	0.214	15.42	5508	173.28	6.88
	60.%	11.21	1303	0.235	17.51	5788	196.23	6.64
	65.%	11.14	1487	0.268	21.32	6161	237.42	6.26
	70.%	11.08	1667	0.301	24.78	6470	274.57	6.07
	75.%	11.01	1833	0.329	28.76	6814	316.76	5.79
	80.%	10.94	2007	0.363	33.15	7140	362.71	5.53
	90.%	10.78	2351	0.425	43.09	7706	464.60	5.06
	100.%	10.71	2496	0.455	47.69	7938	510.55	4.89
BGS-FW2820 长轴 KV1250APC 9*6	40.%	15.02	1045	0.172	15.68	9026	235.58	4.44	98
	45.%	14.98	1166	0.194	18.29	9437	273.97	4.25
	50.%	14.93	1290	0.216	21.14	9975	315.70	4.09
	55.%	14.88	1408	0.238	24.08	10391	358.32	3.93
	60.%	14.84	1514	0.255	26.45	10766	392.53	3.86
	65.%	14.79	1598	0.275	29.36	11114	434.32	3.68
	70.%	14.73	1704	0.297	32.79	11398	483.11	3.53
	75.%	14.67	1797	0.319	36.84	11780	540.35	3.33
	80.%	14.58	1973	0.359	42.30	12354	616.66	3.20
	90.%	14.38	2274	0.430	54.29	13244	780.98	2.91
	100.%	14.25	2419	0.472	62.15	13692	885.82	2.73
BGS-FW2820 长轴 KV1250APC 10*5.5	40.%	15.00	1220	0.191	15.57	8400	233.55	5.23	HOT
	45.%	14.95	1356	0.215	18.59	8903	277.88	4.88
	50.%	14.89	1522	0.242	22.03	9342	328.11	4.64
	55.%	14.84	1674	0.266	24.99	9635	370.91	4.51
	60.%	14.79	1795	0.287	28.24	10031	417.54	4.30
	65.%	14.72	1964	0.315	32.03	10395	471.55	4.16
	70.%	14.66	2109	0.341	35.77	10770	524.50	4.02
	75.%	14.56	2267	0.370	41.76	11154	608.16	3.73
	80.%	14.46	2545	0.419	48.28	11720	697.99	3.65
	90.%	14.23	2966	0.498	62.25	12569	885.76	3.35
	100.%	14.11	3136	0.534	69.57	12883	981.39	3.20
BGS-FW2820 长轴 KV1250APC 11*8	40.%	11.27	871	0.166	13.76	5814	155.17	5.61	78
	45.%	11.23	993	0.190	16.54	6227	185.73	5.35
	50.%	11.18	1114	0.213	19.41	6584	217.02	5.13
	55.%	11.13	1226	0.235	22.38	6925	249.05	4.92
	60.%	11.08	1344	0.259	25.53	7258	282.78	4.75
	65.%	11.01	1495	0.287	29.61	7603	325.97	4.59
	70.%	10.96	1612	0.310	32.94	7899	360.94	4.47
	75.%	10.88	1766	0.345	37.52	8208	408.28	4.33
	80.%	10.80	1928	0.374	42.80	8560	462.04	4.17
	90.%	10.62	2192	0.432	53.36	9141	566.90	3.87
	100.%	10.50	2358	0.467	60.92	9468	639.56	3.69
BGS-FW2820 长轴 KV1250APC 12*6	40.%	11.27	979	0.164	13.55	5857	152.80	6.41	92
	45.%	11.23	1127	0.188	16.38	6239	183.85	6.13
	50.%	11.18	1248	0.210	19.09	6587	213.47	5.85
	55.%	11.13	1398	0.236	22.41	6893	249.36	5.61
	60.%	11.08	1522	0.257	25.22	7205	279.40	5.45
	65.%	11.02	1676	0.284	28.68	7524	316.16	5.30
	70.%	10.95	1824	0.311	32.93	7858	360.64	5.06
	75.%	10.88	1997	0.345	37.46	8193	407.60	4.90
	80.%	10.80	2165	0.368	42.20	8491	455.85	4.75
	90.%	10.60	2555	0.441	54.62	9099	579.02	4.41
	100.%	10.48	2712	0.471	61.59	9390	645.73	4.20
