BGS-FW530A 260KV 13KG Payload Drone motor for 20inch Large industrial drones

Product Number:FW530A

get free solutions compare

The AX530-A brushless motor adopts high-temperature resistant coating and high-grade heat-resistant enameled wire. It features precise dynamic balance and stable high-temperature performance for heavy-lift industrial fixed-wing drones.

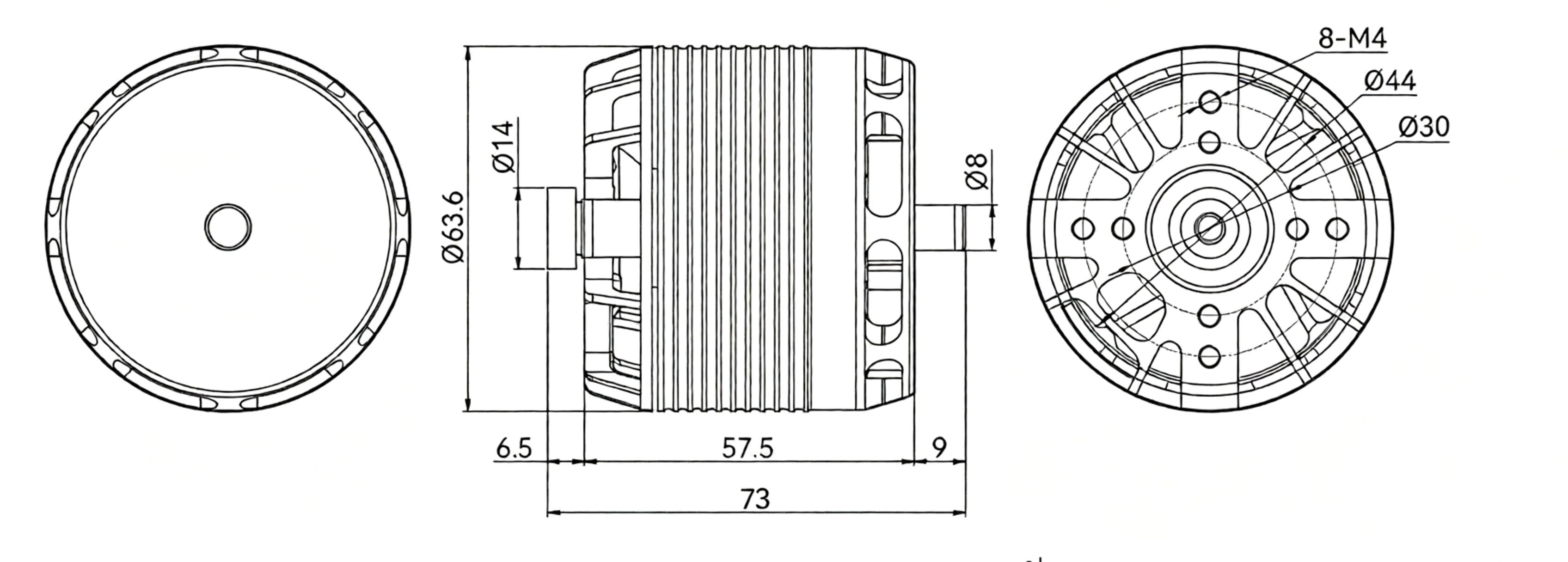

Motor dimensions
63.6*83.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
8mm
Motor weight
680g
Service life
＞1000h

Technical Specifications

AX530-A Basic Data
Motor Model:AX530-A	Magnet Temperature Resistance Grade:180°C
Motor Overall Dimensions:63.6*83.5mm	Lead Wire Specification x Length:Enameled Wire 150mm
Stator Process:150°C	Enameled Wire Temperature Resistance Grade:220°C
Slot/Pole Count:12N14P	Coil Withstand Voltage:500V/5s
Motor Shaft Diameter:IN:10mm OUT:8mm	Rotor Dynamic Balance Standard:≤30mg
Bearing Model:6800/6900ZZ Bearing	Packaging Dimensions:/

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW530A	KV	W	A	g	g/W	/	S	A
	260	12717	7856	117.79	2.53	APCAUFZ 20*13	6	80
	260	13755	7815	119.15	2.71	APCAUZ 20*13	6	80
	260	12717	7856	117.79	2.53	APCAUFZ 20*13	6	80
	260	13755	7815	119.15	2.71	APCAUZ 20*13	6	80

test data

MODEL	Propeller	Throttle(%)	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N·m)	Thrust(g)	Efficiency(g/W)
AX530-A KV260	/	%	(V)	(A)	(W)	/	(N·m)	(g)	(g/W)
	AUFZ 20*13	40%	44.67	9.52	425	3623	0.91	2842	6.68	110.7
		45%	44.6	12.47	556	3982	1.1	3460	6.22
		50%	44.53	16.47	733	4392	1.33	4234	5.77
		55%	44.42	22.34	992	4862	1.64	5217	5.26
		60%	44.3	28.38	1257	5272	1.93	6169	4.91
		65%	44.18	34.66	1531	5623	2.21	7039	4.6
		70%	44.04	41.9	1845	5971	2.49	7976	4.32
		75%	43.88	50.32	2208	6320	2.81	8956	4.06
		80%	43.69	59.9	2617	6666	3.14	9995	3.82
		90%	43.2	85.56	3696	7248	3.98	11088	3
		100%	42.62	117.79	5020	7856	4.81	12717	2.53
	AUZ 20*13	40%	44.62	9.55	426	3601	0.93	3076	7.22	111.2
		45%	44.56	12.61	562	3960	1.11	3754	6.68
		50%	44.48	16.83	748	4359	1.35	4602	6.15
		55%	44.36	22.72	1008	4832	1.67	5687	5.64
		60%	44.24	28.95	1281	5239	1.98	6744	5.27
		65%	44.12	35.33	1559	5585	2.26	7698	4.94
		70%	43.98	43.03	1892	5944	2.57	8764	4.63
		75%	43.81	51.59	2260	6278	2.87	9814	4.34
		80%	43.62	61.29	2674	6617	3.21	10948	4.09
		90%	43.18	84.14	3633	7244	3.89	13204	3.63
		100%	42.55	119.15	5069	7815	4.88	13755	2.71


The 530A Brushless Outrunner Motor is engineered for heavy-duty fixed-wing UAVs, delivering exceptional thrust, high efficiency, and reliable performance for demanding industrial flight missions. Available in 260KV, it provides up to 13 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 6–12S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for fixed-wing drones, VTOL UAVs, cargo UAVs, mapping aircraft, surveillance platforms, agricultural UAVs, and industrial long-range UAV applications. Custom shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
