90*70.8mm
24N28P
200℃
12mm
865g
＞1000h
| AT8020 Basic Data | |
| Parameter：KV180 | Maximum Continuous Power；1251W/1293W |
| Test Model：KV180/KV210 | Weight (with Leads)：865g/870g |

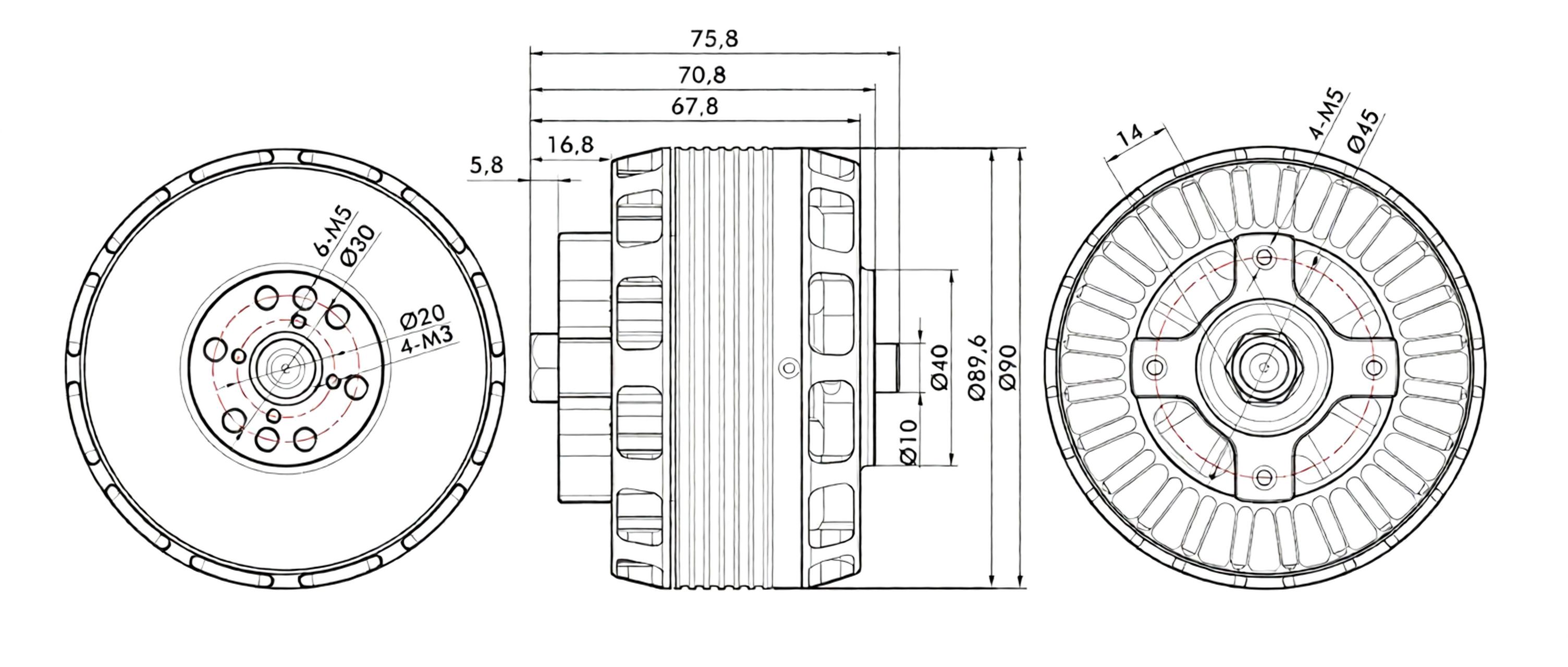

| Motor Dimensions：90*70.8mm | Phase-to-phase Internal Resistance：16m |
| Lead Specification;00mm | Slot/Pole Configuration：24N28P |
| Shaft Diameter:IN: 12mm | Operating Rated Voltage (LiPo)：10-14S |
| No-load Current (10V):4.6A/5.3A | Maximum Current (180s)：120A/135A |
| MODEL | KV Value | Maximum power | Maximum current | Pull | Efficiency | Propeller | Battery | ESC |
| AT8020 | KV | W | A | A | g | g/W | / | S |
| 180 | 1251 | 120 | 4.6 | 865 | - | - | ||
| 210 | 1293 | 135 | 5.3 | 870 | - | - |
| Model | Propeller | Accelerator | Voltage | Current | Power | Speed | Torque | Voltag | Efficiency | Motor Temperature |
| / | (%) | (V) | (A) | (W) | (RPM) | (N.m) | (g) | (g/W) | (℃) | |
| 23*10 | 40.% | 44.40 | 9.68 | 429.80 | 3030 | 0.850 | 2451 | 5.70 | 63℃ | |
| 4596 | 44.53 | 12.54 | 558.40 | 3360 | 1.060 | 3169 | 5.70 | |||
| 50.% | 44.45 | 15.97 | 709.90 | 3690 | 1.300 | 3962 | 5.60 | |||
| 55.% | 44.42 | 19.37 | 860.40 | 3990 | 1.530 | 4782 | 5.60 | |||
| 60%6 | 44.06 | 25.00 | 1101.50 | 4350 | 1.860 | 5849 | 5.30 | |||
| 65.% | 44.01 | 30.35 | 1335.70 | 4680 | 2.160 | 6880 | 5.20 | |||
| 7096 | 43.66 | 35.97 | 1570.50 | 4980 | 2480 | 7968 | 5.10 | |||
| 759 | 43.72 | 43.17 | 1887.40 | 5280 | 2.810 | 9075 | 4.80 | |||
| 80.% | 43.45 | 50.77 | 2206.00 | 5580 | 3.150 | 10163 | 4.60 | |||
| 90.% | 42.82 | 68.97 | 2953.30 | 6090 | 3.900 | 12514 | 4.20 | |||
| 1009 | 42.31 | 89.84 | 3801.10 | 6660 | 4.710 | 14996 | 3.90 | |||
| 24*10 | 4096 | 44.48 | 10.59 | 471.00 | 3000 | 0.980 | 2844 | 6.00 | 77℃ | |
| 4596 | 44.45 | 13.91 | 618.30 | 3330 | 1.240 | 3681 | 6.00 | |||
| 509 | 44.62 | 17.67 | 788.40 | 3660 | 1.500 | 4553 | 5.80 | |||
| 55.% | 43.99 | 22.01 | 968.20 | 3930 | 1.770 | 5427 | 5.60 | |||
| 60.% | 44.00 | 27.49 | 1209.60 | 4320 | 2.120 | 6615 | 5.50 | |||
| 6596 | 43.79 | 33.26 | 1456.50 | 4590 | 2460 | 7739 | 5.30 | |||
| 70.% | 43.67 | 40.37 | 1763.00 | 4920 | 2.850 | 8992 | 5.10 | |||
| 759 | 43.62 | 48.29 | 2106.40 | 5190 | 3.210 | 10215 | 4.80 | |||
| 80.% | 43.19 | 56.56 | 2442.80 | 5490 | 3.580 | 11447 | 4.70 | |||
| 9096 | 42.50 | 76.01 | 3230.40 | 6000 | 4.380 | 13980 | 4.30 | |||
| 100.% | 41.97 | 102.08 | 4284.30 | 6510 | 5.310 | 16889 | 3.90 |

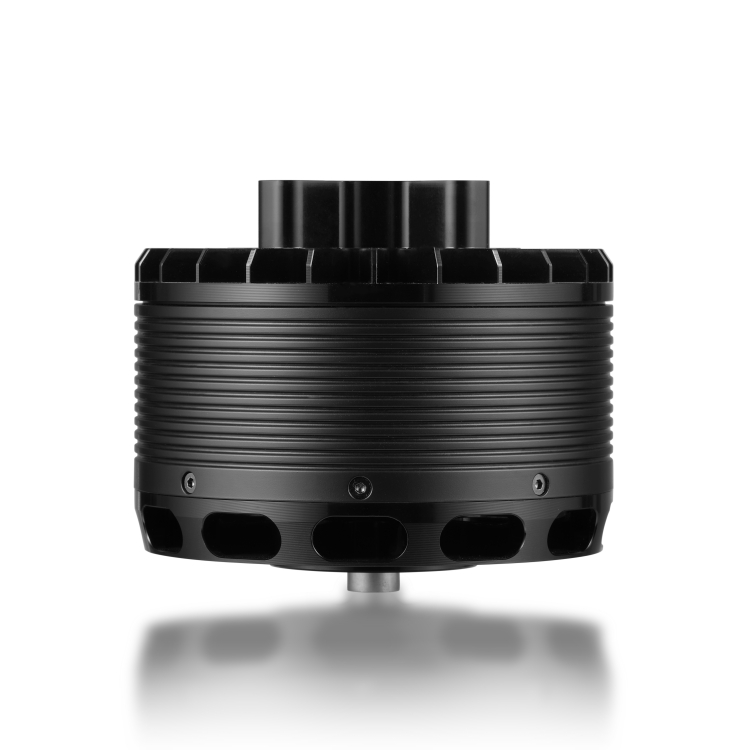

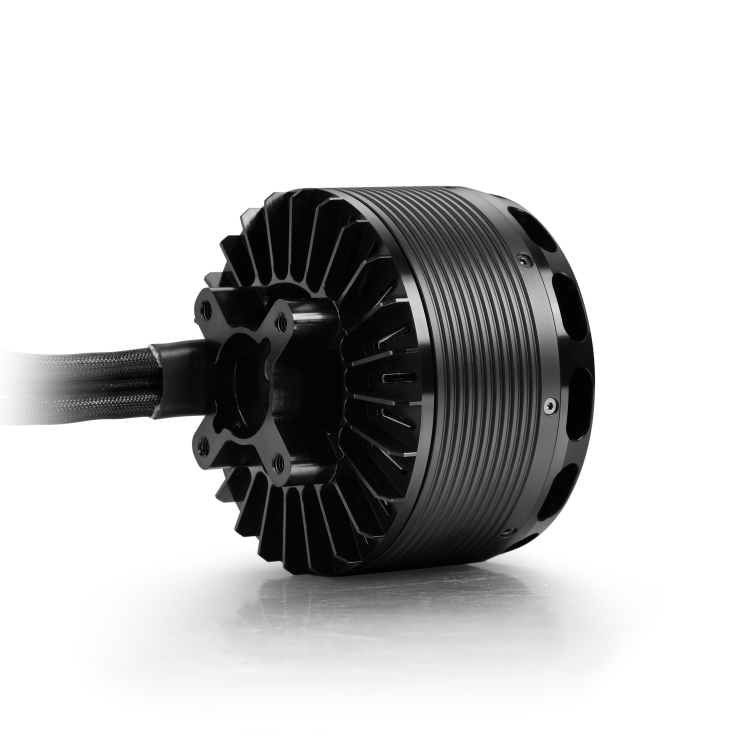

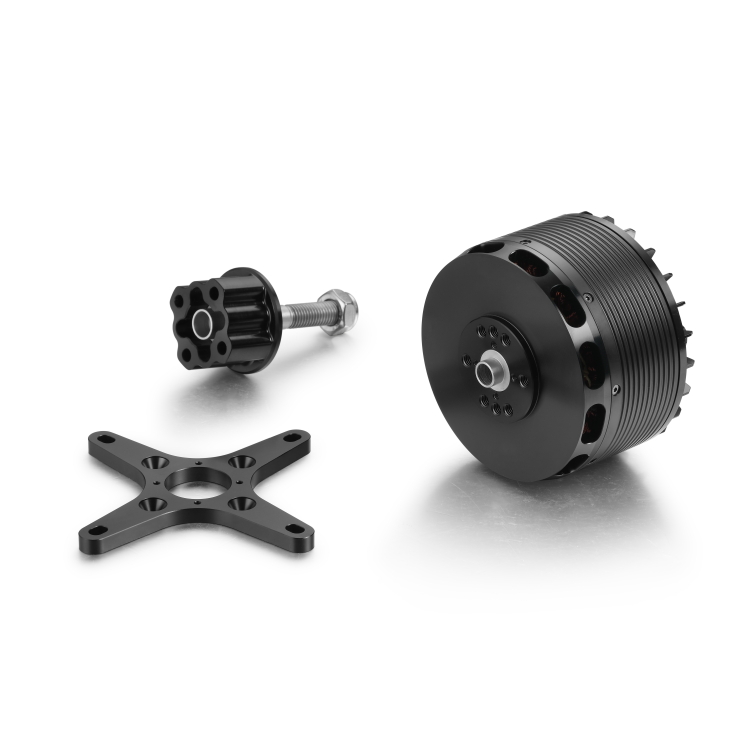

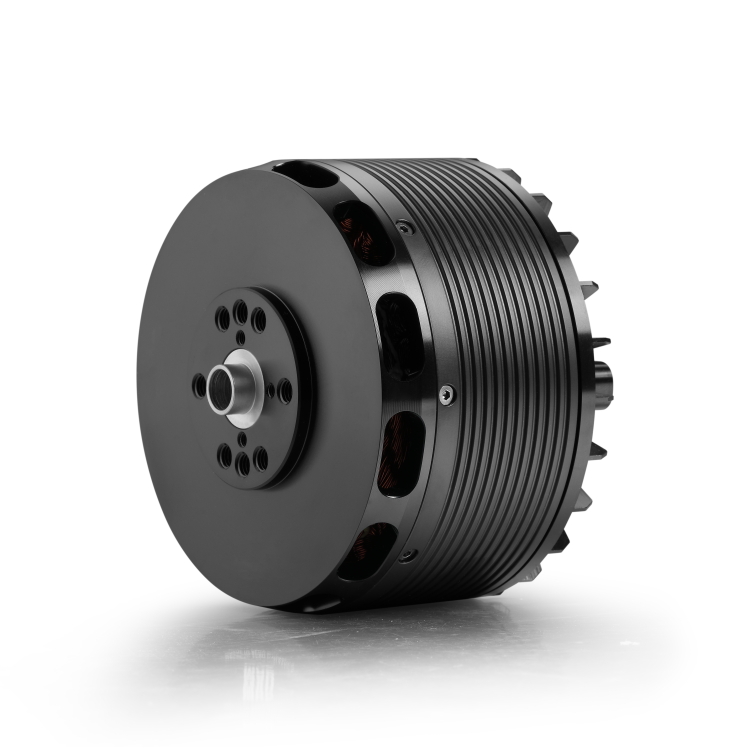

This series includes two high-power brushless motors, the KV180 and KV210, featuring a 24-slot, 28-pole design. Compatible with 10-14S or 10-12S lithium batteries, they deliver maximum power up to 1293W. With strong performance and lightweight construction, these motors are specifically designed for aerial models, drones, and other flying devices.
