Technical Specifications

AT2317 Basic Data

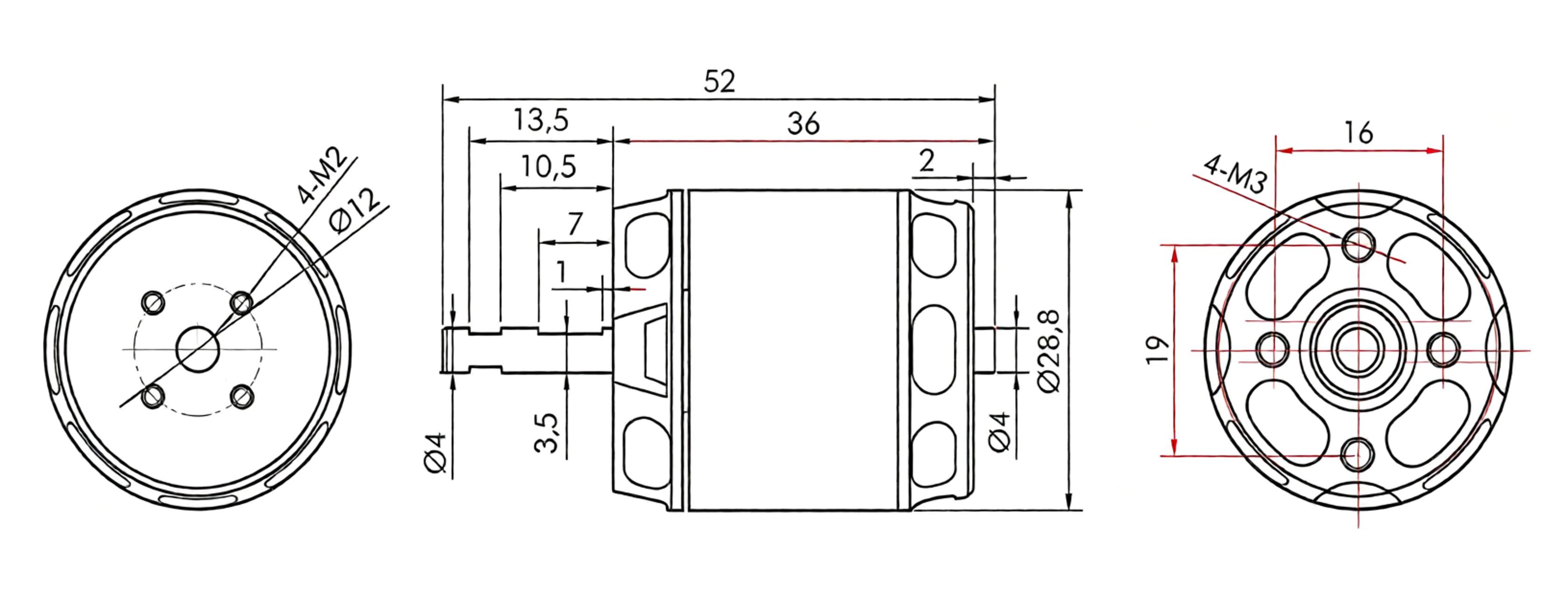

Test Model:Long Shaft KV880	Motor Dimensions:28.8*52mm
Lead Specification:AWG 100mm	Shaft Diameter:4mm
No-load Current (10V):0.9A	Maximum Continuous Power:85W
Weight (with wires):79g	Phase-to-phase Internal Resistance：82m
Slot-pole Configuration：12N14P	Rated Operating Voltage (Lipo)：2-4S
Maximum Current (180s)：25A	Recommended Matching：/

Basic Data

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT2317 KV880	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	APC 10*4.7	4096	14.70	4.91	72.01	5265	0.090	563	8.09	51
		45.%	14.68	5.79	84.69	5561	0.102	653	7.71
		50.%	14.66	6.79	99.33	5864	0.114	729	7.34
		55.%	14.63	7.84	114.62	6196	0.127	812	7.06
		6096	14.60	9.21	134.38	6525	0.143	910	6.77
		65.%	14.56	10.96	159.39	6920	0.162	1022	6.41
		70.%	14.51	12.77	185.13	7270	0.179	1130	6.11
		75.%	14.47	14.85	214.73	7608	0.199	1243	5.79
		8096	14.41	17.12	246.59	7974	0.219	1356	5.50
		90.%	14.28	22.12	315.77	8604	0.258	1571	4.97
		10096	14.23	23.89	339.80	8686	0.272	1652	4.66
	APC 11*5.5	409	14.66	4.82	70.62	5297	0.067	592	8.38	72
		4596	14.66	5.66	83.25	5640	0.098	667	6.01
		509	14.64	6.60	96.57	5950	0.110	743	7.69
		55.%	14.62	7.61	111.15	6217	0.122	828	7.45
		60.%	14.59	8.94	130.34	6585	0.137	928	7.12
		6596	14.55	10.66	155.23	6976	0.156	1049	6.76
		70.%	14.51	12.43	180.15	7317	0.173	1161	6.45
		75.%	14.46	14.39	207.80	7668	0.192	1262	6.17
		80.%	14.40	16.69	240.15	8021	0.213	1402	5.64
		9096	14.27	21.86	311.81	8647	0.254	1627	5.22
		10096	14.23	23.36	332.14	8750	0.264	1670	5.03
	APC 12+6	40.%	11.21	3.74	41.84	3682	0.070	435	10.40	57
		45.%	11.19	4.35	48.57	4098	0.077	488	10.05
		5096	11.19	5.12	57.19	4350	0.067	551	9.64
		55.%	11.15	5.92	65.86	4595	0.096	615	9.33
		60.%	11.19	7.16	79.99	4929	0.111	710	8.68
		65.%	11.11	8.56	94.94	5250	0.126	807	8.50
		70.%	11.05	10.03	110.64	5539	0.140	898	8.10
		75.%	11.07	11.85	131.06	5860	0.158	1018	7.77
		8096	10.96	13.76	151.10	6098	0.175	1115	7.36
		90.%	10.86	17.90	194.20	6631	0.207	1327	6.83
		100.%	10.82	19.41	209.79	6720	0.218	1396	6.66
	APC 13+8	40.%	11.07	4.19	46.22	3289	0.065	463	10.01	79
		45.%	11.15	5.10	56.69	3533	0.097	537	9.47
		50.%	11.12	6.25	69.34	3613	0.113	623	8.98
		559	11.08	7.66	85.00	4112	0.131	725	8.53
		609	10.71	8.95	95.59	4295	0.143	794	8.51
		659	10.70	10.94	116.82	4588	0.165	916	7.64
		70.%	10.92	13.49	147.10	4939	0.190	1061	7.21
		7596	10.87	15.70	170.57	5169	0.210	1172	6.67
		80.%	10.88	16.26	198.72	5406	0.232	1297	6.53
		90.%	10.76	23.33	250.66	5778	0.268	1488	5.93
		10076	10.69	24.84	265.34	5809	0.277	1540	5.61
AT2317 KV1250	APC 8+6	0.40	15.12	8	122.92	8445.00	0	624.00	5.08	78
		0.45	15.09	9	143.03	8669.00	0	698.00	4.68
		0.50	15.05	11	162.81	9304.00	0	765.00	4.70
		0.55	15.03	12	161.16	9612.00	0	820.00	4.52
		0.60	14.99	13	201.69	9983.00	0	862.00	4.37
		659.00	14.96	15	224.60	10305.00	0	943.00	4.20
		0.70	14.93	16	244.54	10669.00	0	1014.00	4.15
		7596.00	14.85	19	203.40	11152.00	0	1105.00	3.90
		0.80	14.76	22	325.32	11609.00	0	1207.00	3.71
		0.90	14.56	27	419.00	12530.00	0	1406.00	3.36
		10046.00	14.49	31	443.19	12713.00	0	1451.00	3.27
	APC 9*6	0.40	15.09	9	136.63	7581.00	0	749.00	5.48	93
		0.45	15.06	11	160.19	8013.00	0	840.00	5.24
		509.00	15.02	12	185.59	8418.00	0	937.00	5.05
		0.55	14.97	14	212.01	8774.00	0	1050.00	4.95
		609.00	14.93	16	240.25	9130.00	0	1131.00	4.71
		0.65	14.88	18	266.47	9474.00	0	1217.00	4.57
		0.70	14.82	20	302.96	9680.00	0	1341.00	442.00
		0.75	14.72	24	350.85	10267.00	0	1457.00	4.15
		8096.00	14.61	27	396.56	10619.00	0	1562.00	3.94
		909.00	14.32	35	496.77	11369.00	0	1696.00	3.41
		1.00	14.23	37	522.62	11500.00	0	1733.00	3.S2
	APC 9+6	0.40	11.35	6	72.24	6179.00	0	466.00	6.73	57
		0.45	11.33	7	83.96	6547.00	0	548.00	6.53
		0.50	11.31	9	96.33	6876.00	0	606.00	6.29
		0.55	11.28	10	108.10	7175.00	0	660.00	6.11
		0.60	11.26	11	119.51	7431.00	0	711.00	5.95
		0.65	11.23	12	132.66	7727.00	0	770.00	5.80
		0.70	11.19	13	149.40	7977.00	0	836.00	5.60
		0.75	11.15	15	159.60	8417.00	0	913.00	5.39
		0.80	11.09	18	196.20	8620.00	0	1003.00	5.11
		0.90	10.95	23	251.46	9518.00	0	1156.00	4.60
		10096.00	10.89	25	268.36	9735.00	0	T192	4.44
	APC 10+4.7	0.40	11.34	7	79.83	5328.00	0	563.00	7.30	79
		0.45	11.31	8	93.30	5642.00	0	651.00	6.98
		0.50	11.28	10	109.12	5923.00	0	732.00	6.70
		0.55	11.24	11	125.91	6246.00	0	822.00	6.59
		0.60	11.20	13	146.05	6569.00	0	914.00	6.23
		0.65	11.14	16	173.09	6946.00	0	1024.00	5.92
		0.70	11.09	18	196.83	7266.00	0	1118.00	5.68
		0.75	11.02	20	224.79	7551.00	0	1220.00	5.43
		0.80	10.94	23	255.66	7694.00	0	1327.00	5.19
		0.90	10.73	30	317.60	8441.00	0	1494.00	4.70
		10096.00	10.65	31	534.79	8529.00	0	1523.00	4.55
AT2317 KV1400	APC 8+6	0.40	15.13	11	166.02	9128.00	0	701.00	4.22	78
		0.45	15.10	13	193.18	9627.00	0	774.00	4.01
		0.50	15.08	15	222.40	10115.00	0	852.00	3.83
		5596.00	15.05	17	252.09	10553.00	0	923.00	3.66
		0.60	15.03	19	280.70	10904.00	0	994.00	3.54
		0.65	14.99	21	320.23	11377.00	0	1065.00	3.39
		0.70	14.97	23	345.91	11794.00	0	1179.00	3.41
		7596.00	14.91	27	403.03	12294.00	0	1309.00	3.25
		0.80	14.85	32	475.25	12954.00	0	1437.00	3.02
		0.90	14.73	41	606.27	13678.00	0	1652.00	2.73
		10016.00	14.68	45	656.29	13937.00	0	1703.00	259.00
	APC 8*6	409.00	11.30	8	93.37	7652.00	0	511.00	5.46	93
		0.45	11.27	9	106.67	8100.00	0	576.00	5.40
		0.50	11.24	11	121.26	8438.00	0	635.00	5.24
		0.55	11.21	12	134.68	8795.00	0	686.00	5.09
		609.00	11.19	13	148.34	9061.00	0	737.00	4.97
		0.65	11.16	14	161.10	9366.00	0	780.00	4.84
		0.70	11.13	16	174.56	9590.00	0	821.00	4.70
		0.75	11.08	18	195.59	10037.00	0	889.00	4.55
		0.80	11.02	20	223.57	10434.00	0	966.00	4.32
		0.90	10.83	26	285.43	11295.00	0	1122.00	3.93
		10016.00	10.76	28	304.65	11505.00	0	1172.00	3.65
	APC 9+6	0.40	11.28	9	103.11	6935.00	0	612.00	5.93	57
		459.00	11.25	11	119.81	7313.00	0	681.00	5.69
		0.50	11.21	12	137.54	7641.00	0	755.00	5.49
		0.55	11.17	14	153.86	7972.00	0	821.00	5.34
		0.60	11.13	15	171.35	8285.00	0	880.00	5.14
		659.00	11.09	17	190.14	8588.00	0	941.00	4.95
		0.70	11.04	19	211.93	8922.00	0	1016.00	4.80
		759.00	10.97	22	240.06	9314.00	0	1100.00	4.58
		0.80	10.87	25	271.40	9711.00	0	1192.00	4.39
		0.90	10.62	32	339.12	10390.00	0	1369.00	4.04
		10016.00	10.53	34	359.97	10517.00	0	1422.00	3.95
