50*79mm
12N14P
200℃
6mm
408g
＞1000h
| AT4130 Basic Data | |
| Test Model:KV230/KV300/KV450 | Phase-to-phase Internal Resistance:60m/32m/16.8m |

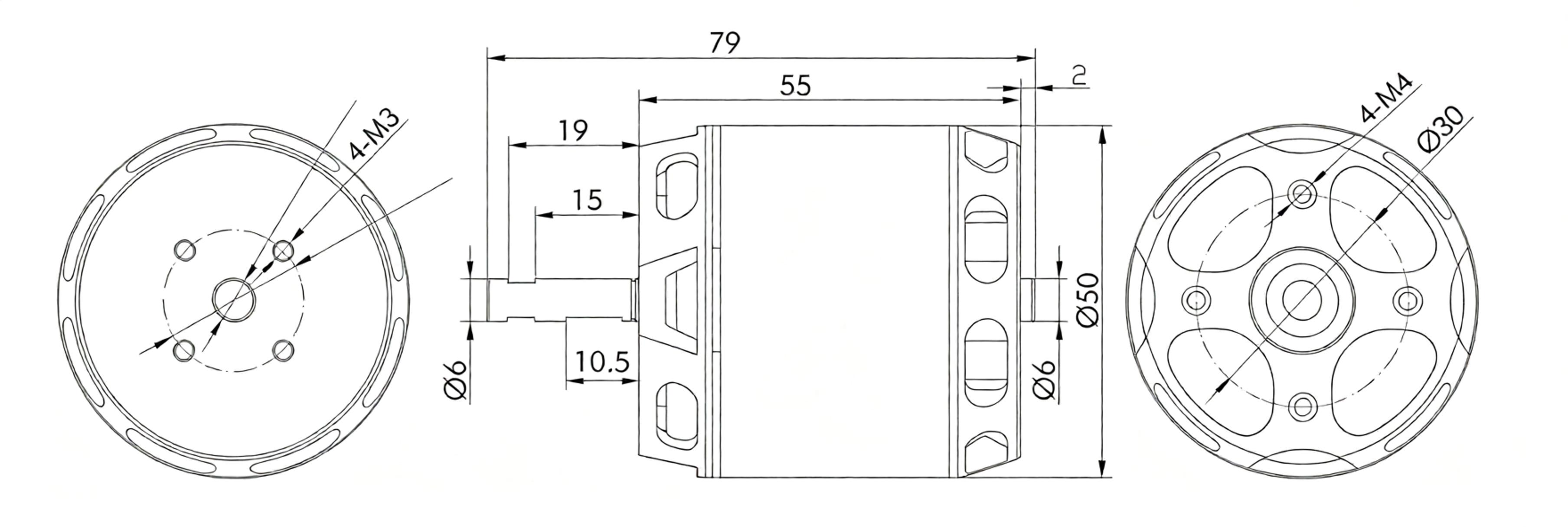

| Motor Dimensions:50*79mm | Slot-pole Configuration:12N14P |
| Lead Specification:100mm | Rated Operating Voltage (Lipo):12S/6-12S/6S |
| Shaft Diameter:IN: 6mm;OUT: 6mm | Maximum Current (180s):60A/75A/75A |
| No-load Current (10V):1.4A/1.8A/2.5A | Maximum Continuous Power:426W/513W/404W |
| MODEL | KV Value | Maximum power | Maximum current | Full Efficiency | Propeller | Battery |
| Unit | KV | W | A | % | - | S (Lipo) |
| AT4130 | 220/380/230/300/450 | 610/568/426/513/404 | 70/100/60/75/75 | - | - | 6-12S/12s |
| Model | Propeller | Accelerator | Voltage | Current | Power | Speed | Torque | Voltag | Efficiency | Motor Temperature |
| / | (%) | (V) | (A) | (W) | (RPM) | (N.m) | (g) | (g/W) | (℃) | |
| AT4130 KV230 | APC 16*8 | 40.% | 44.40 | 2.87 | 127.58 | 3701 | 0.226 | 1087 | 8.52 | 78 |
| 45.% | 44.38 | 3.73 | 165.46 | 4105 | 0.284 | 1341 | 8.10 | |||
| 50.% | 44.36 | 5.18 | 229.88 | 4664 | 0.366 | 1744 | 7.59 | |||
| 55.% | 44.34 | 6.83 | 302.67 | 5143 | 0.450 | 2139 | 7.07 | |||
| 60.% | 44.31 | 8.56 | 302.67 | 5546 | 0.531 | 2513 | 6.63 | |||
| 65.% | 44.26 | 10.59 | 468.76 | 5941 | 0.616 | 2906 | 6.20 | |||
| 70.% | 44.22 | 13.10 | 579.10 | 6363 | 0.719 | 3366 | 5.81 | |||
| 75.% | 44.16 | 16.32 | 720.88 | 6827 | 0.841 | 3903 | 5.41 | |||
| 80.% | 44.10 | 19.63 | 865.54 | 7215 | 0.958 | 4407 | 5.09 | |||
| 90.% | 43.96 | 27.66 | 1215.78 | 7875 | 1.174 | 5293 | 4.35 | |||
| 100.% | 43.78 | 38.25 | 1674.45 | 8646 | 1.521 | 6395 | 3.82 | |||
| APC 17*10 | 40.% | 44.52 | 3.84 | 171.08 | 3512 | 0.349 | 1459 | 8.53 | 97 | |
| 45.% | 44.51 | 4.81 | 213.89 | 3869 | 0.424 | 1768 | 8.27 | |||
| 50.% | 44.47 | 6.96 | 309.40 | 4395 | 0.547 | 2285 | 7.38 | |||
| 55.% | 44.43 | 9.59 | 426.03 | 4902 | 0.690 | 2867 | 6.73 | |||
| 60.% | 44.34 | 13.34 | 591.63 | 5359 | 0.835 | 3459 | 5.85 | |||
| 65.% | 44.30 | 15.79 | 699.52 | 5679 | 0.948 | 3905 | 5.58 | |||
| 70.% | 44.24 | 19.07 | 843.63 | 6038 | 1.087 | 4428 | 5.25 | |||
| 75.% | 44.16 | 23.84 | 1052.67 | 6438 | 1.248 | 5069 | 4.82 | |||
| 80.% | 44.08 | 28.30 | 1247.65 | 6806 | 1.410 | 5650 | 4.53 | |||
| 90.% | 43.88 | 39.96 | 1753.67 | 7468 | 1.780 | 6939 | 3.96 | |||
| 100.% | 43.62 | 55.63 | 2426.63 | 7891 | 2.101 | 7630 | 3.14 | |||
| AT4130 KV300 | APC 17*10 | 40.% | 29.90 | 4.05 | 121.08 | 3148 | 0.284 | 1175 | 9.70 | 68 85 |
| 45.% | 29.88 | 5.27 | 157.61 | 3471 | 0.351 | 1458 | 9.25 | |||
| 50.% | 29.82 | 8.14 | 242.78 | 3959 | 0.458 | 1903 | 7.84 | |||
| 55.% | 29.76 | 11.40 | 339.11 | 4399 | 0.566 | 2355 | 6.94 | |||
| 60.% | 29.73 | 14.01 | 416.40 | 4747 | 0.669 | 2773 | 6.66 | |||
| 65.% | 29.66 | 17.51 | 519.33 | 5085 | 0.772 | 3187 | 6.14 | |||
| 70.% | 29.59 | 21.50 | 636.19 | 5475 | 0.900 | 3696 | 5.81 | |||
| 75.% | 29.50 | 26.67 | 787.01 | 5821 | 1.027 | 4198 | 5.33 | |||
| 80.% | 29.43 | 31.27 | 920.27 | 6126 | 1.145 | 4662 | 5.07 | |||
| 90.% | 29.21 | 43.47 | 1269.79 | 6717 | 1.411 | 5652 | 4.45 | |||
| 100.% | 29.01 | 55.72 | 1616.42 | 7215 | 1.670 | 6577 | 4.07 | |||
| APC 18*8 | 40.% | 29.90 | 4.08 | 122.11 | 3124 | 0.285 | 1246 | 10.20 | ||
| 45.% | 29.87 | 5.54 | 165.57 | 3478 | 0.355 | 1573 | 9.50 | |||
| 50.% | 29.82 | 8.36 | 249.20 | 3969 | 0.462 | 2061 | 8.27 | |||
| 55.% | 29.78 | 11.20 | 333.59 | 4404 | 0.577 | 2542 | 7.62 | |||
| 60.% | 29.71 | 14.42 | 428.57 | 4781 | 0.681 | 3027 | 7.07 | |||
| 65.% | 29.67 | 17.26 | 512.26 | 5093 | 0.771 | 3438 | 6.71 | |||
| 70.% | 29.59 | 21.71 | 642.57 | 5476 | 0.906 | 4019 | 6.26 | |||
| 75.% | 29.49 | 26.99 | 796.16 | 5800 | 1.034 | 4601 | 5.78 | |||
| 80.% | 29.41 | 32.15 | 945.54 | 6147 | 1.169 | 5145 | 5.44 | |||
| 90.% | 29.22 | 43.46 | 1269.83 | 6721 | 1.428 | 6224 | 4.90 | |||
| 100.% | 29.01 | 55.77 | 1617.91 | 7201 | 1.672 | 7231 | 4.47 | |||
| APC 14*7 | 40.% | 44.53 | 3.40 | 151.51 | 4778 | 0.202 | 1086 | 7.17 | 82 | |
| 45.% | 44.50 | 4.53 | 201.78 | 5356 | 0.258 | 1375 | 6.81 | |||
| 50.% | 44.47 | 6.46 | 287.44 | 6077 | 0.339 | 1796 | 6.25 | |||
| 55.% | 44.41 | 8.76 | 388.82 | 6659 | 0.418 | 2183 | 5.62 | |||
| 60.% | 44.38 | 11.21 | 497.36 | 7306 | 0.509 | 2633 | 5.29 | |||
| 65.% | 44.35 | 13.42 | 595.23 | 7783 | 0.586 | 2989 | 5.02 | |||
| 70.% | 44.28 | 17.04 | 754.68 | 8371 | 0.699 | 3536 | 4.69 | |||
| 75.% | 44.19 | 22.48 | 993.34 | 9045 | 0.837 | 4146 | 4.17 | |||
| 80.% | 44.11 | 26.78 | 1181.17 | 9528 | 0.967 | 4686 | 3.97 | |||
| 90.% | 43.89 | 39.41 | 1729.89 | 10475 | 1.290 | 5432 | 3.14 | |||
| 100.% | 43.67 | 53.21 | 2323.39 | 11329 | 1.595 | 6283 | 2.70 | |||
| APC 15*8 | 40.% | 44.32 | 4.37 | 193.70 | 4605 | 0.294 | 1431 | 7.39 | 85 | |
| 45.% | 44.31 | 5.73 | 253.89 | 5142 | 0.366 | 1779 | 7.01 | |||
| 50.% | 44.25 | 8.48 | 375.21 | 5885 | 0.484 | 2342 | 6.24 | |||
| 55.% | 44.20 | 11.61 | 513.33 | 6502 | 0.613 | 2928 | 5.70 | |||
| 60.% | 44.13 | 15.12 | 667.08 | 7064 | 0.731 | 3484 | 5.22 | |||
| 65.% | 44.07 | 18.52 | 816.06 | 7526 | 0.848 | 4010 | 4.91 | |||
| 70.% | 44.01 | 22.29 | 981.04 | 8039 | 0.983 | 4569 | 4.66 | |||
| 75.% | 43.84 | 30.92 | 1355.63 | 8623 | 1.208 | 5080 | 3.75 | |||
| 80.% | 43.72 | 38.65 | 1689.88 | 9142 | 1.420 | 5694 | 3.37 | |||
| 90.% | 43.43 | 55.53 | 2412.02 | 9931 | 1.801 | 6751 | 2.80 | |||
| 100.% | 43.14 | 72.26 | 3117.41 | 10572 | 2.171 | 7787 | 2.50 |
