BGS-FW1030 Long Axis AT Series Motors

Product Number:FW1030

get free solutions compare

AT1030 high-torque brushless motor adopts 24N28P slot-pole structure, supports 24S LiPo power, outputs 3911W continuous power with 28kg maximum thrust for super heavy-lift UAVs.

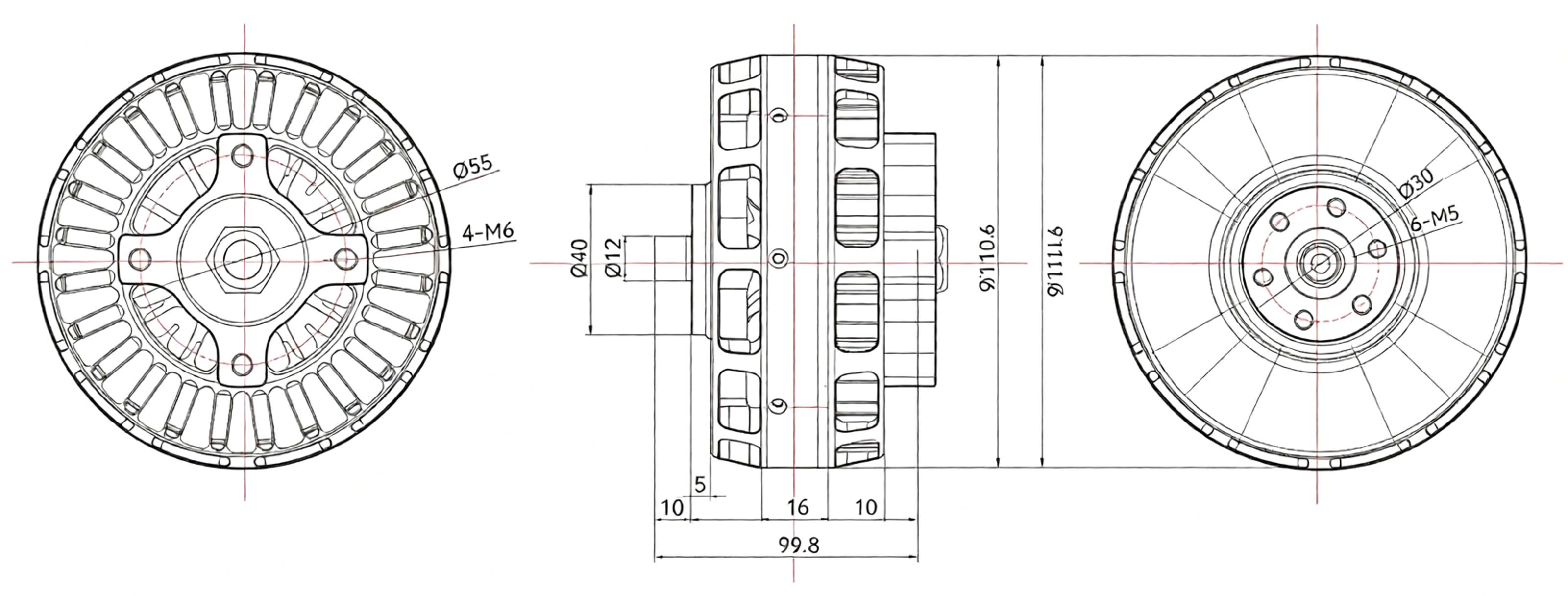

Motor dimensions
110.6*99.8mm
Number of slots
24N28P
Copper wire grade
220℃
Shaft diameter
12mm
Motor weight
1800g
Service life
＞1000h

Technical Specifications

AT1030 Basic Data
Coil Withstand Voltage：1000V/5s	Rotor Dynamic Balance Standard：≤30mg
Motor Model：AT1030	Packaging Dimensions：246162139mm
Motor Overall Dimensions：Φ110.6*99.8mm	KV Value:90
Stator Process：150°C High Temperature Resistant Coating	Maximum Continuous Power:3911W
Slot/Pole Count：24N28P	Rated Operating Voltage (LiPo):24S
Motor Shaft Diameter：24N28P	Maximum Thrust:28kg
Bearing Model：6902/6202ZZ Bearings	No-Load Current (15V):3.6A
Magnet Temperature Resistance Grade：180°C	Maximum Current:93A
Lead Wire Specification × Length：Enameled Wire 100mm	Phase-to-Phase Internal Resistance：12mΩ
Enameled Wire Temperature Resistance Grade：220°C	Motor Weight (with Wire)：1800g

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT1030 KV90	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	26*12	40.%	88.47	19.48	1723	3954	3.06	8927	5.18	103
		45.%	88.40	23.95	2117	4272	3.56	10400	4.91
		50.%	88.26	32.86	2900	4801	4.53	13202	4.55
		559	88.15	39.57	3488	5127	5.22	15096	4.33
		60.%	88.09	42.71	3763	5272	5.52	15999	4.25
		65.%	88.02	47.13	4148	5460	5.95	17229	4.15
		70.%	87.94	52.14	4585	5651	6.41	18583	4.05
		75.%	87.86	57.06	5013	5824	6.86	19867	3.96
		80.%	87.80	61.28	5380	5965	7.26	20990	3.90
		90.%	87.61	72.93	6390	6299	8.25	23911	3.74
		100.%	87.31	92.39	8067	6733	9.75	27938	3.46
	27*10	40.%	88.43	19.62	1735	4043	3.03	9365	5.40	109
		45.%	88.35	23.70	2094	4340	3.51	10856	5.19
		50.%	88.17	35.94	3169	5029	4.81	14816	4.68
		55.%	88.11	39.04	3440	5181	5.13	15812	4.60
		60.%	88.05	42.43	3736	5335	5.47	16830	4.51
		65.%	87.98	46.87	4123	5527	5.91	18146	4.40
		70.%	87.89	51.80	4553	5714	6.36	19478	4.28
		75.%	87.82	56.27	4941	5872	6.77	20688	4.19
		80.%	87.74	60.45	5304	6021	7.17	21843	4.12
		90.%	87.53	73.77	6457	6400	8.27	24970	3.87
		100.%	87.22	91.90	8015	6811	9.66	28638	3.57
	27*12	40.%	88.45	20.68	1829	3877	3.39	9948	5.44	HOT
		45.%	88.36	25.56	2259	4188	3.98	11579	5.13
		50.%	88.24	33.47	2953	4620	4.88	14205	4.81
		55.%	88.06	44.42	3911	5080	6.04	17398	4.45
		60.%	87.98	49.06	4316	5260	6.50	18740	4.34
		65.%	87.89	54.24	4767	5439	7.01	20191	4.24
		70.%	87.79	59.86	5256	5618	7.52	21616	4.11
		75.%	87.70	65.39	5735	5784	8.01	23032	4.02
		80.%	87.61	71.18	6236	5943	8.52	24321	3.90
		90.%	87.40	84.54	7389	6261	9.60	27258	3.69
		100.%	87.14	104.67	9122	6674	11.15	29968	3.29
