BGS F6215 210KV Ultra Heavy Load FPV Brushless Drone Motor for Agricultural & Cargo UAV

Product Number:6215

get free solutions compare

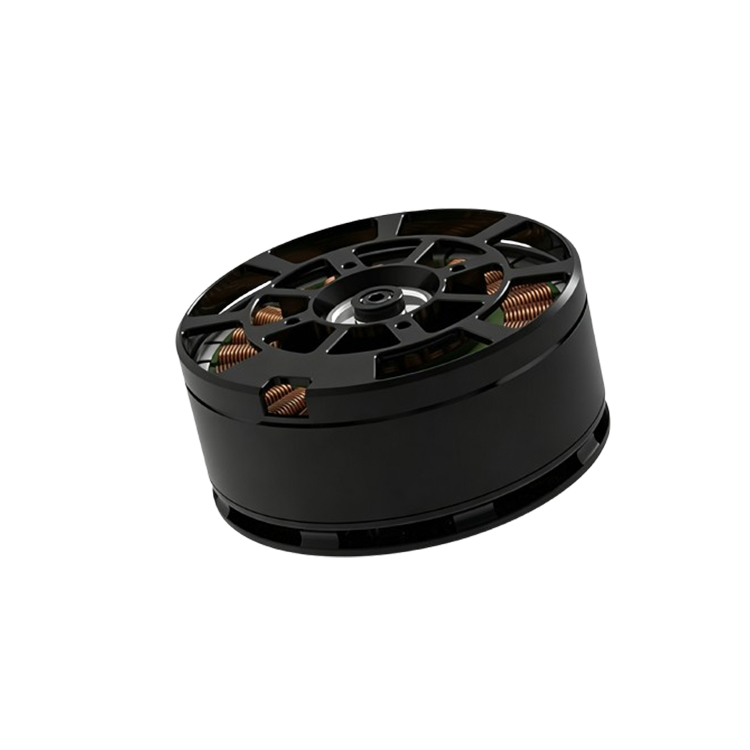

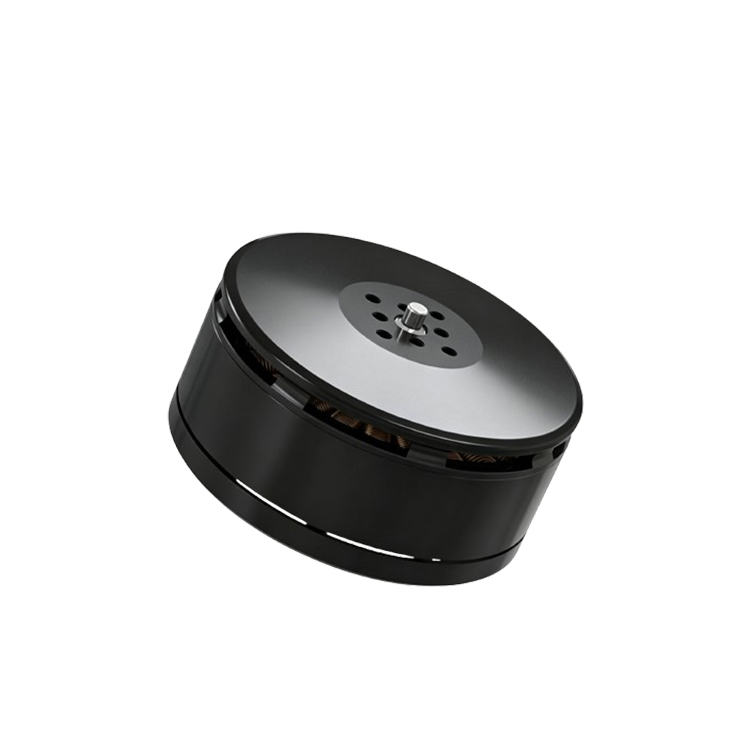

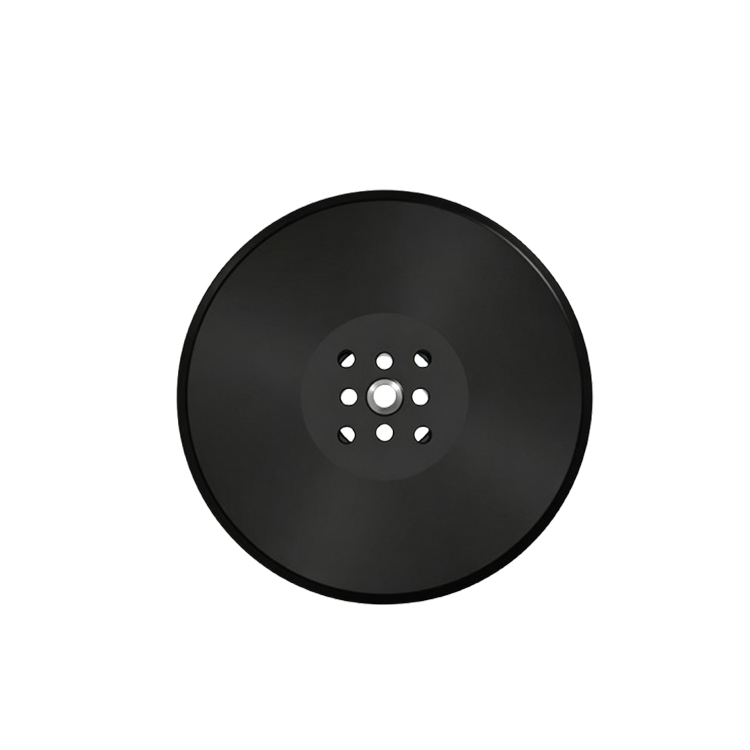

The BGS F6215 high torque outrunner brushless motor is specially designed for ultra-heavy-lift industrial drones, agricultural spraying UAVs, cargo delivery drones and aerial hoisting equipment. It adopts large-diameter thickened stator structure with low 210KV design for huge torque output, matched with 16-inch large propeller. The maximum static thrust can reach 12kg per motor, offering outstanding stability under long-term continuous heavy-load operation.

Motor dimensions
69.5*36.5mm
Number of slots
24N22P
Copper wire grade
200℃
Shaft diameter
IN: 8mm
Motor weight
388±10g
Service life
>1000h

Technical Specifications

Item	Parameter
Model	F6215
KV Rating	210KV
Motor Dimension	Outer Dia 69.5mm × Stator Thickness 36.5mm
Shaft Diameter	8mm
Weight (with wires)	388±10g
Stator Structure	12 Slots
Enamel Wire Class	Class H (180℃ high temperature resistant)
Service Life	≥1000 Hours
Max Static Thrust	12kg (6S LiPo, 16-inch propeller)
Recommended Battery	6S LiPo Battery

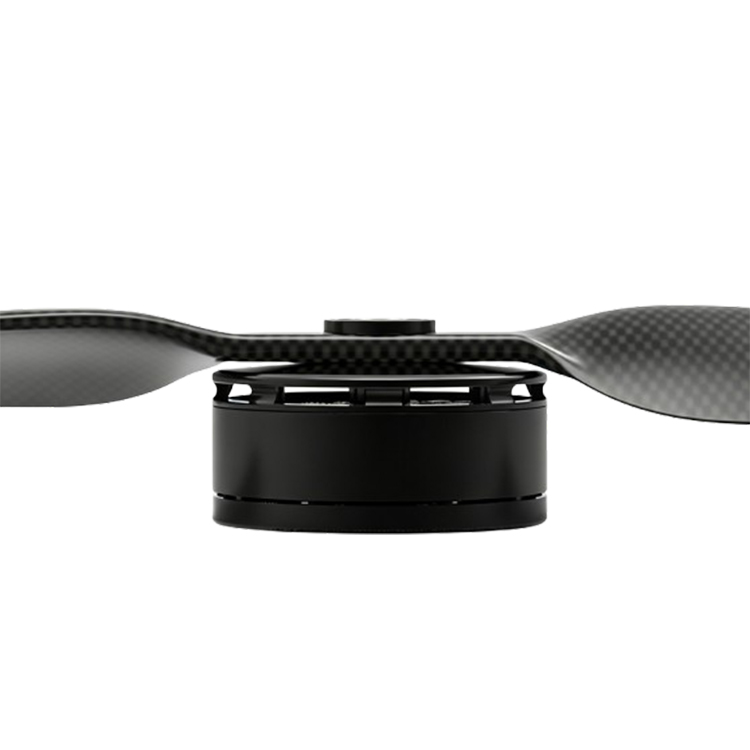

Matching Propeller	16-inch heavy-duty propeller

test data

Model	Throttle	Voltage	Current	Input Power	Speed	Thrust	Power Efficiency
Model	%	V	A	W	RPM	gf	gf/W
TORHANG F6215 210KV	30	25.1	8.53	214.1	3975	865	4.04
	35	25.06	11.4	285.7	4700	1220	4.27
	40	25.02	16.23	406.1	5365	1449	3.57
	45	24.97	20.62	514.9	6015	1704	3.31
	50	24.93	28.51	710.8	6660	2147	3.02
	55	24.88	33.77	840.2	7285	2579	3.07
	60	24.83	44.3	1099.9	7890	3025	2.75
	65	24.78	50.77	1258.1	8470	3485	2.77
	70	24.73	58.41	1444.5	9025	3929	2.72
	75	24.68	63.64	1570.8	9550	4351	2.77
	80	24.63	74.35	1831.2	10040	4816	2.63
	85	24.58	86.47	2125.4	10490	5313	2.5
	90	24.53	101.32	2485.4	10895	5766	2.32
	95	24.47	111.78	2735.3	11250	6182	2.26
	100	24.42	122.85	2999.9	11552	12005	4

Product Advantages

High Thrust & Large Torque: Max 12kg single motor thrust, perfectly meets takeoff requirement of heavy-lift UAV.
High Temperature Resistant Winding: Class H high-temperature resistant enamel wire, effectively prevent overheating and demagnetization under long-time heavy-load work.
Reinforced Structure: 8mm thickened main shaft, anti-vibration and anti-deformation during high-speed rotation.
Precision Dynamic Balance: Strict dynamic balance calibration, low vibration, low noise and longer service life.
Wide Compatibility: Compatible with most mainstream heavy-duty ESCs on market, easy to install and replace.
