60.4*35.3mm
12N14P
200℃
6mm
323g
＞1000h
| Recommended 4720 UAV Motor | |
| Model：F4720 | Enameled Wire Grade：Class H (180℃ High Temperature Resistant) |
| Rated KV：430KV | Rated Service Life：≥1000 Hours |

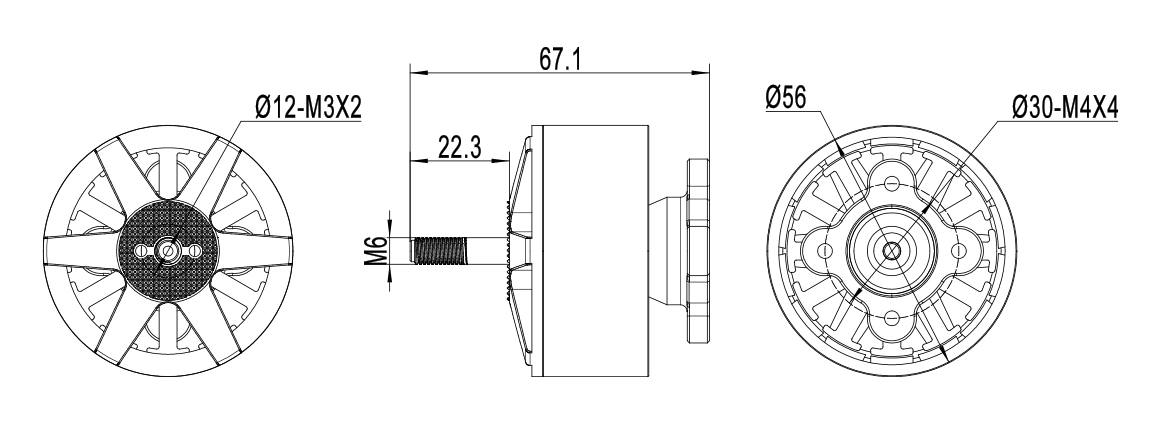

| Motor Dimension：56x67.1mm | Maximum Static Thrust：9.12kg (Tested under 6S LiPo + 13-inch propeller) |
| Shaft Diameter：8mm | Recommended Battery：6-8S Lithium Polymer Battery |
| Total Weight (with wires)：330g | Matching Propeller：15-inch heavy load propeller |
| MODEL | KV Value | Maximum power | Maximum current | pull | Efficiency | Propeller | Battery Lipo Cells | ESC | |
| BGS-F4720 | KV | W | A | g | g/W | / | S | A | |
| 430 | 1241.7 | 51.63 | 4922 | 3.96 | HQ1507 | 6S | 50 | ||
| 430 | 1847.7 | 58.36 | 5947 | 3.22 | HQ1309 | 8S | 60 | ||
| 430 | 2489.4 | 78.88 | 8058 | 3.24 | HQ1507 | 8S | 80 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-4720 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 23.93 | 1061 | 0.229 | 5.76 | 3585 | 137.9 | 10.439 | 34 | |
| 50% | 24.54 | 1629 | 0.2849 | 9.94 | 4406 | 243.9 | 9.5891 | ||
| 60% | 24.47 | 2217 | 0.4108 | 15.72 | 5147 | 384.6 | 7.9804 | ||
| 70% | 23.56 | 2718 | 0.549 | 21.43 | 5737 | 513.5 | 6.7906 | ||
| 80% | 23.89 | 3331 | 0.6964 | 29.69 | 6339 | 709.2 | 5.8616 | ||
| 90% | 23.57 | 4013 | 0.8722 | 39.14 | 6861 | 922.6 | 5.0878 | ||
| 100% | 24.05 | 4922 | 1.0561 | 51.63 | 7586 | 1241.7 | 4.506 |
As industrial drones continue increasing in size and payload capacity, propulsion systems must provide higher torque reserves, superior thermal stability, and long-term reliability.
The 4720 brushless outrunner motor was specifically developed for medium and heavy-duty UAV platforms operating under demanding conditions.
Featuring a large 47 mm stator diameter and 20 mm stator height, the 4720 delivers significantly more torque than 4715-class motors while maintaining excellent efficiency with large-diameter propellers.
The additional stator height increases the electromagnetic volume by approximately 33% compared with a 4715 motor.
This allows the motor to generate:
-Stronger low-speed torque;
-Higher hover efficiency;
-Improved payload capability;
-Lower thermal stress during prolonged missions.

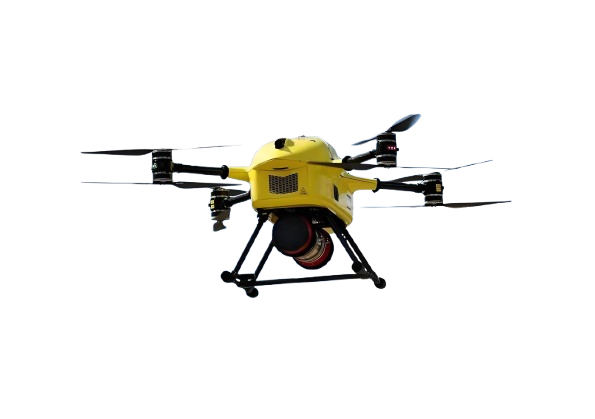

The 4720 is particularly suitable for:
-Logistics drones;
-Agricultural spraying UAVs;
-Industrial inspection aircraft;
-Emergency medical transport UAVs;
-Heavy-lift cinematic platforms;
-Counter-UAV interceptor systems.
