BGS-FW7224 160KV/190KV 17KG Payload uav motor for 24inch Surveying drone_BOGONG SUN | Professional UAV Motor Manufacturer

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-FW7224 KV160 21*10	%	V	g	N.m	A	rpm	W	g/W	℃
	40.%	44.31	1766	0.54	4.80	2893	212.87	8.30	80
	45.%	44.27	2212	0.62	6.25	3225	276.86	7.99
	50.%	44.22	2814	0.80	8.79	3629	388.73	7.25
	55.%	44.16	3429	0.97	11.35	4000	501.16	6.84
	60.%	44.11	4022	1.15	13.79	4326	608.49	6.61
	65.%	44.04	4622	1.29	16.93	4639	745.62	6.20
	70.%	43.95	5365	1.50	20.86	4988	916.88	5.85
	75.%	43.83	6280	1.77	26.42	5373	1158.06	5.42
	80.%	43.71	7144	2.06	32.04	5745	1400.68	5.10
	90.%	43.46	8933	2.59	44.15	6360	1918.79	4.66
	100.%	43.16	10676	3.11	58.20	6896	2511.99	4.25
BGS-FW7224 KV160 21*10	40.%	47.93	2045	0.60	5.34	3105	255.98	7.99	/
	45.%	47.89	2501	0.70	6.96	3434	333.46	7.50
	50.%	47.83	3196	0.90	9.69	3876	463.32	6.90
	55.%	47.73	3935	1.12	13.03	4291	621.96	6.33
	60.%	47.71	4539	1.28	15.53	4633	741.01	6.13
	65.%	47.64	5209	1.46	18.81	4960	896.24	5.81
	70.%	47.56	6096	1.73	23.04	5339	1095.60	5.56
	75.%	47.37	7315	2.13	31.09	5816	1472.55	4.97
	80.%	47.25	8247	2.40	36.56	6144	1727.56	4.77
	90.%	46.95	10299	3.00	50.68	6789	2379.68	4.33
	100.%	46.51	12494	3.71	71.24	7109	3313.26	3.77
BGS-FW7224 KV160 21*10	40.%	44.41	2071	0.64	5.70	2850	253.30	8.18	88
	45.%	44.37	2608	0.81	7.49	3183	332.34	7.85
	50.%	44.30	3269	1.02	10.25	3580	454.21	7.20
	55.%	44.23	4002	1.22	13.82	3967	611.41	6.55
	60.%	44.15	4723	1.43	17.18	4291	758.35	6.23
	65.%	44.10	5427	1.63	20.38	4591	898.65	6.04
	70.%	43.97	6373	1.92	26.02	4934	1144.24	5.57
	75.%	43.85	7432	2.21	32.03	5312	1404.60	5.29
	80.%	43.70	8549	2.63	39.36	5669	1720.07	4.97
	90.%	43.39	10526	3.24	54.11	6261	2347.54	4.48
	100.%	43.05	12496	3.86	70.38	6780	3029.80	4.12
BGS-FW7224 KV160 21*10	40.%	47.99	2426	0.73	6.29	3057	301.96	8.03	/
	45.%	47.96	2997	0.93	8.27	3412	396.60	7.56
	50.%	47.86	3770	1.14	11.62	3831	556.40	6.78
	55.%	47.80	4613	1.37	15.20	4237	726.46	6.35
	60.%	47.72	5446	1.62	18.93	4585	903.28	6.03
	65.%	47.64	6315	1.90	23.17	4909	1103.76	5.72
	70.%	47.50	7317	2.18	29.04	5278	1379.32	5.31
	75.%	47.32	8753	2.72	38.04	5747	1800.27	4.86
	80.%	47.17	9742	3.01	45.06	6063	2125.28	4.58
	90.%	46.83	12037	3.72	61.51	6678	2880.40	4.18
	100.%	46.42	14447	4.50	81.47	7213	3781.47	3.82
BGS-FW7224 KV160 23*10	40.%	37.07	1631	0.46	4.85	2404	179.66	9.08	78
	45.%	37.02	2052	0.59	6.54	2685	242.14	8.48
	50.%	36.96	2642	0.77	9.11	3038	336.65	7.85
	55.%	36.89	3262	0.96	12.16	3349	448.81	7.27
	60.%	36.83	3832	1.11	15.32	3617	564.24	6.79
	65.%	36.78	4471	1.28	18.07	3889	664.53	6.73
	70.%	36.70	5225	1.50	22.32	4174	819.19	6.38
	75.%	36.57	6058	1.74	27.90	4475	1020.42	5.94
	80.%	36.48	6810	1.95	32.61	4732	1189.50	5.72
	90.%	36.22	8469	2.44	45.16	5231	1635.72	5.18
	100.%	35.90	10050	2.88	60.17	5722	2160.31	4.65
BGS-FW7224 KV160 23*10	40.%	42.00	2016	0.60	5.81	2691	243.81	8.27	/
	45.%	41.95	2542	0.75	7.64	3000	320.56	7.93
	50.%	41.87	3269	0.96	10.82	3383	452.90	7.22
	55.%	41.80	4019	1.17	14.73	3738	615.52	6.53
	60.%	41.72	4821	1.39	18.23	4044	760.66	6.34
	65.%	41.64	5609	1.62	22.10	4322	920.32	6.10
	70.%	41.53	6460	1.89	27.22	4648	1130.31	5.72
	75.%	41.41	7520	2.18	33.49	4979	1386.94	5.42
	80.%	41.26	8508	2.46	40.27	5261	1661.69	5.12
	90.%	40.92	10599	3.05	57.16	5858	2338.69	4.53
	100.%	40.56	12486	3.59	74.08	6335	3004.27	4.16
BGS-FW7224 KV160 23*10	40.%	44.24	2252	0.68	6.26	2816	276.99	8.13	86
	45.%	44.19	2845	0.84	8.38	3139	370.42	7.68
	50.%	44.13	3628	1.07	11.56	3531	510.31	7.11
	55.%	44.03	4481	1.33	15.77	3904	694.46	6.45
	60.%	43.96	5292	1.56	19.48	4223	856.35	6.18
	65.%	43.86	6082	1.78	23.88	4528	1047.27	5.81
	70.%	43.73	7066	2.07	29.77	4857	1301.86	5.43
	75.%	43.60	8176	2.38	36.62	5209	1596.54	5.12
	80.%	43.42	9386	2.72	45.32	5551	1967.73	4.77
	90.%	43.08	11502	3.31	61.82	6121	2663.09	4.32
	100.%	42.69	13628	3.89	80.29	6620	3427.47	3.98
BGS-FW7224 KV160 23*10	40.%	47.87	2627	0.80	7.06	3017	338.01	7.77	/
	45.%	47.82	3303	0.98	9.31	3356	445.30	7.42
	50.%	47.73	4227	1.26	13.36	3770	637.77	6.63
	55.%	47.63	5234	1.57	17.84	4161	849.98	6.16
	60.%	47.54	6196	1.84	22.28	4501	1059.42	5.85
	65.%	47.44	7098	2.09	26.97	4821	1279.61	5.55
	70.%	47.32	8181	2.40	33.44	5181	1582.04	5.17
	75.%	47.07	9776	2.83	44.46	5622	2092.95	4.67
	80.%	46.93	10876	3.15	51.86	5924	2433.90	4.47
	90.%	46.52	13337	3.85	71.24	6511	3313.98	4.02
	100.%	46.05	15732	4.52	93.17	7028	4290.46	3.67
BGS-FW7224 KV160 24*10	40.%	36.93	1862	0.57	5.21	2386	192.58	9.67	74
	45.%	36.89	2302	0.68	6.92	2664	255.28	9.02
	50.%	36.84	2934	0.87	9.64	3015	355.22	8.26
	55.%	36.74	3780	1.03	13.30	3326	488.44	7.74
	60.%	36.70	4344	1.19	16.06	3596	589.29	7.37
	65.%	36.62	4885	1.35	19.43	3858	711.53	6.87
	70.%	36.52	5768	1.59	24.25	4148	885.55	6.51
	75.%	36.40	6881	1.92	29.96	4437	1090.57	6.31
	80.%	36.29	7698	2.20	35.28	4692	1280.42	6.01
	90.%	36.02	9416	2.84	48.54	5181	1748.45	5.39
	100.%	35.66	11213	3.17	65.48	5638	2335.30	4.80
BGS-FW7224 KV160 24*10	40.%	41.92	2305	0.67	6.22	2669	260.94	8.84	/
	45.%	41.88	2861	0.84	8.24	2974	345.20	8.29
	50.%	41.80	3835	1.05	11.85	3358	495.18	7.75
	55.%	41.69	4654	1.26	16.69	3706	695.92	6.69
	60.%	41.63	5499	1.49	19.73	4013	821.19	6.70
	65.%	41.55	6395	1.81	23.65	4301	982.63	6.51
	70.%	41.43	7433	2.12	29.46	4610	1220.57	6.09
	75.%	41.27	8536	2.51	36.74	4941	1516.18	5.63
	80.%	41.13	9557	2.85	43.86	5214	1804.14	5.30
	90.%	40.74	11807	3.37	62.47	5789	2544.92	4.64
	100.%	40.37	13916	4.01	80.20	6253	3237.87	4.30
BGS-FW7224 KV160 24*10	40.%	44.34	2613	0.74	6.77	2807	300.20	8.70	87
	45.%	44.29	3245	0.94	8.94	3127	395.88	8.20
	50.%	44.21	4090	1.21	12.58	3525	556.16	7.36
	55.%	44.11	5007	1.47	17.25	3891	760.67	6.58
	60.%	44.03	6050	1.65	21.25	4212	935.48	6.47
	65.%	43.94	7004	2.03	25.61	4504	1125.34	6.22
	70.%	43.80	8133	2.40	32.06	4834	1404.22	5.79
	75.%	43.63	9373	2.78	40.20	5179	1753.94	5.34
	80.%	43.42	10542	2.92	50.11	5508	2176.02	4.84
	90.%	43.05	12990	3.80	68.04	6063	2928.99	4.43
	100.%	42.61	15404	4.48	88.56	6529	3773.52	4.08
BGS-FW7224 KV160 24*10	40.%	47.89	2966	0.87	7.54	2999	361.11	8.21	/
	45.%	47.84	3817	1.02	9.91	3342	474.10	8.05
	50.%	47.73	4762	1.31	14.38	3750	686.33	6.94
	55.%	47.64	5961	1.59	19.08	4140	908.85	6.56
	60.%	47.53	7061	2.03	24.19	4493	1149.86	6.14
	65.%	47.43	8049	2.34	29.23	4797	1386.23	5.81
	70.%	47.26	9239	2.70	36.77	5144	1737.59	5.32
	75.%	47.03	10855	3.06	48.38	5581	2275.34	4.77
	80.%	46.85	12134	3.53	56.71	5864	2657.00	4.57
	90.%	46.41	14926	4.38	77.55	6434	3599.39	4.15
	100.%	45.90	17536	5.25	101.25	6921	4647.79	3.77
BGS-FW7224 KV190 21*10	40.%	36.90	2148	0.65	7.54	3162	278.41	7.72	87
	45.%	36.84	2772	0.83	10.48	3575	386.22	7.18
	50.%	36.75	3459	1.01	14.53	3986	534.06	6.48
	55.%	36.67	4099	1.18	18.01	4354	660.49	6.21
	60.%	36.61	4739	1.36	21.71	4680	794.80	5.96
	65.%	36.49	5528	1.59	27.03	5052	986.48	5.60
	70.%	36.30	6586	1.92	35.99	5516	1306.15	5.04
	75.%	36.16	7429	2.19	42.40	5847	1533.50	4.84
	80.%	36.00	8348	2.46	50.29	6169	1810.43	4.61
	90.%	35.61	10188	3.00	68.35	6769	2433.99	4.19
	100.%	35.54	10555	3.10	71.61	6852	2544.87	4.15
BGS-FW7224 KV190 21*10	40.%	41.90	2643	0.71	8.73	3530	365.80	7.22	/
	45.%	41.82	3354	0.91	12.20	3997	510.38	6.57
	50.%	41.72	4235	1.15	16.67	4452	695.60	6.09
	55.%	41.61	5109	1.41	21.62	4853	899.70	5.68
	60.%	41.52	5859	1.64	26.05	5215	1081.48	5.42
	65.%	41.33	7152	2.03	35.26	5744	1457.21	4.91
	70.%	41.16	8283	2.36	43.60	6157	1794.42	4.62
	75.%	40.97	9323	2.67	52.10	6509	2134.43	4.37
	80.%	40.79	10416	2.99	61.22	6850	2497.16	4.17
	90.%	40.29	12569	3.65	83.86	7512	3379.02	3.72
	100.%	40.19	12867	3.76	87.85	7609	3530.50	3.64
BGS-FW7224 KV190 21*10	40.%	44.31	2471	0.66	7.87	3468	348.64	7.09	91
	45.%	44.25	3097	0.84	10.41	3856	460.69	6.72
	50.%	44.16	3912	1.06	14.21	4306	627.64	6.23
	55.%	44.07	4841	1.32	19.02	4752	838.29	5.78
	60.%	43.96	5591	1.57	23.43	5125	1030.26	5.43
	65.%	43.83	6693	1.91	30.49	5598	1336.32	5.01
	70.%	43.69	7782	2.23	37.74	6001	1648.70	4.72
	75.%	43.48	8891	2.55	46.51	6404	2022.36	4.40
	80.%	43.31	10010	2.87	54.84	6735	2375.19	4.21
	90.%	42.88	12207	3.54	75.03	7394	3217.30	3.79
	100.%	42.36	13963	4.29	98.83	7955	4186.79	3.34
BGS-FW7224 KV190 21*10	40.%	47.88	2859	0.75	9.19	3640	440.10	6.50	/
	45.%	47.82	3679	0.99	11.89	4125	568.49	6.47
	50.%	47.71	4603	1.25	16.23	4589	774.27	5.95
	55.%	47.60	5610	1.56	21.80	5066	1037.74	5.41
	60.%	47.45	6838	1.95	29.01	5590	1376.61	4.97
	65.%	47.34	7833	2.26	34.84	5971	1649.31	4.75
	70.%	47.14	9113	2.63	43.71	6393	2060.80	4.42
	75.%	46.94	10466	3.03	54.00	6817	2534.39	4.13
	80.%	46.73	11639	3.38	63.47	7162	2965.88	3.92
	90.%	46.20	14145	4.19	88.09	7842	4070.15	3.48
	100.%	45.56	15565	5.19	117.22	8385	5340.63	2.91
BGS-FW7224 KV190 21*10	40.%	36.89	2152	0.64	7.12	2891	262.47	8.20	80
	45.%	36.84	2716	0.84	9.36	3224	344.93	7.87
	50.%	36.75	3407	1.04	13.32	3606	489.32	6.97
	55.%	36.64	4226	1.28	17.79	4000	651.65	6.49
	60.%	36.59	4908	1.49	21.10	4319	771.85	6.36
	65.%	36.49	5602	1.68	25.61	4614	934.40	6.00
	70.%	36.35	6519	1.95	31.71	4949	1152.89	5.66
	75.%	36.20	7567	2.30	39.56	5309	1431.89	5.29
	80.%	36.01	8565	2.62	48.45	5657	1745.00	4.91
	90.%	35.64	10521	3.22	66.13	6223	2356.93	4.46
	100.%	35.23	12378	3.78	85.35	6702	3006.64	4.12
BGS-FW7224 KV190 21*10	40.%	41.81	2744	0.79	8.47	3231	354.23	7.75	/
	45.%	41.75	3362	0.95	11.33	3589	472.81	7.11
	50.%	41.65	4257	1.22	15.70	4035	653.86	6.51
	55.%	41.54	5193	1.49	20.70	4444	859.97	6.04
	60.%	41.43	6059	1.76	25.66	4798	1062.94	5.70
	65.%	41.34	6867	2.03	30.44	5120	1258.42	5.46
	70.%	41.12	8345	2.48	41.15	5612	1692.37	4.93
	75.%	40.93	9473	2.85	50.13	5971	2051.85	4.62
	80.%	40.75	10413	3.14	58.56	6288	2386.68	4.36
	90.%	40.28	12908	3.87	80.81	6882	3254.88	3.97
	100.%	39.75	15224	4.57	105.26	7394	4184.19	3.64
BGS-FW7224 KV190 21*10	40.%	44.29	3022	0.86	9.27	3402	410.71	7.36	88
	45.%	44.22	3724	1.06	12.29	3784	543.49	6.85
	50.%	44.13	4675	1.34	16.71	4233	737.30	6.34
	55.%	44.02	5705	1.65	22.21	4671	977.58	5.84
	60.%	43.90	6611	1.95	27.56	5034	1210.00	5.46
	65.%	43.71	7925	2.36	36.66	5502	1602.21	4.95
	70.%	43.55	9124	2.74	44.55	5887	1940.16	4.70
	75.%	43.31	10390	3.13	55.26	6272	2393.45	4.34
	80.%	43.12	11599	3.49	64.75	6589	2792.01	4.15
	90.%	42.59	14221	4.26	89.21	7197	3799.33	3.74
	100.%	42.01	16542	5.01	115.89	7725	4868.09	3.40
BGS-FW7224 KV190 21*10	40.%	47.80	3320	0.92	10.41	3584	497.53	6.67	/
	45.%	47.73	4266	1.21	13.56	4049	647.38	6.59
	50.%	47.62	5304	1.52	18.41	4508	876.76	6.05
	55.%	47.49	6518	1.91	25.17	4973	1195.14	5.45
	60.%	47.30	7904	2.35	34.04	5490	1609.78	4.91
	65.%	47.15	9064	2.72	41.12	5855	1938.57	4.68
	70.%	46.94	10453	3.15	51.11	6269	2399.23	4.36
	75.%	46.71	11916	3.59	62.32	6669	2910.67	4.09
	80.%	46.47	13203	3.98	73.37	6999	3408.99	3.87
	90.%	45.85	16113	4.86	101.59	7622	4658.39	3.46
	100.%	45.14	17722	5.89	133.15	8139	6010.33	2.95

AT7224 Basic Data
Parameter： KV160	Maximum Continuous Power (180s):908W/12S/1609W/12S
Test Model： KV160/KV190	Weight (with Leads):780g

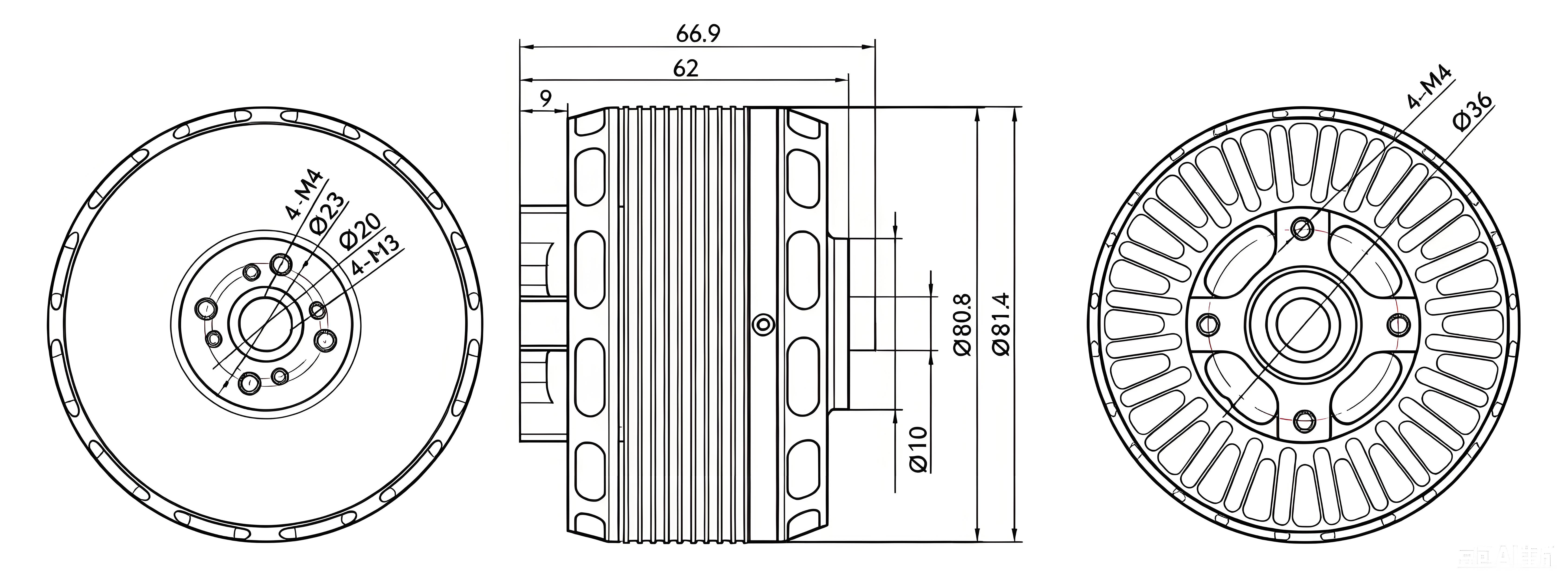

Motor Dimensions：81.4*66.9mm	Phase-to-phase Internal Resistance:24m
Lead Specification： 100mm	Slot/Pole Configuration:24N22P
Shaft Diameter：IN: 10mm	Operating Rated Voltage (LiPo)；10-12S
No-load Current (10V);3.1A/3.5A	Maximum Current (180s)：105A/135A

Fixed-Wing Motors

BGS-FW7224 160KV/190KV 17KG Payload uav motor for 24inch Surveying drone

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Compare

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Applicable blades	Number of batteries	Adapt to electric adjustment
BGS-FW7224	KV	W	A	g	g/W	/	S	A
	160	2511.99	58.20	10676	4.25	APC21*10	6	40
	160	3313.26	71.24	12494	3.77	APC21*10	6	40
	160	3029.80	70.38	12496	4.12	APC21*10	6	40
	160	3781.47	81.47	14447	3.82	APC21*10	6	40
	160	2160.31	60.17	10050	4.65	APC23*10	6	40
	160	3004.27	74.08	12486	4.16	APC23*10	6	40
	160	3427.47	80.29	13628	3.98	APC23*10	6	40
	160	4290.46	93.17	15732	3.67	APC23*10	6	40
	160	2335.30	65.48	11213	4.80	APC24*10	6	40
	160	3237.87	80.20	13916	4.30	APC24*10	6	40
	160	3773.52	88.56	15404	4.08	APC24*10	6	40
	160	4647.79	101.25	17536	3.77	APC24*10	6	40
	190	2544.87	71.61	10555	4.15	APC21*10	6	40
	190	3530.50	87.85	12867	3.64	APC21*10	6	40
	190	4186.79	98.83	13963	3.34	APC21*10	6	40
	190	5340.63	117.22	15565	2.91	APC21*10	6	40
	190	3006.64	85.35	12378	4.12	APC21*10	6	40
	190	4184.19	105.26	15224	3.64	APC21*10	6	40
	190	4868.09	115.89	16542	3.40	APC21*10	6	40
	190	6010.33	133.15	17722	2.95	APC21*10	6	40

Fixed-Wing Motors

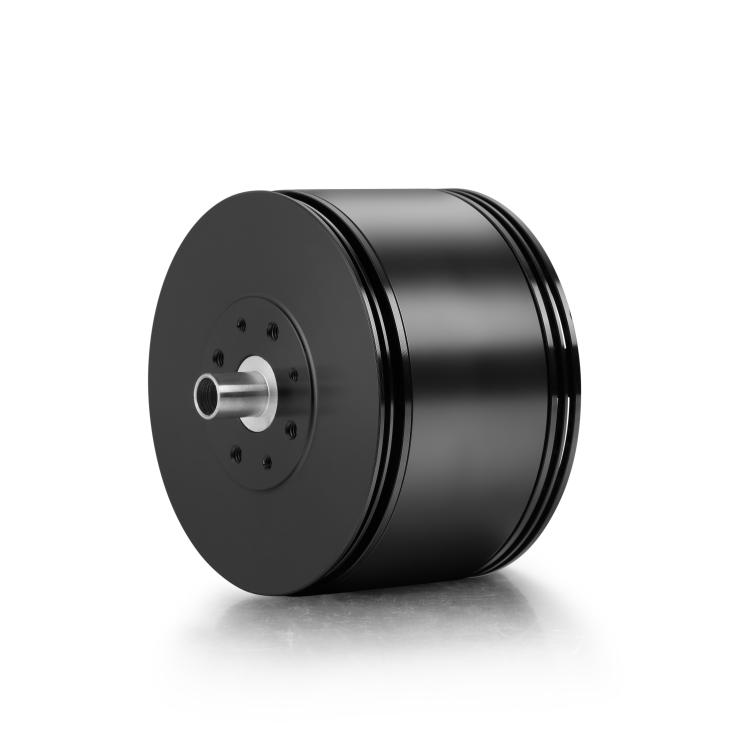

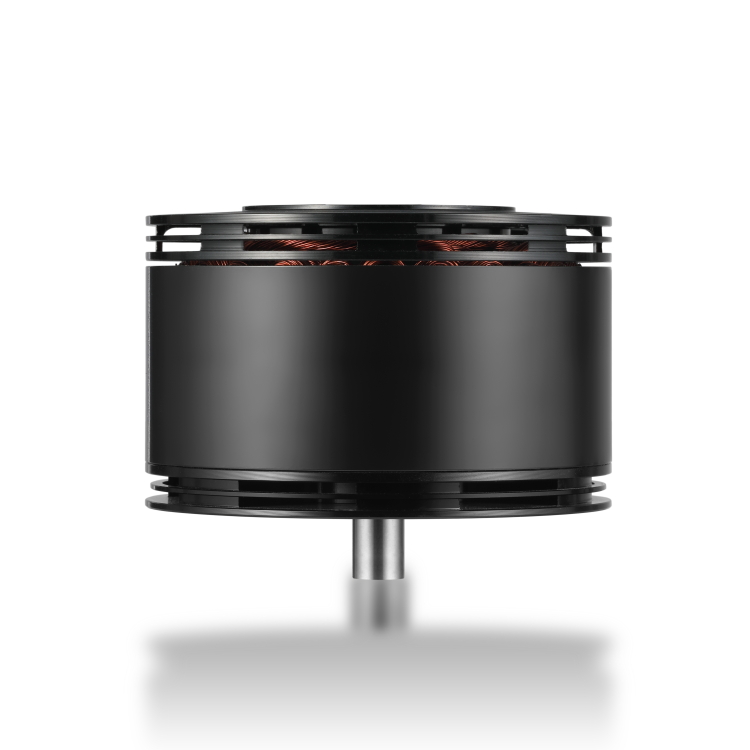

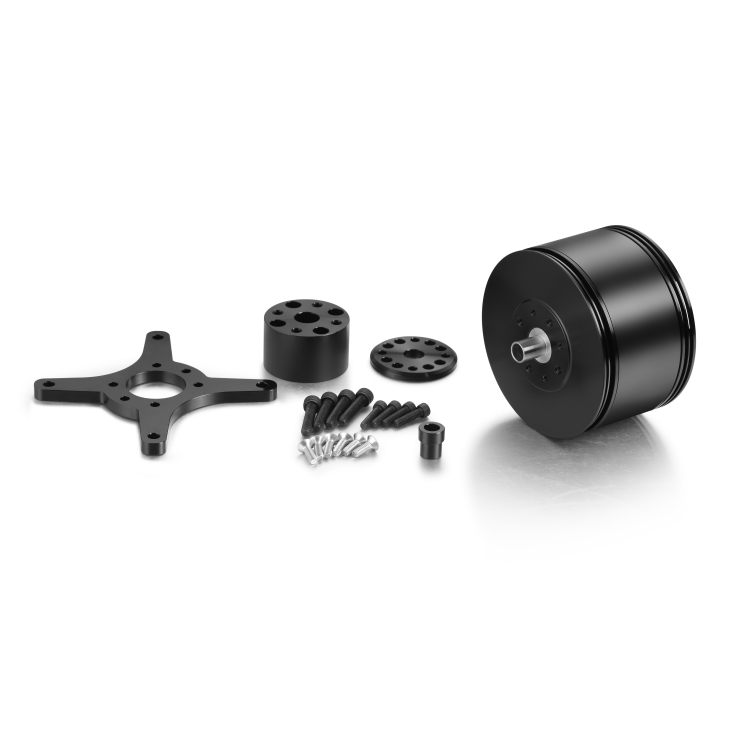

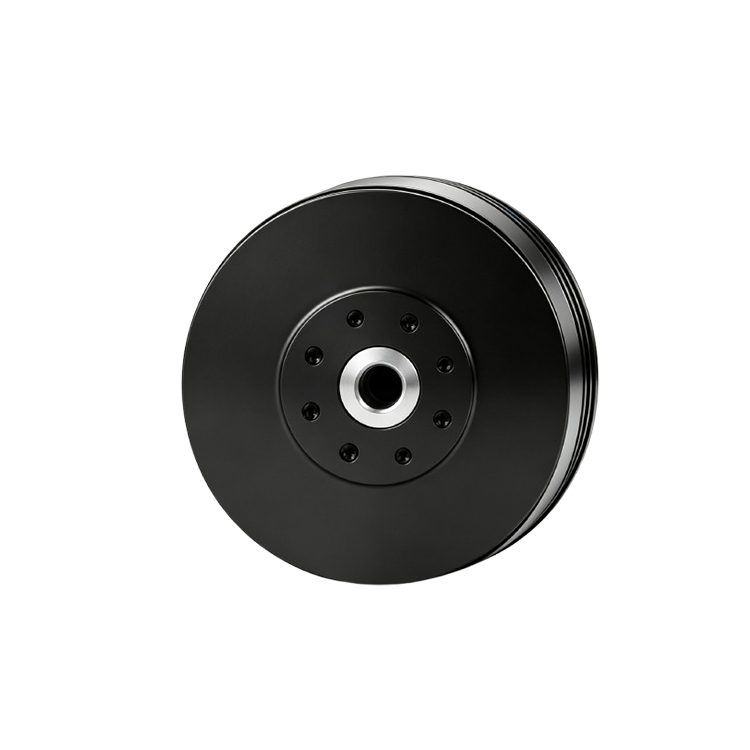

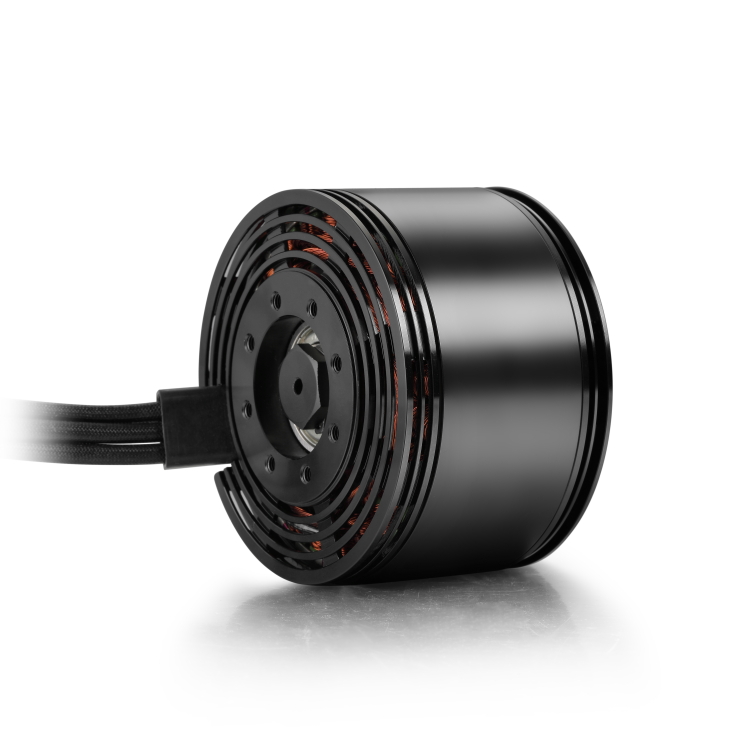

BGS-FW7224 160KV/190KV 17KG Payload uav motor for 24inch Surveying drone

CONTACT FORM

ANYTHING YOU COULDN’T FIND？ Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？ Talk with one of our sales representatives

Compare

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives
