50*79mm
12N14P
200℃
6mm
408g
＞1000h
| AT4130 Basic Data | |
| Test Model:KV230/KV300/KV450 | Phase-to-phase Internal Resistance:60m/32m/16.8m |

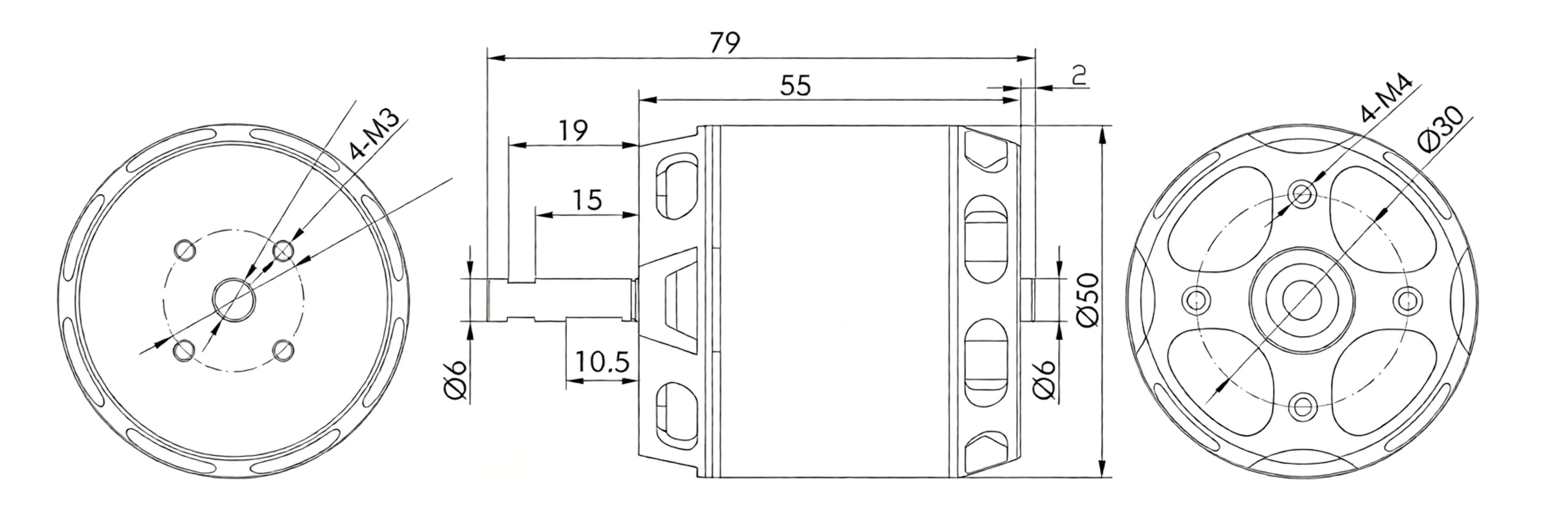

| Motor Dimensions:50*79mm | Slot-pole Configuration:12N14P |
| Lead Specification:100mm | Rated Operating Voltage (Lipo):12S/6-12S/6S |
| Shaft Diameter:IN: 6mm;OUT: 6mm | Maximum Current (180s):60A/75A/75A |
| No-load Current (10V):1.4A/1.8A/2.5A | Maximum Continuous Power:426W/513W/404W |
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Applicable blades | Number of batteries | Adapt to electric adjustment | |
| BGS-FW4130 | KV | W | A | g | g/W | / | S | A | |
| 230 | 1674.45 | 38.25 | 6395 | 3.82 | APC16*8 | 12 | 40 | ||
| 230 | 2426.63 | 55.63 | 7630 | 3.14 | APC17*10 | 12 | 40 | ||
| 300 | 1616.42 | 55.72 | 6577 | 4.07 | APC17*10 | 12 | 40 | ||
| 300 | 1617.91 | 55.77 | 7231 | 4.47 | APC18*8 | 12 | 40 | ||
| 300 | 2323.39 | 53.21 | 6283 | 2.70 | APC14*7 | 12 | 40 | ||
| 300 | 3117.41 | 72.26 | 7787 | 2.50 | APC15*8 | 12 | 40 | ||
| 450 | 1571.68 | 74.27 | 6534 | 4.16 | APC17*10 | 6 | 40 | ||
| 450 | 1540.06 | 72.70 | 7017 | 4.56 | APC18*8 | 6 | 40 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-FW4130 KV23 0APC16*8 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40.% | 44.40 | 1087 | 0.226 | 2.87 | 3701 | 127.58 | 8.52 | 78 | |
| 45.% | 44.38 | 1341 | 0.284 | 3.73 | 4105 | 165.46 | 8.10 | ||
| 50.% | 44.36 | 1744 | 0.366 | 5.18 | 4664 | 229.88 | 7.59 | ||
| 55.% | 44.34 | 2139 | 0.450 | 6.83 | 5143 | 302.67 | 7.07 | ||
| 60.% | 44.31 | 2513 | 0.531 | 8.56 | 5546 | 302.67 | 6.63 | ||
| 65.% | 44.26 | 2906 | 0.616 | 10.59 | 5941 | 468.76 | 6.20 | ||
| 70.% | 44.22 | 3366 | 0.719 | 13.10 | 6363 | 579.10 | 5.81 | ||
| 75.% | 44.16 | 3903 | 0.841 | 16.32 | 6827 | 720.88 | 5.41 | ||
| 80.% | 44.10 | 4407 | 0.958 | 19.63 | 7215 | 865.54 | 5.09 | ||
| 90.% | 43.96 | 5293 | 1.174 | 27.66 | 7875 | 1215.78 | 4.35 | ||
| 100.% | 43.78 | 6395 | 1.521 | 38.25 | 8646 | 1674.45 | 3.82 | ||
| BGS-FW4130 KV230 APC17*10 | 40.% | 44.52 | 1459 | 0.349 | 3.84 | 3512 | 171.08 | 8.53 | 97 |
| 45.% | 44.51 | 1768 | 0.424 | 4.81 | 3869 | 213.89 | 8.27 | ||
| 50.% | 44.47 | 2285 | 0.547 | 6.96 | 4395 | 309.40 | 7.38 | ||
| 55.% | 44.43 | 2867 | 0.690 | 9.59 | 4902 | 426.03 | 6.73 | ||
| 60.% | 44.34 | 3459 | 0.835 | 13.34 | 5359 | 591.63 | 5.85 | ||
| 65.% | 44.30 | 3905 | 0.948 | 15.79 | 5679 | 699.52 | 5.58 | ||
| 70.% | 44.24 | 4428 | 1.087 | 19.07 | 6038 | 843.63 | 5.25 | ||
| 75.% | 44.16 | 5069 | 1.248 | 23.84 | 6438 | 1052.67 | 4.82 | ||
| 80.% | 44.08 | 5650 | 1.410 | 28.30 | 6806 | 1247.65 | 4.53 | ||
| 90.% | 43.88 | 6939 | 1.780 | 39.96 | 7468 | 1753.67 | 3.96 | ||
| 100.% | 43.62 | 7630 | 2.101 | 55.63 | 7891 | 2426.63 | 3.14 | ||
| BGS-FW4130 KV300 APC17*10 | 40.% | 29.90 | 1175 | 0.284 | 4.05 | 3148 | 121.08 | 9.70 | 68 |
| 45.% | 29.88 | 1458 | 0.351 | 5.27 | 3471 | 157.61 | 9.25 | ||
| 50.% | 29.82 | 1903 | 0.458 | 8.14 | 3959 | 242.78 | 7.84 | ||
| 55.% | 29.76 | 2355 | 0.566 | 11.40 | 4399 | 339.11 | 6.94 | ||
| 60.% | 29.73 | 2773 | 0.669 | 14.01 | 4747 | 416.40 | 6.66 | ||
| 65.% | 29.66 | 3187 | 0.772 | 17.51 | 5085 | 519.33 | 6.14 | ||
| 70.% | 29.59 | 3696 | 0.900 | 21.50 | 5475 | 636.19 | 5.81 | ||
| 75.% | 29.50 | 4198 | 1.027 | 26.67 | 5821 | 787.01 | 5.33 | ||
| 80.% | 29.43 | 4662 | 1.145 | 31.27 | 6126 | 920.27 | 5.07 | ||
| 90.% | 29.21 | 5652 | 1.411 | 43.47 | 6717 | 1269.79 | 4.45 | ||
| 100.% | 29.01 | 6577 | 1.670 | 55.72 | 7215 | 1616.42 | 4.07 | ||
| BGS-FW4130 KV300 APC18*8 | 40.% | 29.90 | 1246 | 0.285 | 4.08 | 3124 | 122.11 | 10.20 | 85 |
| 45.% | 29.87 | 1573 | 0.355 | 5.54 | 3478 | 165.57 | 9.50 | ||
| 50.% | 29.82 | 2061 | 0.462 | 8.36 | 3969 | 249.20 | 8.27 | ||
| 55.% | 29.78 | 2542 | 0.577 | 11.20 | 4404 | 333.59 | 7.62 | ||
| 60.% | 29.71 | 3027 | 0.681 | 14.42 | 4781 | 428.57 | 7.07 | ||
| 65.% | 29.67 | 3438 | 0.771 | 17.26 | 5093 | 512.26 | 6.71 | ||
| 70.% | 29.59 | 4019 | 0.906 | 21.71 | 5476 | 642.57 | 6.26 | ||
| 75.% | 29.49 | 4601 | 1.034 | 26.99 | 5800 | 796.16 | 5.78 | ||
| 80.% | 29.41 | 5145 | 1.169 | 32.15 | 6147 | 945.54 | 5.44 | ||
| 90.% | 29.22 | 6224 | 1.428 | 43.46 | 6721 | 1269.83 | 4.90 | ||
| 100.% | 29.01 | 7231 | 1.672 | 55.77 | 7201 | 1617.91 | 4.47 | ||
| BGS-FW4130 KV300 APC14*7 | 40.% | 44.53 | 1086 | 0.202 | 3.40 | 4778 | 151.51 | 7.17 | 82 |
| 45.% | 44.50 | 1375 | 0.258 | 4.53 | 5356 | 201.78 | 6.81 | ||
| 50.% | 44.47 | 1796 | 0.339 | 6.46 | 6077 | 287.44 | 6.25 | ||
| 55.% | 44.41 | 2183 | 0.418 | 8.76 | 6659 | 388.82 | 5.62 | ||
| 60.% | 44.38 | 2633 | 0.509 | 11.21 | 7306 | 497.36 | 5.29 | ||
| 65.% | 44.35 | 2989 | 0.586 | 13.42 | 7783 | 595.23 | 5.02 | ||
| 70.% | 44.28 | 3536 | 0.699 | 17.04 | 8371 | 754.68 | 4.69 | ||
| 75.% | 44.19 | 4146 | 0.837 | 22.48 | 9045 | 993.34 | 4.17 | ||
| 80.% | 44.11 | 4686 | 0.967 | 26.78 | 9528 | 1181.17 | 3.97 | ||
| 90.% | 43.89 | 5432 | 1.290 | 39.41 | 10475 | 1729.89 | 3.14 | ||
| 100.% | 43.67 | 6283 | 1.595 | 53.21 | 11329 | 2323.39 | 2.70 | ||
| BGS-FW4130 KV300 APC15*8 | 40.% | 44.32 | 1431 | 0.294 | 4.37 | 4605 | 193.70 | 7.39 | 85 |
| 45.% | 44.31 | 1779 | 0.366 | 5.73 | 5142 | 253.89 | 7.01 | ||
| 50.% | 44.25 | 2342 | 0.484 | 8.48 | 5885 | 375.21 | 6.24 | ||
| 55.% | 44.20 | 2928 | 0.613 | 11.61 | 6502 | 513.33 | 5.70 | ||
| 60.% | 44.13 | 3484 | 0.731 | 15.12 | 7064 | 667.08 | 5.22 | ||
| 65.% | 44.07 | 4010 | 0.848 | 18.52 | 7526 | 816.06 | 4.91 | ||
| 70.% | 44.01 | 4569 | 0.983 | 22.29 | 8039 | 981.04 | 4.66 | ||
| 75.% | 43.84 | 5080 | 1.208 | 30.92 | 8623 | 1355.63 | 3.75 | ||
| 80.% | 43.72 | 5694 | 1.420 | 38.65 | 9142 | 1689.88 | 3.37 | ||
| 90.% | 43.43 | 6751 | 1.801 | 55.53 | 9931 | 2412.02 | 2.80 | ||
| 100.% | 43.14 | 7787 | 2.171 | 72.26 | 10572 | 3117.41 | 2.50 | ||
| BGS-FW4130 KV450 APC17*10 | 40.% | 22.24 | 1632 | 0.397 | 9.57 | 3706 | 212.83 | 7.67 | 63 |
| 45.% | 22.21 | 1873 | 0.457 | 11.55 | 3969 | 256.58 | 7.30 | ||
| 50.% | 22.16 | 2182 | 0.533 | 14.22 | 4285 | 315.17 | 6.92 | ||
| 55.% | 22.08 | 2671 | 0.655 | 18.77 | 4705 | 414.61 | 6.44 | ||
| 60.% | 22.01 | 3124 | 0.764 | 23.17 | 5078 | 510.03 | 6.13 | ||
| 65.% | 21.92 | 3610 | 0.885 | 28.60 | 5418 | 627.00 | 5.76 | ||
| 70.% | 21.82 | 4039 | 0.993 | 34.25 | 5733 | 747.18 | 5.41 | ||
| 75.% | 21.72 | 4486 | 1.113 | 40.63 | 6090 | 882.51 | 5.08 | ||
| 80.% | 21.57 | 5113 | 1.274 | 49.20 | 6405 | 1061.39 | 4.82 | ||
| 90.% | 21.31 | 6091 | 1.540 | 65.24 | 6926 | 1390.48 | 4.38 | ||
| 100.% | 21.16 | 6534 | 1.676 | 74.27 | 7167 | 1571.68 | 4.16 | ||
| BGS-FW4130 KV450 APC18*8 | 40.% | 22.24 | 1778 | 0.400 | 9.57 | 3696 | 212.80 | 8.35 | 81 |
| 45.% | 22.21 | 2016 | 0.454 | 11.36 | 3953 | 252.32 | 7.99 | ||
| 50.% | 22.16 | 2356 | 0.533 | 14.17 | 4283 | 314.14 | 7.50 | ||
| 55.% | 22.09 | 2830 | 0.643 | 18.30 | 4684 | 404.33 | 7.00 | ||
| 60.% | 22.01 | 3374 | 0.765 | 23.22 | 5082 | 511.02 | 6.60 | ||
| 65.% | 21.93 | 3824 | 0.870 | 28.09 | 5403 | 615.93 | 6.21 | ||
| 70.% | 21.84 | 4355 | 0.994 | 33.66 | 5719 | 735.00 | 5.93 | ||
| 75.% | 21.72 | 4908 | 1.120 | 40.51 | 6048 | 879.75 | 5.58 | ||
| 80.% | 21.60 | 5409 | 1.248 | 47.54 | 6360 | 1026.98 | 5.27 | ||
| 90.% | 21.34 | 6471 | 1.503 | 63.11 | 6905 | 1346.94 | 4.80 | ||
| 100.% | 21.18 | 7017 | 1.641 | 72.70 | 7201 | 1540.06 | 4.56 |

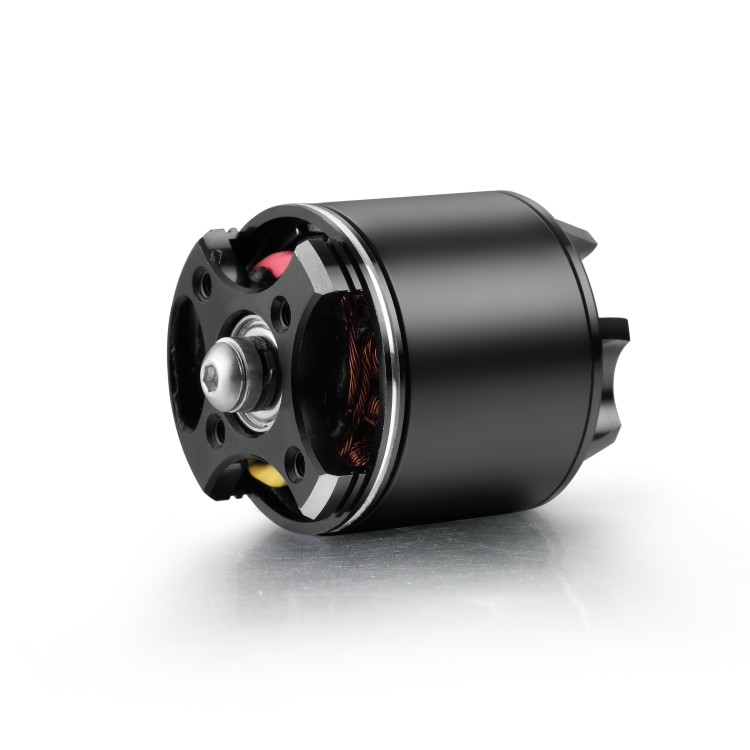

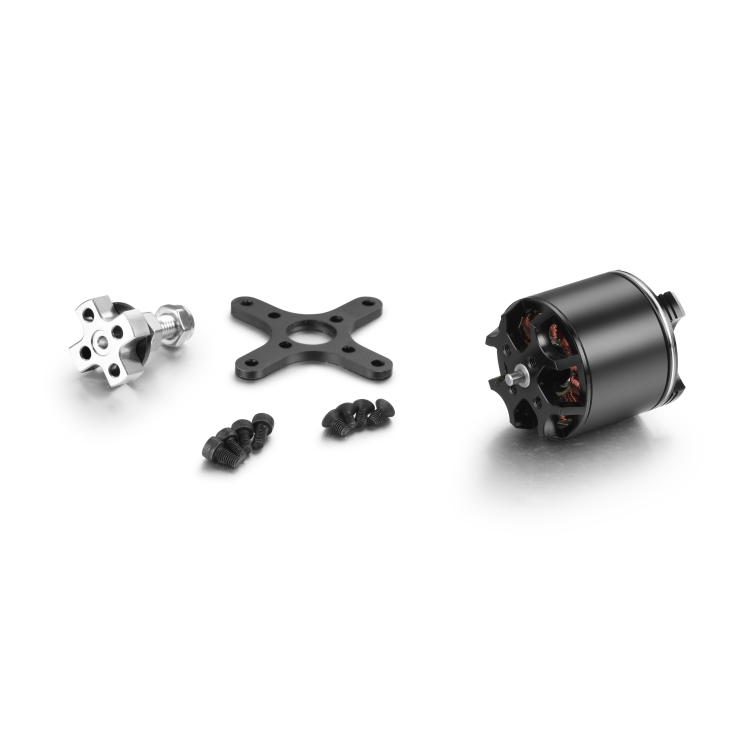

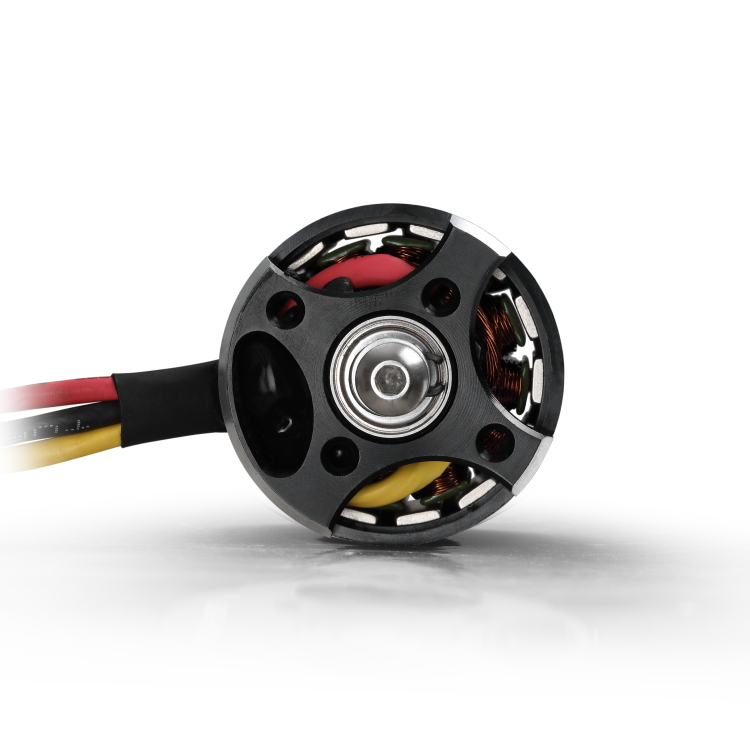

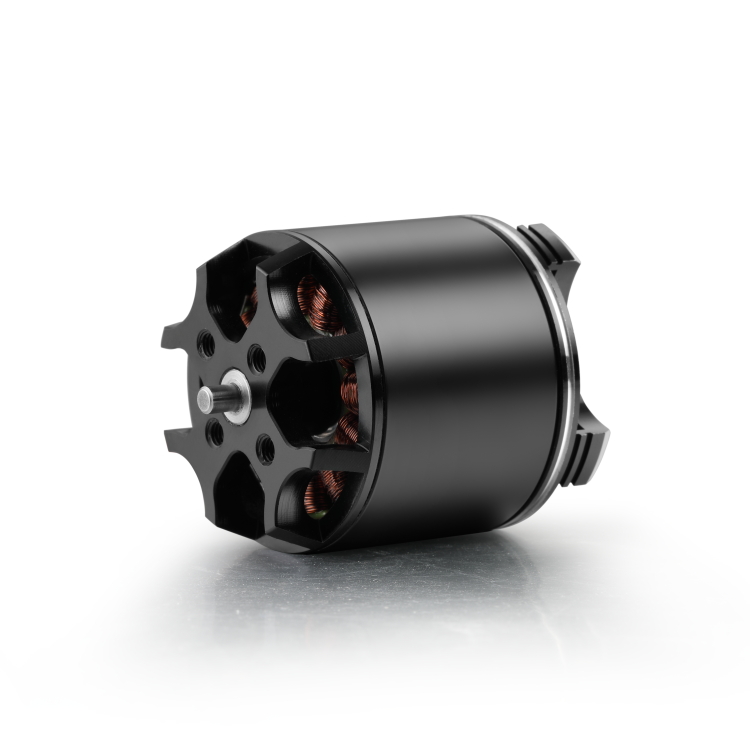

The 4130 Brushless Outrunner Motor is engineered for high-performance fixed-wing UAVs, delivering powerful thrust, outstanding efficiency, and reliable performance for long-endurance flight missions. Available in 230KV, 300KV, and 450KV (customizable), it provides up to 7.7 kg of maximum thrust when paired with the recommended propeller and ESC. Optimized for 6–12S LiPo battery systems, it features a high-efficiency magnetic circuit, precision-balanced rotor, and premium bearings to ensure smooth operation, low vibration, and extended service life. Ideal for fixed-wing drones, VTOL UAVs, mapping aircraft, surveillance platforms, cargo UAVs, and industrial long-range UAV applications. Custom KV ratings, shaft dimensions, cable length, and mounting configurations are available to support OEM and ODM requirements.
Compared with multirotor aircraft, fixed-wing UAVs typically operate for longer durations, fly over greater distances, and maintain higher cruising speeds. These mission profiles place greater demands on propulsion efficiency and continuous power output. BGS motors are optimized to operate efficiently across a wide RPM range, helping improve flight endurance while maintaining stable performance throughout extended missions.

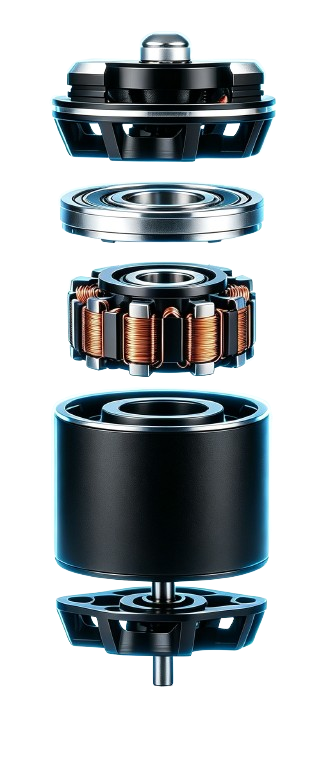

Each motor is manufactured using high-grade permanent magnets, precision CNC-machined aluminum components, premium bearings, and high-temperature copper windings. The lightweight yet robust structure reduces overall aircraft weight while ensuring excellent mechanical strength and vibration resistance, even under continuous high-load operation.
Our fixed-wing UAV motors are compatible with various propeller sizes, ESC configurations, and battery systems, allowing seamless integration into different aircraft platforms. Whether used in hand-launched UAVs, VTOL fixed-wing aircraft, mapping drones, surveillance systems, environmental monitoring platforms, or long-range logistics UAVs, they deliver dependable propulsion and smooth flight characteristics.
To meet diverse project requirements, BGS also offers OEM and ODM customization services, including KV value adjustment, shaft configuration, mounting dimensions, winding optimization, waterproof protection, and other application-specific modifications. Every motor undergoes rigorous quality inspection and dynamic balancing before shipment to ensure consistent performance, low vibration, and reliable operation in demanding environments.
Built for efficiency, durability, and precision, BGS fixed-wing UAV motors provide a dependable propulsion solution for next-generation autonomous and industrial UAV applications.
