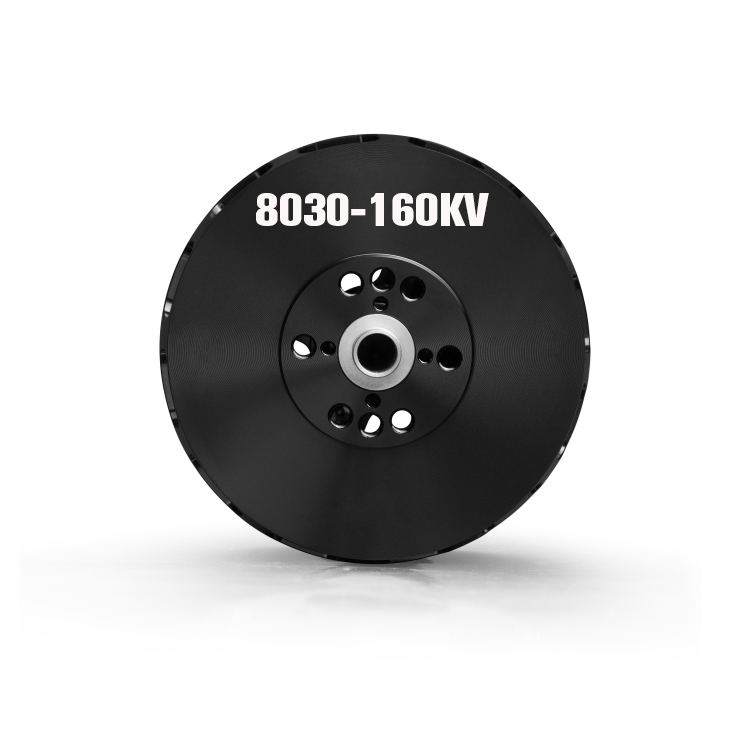

BGS-FW8030 Long Axis AT Series Motors_BOGONG SUN | Professional UAV Motor Manufacturer

Technical Specifications

AT8030 Basic Data
Model：AT8030	Maximum Continuous Power (180s)：1433W/1394W
KV Value：KV160/KV190	Weight (with Wire)：1110g/1115g

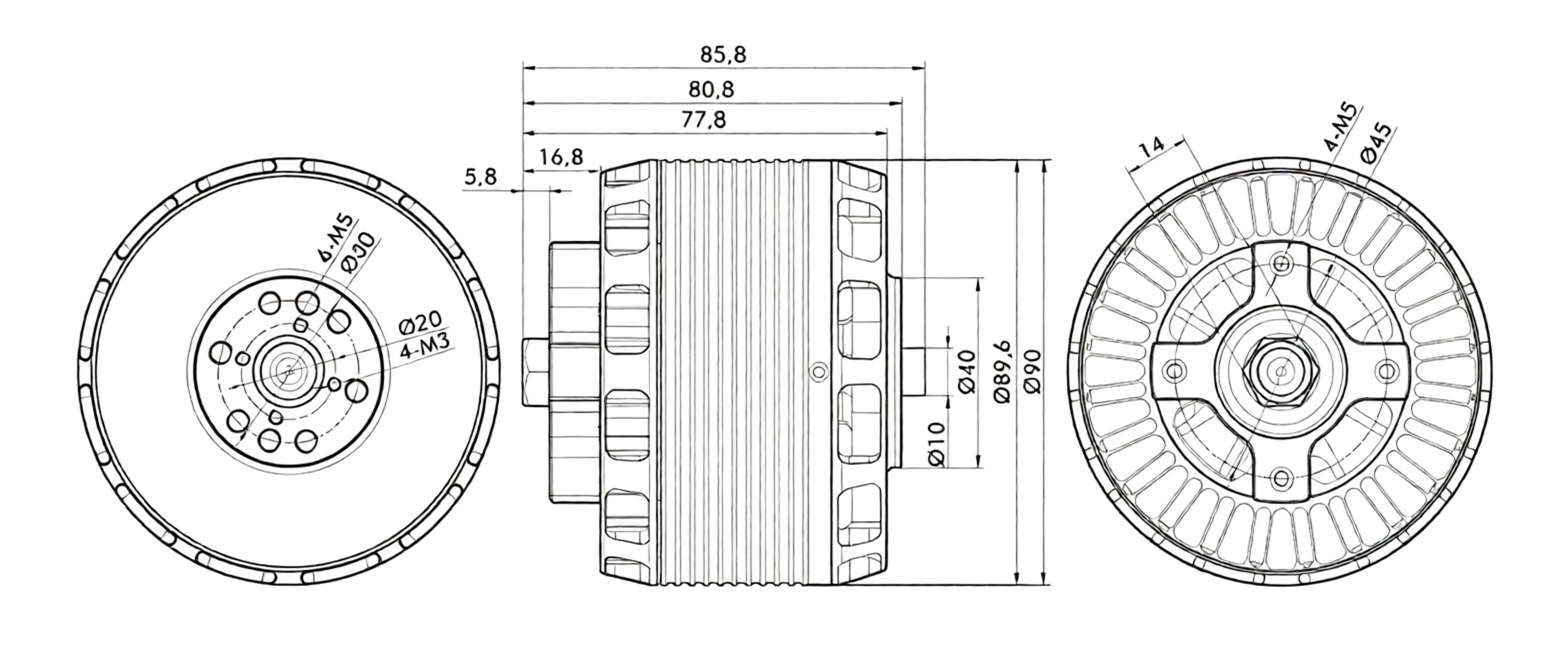

Motor Dimensions：90*80.8mm	Phase-to-Phase Internal Resistance：10.5m/8m
Lead Wire Specification：Enameled Wire Lead-out 100mm	Slot/Pole Count：24N28P
Shaft Diameter：IN: 12mm, OUT: 10mm	Rated Operating Voltage (LiPo):10-14S/10-12S
No-Load Current (10V)：4.5A/5.2A	Maximum Current (180s):135A, 155A/165A

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
AT8030	KV	W	A	g	g/W	/	S	A
	160	1433	135/155	N/A	N/A	N/A		N/A
	190	1394	165	N/A	N/A	N/A		N/A

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT8030 KV160	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	25*10	40.%	44.35	12.08	535.61	2969	1.134	3665	6.84	72℃
		45.%	44.19	14.87	657.18	3182	1.338	4338	6.60
		50.%	43.90	17.75	779.14	3454	1.573	5154	6.61
		55.%	43.85	21.99	964.31	3727	1.873	6103	6.33
		60.%	44.04	26.20	1154.02	4030	2.161	7157	6.20
		65.%	43.75	32.70	1430.68	4333	2.525	8319	5.81
		7096	43.79	39.31	1721.42	4606	2.910	9607	5.58
		7596	43.42	45.50	1975.71	4878	3.328	10976	5.56
		8096	43.26	54.00	2335.99	5181	3.724	12342	5.28
		859	42.91	63.78	2736.83	5424	4.173	13757	5.03
		9096	42.68	73.92	3154.88	5696	4.601	15126	4.79
		100.%	42.14	94.69	3990.09	6151	5.478	17986	4.51
	26*12	409	44.25	13.47	596.23	2757	1.445	4329	7.26	87℃
		459	44.12	17.21	759.19	3060	1.776	5349	7.05
		50.%	44.08	22.17	977.47	3333	2.129	6454	6.60
		55.%	43.92	27.64	1214.04	3636	2536	7655	6.31
		609	43.73	33.30	1456.34	3939	2.964	8966	6.16
		65.%	43.52	41.46	1804.47	4212	3.413	10381	5.75
		70.%	43.30	49.03	2123.06	4484	3.916	11910	5.61
		75.%	43.00	59.47	2557.04	4727	4.408	13402	5.24
		80.%	42.77	70.68	3022.80	5000	4.933	15057	4.98
		85.%	42.55	78.50	3340.14	5242	5.446	16586	4.97
		90.%	42.34	92.54	3918.34	5454	5.992	18128	4.63
		100.%	41.50	118.78	4929.33	5878	7.062	21122	4.29
	27*12	40.%	44.40	14.57	646.71	2727	1.605	4751	7.35	105℃
		45.%	44.04	19.26	848.10	3030	2012	5942	7.01
		50.%	44.18	24.50	1082.43	3333	2440	7237	6.69
		55.%	43.79	30.31	1327.47	3575	2889	8617	6.49
		60.%	43.74	37.86	1656.99	3848	3.371	10045	6.06
		69.%	43.33	45.00	1949.95	4121	3,863	11552	5.92
		70.%	43.11	S5.35	2305.93	4994	4.430	13241	5.55
		75.%	43.06	64.35	2770.99	4666	4.976	14872	5.37
		80.%	42.44	76.40	3242.33	4909	5.585	16602	5.12
		85.%	42.32	91.31	3664.26	5151	6.174	16346	4.75
		90.%	41.91	104.84	4393.66	5363	6.762	20101	4.58
		100.%	41.11	132.60	5451.19	5757	7.918	23374	4.29
	24*10	40.%	51.88	13.92	722.33	3454	1.348	4490	6.22	89℃
		45.%	51.83	16.87	874.41	3727	1.573	5289	6.05
		50.%	51.67	20.75	1076.14	4000	1.862	6289	5.84
		55.%	51.82	25.39	1315.60	4333	2194	7414	5.64
		60.%	51.53	30.48	1570.51	4666	2579	8656	5.51
		69.%	51.38	37.36	1919.69	5060	2.985	10131	5.28
		70.%	S0.89	45.94	2337.93	5968	3.496	11782	9.04
		75.%	50.77	55.26	2805.73	5727	3.959	13400	4.78
		80.%	50.49	64.67	3265.09	6030	4.462	15092	4.62
		65.%	50.40	73.61	3710.12	6302	4,911	16654	4.49
		90.%	50.05	84.74	4241.32	6605	5.425	16266	4.31
		100.%	49.42	107.82	5328.67	7127	6.420	21240	3.99
	25+10	40.%	51.96	14.54	755.24	3363	1.477	4763	6.31	107℃
		45.%	51.68	17.65	911.95	3666	1.744	5723	6.28
		50.%	51.53	22.55	1162.11	3969	2097	6885	5.92
		55.%	51.65	27.75	1433.50	4303	2493	6226	5.74
		60.%	51.25	34.07	1745.99	4606	2921	9643	5.52
		65.%	51.28	42.45	2176.96	4969	3,392	11221	5.15
		70.%	S0.67	49.65	2S25.00	5303	3.916	12921	5.12
		75.%	50.53	60.46	3054.81	5606	4,462	14702	4.61
		80.%	50.53	69.88	3531.05	5939	5.008	16458	4.66
		65.%	50.16	61.96	4110.96	6212	5.553	16201	4.43
		90%6	49.83	95.88	4777.70	6454	6.120	19949	4.18
		100.%	49.06	121.53	5962.41	6969	7.267	23158	3.68
ATB030 KV190	24*10	40.%	44.17	15.71	693.82	3394	1.263	4234	6.10	89℃102℃
		45.%	44.29	19.25	252=	3666	1.509	5056	5.93
		50.%	44.07	23.14	1019.95	3969	1.776	6019	5.90
		55.%	43.89	28.73		2272	2119	7196	5.71
		60.%	43.72	35.63	1557.63	4606	2,472	8351	5.36
		65.%	43.39	43.12	1870.73	4939	2857	9702	5.19
		70.%	43.16	50.96	2199.40		3.296	11213	5.10
		75.%	43.00	62.34	28:5.71	5575	3.756	12756	4.75
		00%	42.71	72.50	2112.66	5909	4,194	14259	4.50
		85.%	42.60	83.43	3553.94	6151	4,637	15021	4.45
		90.%	--- --	94.50	2993.36	6424	5,136	17268	4.32
		100.%	41.68	122.00	5005.05	6939	6,078	20207	3.97
	25*10	40.%	44.29	16.49	730.49	3333	1,423	4613	6.32
		45.%	44.12	20.42	900.95	3606	1.691	5550	6.16
		50.%	44.07	25.19	1110.30	3909	2033	6685	6.02
		55.%	43.85	31.80	128<50	4342	2,397	7927	5.63
		60.%	43.65	38.88	1697.61	4575	2836	9367	5.52
		65.%	43.22	47.95	2072.41	4909	3,296	10897	5.26
		70.%	43.05	57.19	246266	5212	3.777	12552	5.10
		75.%	42.77	67.65	2893.24	5515	4,280	14156	4.89
		80.%	42.47	79.24	3365.48	5818	4,783	15831	4.70
		85.%	42.20	93.56	3943.43	6090	5.286	17416	441
		90.%	41.97	105.22	4416.22	6333	5.773	18941	4.29
		100.%	40.95	135.87	5565.41	6787	6,837	21983	3.95
