BGS-FW8025 Long Axis AT Series Motors_BOGONG SUN | Professional UAV Motor Manufacturer

Technical Specifications

AT8025 Basic Data
Model:AT8025	Maximum Continuous Power (180s):1178W/1373W
KV Value:KV160/KV190	Weight (with Leads):985g/990g

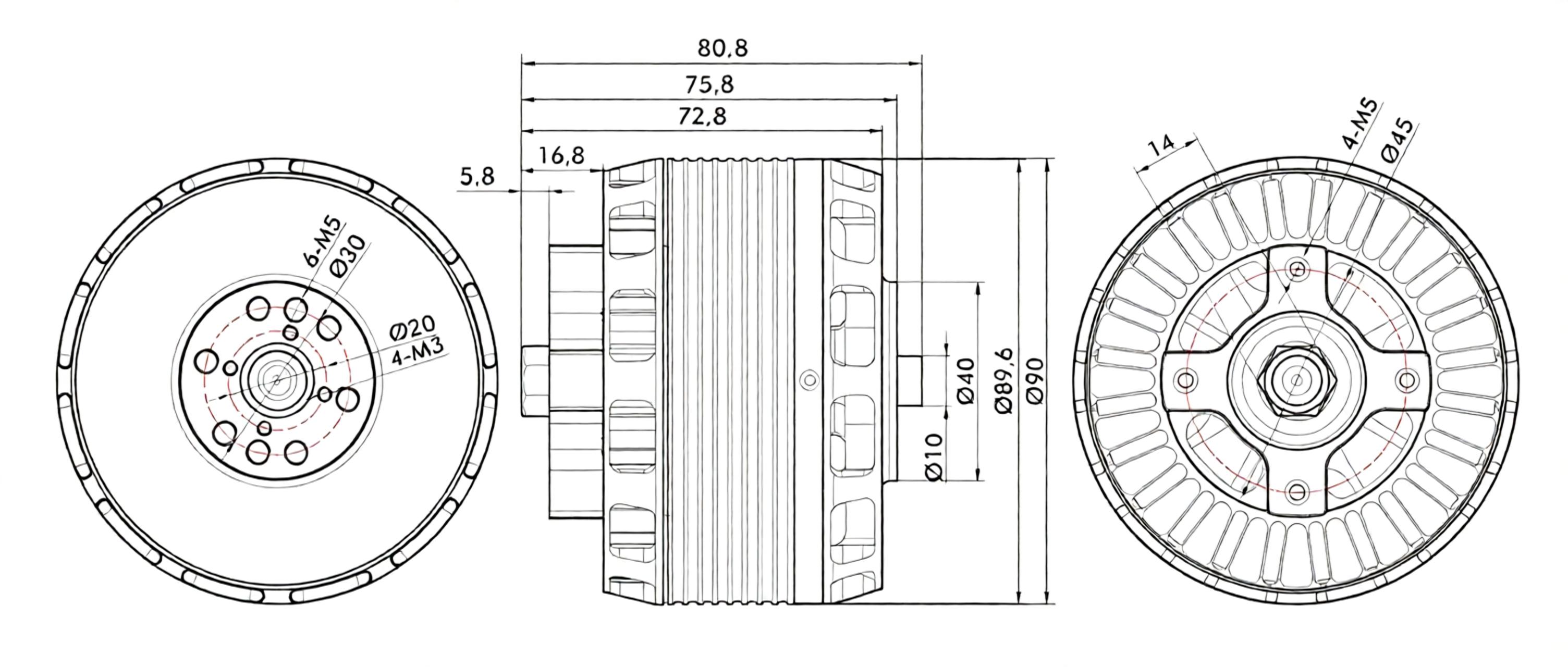

Motor Dimensions:90*75.8mm	Phase-to-phase Internal Resistance:14m
Lead Specification:Enameled wire lead 100mm	Slot/Pole Configuration:24N28P
Shaft Diameter:12mm	Operating Rated Voltage (LiPo):10-14S/10-12S
No-load Current (10V):4.0A/5.0A	Maximum Current (180s):10-14S/10-12S

Basic Data

Model	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
AT8025	KV	W	A	A	g	g/W	/	S	A
	160	1178	115	4.0	985	-	-	10-14	-
	190	1373	135	5.0	990	-	-	10-12	-

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT8025 KV160	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	24*10	409	44.57	8.95	398.80	2806	0.922	3061	7.67	67℃
		45.%	44.55	10.95	487.92	3031	1.076	3595	7.37
		50.%	44.53	13.66	608.40	3302	1.275	4278	7.03
		55.%	44.51	16.94	754.13	3593	1.505	5065	6.72
		60.%	44.48	20.77	923.56	3864	1.743	5894	6.38
		65.%	44.44	25.37	1127.30	4164	2.027	6858	6.08
		70.%	44.40	30.83	1368.76	4472	2.346	7941	5.80
		75.%	44.36	36.84	1634.23	4765	2675	9062	5.55
		80.%	44.30	43.90	1944.71	5054	3.031	10264	5.28
		85.%	44.24	51.68	2286.19	5333	3.404	11501	5.03
		90.%	44.17	60.45	2669.77	5607	3.794	12799	4.79
		100.%	44.02	78.92	3474.27	6120	4.600	15420	4.44
	25*10	40.%	44.62	9.58	427.54	2708	1.014	3245	7.59	75℃
		45.%	44.60	12.08	538.82	2973	1.217	3921	7.28
		50.%	44.57	15.32	682.65	3264	1.466	4757	6.97
		55.%	44.54	19.23	856.49	3552	1.733	5639	6.58
		60.%	44.51	23.25	1034.62	3831	2016	6575	6.36
		65.%	44.46	28.83	1281.62	4123	2340	7669	5.98
		70.%	44.41	35.11	1559.11	4423	2704	8854	5.68
		75.%	44.35	42.18	1871.01	4717	3.087	10136	5.42
		80.%	44.29	50.02	2215.59	4999	3.490	11471	5.18
		85.%	44.22	58.87	2603.34	5274	3.909	12826	4.93
		90.%	44.14	68.33	3016.11	5539	4.339	14182	4.70
		100.%	43.97	89.78	3947.90	6036	5.258	17136	4.34
	26*12	40.%	44.58	11.42	509.21	2596	1.332	3959	7.78	88℃
		45.%	44.55	15.05	670.43	2891	1.659	4910	7.32
		50.%	44.51	19.62	873.19	3183	1.994	5976	6.84
		55.%	44.47	24.78	1101.82	3471	2365	7104	6.45
		60.%	44.43	30.42	1351.57	3739	2737	8247	6.10
		65.%	44.37	37.33	1656.54	4023	3.174	9584	5.79
		70.%	44.31	45.33	2008.69	4310	3.633	10941	5.45
		75.%	44.23	54.65	2417.28	4590	4.117	12432	5.14
		80.%	44.16	64.25	2837.31	4855	4.624	13890	4.90
		85.%	44.07	75.46	3325.48	5112	5.150	15433	4.64
		90.%	43.98	87.28	3838.19	5362	5.694	17014	4.43
		100.%	43.74	115.07	5033.52	5825	6.863	20360	4.04
	23*10	40.%	52.18	10.58	552.29	3302	1.087	3642	6.59	76℃
		45.%	5216	1282	668.83	3554	1.262	4239	6.34
		50.%	5213	15.92	830.11	3861	1.486	5026	6.05
		55.%	5210	19.76	1029.43	4193	1.750	5946	5.78
		60.%	52.06	24.26	1263.22	4521	2048	6994	5.54
		65.%	52.02	29.72	1545.98	4871	2388	8154	5.27
		70.%	51.96	36.31	1886.85	5222	2768	9441	5.00
		75.%	51.90	43.78	2271.97	5564	3.167	10805	4.76
		80.%	51.84	51.75	2682.65	5894	3.578	12197	4.55
		85.%	51.76	60.74	3143.74	6209	4.004	13585	4.32
		90.%	51.68	70.55	3646.31	6514	4.450	15000	4.11
		100.%	51.51	91.30	470273	7072	5.335	17768	3.78
	24*10	40.%	52.16	11.04	575.99	3179	1.195	3858	6.70	89℃
		45.%	52.14	13.89	724.26	3478	1.427	4681	6.46
		50.%	5211	17.54	913.70	3803	1.702	5634	6.17
		5596	52.07	21.91	1140.84	4131	2002	6685	5.86
		60.%	52.02	27.27	1418.53	4471	2347	7877	5.55
		659	51.97	33.78	1755.27	4818	2.747	9209	5.25
		70.%	51.90	40.87	2121.25	5157	3.159	10636	5.01
		759	51.84	49.19	2549.96	5494	3.618	12149	4.76
		80.%	51.77	58.24	3015.48	5818	4.088	13721	4.55
		8596	51.69	68.18	3524.36	6123	4.571	15313	4.35
		90.%	51.60	79.33	4093.14	6420	5.078	16948	4.14
		100.%	51.40	103.71	5331.12	6961	6.141	20162	3.78
	25*10	40.%	50.76	11.32	574.45	3036	1.265	4009	6.98	103℃
		45.%	50.73	14.62	741.62	3354	1.540	4934	6.65
		50.%	50.70	18.57	941.65	3671	1.845	5961	6.33
55.%		50.66	23.27	1178.59	3991	2181	7090	6.02
609		50.61	29.22	1478.71	4323	2566	8371	5.66
65.%		50.56	35.72	1805.87	4656	2977	9728	5.39
70.%		50.49	43.55	2198.86	4981	3.432	11230	5.11
75.%		50.42	52.54	2649.06	5298	3.915	12795	4.83
80.%		50.33	63.06	3173.78	5607	4.444	14504	4.57
85.%		50.25	73.45	3690.78	5903	4.976	16192	4.39
90.%		50.15	85.27	4276.32	6178	5.516	17898	4.19
100.%		49.94	111.85	5585.29	6699	6.669	21251	3.80
AT8025 KV190	23*10	40.%	44.65	13.76	614.47	3395	1.144	3792	6.17	76℃
		459	44.63	16.60	740.87	3668	1.315	4456	6.01
		50.%	44.59	20.40	909.84	3968	1.542	5269	5.79
		55.%	44.55	25.49	1135.72	4299	1.840	6257	5.51
		60.%	44.51	30.87	1373.99	4636	2130	7239	5.27
		65.%	44.44	38.26	1700.55	4996	2.496	8440	4.96
		70.%	44.39	45.85	2034.96	5356	2878	9698	4.77
		7596	44.31	55.34	2451.98	5693	3.291	11099	4.53
		80.%	44.23	65.43	2893.81	6029	3.713	12534	4.33
		8596	44.14	76.14	3360.88	6332	4.138	13917	4.14
		90.%	44.04	87.97	3874.09	6640	4.570	15335	3.96
		100.%	43.83	113.82	4988.91	7192	5.459	18097	3.63
	24*10	40.%	44.64	14.36	641.22	3280	1.253	4128	6.44	89℃
		45.%	44.61	17.95	800.65	3577	1.490	4935	6.16
		50.%	44.57	22.64	1009.32	3907	1.779	5926	5.87
		55.%	44.53	28.27	1258.85	4245	2.111	7051	5.60
		60.%	44.47	34.92	1552.99	4589	2473	8272	5.33
		65.%	44.40	43.04	1911.10	4939	2883	9697	5.07
		70.%	44.33	51.91	2301.24	5284	3.320	11149	4.85
		75.%	44.25	62.52	2766.66	5624	3.783	12724	4.60
		8096	44.15	74.00	3267.27	5943	4.266	14331	4.39
		85.%	44.05	86.23	3798.70	6234	4.752	15898	4.19
		90.%	43.94	100.17	4401.00	6528	5.258	17553	3.99
		100.%	43.70	129.08	5641.04	7057	6.275	20614	3.65
	25*10	40%6	44.04	17.08	752.36	3224	1.490	4826	6.41	104℃
		4596	43.96	20.80	914.30	3479	1.740	5645	6.17
		50.%	43.86	25.28	1108.87	3752	2030	6597	5.95
		55.%	43.72	31.41	1373.36	4070	2.400	7800	5.68
		60.%	43.56	38.60	1681.24	4391	2800	9135	5.43
		65.%	43.21	46.87	2025.08	4690	3.210	10476	5.17
		70.%	43.03	56.31	2422.91	4991	3.680	11971	4.94
		75.%	42.78	66.76	2855.55	5276	4.150	13501	4.73
		80.%	42.53	78.10	3321.60	5541	4.640	15032	4.53
		85.%	42.28	89.86	3799.22	5801	5.130	16554	4.36
		90.%	42.01	103.56	4350.59	6063	5.650	18203	4.18
