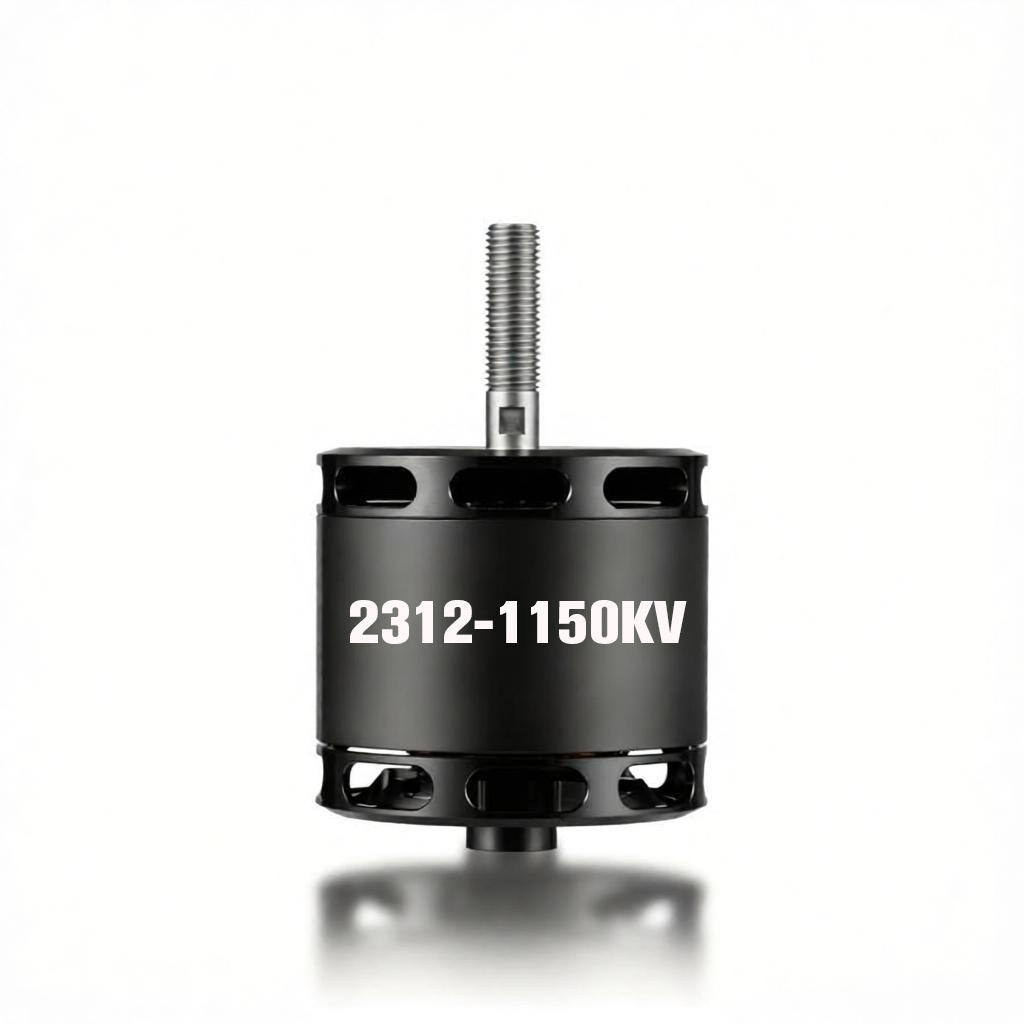

BGS-FW2312 Long Axis AT Series Motors

Product Number:FW2312

These long-shaft brushless motors include KV1150 and KV1400 variants with 12N14P slot-pole structure. Uniform 60g units run on 2-4S LiPo, delivering steady 25A/30A max current for compact small fixed-wing aircraft.

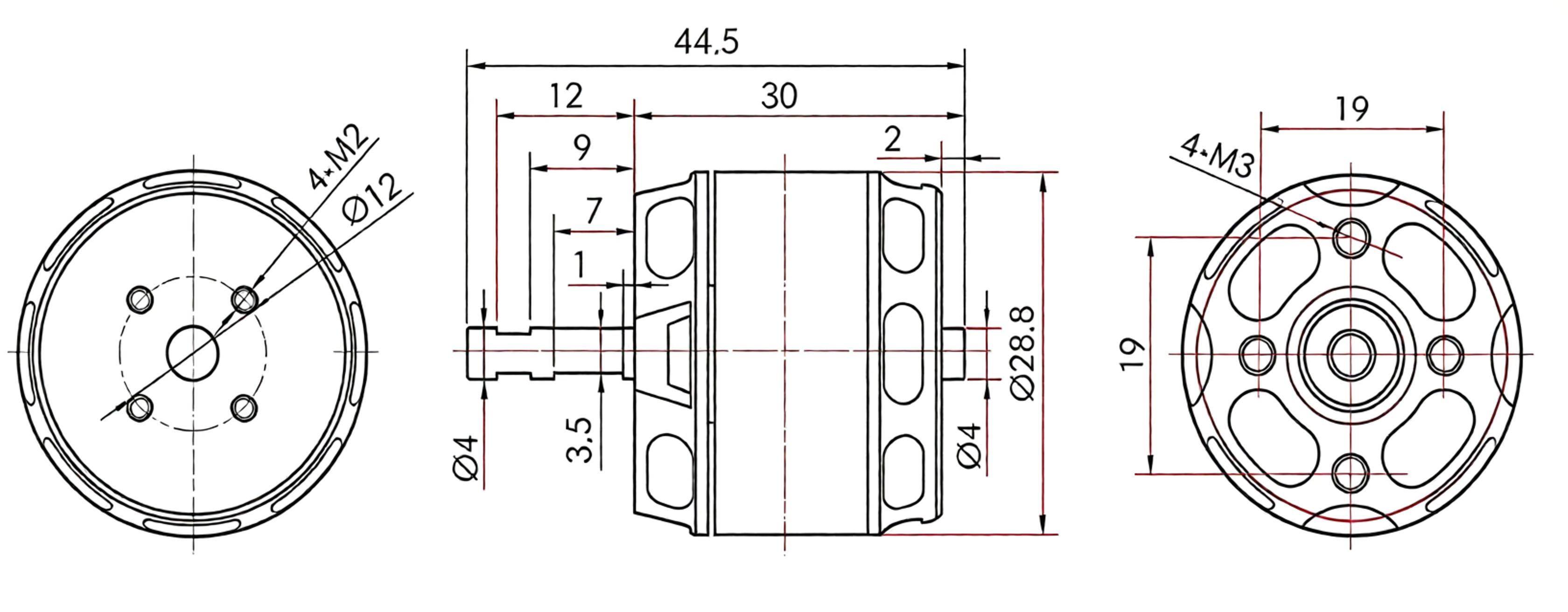

Motor dimensions
28.8*52mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
4mm
Motor weight
79g
Service life
＞1000h

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT2312 KV1150	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	APC 8*6	40.%	14.96	5.26	78.57	7213	0.072	448	5.70	74
		45.%	14.94	6.10	90.87	7686	0.079	509	5.61
		50.%	14.93	7.04	104.93	8093	0.088	575	5.48
		55.%	14.91	8.03	119.61	8461	0.096	634	5.30
		60.%	14.90	9.17	136.48	8808	0.106	692	5.07
		65.%	14.86	10.32	153.04	9186	0.115	754	4.93
		70.%	14.83	11.60	171.92	9554	0.126	821	4.78
		75.%	14.77	13.60	200.64	10069	0.141	907	4.52
		80.%	14.69	15.88	233.04	10479	0.157	1005	4.31
		90.%	14.59	21.03	306.57	11205	0.190	1181	3.85
		100.%	14.53	22.44	326.02	11400	0.197	1222	3.75
	APC 9*6	40.%	11.45	3.90	44.53	5239	0.053	329	7.38	53
		45.%	11.44	4.58	52.33	5554	0.061	371	7.08
		50.%	11.42	5.32	60.59	5867	0.068	418	6.90
		55.%	11.40	6.11	69.53	6211	0.075	474	6.84
		60.%	11.38	6.92	78.63	6508	0.082	529	6.73
		65.%	11.36	8.11	92.00	6885	0.092	598	6.50
		70.%	11.32	9.55	108.06	7258	0.103	677	6.26
		75.%	11.29	10.88	122.68	7595	0.113	742	6.05
		70.%	11.32	9.55	108.06	7258	0.103	677	6.26
		75.%	11.29	10.88	122.68	7595	0.113	742	6.05
		80.%	11.25	12.58	141.40	7987	0.126	817	5.78
		90.%	11.16	16.45	183.48	8665	0.151	976	5.32
		100.%	11.12	18.03	200.43	8960	0.160	1029	5.14
	APC 10*4.7	40.%	11.31	4.26	48.00	4537	0.065	416	8.67	71
		45.%	11.26	5.10	57.25	4818	0.074	476	8.31
		50.%	11.27	6.17	69.40	5147	0.085	548	7.90
		55.%	11.17	7.44	82.92	5489	0.097	625	7.54
		60.%	11.19	9.05	101.23	5860	0.112	713	7.05
		65.%	11.12	10.80	119.93	6189	0.126	804	6.70
		70.%	11.06	12.66	139.79	6493	0.140	888	6.35
		75.%	10.99	14.59	160.19	6777	0.154	971	6.06
		80.%	10.93	16.71	182.41	7055	0.167	1054	5.78
		90.%	10.81	21.36	230.82	7548	0.194	1211	5.25
		100.%	10.78	22.63	243.92	7656	0.199	1244	5.10
AT2312 KV1400	APC 8*6	40.%	11.17	5.85	65.19	6709	0.062	376	5.77	42
		45.%	11.12	6.75	74.94	7075	0.069	422	5.63
		50.%	11.16	7.75	86.32	7531	0.076	480	5.56
		55.%	11.13	8.82	97.91	7870	0.083	533	5.46
		60.%	11.10	9.91	109.88	8179	0.090	592	5.39
		65.%	11.06	11.16	123.29	8530	0.098	648	5.26
		70.%	11.03	12.52	137.88	8825	0.106	703	5.10
		75.%	10.96	14.37	157.37	9238	0.117	777	4.94
		80.%	10.92	16.62	181.38	9731	0.130	853	4.70
		90.%	10.81	21.79	235.27	10530	0.155	1009	4.29
		100.%	10.77	23.34	251.15	10709	0.161	1050	4.18
	APC 9*6	40.%	11.41	6.15	69.96	5984	0.070	440	6.30	65
		45.%	11.38	7.22	82.07	6392	0.078	511	6.23
		50.%	11.36	8.40	95.22	6713	0.087	569	5.98
		55.%	11.32	9.94	112.42	7131	0.098	643	5.72
		60.%	11.28	11.74	132.12	7537	0.110	725	5.49
		65.%	11.23	13.75	154.20	7898	0.123	811	5.26
		70.%	11.19	15.75	176.02	8292	0.137	896	5.09
		75.%	11.14	17.93	199.52	8646	0.150	978	4.90
		80.%	11.07	20.52	227.04	9015	0.164	1065	4.69
		90.%	10.91	26.10	284.43	9646	0.190	1222	4.30
		100.%	10.82	28.58	309.06	9851	0.199	1278	4.13

AT2312 Basic Data
Test Model:Long Shaft KV880	Motor Dimensions:28.8*52mm
Lead Specification:AWG 100mm	Shaft Diameter:4mm
No-load Current (10V):0.9A	Maximum Continuous Power:85W
Weight (with wires):79g	Phase-to-phase Internal Resistance：82m
Slot-pole Configuration：12N14P	Rated Operating Voltage (Lipo)：2-4S
Maximum Current (180s)：25A	Recommended Matching：/

Fixed-Wing Motors

BGS-FW2312 Long Axis AT Series Motors

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Compare

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
AT2312	KV	W	A	g	g/W	/	S	A
	1150	104W	25A	60g	/	/	2-4S	/
	1400	112W	30A	60g	/	/	2-4S	/
