BGS-EA95 100KV 120KV 15KG Payload Drone Motor for 28inch UAV_BOGONG SUN | Professional UAV Motor Manufacturer

Technical Specifications

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
BGS-EA95	KV	W	A	g	g/W	/	S	A
	100	3043.73	55.17	14670	4.82	28inch Straight blade	14	80
	100	2815.51	59.79	14596	5.18	32inch Straight blade	12	80
	100	3306.92	70.39	15919	4.81	34inch Straight blade	12	80
	120	3084.98	65.61	14560	4.72	28inch Straight blade	12	80
	120	3240.96	69.03	15293	4.72	30inch Straight blade	12	80

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor temperature
BGS-EA95 KV100 28inch Straight blade （51.8V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	51.58	42636	1.08	4.35	1986	224.37	11.73	54
	45%	51.52	34588	1.35	6.18	2252	318.39	10.86
	50%	51.53	41594	1.63	8.21	2486	423.06	9.82
	55%	51.48	48801	1.88	10.21	2673	525.61	9.21
	60%	51.46	56777	2.19	12.85	2881	661.26	8.59
	65%	51.41	65974	2.43	15.99	3099	822.05	8.01
	70%	51.37	7408	2.85	19.14	3293	983.22	7.53
	75%	51.33	82511	3.21	22.91	3497	1175.97	7.02
	80%	51.30	92517	3.65	27.45	3687	1408.19	6.54
	85%	51.22	10218	4.08	32.35	3883	1656.97	6.17
	90%	51.15	110255	4.46	37.40	4062	1897.15	5.81
	95%	51.12	117555	4.90	42.43	4229	2169.02	5.42
	100%	51.03	13126	5.54	49.46	4364	2531.09	5.19
BGS-EA95 KV100 28inch Straight blade （56V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	55.77	30022	1.23	4.95	2144	276.06	10.95	57
	45%	55.72	39541	1.51	6.86	2414	382.24	10.34
	50%	55.71	46555	1.80	8.89	2628	495.26	9.40
	55%	55.65	55335	2.10	11.26	2854	626.73	8.83
	60%	55.64	64598	2.49	14.49	3086	806.22	8.01
	65%	55.62	73439	2.87	17.73	3283	986.14	7.45
	70%	55.57	82552	3.25	21.40	3497	1189.20	6.94
	75%	55.52	93030	3.71	25.99	3710	1449.21	6.46
	80%	55.45	10356	4.13	30.35	3908	1691.23	6.12
	85%	55.40	111291	4.63	35.95	4103	1991.63	5.60
	90%	55.31	126883	5.23	42.44	4265	2336.29	5.43
	95%	55.25	137499	5.78	48.25	4429	2682.39	5.13
	100%	55.17	146700	6.33	55.17	4592	3043.73	4.82
BGS-EA95 KV100 32inch Straight blade （44.4V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	44.14	2855	1.21	4.71	1640	207.90	13.73	61
	45%	44.08	3577	1.48	6.52	1859	287.40	12.45
	50%	44.08	4625	1.88	9.21	2059	405.98	11.39
	55%	44.06	5443	2.21	11.77	2246	518.59	10.50
	60%	44.01	6343	2.59	14.85	2412	653.55	9.71
	65%	43.98	7191	3.00	18.45	2583	811.43	8.86
	70%	43.92	7941	3.23	21.01	2726	922.76	8.61
	75%	43.92	8846	3.71	25.55	2892	1122.16	7.88
	80%	43.82	9670	4.18	30.39	3039	1331.69	7.26
	85%	43.78	10638	4.72	35.94	3185	1573.45	6.76
	90%	43.69	11851	5.26	41.83	3315	1827.55	6.48
	95%	43.66	12592	5.75	47.47	3445	2072.54	6.08
	100%	43.55	13476	6.29	53.91	3564	2347.78	5.74
BGS-EA95 KV100 32inch Straight blade （48V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	47.74	3356	1.41	5.43	1755	259.23	12.95	65
	45%	47.71	4243	1.75	7.63	1984	364.03	11.66
	50%	47.68	5233	2.16	10.43	2198	497.30	10.52
	55%	47.65	6107	2.54	13.33	2389	635.17	9.61
	60%	47.58	7209	2.96	16.71	2567	795.06	9.07
	65%	47.57	7762	3.21	19.24	2726	915.25	8.48
	70%	47.49	8994	3.71	23.71	2895	1125.99	7.99
	75%	47.46	9532	4.17	28.12	3055	1334.58	7.14
	80%	47.39	10891	4.84	34.24	3202	1622.63	6.71
	85%	47.34	11733	5.36	39.70	3349	1879.40	6.24
	90%	47.24	12733	5.93	45.89	3493	2167.84	5.87
	95%	47.19	13580	6.59	52.73	3607	2488.33	5.46
	100%	47.09	14596	7.23	59.79	3719	2815.51	5.18
BGS-EA95 KV100 34inch Straight blade （44.4V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	44.12	3456	1.59	6.03	1600	266.04	12.99	68
	45%	44.09	4406	2.00	8.53	1794	376.09	11.72
	50%	44.06	5410	2.43	11.49	1986	506.25	10.69
	55%	44.04	6300	2.89	14.87	2161	654.87	9.62
	60%	43.94	7346	3.37	18.52	2306	813.77	9.03
	65%	43.93	8140	3.82	22.37	2460	982.71	8.28
	70%	43.86	9251	4.42	27.35	2592	1199.57	7.71
	75%	43.82	10283	4.93	31.95	2714	1400.05	7.34
	80%	43.73	11203	5.48	37.38	2851	1634.63	6.85
	85%	43.67	12071	6.03	43.03	2976	1879.12	6.42
	90%	43.57	13384	6.81	50.47	3086	2198.98	6.09
	95%	43.51	14438	7.58	57.67	3161	2509.22	5.75
	100%	43.41	14896	8.10	63.82	3268	2770.43	5.38
BGS-EA95 KV100 34inch Straight blade （48V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	47.71	3804	1.78	6.67	1710	318.23	11.95	70
	45%	47.70	4784	2.26	9.53	1921	454.58	10.52
	50%	47.66	5883	2.77	12.91	2119	615.29	9.56
	55%	47.59	6881	3.24	16.34	2294	777.62	8.86
	60%	47.56	7848	3.76	20.31	2454	965.94	8.12
	65%	47.49	9065	4.43	25.42	2603	1207.20	7.51
	70%	47.46	10059	4.93	29.65	2724	1407.19	7.15
	75%	47.36	11150	5.62	35.54	2859	1683.17	6.62
	80%	47.32	12511	6.36	41.86	2976	1980.82	6.32
	85%	47.23	13416	7.18	49.33	3099	2329.86	5.76
	90%	47.14	14266	7.85	55.94	3209	2637.01	5.41
	95%	47.04	15087	8.52	62.60	3301	2944.70	5.12
	100%	46.98	15919	9.36	70.39	3375	3306.92	4.81
BGS-EA95 KV120 28inch Straight blade （44.4V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	44.14	2608	1.08	5.07	1988	223.79	11.65	73
	45%	44.12	3446	1.37	7.29	2247	321.63	10.71
	50%	44.08	4158	1.62	9.55	2482	420.96	9.88
	55%	44.07	4837	1.87	11.82	2666	520.91	9.29
	60%	44.01	5606	2.19	14.96	2876	658.39	8.51
	65%	43.95	6593	2.53	18.59	3086	817.03	8.07
	70%	43.92	7215	2.87	22.42	3279	984.69	7.33
	75%	43.88	8231	3.27	27.12	3477	1190.03	6.92
	80%	43.79	9120	3.64	31.91	3669	1397.34	6.53
	85%	43.73	10147	4.11	37.88	3848	1656.49	6.13
	90%	43.65	10895	4.54	43.87	4024	1914.93	5.69
	95%	43.59	11976	5.04	50.46	4170	2199.55	5.44
	100%	43.49	12893	5.53	57.75	4339	2511.55	5.13
BGS-EA95 KV120 28inch Straight blade （48V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	47.72	3084	1.27	5.97	2141	284.89	10.83	75
	45%	47.72	3903	1.56	8.23	2410	392.74	9.94
	50%	47.68	4718	1.86	10.69	2615	509.70	9.26
	55%	47.64	5595	2.16	13.52	2848	644.09	8.69
	60%	47.59	6618	2.58	17.38	3064	827.11	8.00
	65%	47.55	7294	2.9	20.91	3275	994.27	7.34
	70%	47.49	8228	3.28	25.20	3485	1196.75	6.88
	75%	47.45	9230	3.75	30.54	3692	1449.12	6.37
	80%	47.38	10346	4.26	36.58	3883	1733.16	5.97
	85%	47.29	11351	4.73	42.50	4062	2009.83	5.65
	90%	47.22	12252	5.28	49.70	4241	2346.83	5.22
	95%	47.14	13294	5.8	56.67	4396	2671.42	4.98
	100%	47.02	14560	6.48	65.61	4550	3084.98	4.72
BGS-EA95 KV120 30inch Straight blade （44.4V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	44.13	3047	1.24	5.75	1957	253.75	12.01	77
	45%	44.09	3953	1.53	8.09	2222	356.69	11.08
	50%	44.06	4816	1.83	10.64	2446	468.80	10.27
	55%	44.04	5692	2.18	13.56	2621	597.18	9.53
	60%	43.99	6600	2.5	16.84	2830	740.79	8.91
	65%	43.96	7443	2.86	20.75	3046	912.17	8.16
	70%	43.89	8271	3.19	24.59	3230	1079.26	7.66
	75%	43.85	9301	3.64	29.76	3425	1304.98	7.13
	80%	43.78	10322	4.1	35.43	3611	1551.13	6.65
	85%	43.71	11163	4.6	41.69	3780	1822.27	6.13
	90%	43.58	12379	5.12	48.41	3934	2109.71	5.87
	95%	43.54	13245	5.58	54.97	4046	2393.39	5.53
	100%	43.46	14093	6.06	62.04	4247	2696.26	5.23
BGS-EA95 KV120 30inch Straight blade （48V）	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	47.74	3609	1.44	6.67	2111	318.43	11.33	79
	45%	47.69	4486	1.76	9.17	2376	437.32	10.26
	50%	47.66	5463	2.1	11.99	2603	571.44	9.56
	55%	47.61	6234	2.39	14.81	2816	705.10	8.84
	60%	47.57	7321	2.83	18.89	3030	898.60	8.15
	65%	47.52	8394	3.23	22.94	3219	1090.11	7.70
	70%	47.45	9307	3.67	27.77	3425	1317.69	7.06
	75%	47.39	10301	4.16	33.29	3620	1577.61	6.53
	80%	47.32	11565	4.75	39.94	3799	1889.96	6.12
	85%	47.26	12529	5.2	45.83	3976	2165.93	5.78
	90%	47.17	13472	5.79	53.39	4152	2518.41	5.35
	95%	47.09	14528	6.32	60.52	4308	2849.89	5.10
	100%	46.95	15293	6.95	69.03	4455	3240.96	4.72

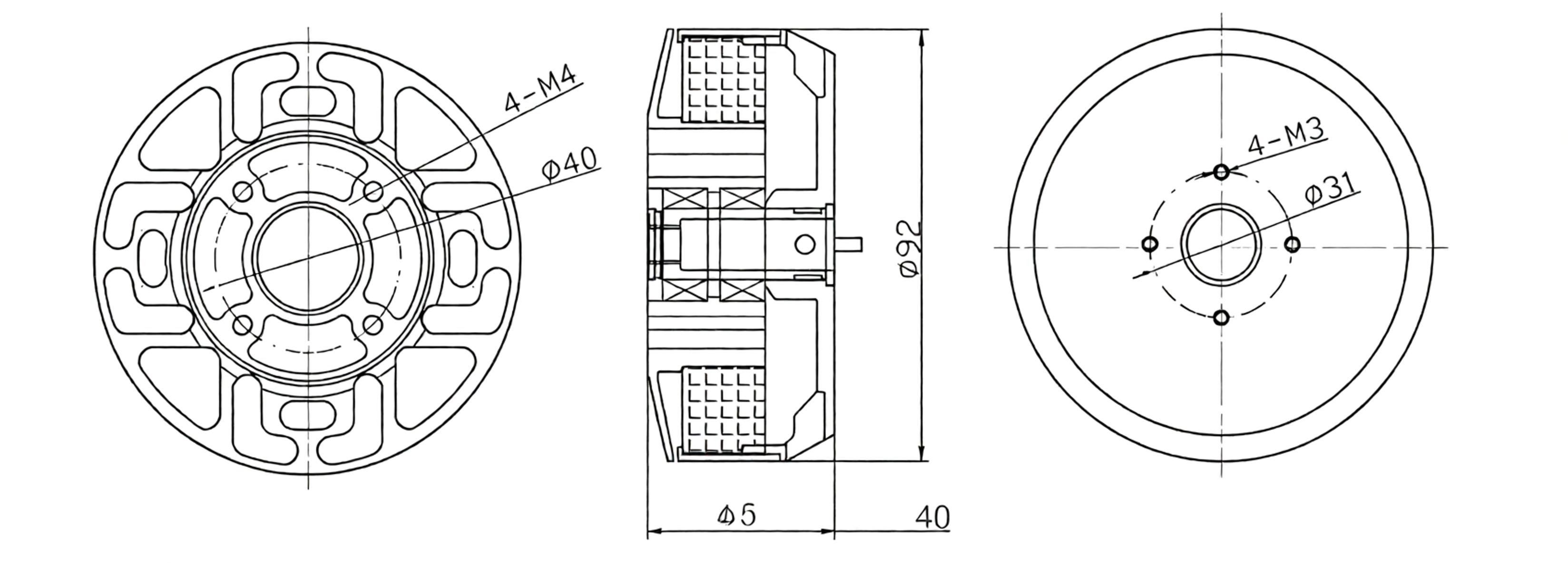

drawing
