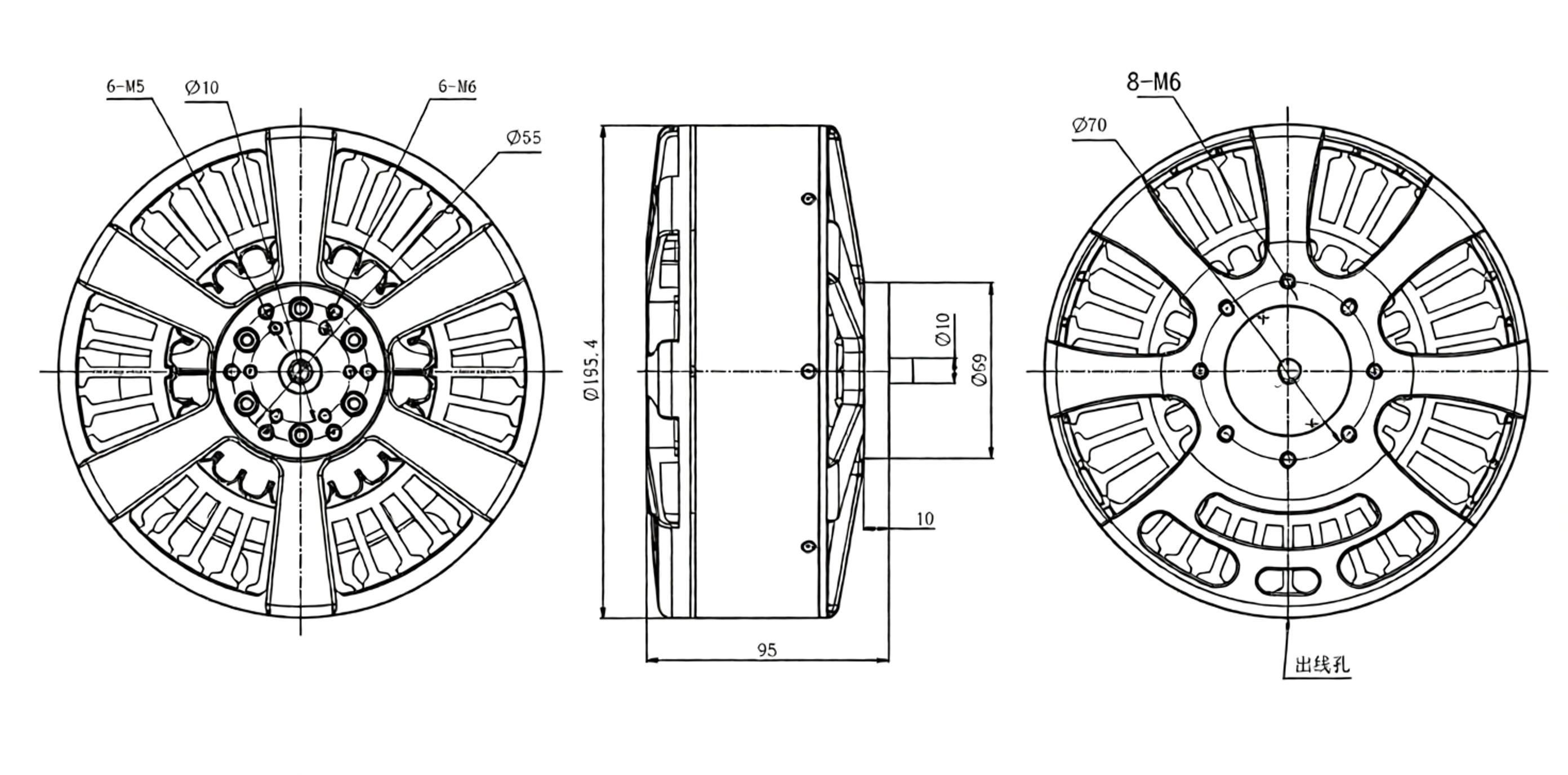

195.4*95mm
36N42P
200℃
10mm
5580g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA190 | KV | W | A | g | g/W | / | S | A | |
| 36 | 25108.45 | 300.70 | 122259 | 3.62 | 76inch Straight blade | 24 | 330 | ||
| 43 | 24605.44 | 300.80 | 109451 | 3.62 | 68inch Straight blade | 24 | 330 | ||
| 53 | 23065.00 | 263.60 | 83547 | 3.62 | 46inch Straight blade | 24 | 330 | ||
| 53 | 24627.33 | 300.70 | 94321 | 3.62 | 58inch Straight blade | 24 | 300 | ||
| 53 | 28704.44 | 340.10 | 106261 | 3.62 | 62inch Straight blade | 24 | 330 | ||
| 36 | 25414.40 | 243.20 | 108170 | 4.26 | 62inch Straight blade | 28 | 300 | ||
| 9 | 26098.80 | 71.70 | 126313 | 4.84 | 76inch Straight blade | 96 | 100 | ||
| 12 | 30648.15 | 84.50 | 114734 | 3.74 | 56inch Folding paddle | 96 | 100 | ||
| 10 | 258070.60 | 70.90 | 117810 | 4.56 | 68inch Straight blade | 96 | 100 | ||
| 12 | 30190.23 | 83.10 | 110320 | 3.65 | 62inch Straight blade | 96 | 100 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA190 KV36 76inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 92.00 | 27961 | 18.50 | 28.40 | 1166 | 2612.80 | 7.25 | 55 | |
| 50% | 91.70 | 41866 | 27.40 | 50.50 | 1411 | 4630.85 | 6.27 | ||
| 60% | 91.30 | 59047 | 39.10 | 84.70 | 1665 | 7733.11 | 5.62 | ||
| 65% | 91.10 | 67871 | 45.00 | 105.10 | 1787 | 9574.61 | 5.26 | ||
| 70% | 90.80 | 77518 | 51.40 | 128.70 | 1898 | 11685.96 | 4.98 | ||
| 75% | 90.50 | 86213 | 58.30 | 155.10 | 2001 | 14036.55 | 4.74 | ||
| 80% | 90.20 | 95287 | 64.40 | 181.00 | 2091 | 16326.20 | 4.49 | ||
| 85% | 89.70 | 104679 | 71.70 | 214.30 | 2191 | 19222.71 | 4.25 | ||
| 90% | 88.30 | 114187 | 77.70 | 248.10 | 2265 | 21907.23 | 4.02 | ||
| 95% | 86.30 | 120744 | 82.70 | 281.10 | 2322 | 24258.93 | 3.83 | ||
| 100% | 83.50 | 122259 | 84.60 | 300.70 | 2341 | 25108.45 | 3.62 | ||
| BGS-EA190 KV43 68inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 92.00 | 26086 | 16.80 | 31.10 | 1382 | 2861.20 | 7.25 | 56 | |
| 50% | 91.70 | 37909 | 24.40 | 53.40 | 1674 | 4896.78 | 6.27 | ||
| 60% | 91.30 | 54403 | 34.20 | 88.70 | 2010 | 8098.31 | 5.62 | ||
| 65% | 91.00 | 62602 | 40.10 | 111.00 | 2137 | 10101.00 | 5.26 | ||
| 70% | 90.70 | 71351 | 45.50 | 134.40 | 2268 | 12190.08 | 4.98 | ||
| 75% | 90.40 | 79437 | 50.70 | 158.70 | 2391 | 14346.48 | 4.74 | ||
| 80% | 90.10 | 88849 | 56.70 | 189.30 | 2519 | 17055.93 | 4.49 | ||
| 85% | 89.50 | 96623 | 62.90 | 223.40 | 2634 | 19994.30 | 4.25 | ||
| 90% | 87.90 | 104246 | 67.90 | 257.40 | 2737 | 22625.46 | 4.02 | ||
| 95% | 85.90 | 110101 | 72.00 | 287.90 | 2803 | 24730.61 | 3.83 | ||
| 100% | 81.80 | 109451 | 71.80 | 300.80 | 2798 | 24605.44 | 3.62 | ||
| BGS-EA190 KV53 46inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 91.90 | 14053 | 7.80 | 21.10 | 1763 | 1939.09 | 7.25 | 60 | |
| 50% | 91.70 | 22544 | 12.70 | 39.20 | 2217 | 3594.64 | 6.27 | ||
| 60% | 91.40 | 31831 | 18.00 | 62.00 | 2585 | 5666.80 | 5.62 | ||
| 65% | 91.20 | 36729 | 20.90 | 76.50 | 2772 | 6976.80 | 5.26 | ||
| 70% | 91.00 | 42581 | 24.10 | 93.90 | 2970 | 8544.90 | 4.98 | ||
| 75% | 90.80 | 48859 | 27.70 | 113.50 | 3141 | 10305.80 | 4.74 | ||
| 80% | 90.50 | 55596 | 31.60 | 136.90 | 3343 | 12389.45 | 4.49 | ||
| 85% | 90.20 | 62974 | 35.90 | 164.20 | 3515 | 14810.84 | 4.25 | ||
| 90% | 89.80 | 70240 | 40.30 | 194.50 | 3690 | 17466.10 | 4.02 | ||
| 95% | 89.40 | 76231 | 44.00 | 222.90 | 3848 | 19927.26 | 3.83 | ||
| 100% | 87.50 | 83547 | 48.90 | 263.60 | 4005 | 23065.00 | 3.62 | ||
| BGS-EA190 KV53 62inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 92.00 | 24990 | 14.40 | 33.20 | 1639 | 3054.40 | 7.25 | 65 | |
| 45% | 91.90 | 31473 | 18.00 | 45.50 | 1834 | 4181.45 | 6.72 | ||
| 50% | 91.70 | 39618 | 22.80 | 63.00 | 2044 | 5777.10 | 6.27 | ||
| 55% | 91.40 | 46998 | 27.70 | 82.90 | 2232 | 7577.06 | 5.90 | ||
| 60% | 91.20 | 56078 | 32.90 | 105.80 | 2399 | 9648.98 | 5.62 | ||
| 65% | 90.90 | 64562 | 37.80 | 129.80 | 2554 | 11798.82 | 5.26 | ||
| 70% | 90.50 | 74392 | 43.70 | 159.60 | 2700 | 14443.80 | 4.98 | ||
| 75% | 90.20 | 82515 | 48.90 | 188.20 | 2831 | 16975.64 | 4.74 | ||
| 80% | 89.60 | 91677 | 55.90 | 228.30 | 2969 | 20455.68 | 4.49 | ||
| 85% | 88.70 | 99156 | 62.50 | 270.70 | 3081 | 24011.09 | 4.25 | ||
| 90% | 86.40 | 104806 | 68.20 | 315.40 | 3159 | 27250.56 | 4.02 | ||
| 95% | 84.50 | 105983 | 70.30 | 339.80 | 3210 | 28713.10 | 3.83 | ||
| 100% | 84.40 | 106261 | 70.20 | 340.10 | 3208 | 28704.44 | 3.62 | ||
| BGS-EA190 KV36 62inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 106.80 | 44781 | 26.20 | 62.10 | 2151 | 6632.28 | 6.75 | 65 | |
| 45% | 106.60 | 51569 | 30.30 | 76.20 | 2292 | 8122.92 | 6.35 | ||
| 50% | 106.50 | 57954 | 33.70 | 89.40 | 2419 | 9521.10 | 6.09 | ||
| 55% | 106.30 | 64771 | 37.30 | 103.50 | 2535 | 11002.05 | 5.89 | ||
| 60% | 106.10 | 70214 | 41.20 | 119.30 | 2636 | 12657.73 | 5.55 | ||
| 65% | 106.00 | 76147 | 44.80 | 134.60 | 2732 | 14267.60 | 5.34 | ||
| 70% | 105.80 | 81460 | 48.30 | 150.10 | 2818 | 15880.58 | 5.13 | ||
| 75% | 105.60 | 86401 | 51.70 | 165.90 | 2898 | 17519.04 | 4.93 | ||
| 80% | 105.30 | 92661 | 56.00 | 185.50 | 2965 | 19533.15 | 4.74 | ||
| 85% | 105.10 | 96259 | 59.50 | 203.10 | 3028 | 21345.81 | 4.51 | ||
| 90% | 104.90 | 101011 | 62.80 | 220.30 | 3092 | 23109.47 | 4.37 | ||
| 95% | 104.70 | 104138 | 64.40 | 233.20 | 3120 | 24416.04 | 4.27 | ||
| 100% | 104.50 | 108170 | 64.50 | 243.20 | 3135 | 25414.40 | 4.26 | ||
| BGS-EA190 KV12 56inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 22687 | 16.13 | 7.20 | 1571 | 2654.64 | 8.55 | 65 | |
| 45% | 368.70 | 27679 | 19.77 | 9.80 | 1746 | 3613.26 | 7.66 | ||
| 50% | 368.60 | 34260 | 24.31 | 13.40 | 1940 | 4939.24 | 6.94 | ||
| 55% | 368.30 | 42498 | 29.54 | 17.90 | 2131 | 6592.57 | 6.45 | ||
| 60% | 367.80 | 50887 | 35.10 | 23.00 | 2301 | 8459.40 | 6.02 | ||
| 65% | 367.40 | 57994 | 40.50 | 28.40 | 2460 | 10434.16 | 5.56 | ||
| 70% | 367.00 | 64532 | 46.10 | 34.40 | 2615 | 12624.80 | 5.11 | ||
| 75% | 366.30 | 75215 | 53.38 | 42.40 | 2779 | 15531.12 | 4.84 | ||
| 80% | 365.70 | 83872 | 59.73 | 49.90 | 2918 | 18248.43 | 4.60 | ||
| 85% | 365.00 | 96237 | 69.59 | 61.40 | 3076 | 22411.00 | 4.29 | ||
| 90% | 364.00 | 106555 | 80.32 | 73.20 | 3168 | 26644.80 | 4.00 | ||
| 95% | 362.80 | 115349 | 87.15 | 84.10 | 3344 | 30511.48 | 3.78 | ||
| 100% | 362.70 | 114734 | 87.58 | 84.50 | 3342 | 30648.15 | 3.74 | ||
| BGS-EA190 KV10 68inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 24870 | 18.53 | 6.90 | 1311 | 2544.03 | 9.78 | 70 | |
| 45% | 368.60 | 31004 | 22.70 | 9.40 | 1457 | 3464.84 | 8.95 | ||
| 50% | 368.60 | 36983 | 27.16 | 12.30 | 1594 | 4533.78 | 8.16 | ||
| 55% | 368.40 | 45130 | 32.28 | 16.10 | 1755 | 5931.24 | 7.61 | ||
| 60% | 368.00 | 53441 | 37.95 | 20.60 | 1908 | 7580.80 | 7.05 | ||
| 65% | 367.60 | 62254 | 44.14 | 25.80 | 2052 | 9484.08 | 6.56 | ||
| 70% | 367.20 | 70236 | 49.68 | 30.90 | 2181 | 11346.48 | 6.19 | ||
| 75% | 366.80 | 78263 | 56.15 | 37.00 | 2308 | 13571.60 | 5.77 | ||
| 80% | 366.20 | 88601 | 63.31 | 44.10 | 2436 | 16149.42 | 5.49 | ||
| 85% | 365.60 | 99262 | 71.68 | 53.00 | 2582 | 19376.80 | 5.12 | ||
| 90% | 364.90 | 110573 | 80.62 | 62.60 | 2706 | 22842.74 | 4.84 | ||
| 95% | 364.10 | 118022 | 88.25 | 70.90 | 2793 | 25814.69 | 4.57 | ||
| 100% | 364.00 | 117810 | 88.27 | 70.90 | 2792 | 25807.60 | 4.56 | ||
| BGS-EA190 KV12 62inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 21951 | 16.04 | 7.00 | 1537 | 2580.90 | 8.51 | 70 | |
| 45% | 368.70 | 27333 | 19.36 | 9.40 | 1710 | 3465.78 | 7.89 | ||
| 50% | 368.60 | 35818 | 24.20 | 13.10 | 1906 | 4828.66 | 7.42 | ||
| 55% | 368.30 | 44270 | 29.26 | 17.40 | 2091 | 6408.42 | 6.91 | ||
| 60% | 368.00 | 51930 | 34.66 | 22.30 | 2261 | 8206.40 | 6.33 | ||
| 65% | 367.60 | 58723 | 39.69 | 27.40 | 2424 | 10072.24 | 5.83 | ||
| 70% | 367.20 | 66523 | 45.23 | 33.20 | 2574 | 12191.04 | 5.46 | ||
| 75% | 366.50 | 77007 | 52.74 | 41.30 | 2741 | 15136.45 | 5.09 | ||
| 80% | 365.90 | 86463 | 59.19 | 48.60 | 2869 | 17782.74 | 4.86 | ||
| 85% | 365.30 | 97532 | 69.15 | 60.10 | 3032 | 21954.53 | 4.44 | ||
| 90% | 364.50 | 105160 | 78.09 | 71.20 | 3174 | 25952.40 | 4.05 | ||
| 95% | 363.60 | 108250 | 87.89 | 81.30 | 3212 | 29560.68 | 3.66 | ||
| 100% | 363.30 | 110320 | 88.33 | 83.10 | 3264 | 30190.23 | 3.65 |
