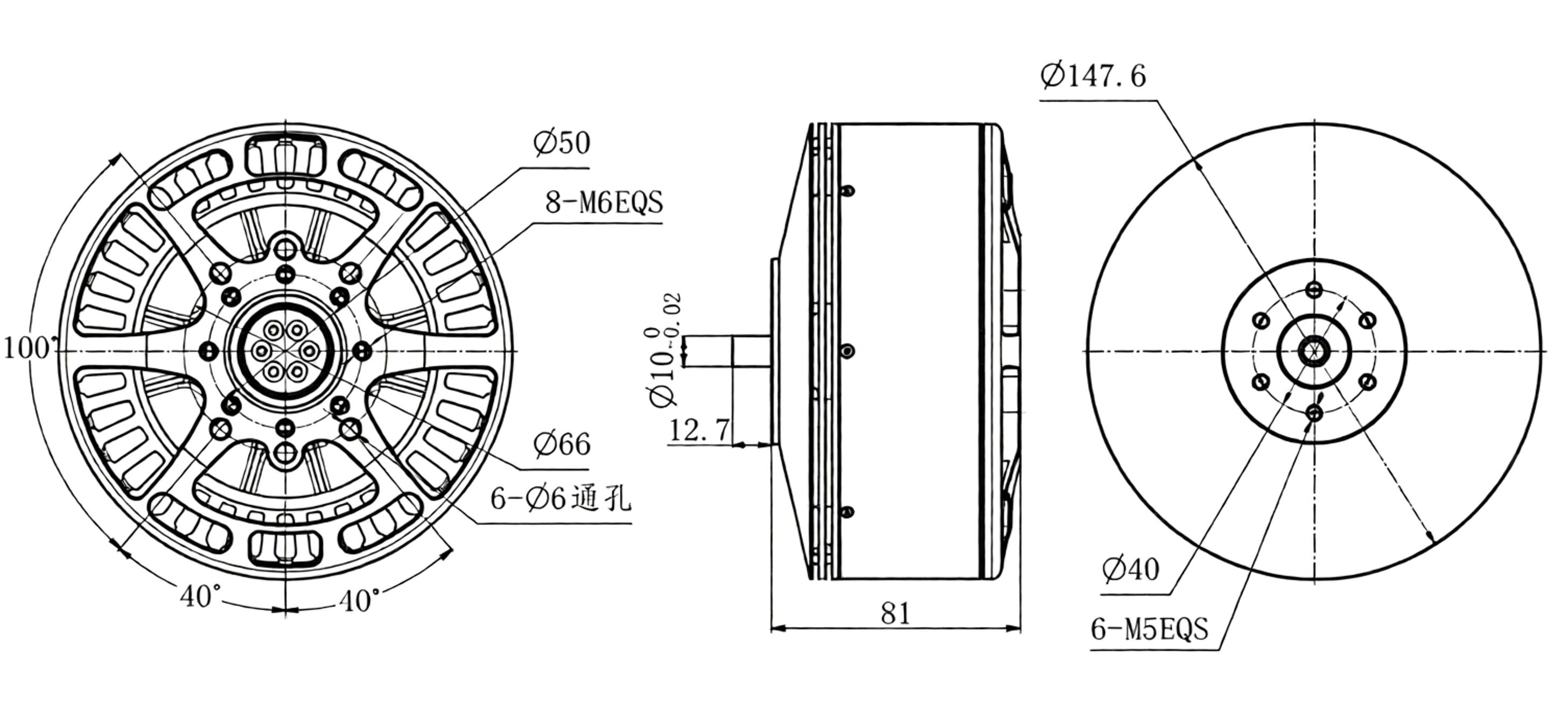

147.6*81mm
36N42P
200℃
10mm
3168g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA160 24S | KV | W | A | g | g/W | / | S | A | |
| 38 | 14821.45 | 164.50 | 73454 | 4.96 | 62inch Straight blade | 24 | 200 | ||
| 38 | 15192.00 | 168.80 | 71915 | 4.73 | 56inch Folding paddle | 24 | 200 | ||
| 50 | 17563.26 | 195.80 | 72367 | 4.12 | 52inch Straight blade | 24 | 200 | ||
| 50 | 17365.92 | 193.60 | 69869 | 4.02 | 48inch Folding paddle | 24 | 200 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA160 24S KV38 56inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 91.80 | 15259 | 11.07 | 16.30 | 1291 | 1496.34 | 10.20 | 50 | |
| 50% | 91.70 | 22371 | 15.56 | 27.80 | 1565 | 2549.26 | 8.78 | ||
| 60% | 91.50 | 31759 | 21.98 | 46.80 | 1860 | 4282.20 | 7.42 | ||
| 65% | 91.40 | 36489 | 25.14 | 57.00 | 1979 | 5209.80 | 7.00 | ||
| 70% | 91.20 | 41974 | 28.80 | 69.40 | 2099 | 6329.28 | 6.63 | ||
| 75% | 91.10 | 47387 | 32.22 | 82.20 | 2220 | 7488.42 | 6.33 | ||
| 80% | 90.90 | 53959 | 36.36 | 98.00 | 2340 | 8908.20 | 6.06 | ||
| 85% | 90.70 | 59613 | 40.81 | 115.90 | 2460 | 10512.13 | 5.67 | ||
| 90% | 90.50 | 64319 | 45.14 | 134.20 | 2570 | 12145.10 | 5.30 | ||
| 95% | 90.10 | 73084 | 51.95 | 163.70 | 2712 | 14749.37 | 4.96 | ||
| 100% | 90.10 | 73454 | 52.39 | 164.50 | 2702 | 14821.45 | 4.96 | ||
| BGS-EA160 24S KV38 56inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 91.80 | 14841 | 11.30 | 16.50 | 1280 | 1514.70 | 9.80 | 55 | |
| 50% | 91.70 | 22512 | 16.15 | 28.50 | 1545 | 2613.45 | 8.61 | ||
| 60% | 91.50 | 32592 | 23.01 | 48.30 | 1834 | 4419.45 | 7.37 | ||
| 65% | 91.30 | 37435 | 26.30 | 58.80 | 1950 | 5368.44 | 6.97 | ||
| 70% | 91.20 | 42415 | 30.04 | 71.20 | 2064 | 6493.44 | 6.53 | ||
| 75% | 91.00 | 47489 | 33.82 | 84.80 | 2179 | 7716.80 | 6.15 | ||
| 80% | 90.90 | 52749 | 37.88 | 100.40 | 2301 | 9126.36 | 5.78 | ||
| 85% | 90.60 | 59270 | 42.94 | 119.70 | 2412 | 10844.82 | 5.47 | ||
| 90% | 90.40 | 64983 | 47.72 | 139.10 | 2516 | 12574.64 | 5.17 | ||
| 95% | 90.00 | 72783 | 54.83 | 169.40 | 2656 | 15246.00 | 4.77 | ||
| 100% | 90.00 | 71915 | 54.74 | 168.80 | 2651 | 15192.00 | 4.73 | ||
| BGS-EA160 24S KV50 52inch Straight blade | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 91.80 | 14889 | 10.39 | 18.70 | 1579 | 1716.66 | 8.67 | 60 | |
| 50% | 91.60 | 23436 | 15.61 | 35.40 | 1984 | 3242.64 | 7.23 | ||
| 55% | 91.50 | 28213 | 18.22 | 45.00 | 2158 | 4117.50 | 6.85 | ||
| 60% | 91.40 | 33132 | 21.21 | 56.40 | 2321 | 5154.96 | 6.43 | ||
| 65% | 91.20 | 37318 | 23.97 | 67.80 | 2464 | 6183.36 | 6.04 | ||
| 70% | 91.10 | 42657 | 27.24 | 81.90 | 2616 | 7461.09 | 5.72 | ||
| 75% | 90.90 | 48160 | 30.67 | 98.40 | 2785 | 8944.56 | 5.38 | ||
| 80% | 90.60 | 54354 | 34.74 | 117.90 | 2937 | 10681.74 | 5.09 | ||
| 85% | 90.40 | 60301 | 38.99 | 139.30 | 3085 | 12592.72 | 4.79 | ||
| 90% | 90.10 | 65843 | 43.24 | 161.00 | 3204 | 14506.10 | 4.54 | ||
| 95% | 89.70 | 72452 | 49.56 | 195.80 | 3384 | 17563.26 | 4.13 | ||
| 100% | 89.70 | 72367 | 49.60 | 195.80 | 3382 | 17563.26 | 4.12 | ||
| BGS-EA160 24S KV50 48inch Folding paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 91.80 | 14207 | 10.33 | 18.60 | 1579 | 1707.48 | 8.32 | 63 | |
| 45% | 91.70 | 18468 | 12.93 | 26.30 | 1781 | 2411.71 | 7.66 | ||
| 50% | 91.60 | 22751 | 15.57 | 35.30 | 1983 | 3233.48 | 7.04 | ||
| 55% | 91.50 | 27161 | 18.39 | 45.30 | 2152 | 4144.95 | 6.55 | ||
| 60% | 91.30 | 31813 | 21.40 | 56.80 | 2315 | 5185.84 | 6.13 | ||
| 65% | 91.20 | 36355 | 24.50 | 69.10 | 2457 | 6301.92 | 5.77 | ||
| 70% | 91.00 | 40653 | 27.60 | 82.60 | 2601 | 7516.60 | 5.41 | ||
| 75% | 90.90 | 45968 | 31.08 | 99.10 | 2768 | 9008.19 | 5.10 | ||
| 80% | 90.60 | 51533 | 35.05 | 118.50 | 2925 | 10736.10 | 4.80 | ||
| 85% | 90.40 | 56157 | 38.34 | 137.00 | 3085 | 12384.80 | 4.53 | ||
| 90% | 90.10 | 62133 | 42.65 | 159.30 | 3214 | 14352.93 | 4.33 | ||
| 95% | 89.70 | 69496 | 48.86 | 192.30 | 3372 | 17249.31 | 4.03 | ||
| 100% | 89.70 | 69869 | 49.04 | 193.60 | 3382 | 17365.92 | 4.02 |
