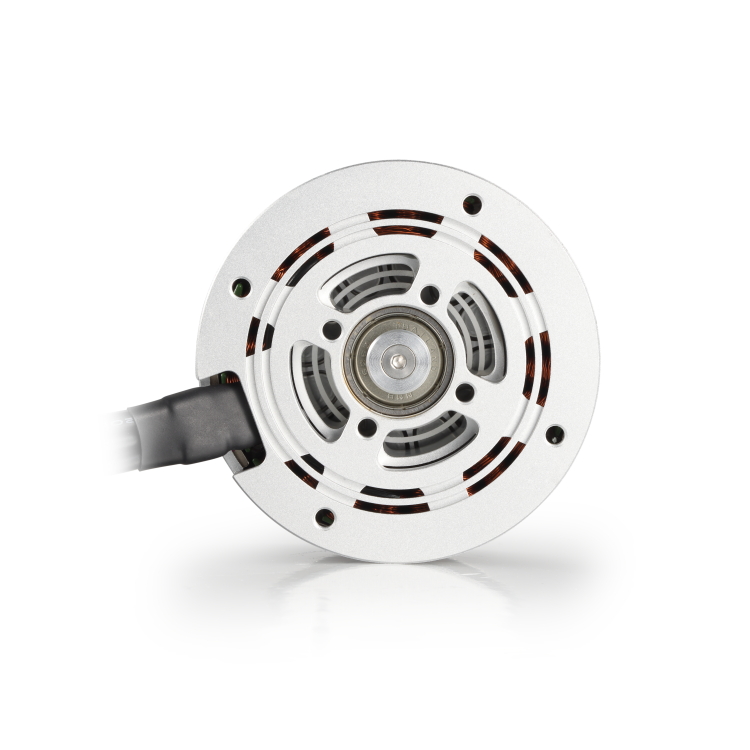

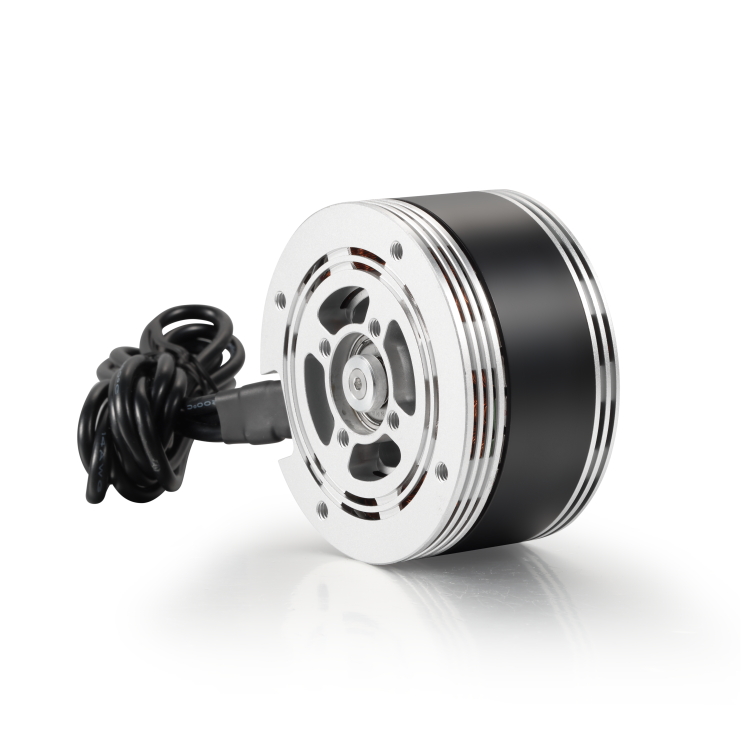

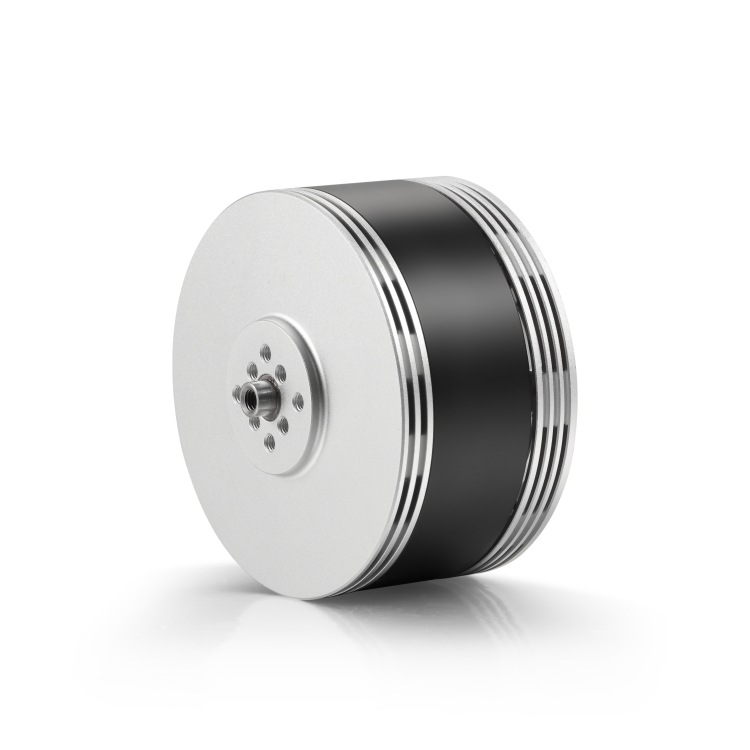

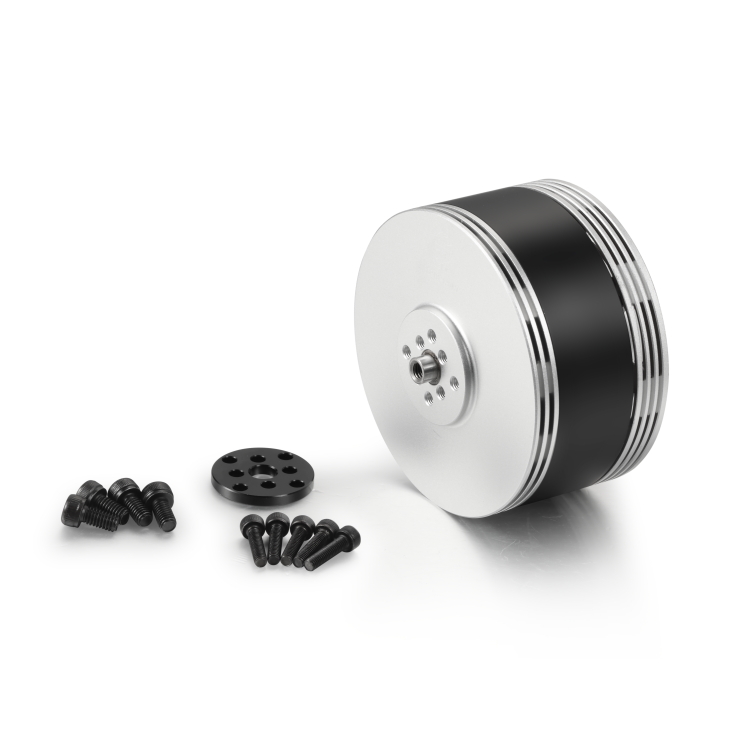

BGS-EA5416 170KV 250KV 6.5KG Payload for 18inch UAV

Product Number:EA5416
get free solutions compare
UAV Power-Type Motors.Built for Maximum Payload. More Thrust. More Redundancy. More Stability. Heavy-Lift Logistics & Emergency Rescue & Industrial Spraying & Wind-Resistant Inspection
  • Motor dimensions

    59.4*37mm

  • Number of slots

    24N28P

  • Copper wire grade

    200℃

  • Shaft diameter

    3mm

  • Motor weight

    306g

  • Service life

    ＞1000h

Technical Specifications


Basic Data
MODELKV Valuemaximum  powerMaximum  currentpullEfficiencyPropellerBatteryESC
BGS-H5416KVWAgg/W/SA
1701039.11 23.60 54675.26 UP1855-18inch Folding Paddle12S60A
1702028.61 39.73 66103.25 UP1855-18inch Folding Paddle14S60A
1701460.92 33.40 64584.42 UP2075-20inch Folding Paddle12S60A
1701177.06 26.80 61595.23 UP2075-20inch Folding Paddle12S60A
1701712.90 39.35 63903.73 UP2170-21inch Folding Paddle12S60A
2201522.51 34.84 64194.21 UP1855-18inch Folding Paddle12S60A
2201689.35 32.95 65273.86 UP1651-16inch Folding Paddle14S60A
2501498.72 34.28 60124.01 UP1651-16inch Folding Paddle12S60A
250852.63 40.64 49365.79 UP2480-24inch Folding Paddle6S60A
2501937.83 44.63 70803.65 UP1855-18inch Folding Paddle12S60S



test data
ModelacceleratorVoltagePulling ForceTorqueCurrentspeedPowerEfficiencyMotor temperature
BGS-H5416
KV170
18-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.68 10210.30 1.99 286688.91 11.48 /
50%44.63 16620.45 3.78 3606168.70 9.85
60%44.57 22410.59 5.84 4185260.29 8.61
65%44.52 26250.70 7.33 4474326.33 8.04
70%44.49 29540.77 8.62 4779383.50 7.70
75%44.40 33390.88 10.56 5068468.86 7.12
80%44.35 37671.01 12.72 5346564.13 6.68
85%44.31 40701.10 14.61 5628647.37 6.29
90%44.20 45851.25 17.52 5908774.38 5.92
95%44.11 50301.37 20.00 6154882.20 5.70
100%44.03 54671.56 23.60 63551039.11 5.26
BGS-H5416
KV170
18-inch Folding Paddle		%VgN.mArpmWg/W℃
40%52.16 18870.58 3.72 3206194.04 9.73 /
50%52.07 28070.85 6.65 3899346.27 8.11
60%51.96 37691.15 10.35 4474537.79 7.01
65%51.88 43261.33 12.90 4795669.25 6.46
70%51.81 48941.58 16.18 5074838.29 5.84
75%51.69 55161.80 19.48 53401006.92 5.48
80%51.52 59412.14 24.08 55331240.60 4.79
85%51.42 63292.38 27.57 56881417.65 4.46
90%51.33 65482.74 32.26 57801655.91 3.95
95%51.15 67513.11 36.97 58031891.02 3.57
100%51.06 66103.25 39.73 59572028.61 3.26
BGS-H5416
KV170
20-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.65 14640.44 2.81 2752125.47 11.67 /
50%44.58 23130.68 5.42 3416241.62 9.57
60%44.51 31040.92 8.54 3949380.12 8.17
65%44.43 34691.03 10.22 4230454.07 7.64
70%44.34 40961.24 13.11 4474581.30 7.05
75%44.28 44691.37 15.33 4736678.81 6.58
80%44.21 49321.56 18.32 4968809.93 6.09
85%44.06 55731.82 22.37 5178985.62 5.65
90%43.99 59092.04 26.06 53601146.38 5.15
95%43.89 62262.22 29.29 55331285.54 4.84
100%43.74 64582.48 33.40 56201460.92 4.42
BGS-H5416
KV170
20-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.70 12210.36 2.38 2829106.39 11.48 /
50%44.61 19930.55 4.57 3532203.87 9.78
60%44.54 26330.71 6.80 4097302.87 8.69
65%44.50 30810.84 8.62 4382383.59 8.03
70%44.43 34650.93 10.19 4659452.74 7.65
75%44.37 39411.07 12.47 4939553.29 7.12
80%44.31 44101.20 14.75 5191653.57 6.75
85%44.82 48821.37 17.51 5455784.80 6.22
90%44.80 53841.52 20.28 5695908.54 5.93
95%44.06 56821.61 22.78 59651003.69 5.66
100%43.92 61591.83 26.80 61541177.06 5.23
BG-H5416
KV170
21-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.65 17960.59 3.71 2673165.65 10.84 /
50%44.54 27240.88 6.85 3295305.10 8.93
60%44.45 36431.19 10.50 3758466.73 7.81
65%44.36 41091.38 13.11 4031581.56 7.07
70%44.26 46121.59 15.98 4251707.27 6.52
75%44.14 51381.86 19.68 4460868.68 5.91
80%44.06 55372.05 22.65 4649997.96 5.55
85%43.90 58252.37 26.98 47631184.42 4.92
90%43.80 61382.64 30.79 48821348.60 4.55
95%43.67 62732.97 35.09 49331532.38 4.09
100%43.53 63903.29 39.35 49681712.91 3.73
BG-H5416
KV220
18-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.71 13540.35 3.30 4002147.54 9.18 /
50%44.62 20080.50 5.65 4828252.10 7.97
60%44.51 28030.67 8.88 5631395.25 7.09
65%44.45 31520.77 10.85 6021482.28 6.54
70%44.39 35570.85 12.91 6406573.07 6.21
75%44.28 41371.00 16.00 6794708.48 5.84
80%44.15 45741.08 18.44 7175814.13 5.62
85%44.11 50321.25 22.34 7526985.42 5.11
90%43.95 54281.37 25.66 78741127.76 4.81
95%43.88 59811.52 29.64 81531300.60 4.60
100%43.70 64191.73 34.84 84061522.51 4.22
BG-H5416
KV220
16-inch Folding Paddle		%VgN.mArpmWg/W℃
40%52.21 13500.33 3.10 4690161.85 8.34 /
45%52.20 18170.40 4.17 5187217.67 8.35
50%52.16 19550.47 5.39 5680281.14 6.95
55%52.07 20510.55 6.76 6061351.99 5.83
60%52.01 21490.65 8.54 6571444.17 4.84
65%52.00 30100.72 10.28 7097534.56 5.63
70%51.92 36160.82 12.51 7564649.52 5.57
75%51.84 41840.94 15.26 8025791.08 5.29
80%51.73 46501.05 17.97 8483929.59 5.00
85%51.65 50781.15 20.97 89621083.10 4.69
90%51.54 56851.28 24.35 93431255.00 4.53
95%51.43 61071.41 28.08 97591444.15 4.23
100%51.27 65271.59 32.95 101461689.35 3.86
BG-H5416
KV250
16-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.68 12760.32 3.39 4583151.47 8.42 /
45%44.66 15390.37 4.44 5073198.29 7.76
50%44.61 18440.45 5.81 5556259.18 7.11
55%44.57 21910.50 7.10 5998316.45 6.92
60%44.50 25370.58 8.76 6415389.82 6.51
65%44.45 29320.67 10.82 6895480.95 6.10
70%44.39 33310.76 13.17 7346584.62 5.70
75%44.30 37520.86 15.82 7807700.83 5.35
80%44.40 42200.98 18.89 8211838.72 5.03
85%44.11 46301.08 22.14 8658976.60 4.74
90%43.98 50561.20 25.89 90321138.64 4.44
95%43.85 55671.32 29.59 93621297.52 4.29
100%43.72 60121.47 34.28 97381498.72 4.01
BG-H5416
KV250
24-inch Folding Paddle		%VgN.mArpmWg/W℃
40%22.06 14380.51 4.51 185499.49 14.45 /
45%22.00 17200.62 6.01 2029132.22 13.01
50%21.96 20430.75 7.93 2220174.14 11.73
55%21.90 24310.90 10.33 2397226.23 10.75
60%21.81 27621.04 12.81 2564279.39 9.89
65%21.70 30551.16 15.30 2726332.01 9.20
70%21.65 33771.34 18.38 2840397.93 8.49
75%21.56 36661.49 21.57 2980465.05 7.88
80%21.45 39671.67 25.16 3088539.68 7.35
85%21.35 42081.83 28.66 3192611.89 6.88
90%21.19 45702.05 33.11 3267701.60 6.51
95%21.11 46962.19 36.65 3368773.68 6.07
100%20.98 49362.38 40.64 3421852.63 5.79
BG-H5416
KV250
18-inch Folding Paddle		%VgN.mArpmWg/W℃
40%44.64 16700.45 4.29 4101191.51 8.72 /
45%44.59 20490.54 5.69 4512253.72 8.08
50%44.55 24370.64 7.42 4927330.56 7.37
55%44.46 29000.75 9.46 5353420.59 6.90
60%44.40 32610.85 11.33 5643503.05 6.48
65%44.33 38030.99 14.17 6067628.16 6.05
70%44.24 42641.12 17.12 6461757.39 5.63
75%44.14 48851.30 20.98 6778926.06 5.28
80%44.02 53131.44 24.62 71761083.77 4.90
85%43.91 56891.60 28.68 75171259.34 4.52
90%43.72 62561.80 33.49 77631464.18 4.27
95%43.58 66942.00 38.40 80101673.47 4.00
100%43.42 70802.26 44.63 81941937.83 3.65

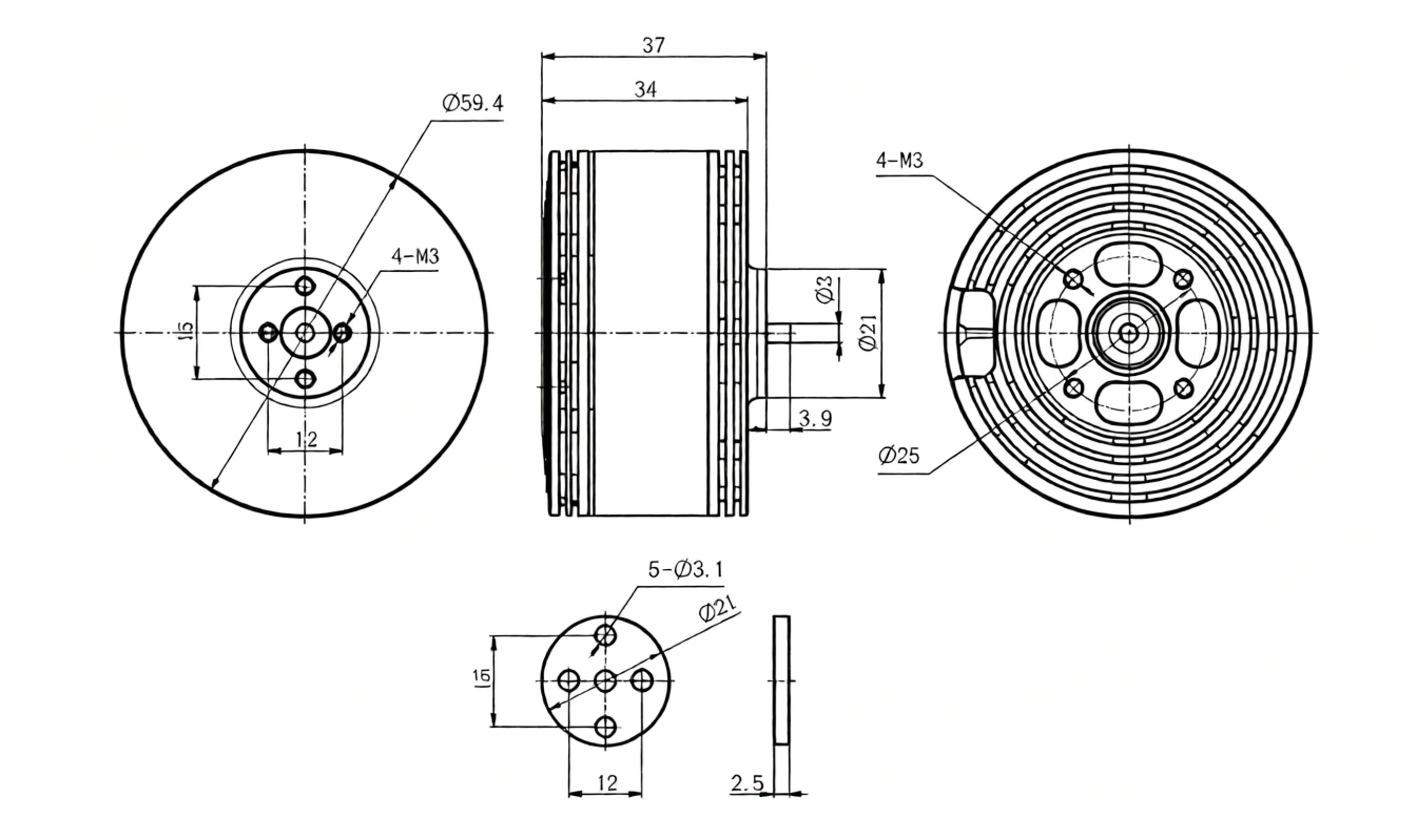

drawing
