BGS-EA605 170KV 210KV 330KV 10KG Payload drone motor for 22inch UAV

Product Number:EA605
get free solutions compare
Designed for multirotor UAV propulsion systems, BGS Motor’s high-performance brushless DC motors deliver high power-to-weight ratio, high-speed response, strong and stable torque, low vibration, and reliable long-life operation. The motors can be customized in size, voltage, speed, shaft, and mounting to match your UAV’s specific thrust and flight requirements, helping you achieve stronger propulsion, better flight stability, and higher overall efficiency.
  • Motor dimensions

    68.8*34mm

  • Number of slots

    24N28P

  • Copper wire grade

    220℃

  • Shaft diameter

    6mm

  • Motor weight

    354g

  • Service life

    ＞1000h

Technical Specifications


Basic Data
MODELKV Valuemaximum  powerMaximum  currentpullEfficiencyPropellerBatteryESC
BGS-EA605KVWAgg/W/SA
1702425.68 53.30 103924.28 22inch Straight blade1260
1702173.65 47.72 89004.09 20inch Straight blade1260
1702687.64 59.16 105703.93 21inch Folding paddle1280
1703282.19 62.01 113263.45 20inch Straight blade1480
2103568.54 79.02 120713.38 20inch Folding paddle1280
2103954.30 75.02 123433.12 20inch Straight blade1480
2103674.85 81.41 123673.37 22inch Straight blade1280
2403331.21 73.83 108913.27 20inch Straight blade1280
3301756.55 79.59 79764.54 22inch Straight blade680
3301641.02 74.12 76044.63 20inch Folding paddle680



test data
ModelacceleratorVoltagePulling ForceTorqueCurrentspeedPowerEfficiencyMotor temperature
BGS-EA605
K170
22inch Straight blade		%VgN.mArpmWg/W℃
40%46.14 19220.47 4.10 2984189.17 10.16 50
45%46.10 24630.60 5.74 3368254.61 9.31
50%46.09 29770.74 7.64 3713352.13 8.45
55%46.03 35440.89 9.76 4016449.25 7.89
60%45.97 42811.07 12.31 4325565.89 7.53
65%45.99 49401.24 15.48 4614711.93 6.94
70%45.96 56861.44 19.21 4939882.99 6.39
75%45.88 63231.61 23.29 52411058.55 5.92
80%45.84 72041.86 28.37 55071300.48 5.54
85%45.76 79722.09 33.41 58111529.48 5.21
90%45.68 88012.31 39.49 60841803.90 4.88
95%45.59 95322.55 45.49 63272073.89 4.63
100%45.51 103922.80 53.30 65802425.68 4.28
BGS-EA605
K170
20inch Straight blade		%VgN.mArpmWg/W℃
40%46.11 18140.44 3.75 2999172.91 10.49 52
45%46.09 23450.56 5.24 3376241.51 9.71
50%46.09 27690.68 6.95 3716320.33 8.64
55%46.05 32370.79 8.89 4035409.38 7.91
60%46.02 37590.92 11.09 4355510.36 7.37
65%45.99 43631.08 13.74 4669631.90 6.90
70%45.96 50351.25 17.12 4991786.84 6.40
75%45.89 57061.43 20.75 5320952.22 5.99
80%45.87 64741.63 24.93 56131143.54 5.66
85%45.79 71821.81 29.73 59241361.34 5.28
90%45.67 78721.99 34.54 62081577.44 4.99
95%45.65 86552.22 41.00 64901871.65 4.62
100%45.55 89002.37 47.72 67892173.65 4.09
BGS-EA605
K210
20inch Folding paddle		%VgN.mArpmWg/W℃
40%46.08 27490.65 6.82 3655314.27 8.75 55
45%46.05 33080.80 9.15 4027421.36 7.85
50%46.02 40310.97 12.16 4437559.60 7.20
55%45.99 46141.14 15.19 4773698.59 6.60
60%45.94 54201.34 19.38 5153890.32 6.09
65%45.83 63111.58 24.35 55331115.96 5.66
70%45.79 70361.78 29.16 58271335.24 5.27
75%45.73 79122.03 35.60 62081627.99 4.86
80%45.65 86202.25 42.32 65401931.91 4.46
85%45.53 95442.51 50.72 68332309.28 4.13
90%45.42 103112.73 59.24 71172690.68 3.83
95%45.28 112343.04 68.96 72993122.51 3.60
100%45.16 120713.33 79.02 74263568.54 3.38
BGS-EA605
K210
20inch Straight blade		%VgN.mArpmWg/W℃
40%53.61 26870.62 6.81 4294365.08 7.36 55
45%53.60 32710.76 8.99 4731481.86 6.79
50%53.53 39170.92 11.69 5197625.77 6.26
55%53.51 45331.06 14.34 5576767.33 5.91
60%53.46 53281.25 18.08 6016966.56 5.51
65%53.41 61811.46 22.77 64901216.15 5.08
70%53.35 70311.68 28.06 69431497.00 4.70
75%53.26 79391.90 33.88 73871804.45 4.40
80%53.15 88592.13 40.67 77772161.61 4.10
85%53.09 98102.38 48.01 81782548.85 3.85
90%52.98 105652.60 56.03 85542968.47 3.56
95%52.91 112612.82 64.49 88743412.17 3.30
100%52.71 123433.10 75.02 91793954.30 3.12
BGS-EA605
K210
22inch Straight blade		%VgN.mArpmWg/W℃
40%46.08 28660.71 7.43 3631342.37 8.37 55
45%46.06 36110.89 10.08 3997464.28 7.78
50%46.04 43031.08 13.47 4405620.16 7.09
55%45.97 51941.30 17.18 4736789.76 6.58
60%45.92 59001.49 21.53 5098988.66 5.97
65%45.83 62201.65 24.32 54621243.37 5.00
70%45.73 76941.96 31.92 57491459.70 5.27
75%45.66 87342.25 39.63 60671809.51 4.83
80%45.59 93682.50 47.87 63842169.17 4.32
85%45.45 106662.78 56.27 66522557.47 4.17
90%45.31 115023.04 66.04 68762992.27 3.84
95%45.22 119263.22 73.75 71053334.98 3.58
100%45.14 123673.34 81.41 72623674.85 3.37
BGS-EA605
K330
20inch Folding paddle		%VgN.mArpmWg/W℃
40%23.03 15690.40 7.11 2870163.74 9.58 65
45%22.99 21270.51 9.74 3208223.92 9.50
50%22.96 25610.61 12.78 3543293.43 8.73
55%22.91 29740.71 15.82 3812362.44 8.21
60%22.83 34250.83 19.68 4089449.29 7.62
65%22.77 39470.96 24.32 4378553.77 7.13
70%22.74 43791.08 29.22 4649664.46 6.59
75%22.65 48911.21 35.15 4910796.15 6.14
80%22.58 54041.36 41.59 5159939.10 5.75
85%22.48 59551.50 49.33 54071108.94 5.37
90%22.38 64691.63 56.47 56281263.80 5.12
95%22.27 69811.78 65.29 58351454.01 4.80
100%22.14 76041.92 74.12 60581641.02 4.63

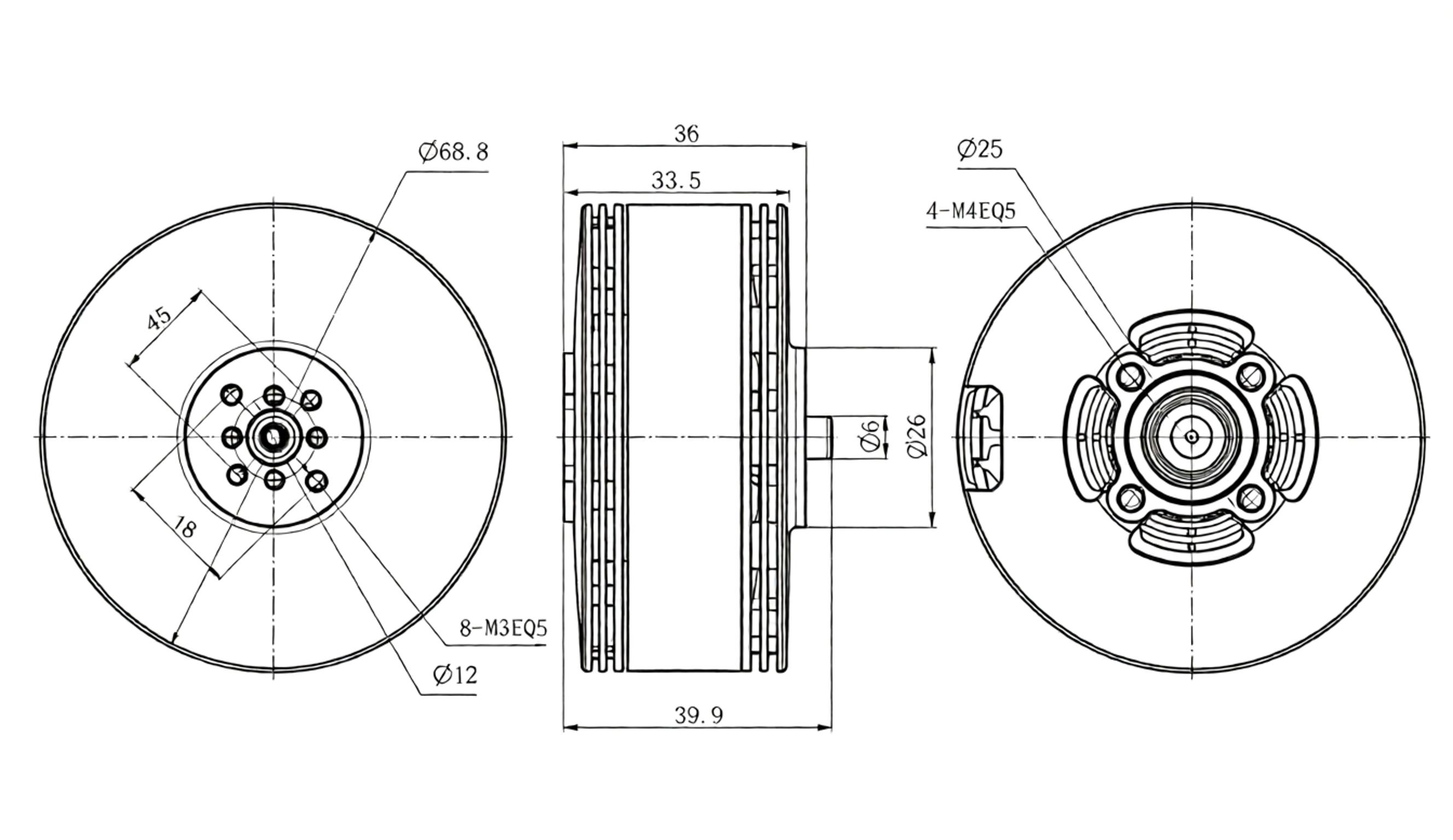

drawing
