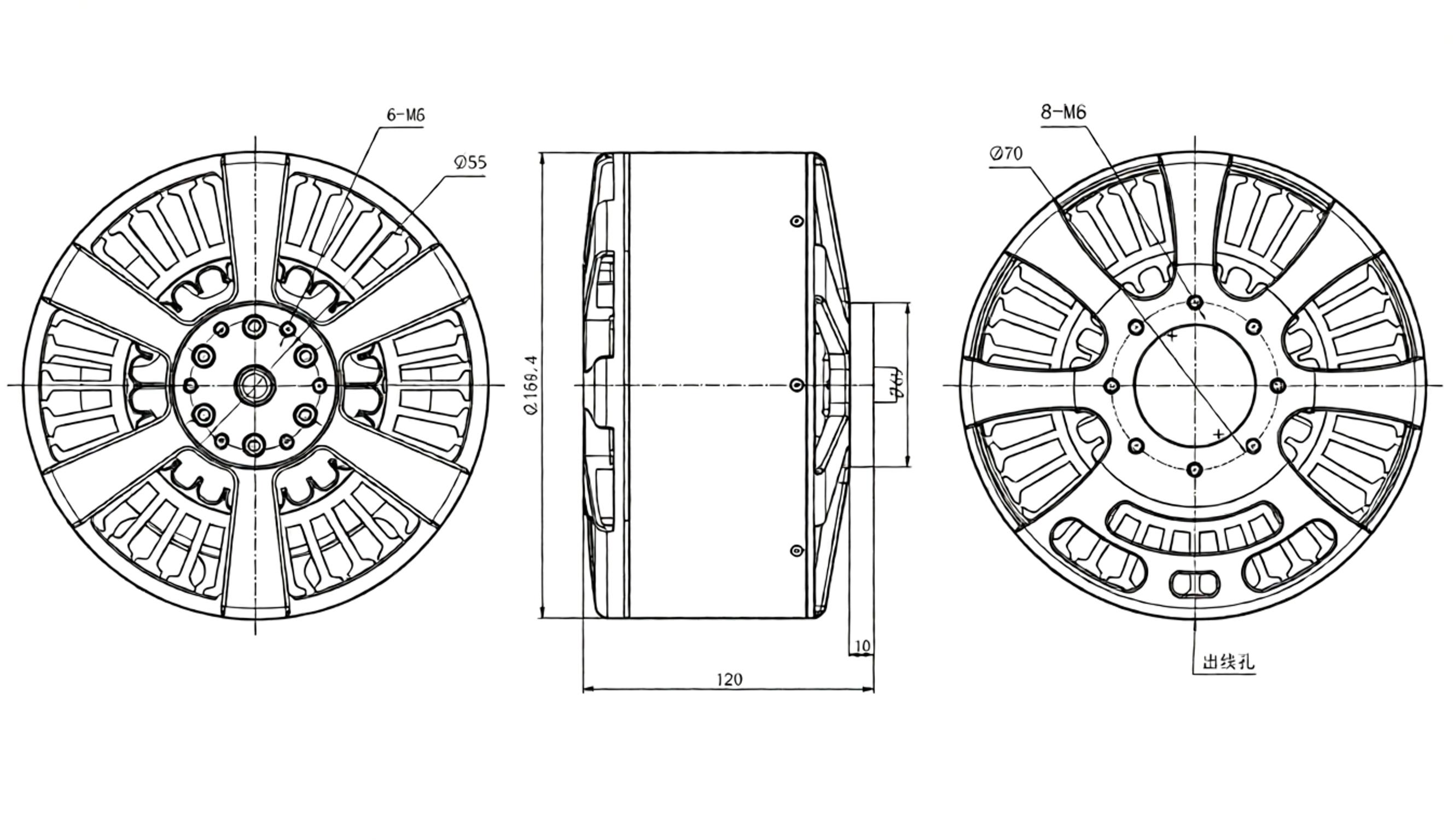

195.4*120mm
36N42P
200℃
10mm
7900g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA200 | KV | W | A | g | g/W | / | S | A | |
| 11 | 53835.60 | 156.00 | 183130 | 3.40 | 76inch Straight blade | 96 | 180 | ||
| 12 | 46351.58 | 129.80 | 147169 | 3.18 | 68inch Straight blade | 96 | 120 | ||
| 14 | 44981.64 | 133.20 | 126354 | 2.81 | 62inch Straight blade | 96 | 120 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA120 KV11 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.90 | 40518 | 31.75 | 12.60 | 1398 | 4648.14 | 8.72 | 60 | |
| 45% | 368.70 | 49746 | 38.78 | 17.00 | 1544 | 6267.90 | 7.94 | ||
| 50% | 368.30 | 60618 | 46.47 | 22.30 | 1688 | 8213.09 | 7.38 | ||
| 55% | 367.20 | 73702 | 56.04 | 29.50 | 1846 | 10832.40 | 6.80 | ||
| 60% | 367.10 | 88499 | 67.04 | 38.50 | 2013 | 14133.35 | 6.26 | ||
| 65% | 366.50 | 103000 | 78.51 | 48.50 | 2162 | 17775.25 | 5.79 | ||
| 70% | 365.40 | 116886 | 90.69 | 59.40 | 2286 | 21704.76 | 5.39 | ||
| 75% | 365.70 | 130350 | 103.80 | 71.80 | 2416 | 26257.26 | 4.96 | ||
| 80% | 365.70 | 144663 | 119.84 | 87.30 | 2544 | 31925.61 | 4.53 | ||
| 85% | 365.10 | 158791 | 141.16 | 107.00 | 2643 | 39065.70 | 4.06 | ||
| 90% | 363.80 | 170885 | 156.62 | 130.60 | 2897 | 47512.28 | 3.60 | ||
| 95% | 355.30 | 178021 | 175.14 | 146.00 | 2829 | 51873.80 | 3.43 | ||
| 100% | 345.10 | 183130 | 181.99 | 156.00 | 2825 | 53835.60 | 3.40 | ||
| BGS-EA120 KV12 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 33920 | 25.25 | 10.90 | 1520 | 4018.83 | 8.44 | 62 | |
| 45% | 368.60 | 41128 | 30.03 | 14.30 | 1676 | 5270.98 | 7.80 | ||
| 50% | 368.20 | 50965 | 36.20 | 19.10 | 1855 | 7032.62 | 7.25 | ||
| 55% | 367.70 | 61366 | 43.31 | 25.30 | 2051 | 9302.81 | 6.60 | ||
| 60% | 367.20 | 72817 | 51.40 | 32.60 | 2224 | 11970.72 | 6.08 | ||
| 65% | 366.50 | 83397 | 58.57 | 39.90 | 2384 | 14623.35 | 5.70 | ||
| 70% | 365.80 | 96199 | 67.12 | 48.60 | 2530 | 17777.88 | 5.41 | ||
| 75% | 365.20 | 107004 | 76.46 | 58.50 | 2669 | 21364.20 | 5.01 | ||
| 80% | 364.20 | 118306 | 86.49 | 70.50 | 2835 | 25676.10 | 4.61 | ||
| 85% | 363.00 | 128582 | 73.43 | 83.30 | 3932 | 30237.90 | 4.25 | ||
| 90% | 359.80 | 136500 | 110.06 | 99.80 | 3116 | 35908.04 | 3.80 | ||
| 95% | 357.70 | 143192 | 122.12 | 115.60 | 3234 | 41350.12 | 3.46 | ||
| 100% | 357.10 | 147169 | 132.89 | 129.80 | 3331 | 46351.58 | 3.18 | ||
| BGS-EA120 KV14 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.60 | 29072 | 21.22 | 10.40 | 1726 | 3833.44 | 7.58 | 67 | |
| 45% | 368.50 | 37311 | 26.04 | 14.30 | 1933 | 5269.55 | 7.08 | ||
| 50% | 368.00 | 47385 | 32.12 | 19.70 | 2155 | 7249.60 | 6.54 | ||
| 55% | 367.50 | 59178 | 39.70 | 27.00 | 2387 | 9922.50 | 5.96 | ||
| 60% | 366.70 | 69541 | 46.58 | 34.20 | 2571 | 12541.14 | 5.55 | ||
| 65% | 366.20 | 81012 | 54.69 | 43.00 | 2750 | 15746.60 | 5.14 | ||
| 70% | 365.60 | 90924 | 62.14 | 51.20 | 2877 | 18718.72 | 4.86 | ||
| 75% | 364.60 | 102396 | 73.20 | 64.40 | 3063 | 23480.24 | 4.36 | ||
| 80% | 363.40 | 111011 | 85.45 | 79.70 | 3237 | 28962.98 | 3.83 | ||
| 85% | 360.40 | 118275 | 97.61 | 96.10 | 3389 | 34634.44 | 3.41 | ||
| 90% | 357.70 | 122311 | 107.62 | 111.80 | 3549 | 39990.86 | 3.06 | ||
| 95% | 357.10 | 127855 | 120.80 | 130.90 | 3695 | 46744.39 | 2.74 | ||
| 100% | 337.70 | 126354 | 117.17 | 133.20 | 3666 | 44981.64 | 2.81 |
