BGS-EA4715 280KV 440KV 7KG Payload for 15inch UAV

Product Number:EA4715

get free solutions compare

UAV Power-Type Motors.Built for Maximum Payload. More Thrust. More Redundancy. More Stability. Heavy-Lift Logistics · Emergency Rescue · Industrial Spraying · Wind-Resistant Inspection

Motor dimensions
53.65*35.3mm
Number of slots
12N14P
Copper wire grade
220℃
Shaft diameter
6mm
Motor weight
274g
Service life
＞1000h

Technical Specifications

Basic Data

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Propeller		Battery	ESC
BGS-EA4715	KV	W	A	g	g/W	/		S	A
	280	2484.92	54.47	7032	2.83	15inch Three-blade paddle		12S	120
	440	2596.65	83.44	6898	2.66	15inch Three-blade paddle		8S	80

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-EA4715 KV280 15inch Three-blade paddle	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	46.24	1945	0.44	6.42	5113	296.86	6.55	58
	50%	46.18	2409	0.54	8.6	5658	397.15	6.07
	60%	46.05	3316	0.77	14.88	6611	685.22	4.84
	70%	46.01	4293	0.98	21.42	7445	985.53	4.36
	80%	45.93	5283	1.2	30.58	8194	1404.54	3.76
	85%	45.87	5707	1.34	35.41	8537	1624.26	3.51
	90%	45.76	6257	1.43	41.18	8846	1884.4	3.32
	95%	45.73	6722	1.52	48.12	9091	2200.53	3.05
	100%	45.62	7032	1.58	54.47	9218	2484.92	2.83

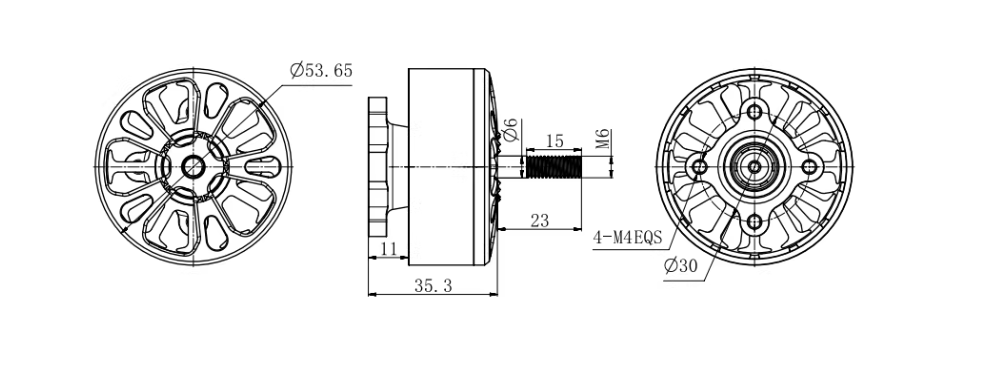

drawing
