Multi-Rotor Motors

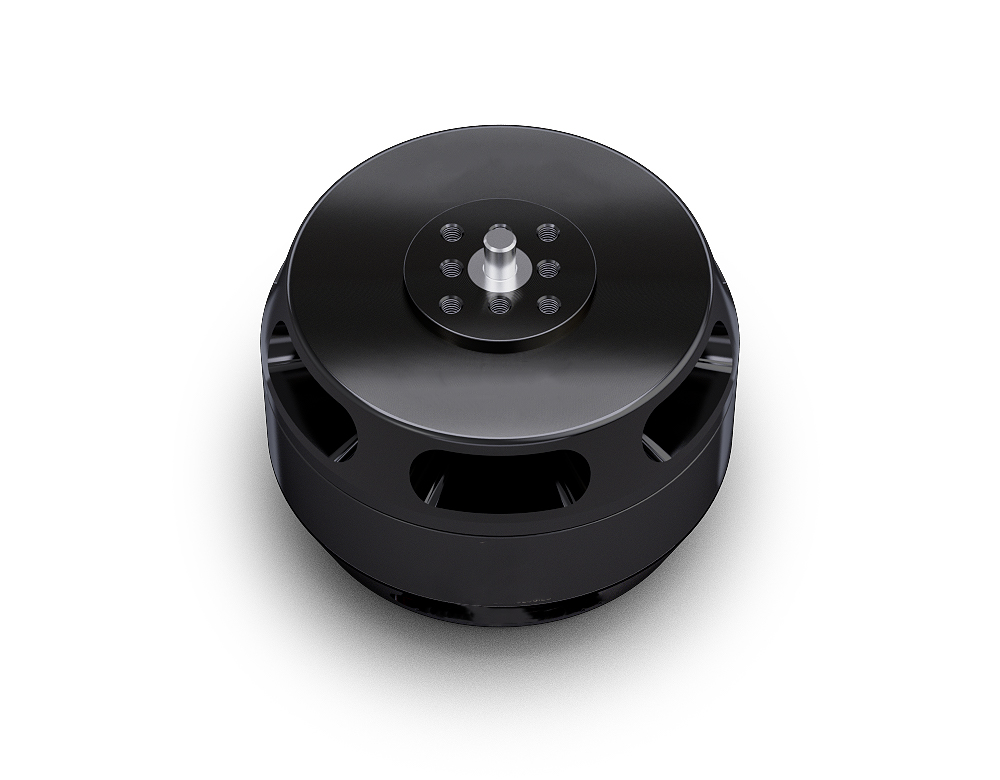

BGS-EA60 170KV 350KV 7.8KG Payload for 22inch Drone

Product Number:EA60
get free solutions compare
UAV Power-Type Motors.Built for Maximum Payload. More Thrust. More Redundancy. More Stability. Heavy-Lift Logistics & Emergency Rescue & Industrial Spraying & Wind-Resistant Inspection
  • Motor dimensions

    68.8*33.3mm

  • Number of slots

    24N28P

  • Copper wire grade

    200℃

  • Shaft diameter

    4mm

  • Motor weight

    346g

  • Service life

    ＞1000h

Technical Specifications


Basic Data
MODELKV Valuemaximum  powerMaximum  currentpullEfficiencyPropellerBatteryESC
BGS-EA60KVWAgg/W/SA
1701450.7530.670124.8320inch Straight blade1260
1702199.9746.5893804.26 22inch Straight blade1280
3301536.3367.0374604.86 22inch Straight blade680
3301513.8466.0274714.9423inch Straight blade680
3501758.377.2278324.4522inch Straight blade680
3501744.57 76.5579094.5323inch Straight blade680



test data
ModelacceleratorVoltagePulling ForceTorqueCurrentspeedPowerEfficiencyMotor temperature
EA60
KV170
20inch Straight blade（44.4V）		%VgN.mArpmWg/W℃
40%44.17 11000.36 2.35 2768103.80 10.60 61
45%44.15 14210.44 3.27 3154144.37 9.84
50%44.14 17630.52 4.34 3488191.57 9.20
55%44.11 20440.60 5.38 3775237.31 8.61
60%44.12 24000.70 6.76 4073298.25 8.05
65%44.07 27380.80 8.31 4391366.22 7.48
70%44.08 31490.91 10.06 4674443.44 7.10
75%44.05 36711.04 12.30 4985541.82 6.78
80%44.01 41391.16 14.63 5287643.87 6.43
85%43.98 47171.32 17.60 5571774.05 6.09
90%43.93 51651.46 20.44 5875897.93 5.75
95%43.89 56561.60 23.36 61361025.27 5.52
100%43.87 62381.78 27.28 64121196.77 5.21
EA60
KV170
20inch Straight blade（48V）		%VgN.mArpmWg/W℃
40%47.76 12180.40 2.65 2999126.56 9.62 63
45%47.76 16330.50 3.76 3400179.58 9.09
50%47.75 19230.59 4.80 3722229.20 8.39
55%47.73 23120.69 6.11 4050291.63 7.93
60%47.71 27040.80 7.67 4373365.94 7.39
65%47.67 31790.92 9.40 4674448.10 7.09
70%47.66 36071.05 11.49 4991547.61 6.59
75%47.62 41501.18 13.82 5340658.11 6.31
80%47.61 46201.32 16.37 5620779.38 5.93
85%47.55 52001.49 19.58 5949931.03 5.59
90%47.50 57951.67 23.07 62531095.83 5.29
95%47.48 64031.83 26.37 65201252.05 5.11
100%47.41 70122.03 30.60 68221450.75 4.83
EA60
KV170
22inch Straight blade（44.4V）		%VgN.mArpmWg/W℃
40%44.13 15310.58 3.65 2638161.07 9.50 66
45%44.13 20020.74 5.23 2995230.80 8.67
50%44.10 25280.68 6.89 3305303.85 8.32
55%44.08 30991.05 8.94 3600394.08 7.86
60%44.04 35861.19 10.79 3825475.19 7.55
65%44.01 41641.38 13.48 4108593.25 7.02
70%44.00 46971.57 16.28 4369716.32 6.56
75%43.96 52711.77 19.49 4624856.78 6.15
80%43.92 59311.99 23.13 48771015.87 5.84
85%43.86 65592.22 27.21 51281193.43 5.50
90%43.81 71842.47 31.33 53661390.09 5.17
95%43.77 77742.71 36.28 55911587.98 4.90
100%43.72 85033.01 41.57 57721817.44 4.68
EA60
KV170
22inch Straight blade（48V）		%VgN.mArpmWg/W℃
40%47.71 20540.67 4.23 2866201.81 10.18 67
45%47.73 25960.86 6.01 3235291.15 8.92
50%47.69 32251.03 8.60 3555384.38 8.39
55%47.65 36951.18 9.89 3812471.26 7.84
60%47.63 43001.39 12.50 4105595.38 7.23
65%47.60 49281.60 15.50 4391737.80 6.68
70%47.57 55791.82 18.65 4622887.18 6.29
75%47.52 62402.04 22.13 49121051.62 5.93
80%47.49 69002.30 26.06 51781247.09 5.53
85%47.39 76632.58 30.88 54211463.40 5.24
90%47.36 81852.87 35.33 56351692.17 4.84
95%47.31 87233.14 40.07 58511925.52 4.53
100%47.23 93803.48 46.58 60332199.97 4.26
EA60
KV330
22inch Straight blade（22.2V）		%VgN.mArpmWg/W℃
40%21.84 15110.52 6.09 2448133.01 11.36 69
45%21.84 19450.66 8.72 2772190.44 10.21
50%21.79 23710.78 11.49 3059250.37 9.47
55%21.75 27690.91 14.49 3310315.16 8.79
60%21.71 31901.05 17.91 3543388.83 8.20
65%21.67 35541.17 21.24 3748460.27 7.72
70%21.60 40391.32 25.39 3982548.42 7.36
75%21.58 44761.48 30.25 4210652.80 6.86
80%21.50 49971.65 35.60 4418765.40 6.53
85%21.44 53721.81 40.88 4629876.47 6.13
90%21.37 59272.02 47.56 48111016.36 5.83
95%21.28 63272.18 53.70 49971142.74 5.54
100%21.19 68342.37 60.58 51721283.69 5.32
EA60
KV330
22inch Straight blade（24V）		%VgN.mArpmWg/W℃
40%23.65 17250.59 6.96 2643164.60 10.48 73
45%23.60 22160.74 9.83 2987231.99 9.55
50%23.57 26760.89 12.96 3267305.47 8.76
55%23.52 31381.04 16.34 3526384.32 8.17
60%23.48 35651.20 20.00 3745469.60 7.59
65%23.42 40191.34 23.88 3986559.27 7.19
70%23.38 44701.50 28.42 4230664.46 6.73
75%23.32 50191.69 33.85 4464789.38 6.36
80%23.24 55301.88 39.55 4664919.14 6.02
85%23.19 59502.06 45.53 48881055.84 5.64
90%23.10 65232.28 52.59 50801214.83 5.37
95%23.02 70162.49 59.47 54611369.00 5.12
100%22.92 74602.69 67.03 52801536.33 4.86
EA60
KV330
23inch Straight blade（22.2V）		%VgN.mArpmWg/W℃
40%21.85 14650.50 5.89 2461129.13 11.34 75
45%21.82 18940.62 8.23 2784179.58 10.55
50%21.79 23360.76 11.19 3068243.83 9.58
55%21.75 27610.89 14.24 3318309.72 8.91
60%21.72 31551.02 17.51 3555380.32 8.30
65%21.66 35151.14 20.38 3762447.93 7.85
70%21.63 39421.27 24.72 4016534.69 7.37
75%21.57 44301.43 29.48 4243635.88 6.97
80%21.49 48401.58 34.39 4441739.04 6.55
85%21.45 53601.77 40.44 4669867.44 6.18
90%21.36 58531.95 46.63 4866995.08 5.88
95%21.26 63212.14 53.02 50381127.21 5.61
100%21.19 66282.32 59.73 52101265.68 5.24
EA60
KV330
23inch Straight blade（24V）		%VgN.mArpmWg/W℃
40%23.64 17470.60 6.99 2646165.24 10.57 76
45%23.61 22560.74 9.87 2995233.03 9.66
50%23.53 26700.87 12.73 3282305.94 8.91
55%23.54 31361.04 16.30 3540383.70 8.20
60%23.49 35171.16 19.42 3768456.18 7.71
65%23.41 40371.30 23.37 4016548.03 7.37
70%23.39 44621.46 27.77 4280649.54 6.87
75%23.33 49331.63 32.49 4464767.96 6.44
80%23.26 55121.83 38.84 4710902.51 6.10
85%23.18 59542.02 45.01 49271043.33 5.71
90%23.11 63882.22 51.62 51411192.94 5.35
95%23.04 68312.40 58.19 53261340.70 5.10
100%22.93 74712.63 66.02 55051513.84 4.94
EA60
KV350
22inch Straight blade（22.2V）		%VgN.mArpmWg/W℃
40%21.84 16170.56 6.82 2550148.95 10.86 76
45%21.80 20710.70 9.75 2886212.55 9.74
50%21.75 25390.85 12.90 3166280.58 9.05
55%21.72 30011.00 16.49 3421358.16 8.38
60%21.69 34411.15 20.30 3665440.31 7.82
65%21.64 38291.29 24.25 3888524.77 7.30
70%21.57 43571.47 29.47 4124635.67 6.85
75%21.51 48581.67 35.30 4355759.30 6.40
80%21.42 52411.82 40.80 4579873.94 6.00
85%21.35 57452.01 47.32 48001010.28 5.69
90%21.26 62592.25 55.19 49851173.34 5.33
95%21.18 67082.42 61.95 51781312.10 5.11
100%21.08 72442.66 70.60 53401488.25 4.87
EA60
KV350
22inch Straight blade（24V）		%VgN.mArpmWg/W℃
40%23.64 19160.65 7.93 2761187.47 10.22 80
45%23.59 24260.81 11.16 3104263.26 9.22
50%23.54 28680.95 14.38 3402338.51 8.47
55%23.50 33581.11 18.25 3674428.88 7.83
60%23.47 37701.27 22.19 3913520.80 7.24
65%23.41 43401.47 27.34 4160640.03 6.78
70%23.35 48191.65 32.77 4418765.18 6.30
75%23.25 54311.86 38.92 4634904.89 6.00
80%23.16 59462.09 45.79 48551060.50 5.61
85%23.09 65022.33 53.50 50561235.32 5.26
90%23.01 69642.55 61.14 52611406.83 4.95
95%22.91 73192.72 67.90 54631555.59 4.70
100%22.77 78322.98 77.22 56421758.30 4.45
EA60
KV350
22inch Straight blade（24V）		%VgN.mArpmWg/W℃
40%21.83 17650.54 6.67 2578145.61 12.12 80
45%21.80 21570.68 9.54 2919207.97 10.37
50%21.75 25760.82 12.69 3201276.01 9.33
55%21.70 30210.97 16.14 3466350.24 8.63
60%21.67 34551.10 19.68 3700426.47 8.10
65%21.65 38441.25 23.82 3942515.70 7.45
70%21.54 43811.42 28.92 4185622.94 7.03
75%21.50 48311.60 34.30 4414737.45 6.55
80%21.45 53071.77 40.05 4639859.07 6.18
85%21.33 58991.99 47.17 48331006.14 5.86
90%21.25 63472.18 54.06 50381148.78 5.53
95%21.19 67712.36 61.00 52221292.59 5.24
100%21.07 72412.57 69.15 54071456.99 4.97
EA60
KV350
23inch Straight blade（24V）		%VgN.mArpmWg/W℃
40%23.64 19480.64 7.79 2766184.16 10.58 83
45%23.60 24710.79 10.97 3113258.89 9.54
50%23.53 29270.94 14.29 3408336.24 8.70
55%23.52 33971.12 18.32 3681430.89 7.88
60%23.44 38821.26 22.05 3917516.85 7.51
65%23.40 44961.46 27.15 4165635.31 7.08
70%23.32 50011.65 32.74 4418763.50 6.55
75%23.28 54681.83 38.41 4654894.18 6.12
80%23.17 59732.05 45.19 48821047.05 5.70
85%23.08 63922.25 52.03 50981200.85 5.32
90%23.01 68872.46 59.64 53201372.32 5.02
95%22.87 73492.66 67.07 54981533.89 4.79
100%22.79 79092.93 76.55 56801744.57 4.53

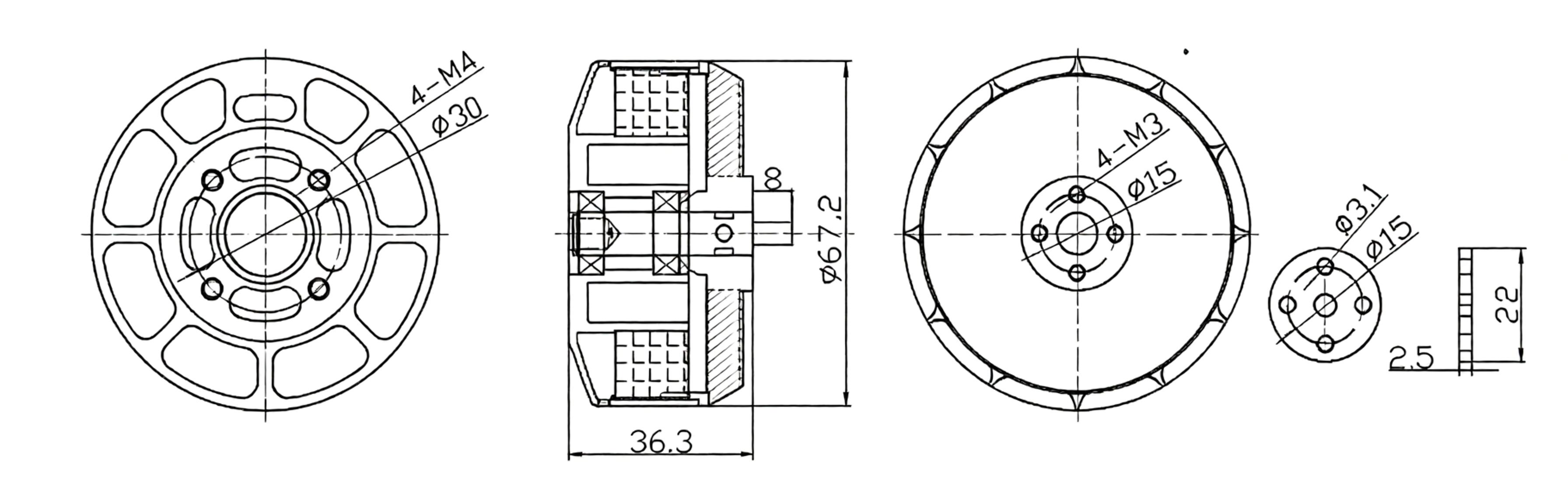

drawing
