32.8*19mm
12N14P
200℃
M5
49.5g
＞1000h
| Recommended 2807 UAV Motor | |

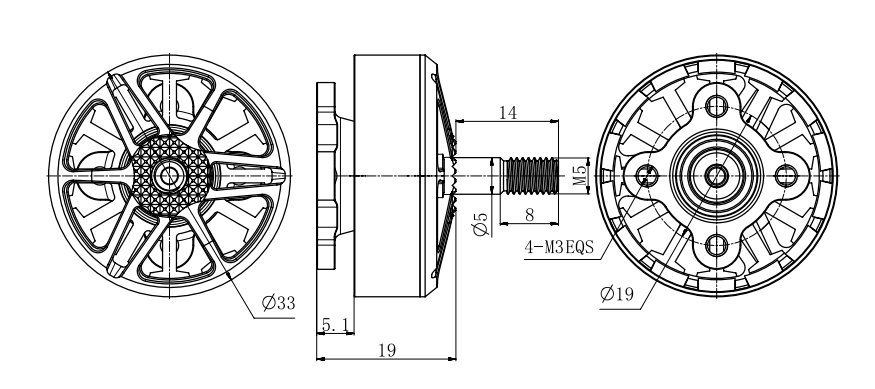

| Type：2807 | Motor Dimension：φ32.94*34.05 |
| Dynamic Balance：≤5mg | Configuration：12N14P |
| Shaft Diameter：5mm | Lead：18AWG*200mm |
| Screw Diameter:Φ19-M3-4 | Prop Adapter Shaft Thread:M5 |
| Recommended Voltage:1250KV | Max Power:551W |
| Rated Voltage (LiPo):4~6S | Peak Current:44.32A |
| Max Thrust:2.17kg | Weight:52.6g |
| Drone Frame Type:7.5-inch X4 Frame | Propeller:C7.5x4.6x3 |
| Recommended Battery:22.2v | Max. Takeoff Weight:10kg |
| MODEL | KV Value | Maximum power | Maximum current | Pull | Efficiency | Propeller | Battery | ESC | |
| BGS-F2807 | KV | W | A | g | g/W | / | S | A | |
| 1300 | 826.65 | 38.20 | 2210 | 2.67 | 7035-3 | 6 | 50 | ||
| 1300 | 830.85 | 38.20 | 2210 | 2.66 | 7045-3 | 6 | 50 | ||
| 1500 | 1090.46 | 52.30 | 2460 | 2.26 | 7035-3 | 6 | 50 | ||
| 1500 | 1160.51 | 55.50 | 2490 | 2.15 | 7040-3 | 6 | 50 | ||
| 1750 | 751.81 | 46.90 | 2160 | 2.87 | 7035-3 | 4 | 60 | ||
| 1750 | 819.64 | 51.10 | 2220 | 2.71 | 7040-3 | 4 | 60 | ||
| Model | Accelerator | Voltage | Pulling Force | Torque | Current | Speed | Power | Efficiency | Motor temperature |
| BGS-F2807 KV1300 (Prop)7035-3 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 22.58 | 870 | 0.13 | 9.80 | 13610 | 221.28 | 3.93 | 45 | |
| 50% | 22.51 | 1071 | 0.16 | 13.10 | 15100 | 294.88 | 3.63 | ||
| 60% | 22.43 | 1295 | 0.19 | 17.10 | 16300 | 383.55 | 3.38 | ||
| 70% | 22.30 | 1560 | 0.22 | 22.10 | 17900 | 492.83 | 3.17 | ||
| 80% | 22.11 | 1871 | 0.27 | 29.30 | 19400 | 647.82 | 2.89 | ||
| 90% | 21.90 | 2163 | 0.31 | 36.80 | 20850 | 805.92 | 2.68 | ||
| 100% | 21.64 | 2210 | 0.31 | 38.20 | 21830 | 826.65 | 2.67 | ||
| BGS-F2807 KV1300 (Prop)7035-3 | 40% | 22.78 | 870 | 0.14 | 9.80 | 13090 | 223.24 | 3.90 | 45 |
| 50% | 22.63 | 1071 | 0.17 | 13.10 | 14450 | 296.45 | 3.61 | ||
| 60% | 22.53 | 1295 | 0.20 | 17.10 | 15900 | 385.26 | 3.36 | ||
| 70% | 22.13 | 1560 | 0.23 | 22.10 | 17320 | 489.07 | 3.19 | ||
| 80% | 22.16 | 1871 | 0.28 | 29.30 | 18630 | 649.29 | 2.88 | ||
| 90% | 21.98 | 2163 | 0.33 | 36.80 | 19750 | 808.86 | 2.67 | ||
| 100% | 21.75 | 2210 | 0.34 | 38.20 | 19985 | 830.85 | 2.66 | ||
| BGS-F2807 KV1300 (Prop)7045-3 | 50% | 21.53 | 335 | 0.06 | 2.60 | 8120 | 55.98 | 5.98 | 50 |
| 60% | 21.36 | 563 | 0.08 | 5.10 | 10530 | 108.94 | 5.17 | ||
| 70% | 21.25 | 745 | 0.12 | 8.10 | 11900 | 172.13 | 4.33 | ||
| 80% | 21.11 | 982 | 0.15 | 11.60 | 13500 | 244.88 | 4.01 | ||
| 90% | 21.03 | 1190 | 0.19 | 16.20 | 14700 | 340.69 | 3.49 | ||
| 100% | 20.85 | 2460 | 0.39 | 52.30 | 22530 | 1090.46 | 2.26 | ||
| BGS-F2807 KV1500 (Prop)7035-3 | 50% | 21.58 | 355 | 0.06 | 2.80 | 8075 | 60.42 | 5.88 | 50 |
| 60% | 21.38 | 567 | 0.10 | 5.40 | 9835 | 115.45 | 4.91 | ||
| 70% | 21.30 | 762 | 0.13 | 8.50 | 11560 | 181.05 | 4.21 | ||
| 80% | 21.15 | 993 | 0.16 | 11.90 | 12780 | 251.69 | 3.95 | ||
| 90% | 21.01 | 1210 | 0.20 | 16.60 | 14300 | 348.77 | 3.47 | ||
| 100% | 20.91 | 2490 | 0.43 | 55.50 | 21830 | 1160.51 | 2.15 | ||
| BGS-F2807 KV1750 (Prop)7035-3 | 50% | 16.79 | 330 | 0.05 | 3.20 | 8120 | 53.73 | 6.14 | 58 |
| 60% | 16.62 | 562 | 0.07 | 5.20 | 10520 | 86.42 | 6.50 | ||
| 70% | 16.43 | 772 | 0.12 | 9.80 | 11200 | 161.01 | 4.79 | ||
| 80% | 16.23 | 925 | 0.14 | 14.30 | 13150 | 232.09 | 3.99 | ||
| 90% | 16.11 | 1150 | 0.18 | 19.50 | 14450 | 314.15 | 3.66 | ||
| 100% | 16.03 | 2160 | 0.29 | 46.90 | 21230 | 751.81 | 2.87 | ||
| BGS-F2807 KV1750 (Prop)7040-3 | 50% | 16.78 | 341 | 0.06 | 3.40 | 8060 | 57.05 | 5.98 | 58 |
| 60% | 16.66 | 573 | 0.09 | 6.40 | 9855 | 106.62 | 5.37 | ||
| 70% | 16.45 | 785 | 0.12 | 10.30 | 11660 | 169.44 | 4.63 | ||
| 80% | 16.25 | 945 | 0.16 | 15.20 | 12850 | 247.00 | 3.83 | ||
| 90% | 16.16 | 1170 | 0.19 | 20.90 | 14135 | 337.74 | 3.46 | ||
| 100% | 16.04 | 2220 | 0.32 | 51.10 | 20855 | 819.64 | 2.71 |

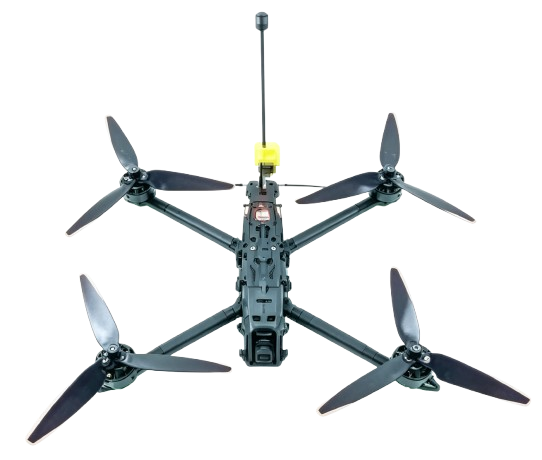

1.7-inch FPV Freestyle & Racing Drones
The 2807 motor's combination of high thrust and fast response makes it the go-to choice for aggressive freestyle maneuvers and competitive racing on 7-inch frames.
2.Long-Range FPV Cruisers
With efficiency-focused KV options (1250-1300KV), the 2807 motor delivers extended flight times for long-distance exploration and mountain surfing.
3.Heavy-Lift Cinematic Rigs
Capable of handling 1.2-2kg payloads with appropriate configuration, this motor supports professional cinematography setups carrying action cameras or lightweight mirrorless systems.
4.Fixed-Wing UAVs
The 2807 motor is also widely used in high-performance fixed-wing RC aircraft, offering 2081g+ thrust for agile flying .
5.Lightweight Industrial Applications
For mapping, surveying, or inspection tasks requiring a compact, efficient power system, the 2807 provides reliable performance in a small package.
1.Compact & Lightweight Design
Weighing between 52.6g and 59g depending on the variant, the 2807 motor features a compact form factor (approximately φ33.6×20mm) that seamlessly integrates into smaller drone builds without compromising structural integrity .
2.High-Torque 12N14P Configuration
The 12-slot 14-pole architecture provides smooth throttle response and high torque output, making it ideal for driving 6-7 inch propellers with exceptional efficiency across the entire throttle range .
3.Precision Dynamic Balancing
Each rotor undergoes ≤5mg dynamic balancing to virtually eliminate high-frequency vibration, ensuring stable flight and clean video footage from onboard cameras .
4.Superior Heat Dissipation
The rotor's self-cooling structure and high-quality materials (CNC 6061-T6 aluminum bell, high-temperature resistant copper windings) ensure reliable performance even under continuous high-load conditions .
5.Durable Construction
-Precision-balanced rotor – ultra-smooth operation
-High-strength magnets (52H or N52SH grade) – enhanced torque output
-Premium bearings (imported NSK/NMB) – extended lifespan
-220°C-rated windings – thermal endurance for demanding flights
