35.7*36.4mm
12N14P
200℃
IN: 4 mm
63.5/57.5g
>1000h

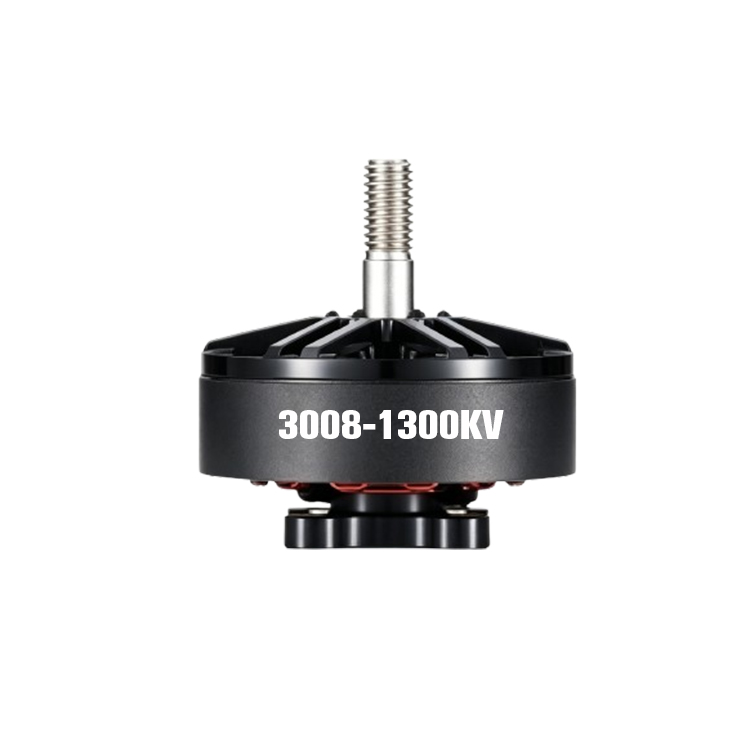

| Recommended 3008 UAV Motor | |
| Model：BASIC30008 | Single Motor Weight：42.6±1.1g |
Supported Voltage | Internal Structure：12N14P |
| KV Rating：1300KV | Magnet Grade：High-strength high-temperature resistant anti-demagnet magnet |
| Stator Size：30mm × 8mm | Matching Propeller：7-inch / 8-inch large-diameter propeller |
| Shaft Diameter：4mm | Typical Application：7~8-inch Long Range, Freestyle, Cinematic & Heavy Payload FPV Drone |
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Propeller | Battery Lipo Cells | ESC | |
| BGS-F3008 | KV | W | A | g | g/W | / | S | A | |
| 1155 | 1314.4 | 59.3 | 2815 | 2.14 | T-7546-3 | 6S | 80 | ||
| 1350 | 1680.9 | 69.7 | 3188.7 | 1.90 | T-7546-3 | 6S | 80 | ||
| 1500 | 1833.9 | 76.4 | 3099.8 | 2.17 | T-7546-3 | 6S | 100 | ||
| Model | Throttle | Voltage | Current | Input Power | Speed | Thrust | Power Efficiency |
| % | V | A | W | RPM | gf | gf/W | |
| BGS-F3008-1300KV HQ 8X4X3 6S | 30 | 25 | 3.57 | 89.3 | 5984 | 362 | 4.1 |
| 35 | 24.97 | 4.88 | 121.9 | 7070 | 528 | 4.3 | |
| 40 | 24.93 | 7.04 | 175.5 | 7962 | 524 | 3 | |
| 45 | 24.85 | 8.97 | 222.9 | 8958 | 716 | 3.2 | |
| 50 | 24.8 | 12.32 | 305.5 | 9946 | 903 | 3 | |
| 55 | 24.73 | 14.44 | 357.1 | 10938 | 1096 | 3.1 | |
| 60 | 24.68 | 19.09 | 471.1 | 11921 | 1286 | 2.7 | |
| 65 | 24.59 | 21.73 | 534.3 | 12922 | 1474 | 2.8 | |
| 70 | 24.52 | 24.7 | 605.6 | 13914 | 1642 | 2.7 | |
| 75 | 24.43 | 26.95 | 658.4 | 14901 | 1826 | 2.8 | |
| 80 | 24.37 | 31.62 | 770.6 | 15898 | 2022 | 2.6 | |
| 85 | 24.31 | 36.81 | 894.9 | 16890 | 2216 | 2.5 | |
| 90 | 24.23 | 43.6 | 1056.4 | 17887 | 2402 | 2.3 | |
| 95 | 24.17 | 47.8 | 1155.3 | 18879 | 2598 | 2.2 | |
| 100 | 24.12 | 52.62 | 1269.2 | 19866 | 2782 | 2.2 |
1.7-inch / 8-inch long-range cruising FPV drone
2.Large-size cinematic aerial photography FPV drone
3.Big-frame heavy payload freestyle FPV aircraft
4.Light lifting & survey mapping industrial multirotor drone
1.Propeller: 7×5 / 8×5 long-range high-efficiency propeller
2.ESC: 50A~70A 6S high-current 4-in-1 brushless ESC
3.Battery: 6S 1800~3000mAh high-capacity LiPo battery

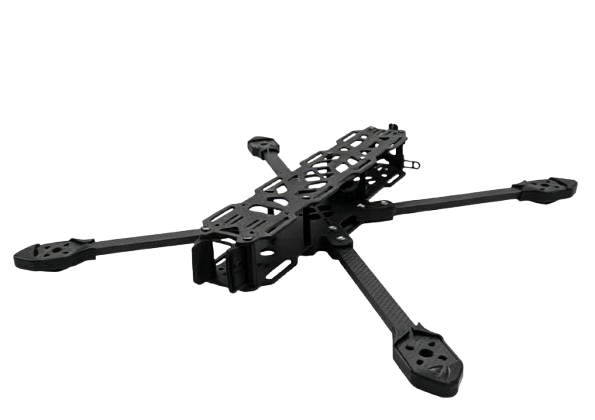

4.Frame: Standard 7-inch / 8-inch long-range FPV frame
-Large 30008 Stator High Torque Design: Excellent low-speed torque and strong load capacity, perfectly match large 7/8-inch propellers
-6S Voltage Platform Tuning: Balanced power output & energy efficiency, great choice for long-distance endurance flight
-High-Temperature Anti-Demagnet Magnet: Suppress heat buildup under sustained heavy-load operation, prevent permanent magnet demagnetization & power decay
-12N14P Optimized Winding Structure: Smooth rotation, small cogging torque, linear throttle response for stable and precise control
-Thicker 4mm Output Shaft: Higher structural rigidity, anti-vibration and anti-bending when driving large propellers
-Wide Compatibility: Fits mainstream 7/8-inch long-range frames, high-current 4-in-1 ESCs, simple replacement and assembly
