BGS-FW3530 Long Axis AT Series Motors

Product Number:FW3530

The long shaft KV580 brushless motor adopts 12N14P slot-pole design with 298g total weight. It supports stable 65A max current under 4-6S LiPo power for heavy-load industrial fixed-wing drones.

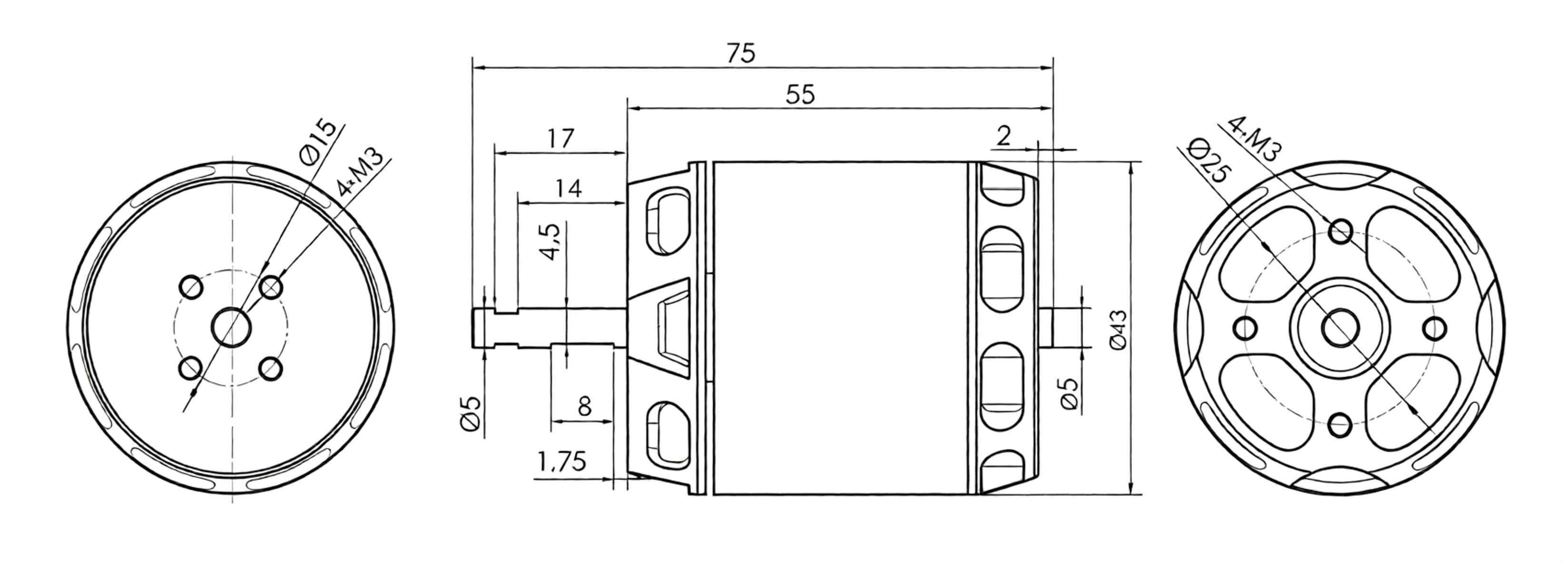

Motor dimensions
43*75mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
5mm
Motor weight
298g
Service life
＞1000h

Technical Specifications

AT3530 Basic Data
Parameter:Specification	Weight (with Wire):298g
Test Model:KV580	Phase-to-phase Internal Resistance:18mΩ
Motor Dimensions:φ43*75mm	Slot-pole Configuration:12N14P
Lead Wire Specification: 100mm	Rated Operating Voltage (Lipo):4-6S
Shaft Diameter:IN: 5mm, OUT: 5mm	Maximum Current (180s):65A
No-load Current (10V):1.9A	Maximum Continuous Power:334W

test data

Model	Propeller	Accelerator	Voltage	Current	Power	Speed	Torque	Voltag	Efficiency	Motor Temperature
AT3530 KV580	/	(%)	(V)	(A)	(W)	(RPM)	(N.m)	(g)	(g/W)	(℃)
	APC 13*8	40.%	22.45	8.28	186.02	5419	0.245	1263	6.79	/
		45.%	22.42	10.02	224.67	5815	0.282	1448	6.45
		50.%	22.39	11.88	265.99	6160	0.324	1653	6.22
		55.%	22.36	13.93	311.31	6492	0.365	1852	5.95
		60.%	22.31	16.71	372.77	6911	0.414	2107	5.65
		65.%	22.24	20.48	455.55	7379	0.482	2439	5.35
		70.%	22.18	24.14	535.51	7782	0.541	2723	5.08
		75.%	22.11	28.75	635.48	8243	0.614	3062	4.82
		80.%	22.02	33.81	744.61	8637	0.690	3265	4.38
		85.%	21.90	41.07	899.42	8998	0.801	3429	3.81
		90.%	21.80	47.32	1031.51	9378	0.880	3743	3.63
		100.%	21.69	54.04	1171.88	9678	0.968	4082	3.48
	APC 14*7	40.%	22.44	8.67	194.49	5297	0.262	1382	7.11	74
		45.%	22.41	10.30	230.82	5615	0.301	1581	6.85
		50.%	22.37	12.36	276.51	5965	0.344	1795	6.49
		55.%	22.33	15.00	334.90	6352	0.398	2063	6.16
		60.%	22.28	18.33	408.36	6775	0.460	2369	5.80
		65.%	22.20	22.60	501.85	7255	0.536	2736	5.45
		70.%	22.12	27.38	605.52	7686	0.611	3104	5.13
		75.%	22.05	31.93	704.03	8073	0.686	3450	4.90
		80.%	21.96	37.14	815.64	8436	0.766	3826	4.69
		85.%	21.84	44.15	964.40	8863	0.864	4265	4.42
		90.%	21.72	51.40	1116.61	9246	0.958	4660	4.17
		100.%	21 61	58. 46	1263 33	9496	1052	4805	3 80
