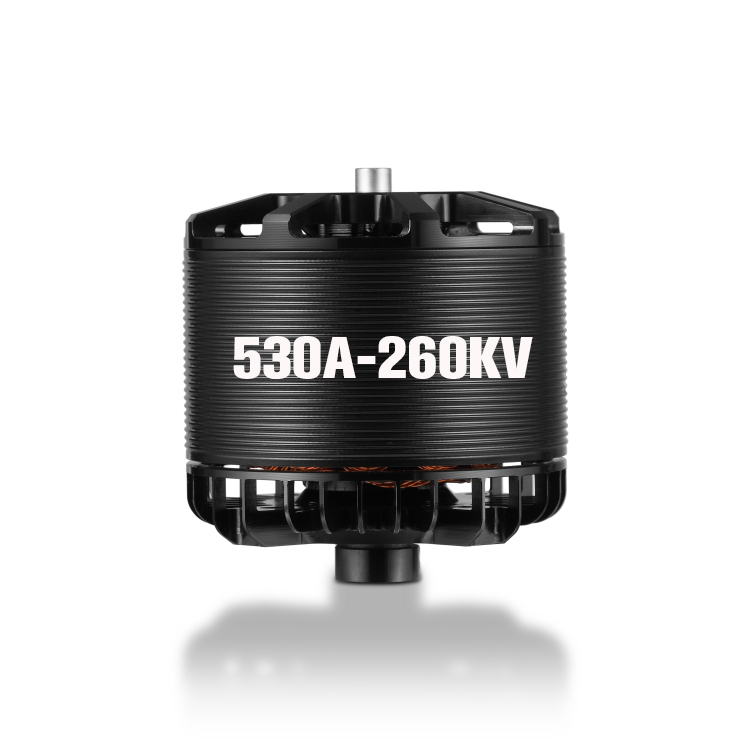

BGS-FW530A AX Series Motors

Product Number:FW530QA

get free solutions compare

The AX530-A brushless motor adopts high-temperature resistant coating and high-grade heat-resistant enameled wire. It features precise dynamic balance and stable high-temperature performance for heavy-lift industrial fixed-wing drones.

Motor dimensions
63.6*83.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
8mm
Motor weight
680g
Service life
＞1000h

Technical Specifications

AX530-A Basic Data
Motor Model:AX530-A	Magnet Temperature Resistance Grade:180°C
Motor Overall Dimensions:63.6*83.5mm	Lead Wire Specification x Length:Enameled Wire 150mm
Stator Process:150°C	Enameled Wire Temperature Resistance Grade:220°C
Slot/Pole Count:12N14P	Coil Withstand Voltage:500V/5s
Motor Shaft Diameter:IN:10mm OUT:8mm	Rotor Dynamic Balance Standard:≤30mg
Bearing Model:6800/6900ZZ Bearing	Packaging Dimensions:/

Basic Data

MODEL	KV Value	Maximum power	Maximum current	Pull	Efficiency	Propeller	Battery	ESC
AX530-A	KV	W	A	g	g/W	/	S	A
AX530-A	260	1008	120	12700	12.6	/	12	120

test data

MODEL	Propeller	Throttle(%)	Voltage(V)	Current(A)	Power(W)	RPM	Torque(N·m)	Thrust(g)	Efficiency(g/W)
AX530-A KV260	/	%	(V)	(A)	(W)	/	(N·m)	(g)	(g/W)
	AUFZ 20*13	40%	44.67	9.52	425	3623	0.91	2842	6.68	110.7
		45%	44.6	12.47	556	3982	1.1	3460	6.22
		50%	44.53	16.47	733	4392	1.33	4234	5.77
		55%	44.42	22.34	992	4862	1.64	5217	5.26
		60%	44.3	28.38	1257	5272	1.93	6169	4.91
		65%	44.18	34.66	1531	5623	2.21	7039	4.6
		70%	44.04	41.9	1845	5971	2.49	7976	4.32
		75%	43.88	50.32	2208	6320	2.81	8956	4.06
		80%	43.69	59.9	2617	6666	3.14	9995	3.82
		90%	43.2	85.56	3696	7248	3.98	11088	3
		100%	42.62	117.79	5020	7856	4.81	12717	2.53
	AUZ 20*13	40%	44.62	9.55	426	3601	0.93	3076	7.22	111.2
		45%	44.56	12.61	562	3960	1.11	3754	6.68
		50%	44.48	16.83	748	4359	1.35	4602	6.15
		55%	44.36	22.72	1008	4832	1.67	5687	5.64
		60%	44.24	28.95	1281	5239	1.98	6744	5.27
		65%	44.12	35.33	1559	5585	2.26	7698	4.94
		70%	43.98	43.03	1892	5944	2.57	8764	4.63
		75%	43.81	51.59	2260	6278	2.87	9814	4.34
		80%	43.62	61.29	2674	6617	3.21	10948	4.09
		90%	43.18	84.14	3633	7244	3.89	13204	3.63
		100%	42.55	119.15	5069	7815	4.88	13755	2.71
