BGS-F1408 2400KV 3600KV 3S 4S Freestyle drone motor

Product Number:F1408

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

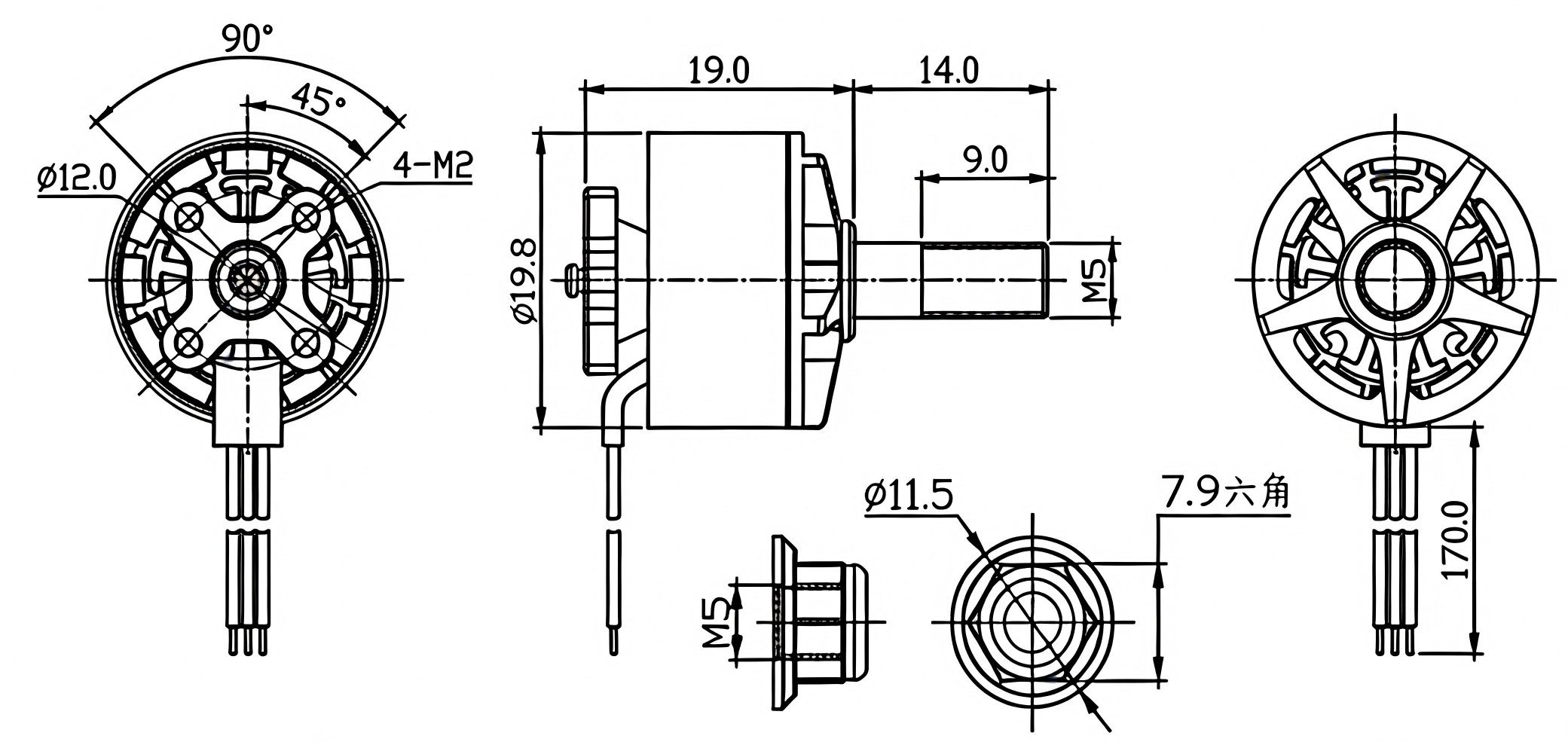

Motor dimensions
19.8*19mm
Number of slots
9N12P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
17g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-F1408	KV	W	A	g	g/W	/	S	A
	2400	94	8.5	235	2.5	40409	3S	20
	2400	160	10.8	306	1.9	40409	4S	20
	3600	139	12.5	330	2.4	30409	3S	25
