BGS-F1507 2800KV 3600KV High-speed small FPV motor

Product Number:F1507

get free solutions compare

Three-phase brushless external rotor motor, 12N14P groove design, focusing on large pulling force, long endurance, low noise, suitable for heavy-duty long-distance cruising, professional film and television aerial photography.

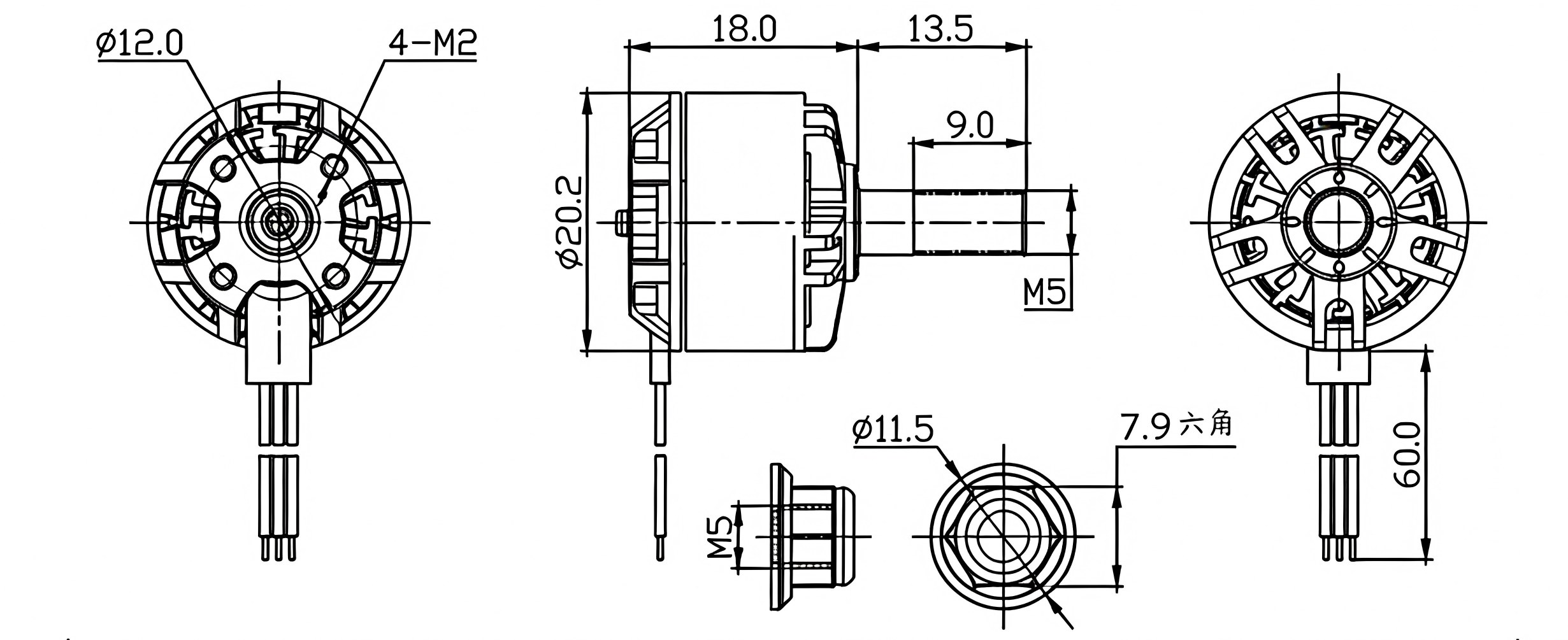

Motor dimensions
20.2*18mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
M5
Motor weight
17g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BG-F1507	KV	W	A	g	g/W	/	S	A
	2800	73	6.6	202	2.8	3045	3S	15
	2800	133	9	260	2	3045	4S	20
	3600	91	8.2	242	2.7	3045	3S	20
