BGS-EA5412 160KV 280KV 4.2KG Payload High-quality drone motors for 22inch UAV

Product Number:EA5412

get free solutions compare

Designed for multirotor UAV propulsion systems, BGS Motor’s high-performance brushless DC motors deliver high power-to-weight ratio, high-speed response, strong and stable torque, low vibration, and reliable long-life operation. The motors can be customized in size, voltage, speed, shaft, and mounting to match your UAV’s specific thrust and flight requirements, helping you achieve stronger propulsion, better flight stability, and higher overall efficiency.

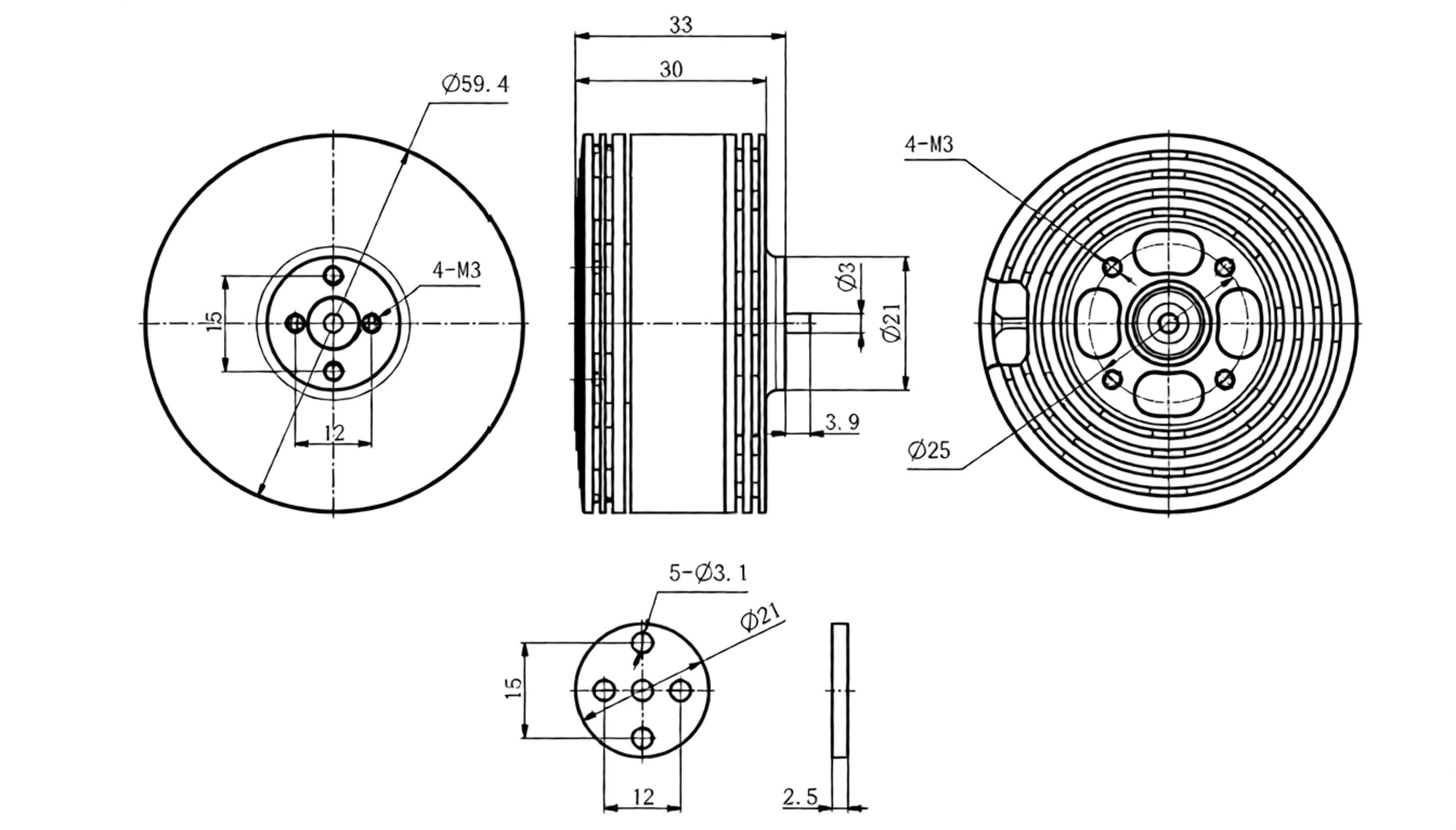

Motor dimensions
59.4*33mm
Number of slots
24N28P
Copper wire grade
200℃
Shaft diameter
6mm
Motor weight
245g
Service life
＞1000h

test data

Model	accelerator	Voltage	Pulling Force	Torque	Current	speed	Power	Efficiency	Motor temperature
BGS-EA5412 KV160 20inch Folding paddle	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	44.69	1178	0.34	2.02	2514	90.27	13.05	48
	50%	44.61	1858	0.54	3.94	3108	175.76	10.57
	60%	44.57	2539	0.76	6.53	3634	291.04	8.72
	65%	44.50	2805	0.85	7.73	3846	343.99	8.15
	70%	44.46	3223	1.00	9.61	4073	427.26	7.54
	75%	44.42	3502	1.12	11.41	4320	506.83	6.91
	80%	44.35	3896	1.28	13.57	4483	601.83	6.47
	85%	44.25	4202	1.45	16.13	4690	713.75	5.89
	90%	44.15	4522	1.63	18.59	4822	820.75	5.51
	95%	44.09	4707	1.84	21.36	4899	941.76	5.00
	100%	43.97	4773	2.09	24.60	4950	1081.66	4.41
BGS-EA5412 KV190 18inch Straight blade	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	45.49	981	0.27	1.97	3189	89.62	10.95	52
	50%	45.46	1515	0.37	3.32	3927	150.93	10.04
	60%	45.43	2074	0.48	5.04	4579	228.97	9.06
	65%	45.35	2410	0.56	6.38	4922	289.33	8.33
	70%	45.33	2730	0.61	7.42	5261	336.35	8.12
	75%	45.28	3059	0.70	9.07	5584	410.69	7.45
	80%	45.26	3399	0.78	10.60	5875	479.76	7.08
	85%	45.22	3720	0.88	12.63	6199	571.13	6.51
	90%	45.17	4191	1.00	15.13	6510	683.42	6.13
	95%	45.08	4402	1.07	16.92	6800	762.75	5.77
	100%	45.03	4960	1.24	20.46	7081	921.31	5.38
BGS-EA5412 KV245 16inch Straight blade	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	45.51	1155	0.30	2.81	4124	127.88	9.03	54
	50%	45.42	1681	0.49	4.73	4997	214.81	7.82
	60%	45.36	2265	0.63	7.31	5772	331.58	6.83
	65%	45.33	2613	0.66	9.08	6217	411.60	6.35
	70%	45.26	3118	0.83	11.24	6631	508.72	6.13
	75%	45.24	3462	0.98	13.56	7023	613.45	5.64
	80%	45.27	3832	1.09	16.38	7439	741.52	5.17
	90%	45.03	4672	1.18	22.29	8147	1003.73	4.65
	95%	44.93	5110	1.33	26.03	8470	1169.53	4.37
	100%	44.81	5378	1.50	30.75	8742	1377.91	3.90
BGS-EA5412 KV280 22inch Straight blade	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	22.61	1127	0.37	3.69	2176	83.43	13.51	55
	45%	22.51	1363	0.44	4.92	2418	110.75	12.31
	50%	22.55	1650	0.53	6.59	2660	148.60	11.10
	55%	22.44	1926	0.63	8.46	2870	189.84	10.15
	60%	22.41	2201	0.73	10.49	3068	235.08	9.36
	65%	22.35	2538	0.86	13.08	3233	292.34	8.68
	70%	22.29	2791	0.97	15.52	3413	345.94	8.07
	75%	22.22	3058	1.10	18.63	3582	413.96	7.39
	80%	22.24	3295	1.20	20.97	3726	466.37	7.07
	85%	22.04	3525	1.35	24.80	3860	546.59	6.45
	90%	21.90	3727	1.52	28.84	3967	631.60	5.90
	95%	21.75	3911	1.66	32.52	4058	707.31	5.53
	100%	21.64	4080	1.81	36.35	4152	786.61	5.19
BGS-EA5412 KV280 21inch Straight blade	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	22.66	1272	0.53	4.97	2045	112.62	11.29	56
	45%	22.73	1478	0.62	6.50	2260	147.75	10.00
	50%	22.59	1784	0.77	8.79	2458	198.57	8.98
	55%	22.50	2046	0.91	11.18	2640	251.55	8.13
	60%	22.43	2338	1.10	14.39	2795	322.77	7.24
	65%	22.44	2543	1.21	16.74	2956	375.65	6.77
	70%	22.31	2770	1.41	20.27	3068	452.22	6.13
	75%	22.19	2947	1.58	23.82	3187	528.57	5.58
	80%	22.06	3122	1.80	27.77	3255	612.61	5.10
	85%	21.90	3229	1.97	31.26	3326	684.59	4.72
	90%	21.80	3275	2.20	35.74	3386	779.13	4.20
	95%	21.68	3403	2.42	40.00	3416	867.20	3.92
	100%	21.58	3466	2.65	44.66	3471	963.76	3.60
BGS-EA5412 KV340 20inch Straight blade	%	V	g	N.m	A	rpm	W	g/W	℃
	40%	22.62	1041	0.31	3.71	2609	83.92	12.40	60
	45%	22.49	1366	0.38	5.13	2913	115.37	11.84
	50%	22.52	1597	0.46	6.84	3204	154.04	10.37
	55%	22.45	1858	0.53	8.58	3460	192.62	9.65
	60%	22.40	2164	0.64	11.01	3697	246.62	8.77
	65%	22.35	2372	0.70	12.87	3917	287.64	8.25
	70%	22.29	2736	0.82	15.78	4120	351.74	7.78
	75%	22.21	3045	0.93	19.06	4342	423.32	7.19
	80%	22.12	3304	1.04	22.29	4516	493.05	6.70
	85%	22.03	3530	1.15	25.81	4726	568.59	6.21
	90%	21.86	3716	1.22	28.62	4894	625.63	5.94
	95%	21.68	4083	1.41	34.05	4991	738.20	5.53
	100%	21.62	4236	1.56	38.68	5135	836.26	5.07

Multi-Rotor Motors

BGS-EA5412 160KV 280KV 4.2KG Payload High-quality drone motors for 22inch UAV

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Product

About Us

Resources center

Conatct

CONTACT FORM

ANYTHING YOU COULDN’T FIND？
Talk with one of our sales representatives

Compare

MODEL	KV Value	maximum power	Maximum current	pull	Efficiency	Propeller	Battery	ESC
BGS-EA5412	KV	W	A	g	g/W	/	S	A
	160	1081.66	24.60	4773	4.41	20inch Folding paddle	12	60
	190	921.31	20.46	4960	5.38	18inch Straight blade	12	80
	245	1377.91	30.75	5378	3.90	16inch Straight blade	12	80
	280	786.61	36.35	4080	5.19	22inch Straight blade	6	80
	280	963.76	44.66	3466	3.60	21inch Straight blade	6	80
	340	836.26	38.68	4236	5.07	20inch Straight blade	6	80
