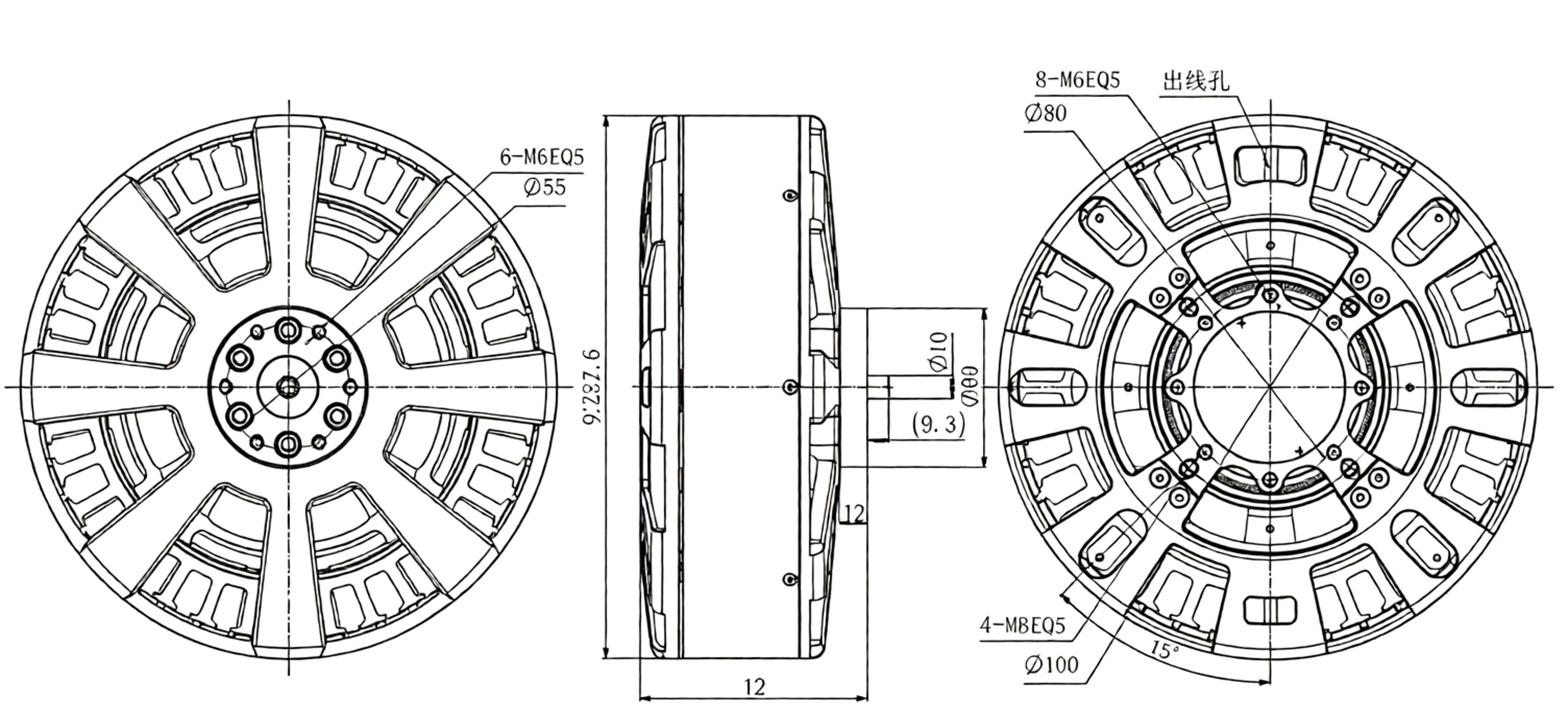

237.6*99mm
36N42P
200℃
10mm
8150g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA235 | KV | W | A | g | g/W | / | S | A | |
| 10 | 56899.76 | 162.20 | 191937 | 3.37 | 76inch Straight blade | 96 | 180 | ||
| 13 | 63974.04 | 179.40 | 178561 | 2.79 | 68inch Straight blade | 96 | 180 | ||
| 14 | 58925.70 | 168.60 | 137302 | 2.33 | 62inch Straight blade | 96 | 180 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA235 KV10 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 40221 | 28.00 | 12.60 | 1352 | 4645.62 | 8.66 | 60 | |
| 45% | 368.50 | 50288 | 34.30 | 17.00 | 1503 | 6264.50 | 8.03 | ||
| 50% | 368.20 | 61247 | 42.20 | 22.60 | 1655 | 8321.32 | 7.36 | ||
| 55% | 367.20 | 76115 | 51.70 | 30.10 | 1822 | 11052.72 | 6.89 | ||
| 60% | 367.10 | 92711 | 63.00 | 39.90 | 1988 | 14647.29 | 6.33 | ||
| 65% | 366.60 | 107664 | 74.40 | 50.40 | 2101 | 18476.64 | 5.83 | ||
| 70% | 365.70 | 123329 | 87.00 | 63.00 | 2257 | 23039.10 | 5.35 | ||
| 75% | 365.90 | 140420 | 102.60 | 78.90 | 2418 | 28869.51 | 4.86 | ||
| 80% | 365.30 | 156637 | 120.10 | 98.70 | 2547 | 36055.11 | 4.34 | ||
| 85% | 364.40 | 169778 | 138.10 | 121.70 | 2664 | 44347.48 | 3.83 | ||
| 90% | 359.10 | 179531 | 145.60 | 144.60 | 2777 | 51925.86 | 3.46 | ||
| 95% | 355.20 | 184027 | 149.20 | 151.10 | 2839 | 53670.72 | 3.43 | ||
| 100% | 350.80 | 191937 | 151.60 | 162.20 | 2892 | 56899.76 | 3.37 | ||
| BGS-EA235 KV13 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.70 | 36452 | 24.10 | 14.40 | 1854 | 5309.28 | 6.87 | 65 | |
| 45% | 368.40 | 46922 | 30.60 | 19.60 | 2079 | 7220.64 | 6.50 | ||
| 50% | 367.60 | 59945 | 38.90 | 27.10 | 2292 | 9961.96 | 6.02 | ||
| 55% | 367.00 | 73008 | 47.50 | 35.80 | 2481 | 13138.60 | 5.56 | ||
| 60% | 367.00 | 87942 | 56.30 | 45.70 | 2676 | 16771.90 | 5.24 | ||
| 65% | 366.10 | 103267 | 65.80 | 56.90 | 2877 | 20831.09 | 4.96 | ||
| 70% | 365.80 | 113538 | 74.30 | 67.50 | 3086 | 24691.50 | 4.60 | ||
| 75% | 365.80 | 126238 | 87.20 | 84.70 | 3307 | 30983.26 | 4.07 | ||
| 80% | 365.20 | 137413 | 101.50 | 104.70 | 3488 | 38236.44 | 3.59 | ||
| 85% | 364.30 | 142674 | 114.00 | 122.80 | 3582 | 44736.04 | 3.19 | ||
| 90% | 363.50 | 155384 | 125.40 | 152.30 | 3621 | 55361.05 | 2.81 | ||
| 95% | 358.70 | 166156 | 129.40 | 165.30 | 3668 | 59293.11 | 2.80 | ||
| 100% | 356.60 | 178561 | 132.10 | 179.40 | 3745 | 63974.04 | 2.79 | ||
| BGS-EA235 KV14 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 368.90 | 28817 | 16.40 | 11.30 | 1770 | 4168.57 | 6.91 | 68 | |
| 45% | 368.60 | 37023 | 21.30 | 15.60 | 2001 | 5750.16 | 6.44 | ||
| 50% | 368.10 | 47600 | 27.60 | 21.70 | 2419 | 7987.77 | 5.96 | ||
| 55% | 367.10 | 58065 | 34.00 | 28.60 | 2991 | 10499.06 | 5.53 | ||
| 60% | 367.80 | 70791 | 41.90 | 37.40 | 2863 | 13755.72 | 5.15 | ||
| 65% | 367.30 | 81228 | 48.50 | 45.40 | 2832 | 16675.42 | 4.87 | ||
| 70% | 367.10 | 93779 | 57.70 | 57.20 | 3016 | 20998.12 | 4.47 | ||
| 75% | 366.00 | 106182 | 69.80 | 73.20 | 3203 | 26791.20 | 3.96 | ||
| 80% | 365.60 | 114278 | 81.10 | 89.80 | 3389 | 32830.88 | 3.48 | ||
| 85% | 365.70 | 122842 | 95.30 | 112.50 | 3601 | 41141.25 | 2.99 | ||
| 90% | 365.20 | 126154 | 108.70 | 136.40 | 3775 | 49813.28 | 2.53 | ||
| 95% | 352.90 | 128685 | 109.10 | 148.60 | 3788 | 52440.94 | 2.45 | ||
| 100% | 349.50 | 137302 | 111.20 | 168.60 | 3853 | 58925.70 | 2.33 |
