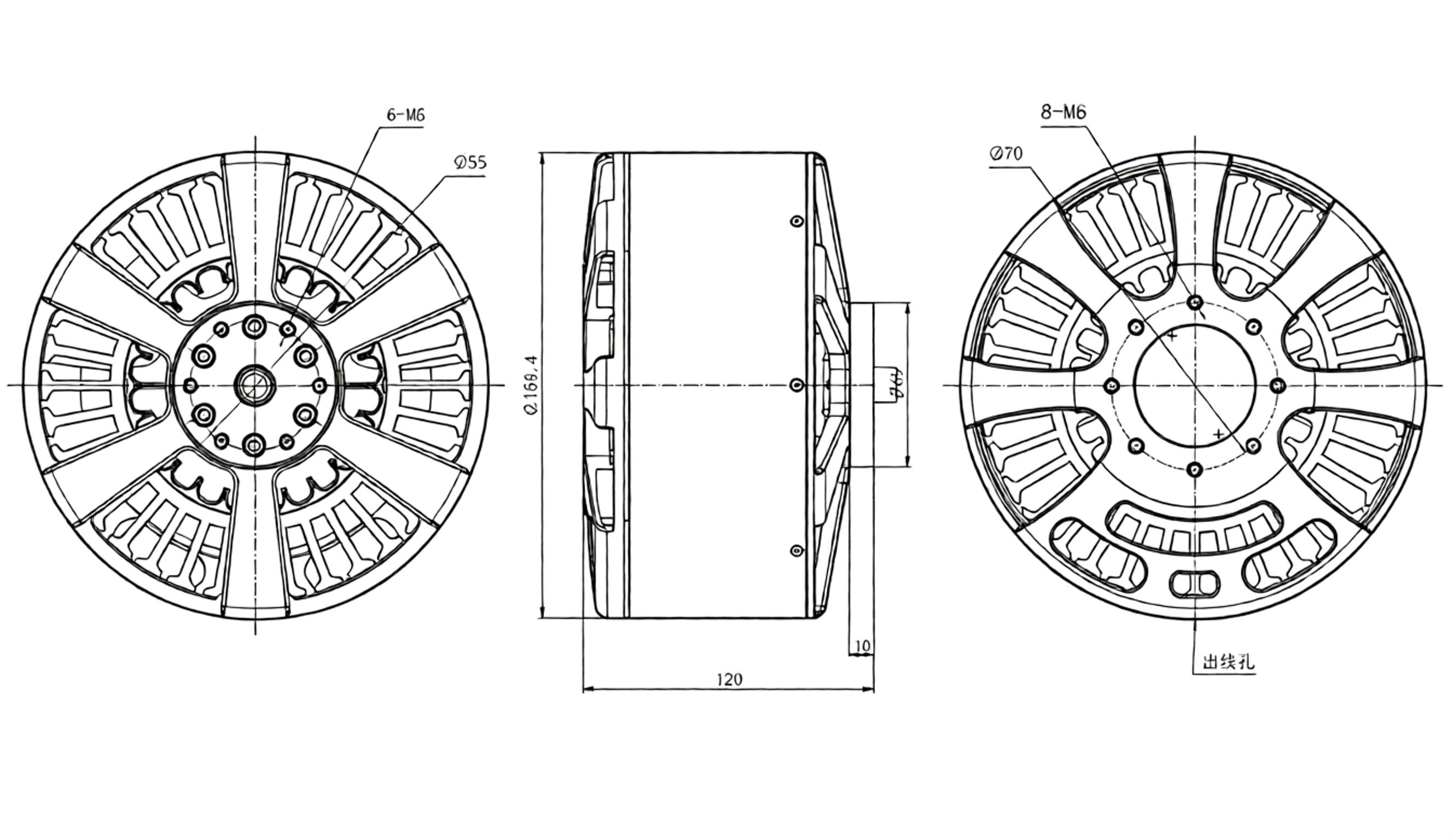

237.6*109mm
36N42P
200℃
10mm
10900g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA230 | KV | W | A | g | g/W | / | S | A | |
| 9 | 57834.96 | 158.80 | 191495 | 3.31 | 76inch Straight blade | 96 | 180 | ||
| 15 | 40880.00 | 112.00 | 107590 | 2.63 | 46inch Straight blade | 96 | 180 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA230 KV9 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 382.60 | 40459 | 33.11 | 12.20 | 1346 | 4667.72 | 8.67 | 62 | |
| 45% | 382.50 | 49460 | 39.79 | 16.20 | 1487 | 6196.50 | 7.98 | ||
| 50% | 382.40 | 61439 | 48.26 | 21.80 | 1650 | 8336.32 | 7.37 | ||
| 55% | 382.20 | 76554 | 58.42 | 29.10 | 1818 | 11122.02 | 6.88 | ||
| 60% | 381.50 | 91187 | 69.68 | 37.80 | 1976 | 14420.70 | 6.32 | ||
| 65% | 380.90 | 105649 | 80.70 | 46.70 | 2105 | 17788.03 | 5.94 | ||
| 70% | 380.30 | 120803 | 93.57 | 57.80 | 2243 | 21981.34 | 5.50 | ||
| 75% | 379.50 | 137548 | 109.72 | 72.10 | 2382 | 27361.95 | 5.03 | ||
| 80% | 378.10 | 153461 | 128.30 | 89.10 | 2508 | 33688.71 | 4.56 | ||
| 85% | 374.50 | 165861 | 149.47 | 110.30 | 2639 | 41307.35 | 4.02 | ||
| 90% | 371.90 | 178625 | 172.59 | 134.10 | 2760 | 49871.79 | 3.58 | ||
| 95% HOT | 364.40 | 182773 | 181.43 | 146.30 | 2806 | 53311.72 | 3.43 | ||
| 100% HOT | 364.20 | 191495 | 190.92 | 158.80 | 2893 | 57834.96 | 3.31 | ||
| BGS-EA230 KV15 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 365.00 | 17808 | 16.15 | 9.00 | 1942 | 3285.00 | 5.42 | 64 | |
| 45% | 365.00 | 23320 | 20.50 | 13.00 | 2210 | 4745.00 | 4.92 | ||
| 50% | 365.00 | 29680 | 25.06 | 18.00 | 2504 | 6570.00 | 4.52 | ||
| 55% | 365.00 | 36040 | 29.40 | 23.00 | 2727 | 8395.00 | 4.29 | ||
| 60% | 365.00 | 42400 | 32.26 | 27.00 | 2917 | 9855.00 | 4.30 | ||
| 65% | 365.00 | 47700 | 37.85 | 34.00 | 3131 | 12410.00 | 3.84 | ||
| 70% | 365.00 | 55120 | 42.02 | 40.00 | 3318 | 14600.00 | 3.78 | ||
| 75% | 365.00 | 62540 | 47.13 | 48.00 | 3550 | 17520.00 | 3.57 | ||
| 80% | 365.00 | 72207 | 53.40 | 57.00 | 3721 | 20805.00 | 3.47 | ||
| 85% | 365.00 | 84079 | 61.80 | 71.00 | 4005 | 25915.00 | 3.24 | ||
| 90% | 365.00 | 92464 | 68.40 | 82.00 | 4179 | 29930.00 | 3.09 | ||
| 95% | 365.00 | 99767 | 77.20 | 97.00 | 4380 | 35405.00 | 2.82 | ||
| 100% | 365.00 | 107590 | 85.99 | 112.00 | 4540 | 40880.00 | 2.63 |
