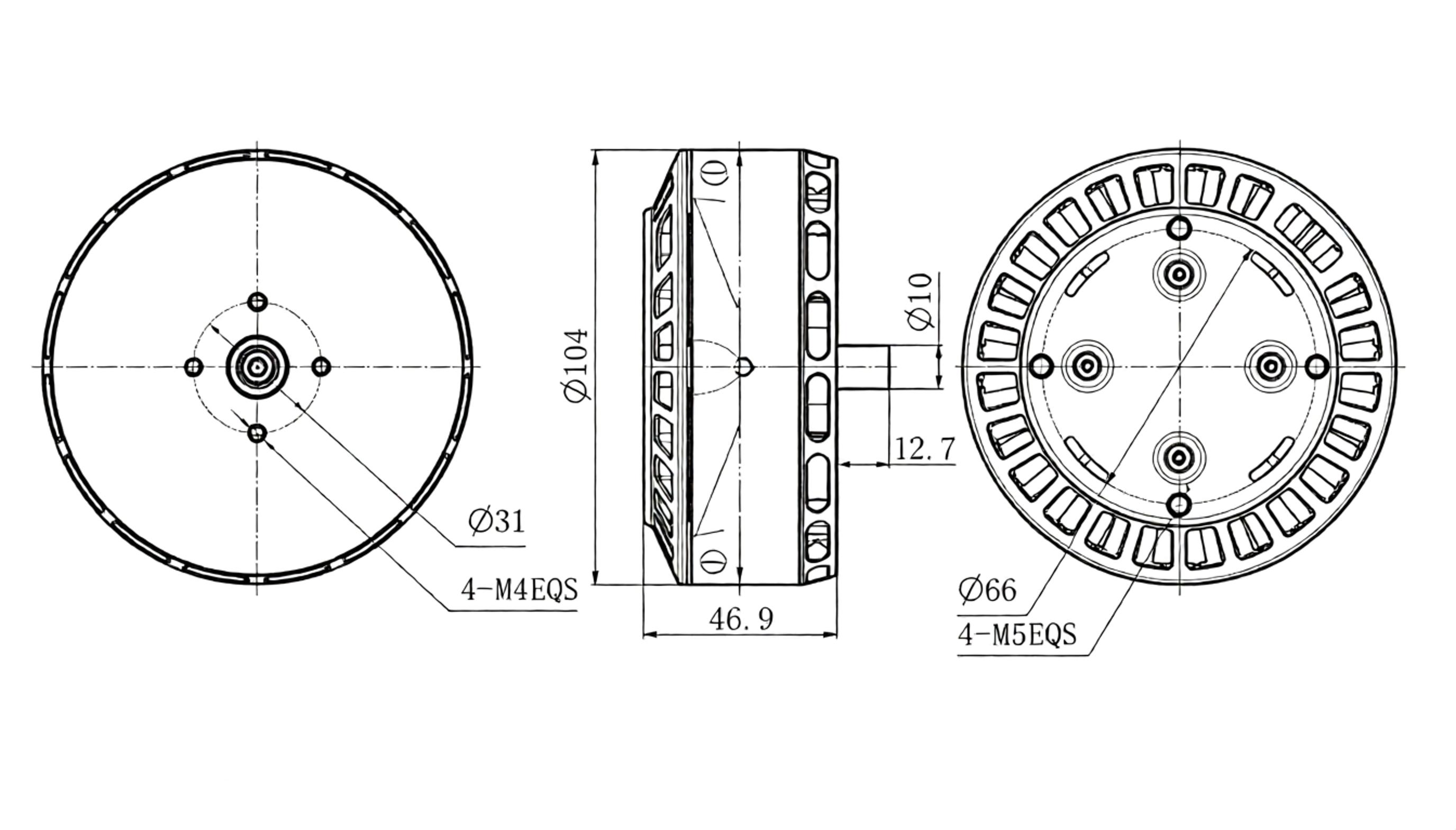

104*46.9mm
36N40P
200℃
12mm
860g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery | ESC | |
| BGS-EA113 | KV | W | A | g | g/W | / | S | A | |
| 100 | 6486.84 | 146.10 | 30060 | 4.63 | 40inch Folding Paddle | 12 | 230 | ||
| 100 | 6584.57 | 125.90 | 30182 | 4.58 | 40inch Folding Paddle | 14 | 230 | ||
| 110 | 6309.24 | 142.10 | 29206 | 4.63 | 36inch Folding Paddle | 12 | 230 | ||
| 110 | 7151.40 | 137.00 | 30142 | 4.21 | 36inch Folding Paddle | 14 | 230 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BGS-EA113 12S KV100 40inch Folding Paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 45.80 | 9704 | 4.00 | 22.20 | 2093 | 1016.76 | 9.54 | 50 | |
| 50% | 45.70 | 13147 | 5.60 | 35.90 | 2446 | 1640.63 | 8.01 | ||
| 60% | 45.50 | 16813 | 7.10 | 52.30 | 2746 | 2379.65 | 7.07 | ||
| 65% | 45.40 | 18599 | 7.90 | 61.70 | 2884 | 2801.18 | 6.64 | ||
| 70% | 45.30 | 19979 | 8.60 | 70.50 | 3013 | 3193.65 | 6.26 | ||
| 75% | 45.20 | 21257 | 9.30 | 79.70 | 3135 | 3602.44 | 5.90 | ||
| 80% | 45.00 | 23556 | 10.20 | 92.10 | 3250 | 4144.50 | 5.68 | ||
| 85% | 44.90 | 25209 | 11.00 | 104.40 | 3341 | 4687.56 | 5.38 | ||
| 90% | 44.70 | 26699 | 11.60 | 116.10 | 3452 | 5189.67 | 5.14 | ||
| 95% | 44.50 | 28508 | 12.50 | 132.30 | 3538 | 5887.35 | 4.84 | ||
| 100% | 44.40 | 30060 | 12.90 | 146.10 | 3602 | 6486.84 | 4.63 | ||
| BGS-EA113 14S KV100 40inch Folding Paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 53.60 | 9754 | 4.00 | 19.00 | 2079 | 1018.40 | 9.58 | 55 | |
| 50% | 53.40 | 13123 | 5.60 | 30.70 | 2435 | 1639.38 | 8.00 | ||
| 60% | 53.30 | 16789 | 7.10 | 44.50 | 2736 | 2371.85 | 7.08 | ||
| 65% | 53.20 | 18425 | 7.90 | 52.10 | 2873 | 2771.72 | 6.65 | ||
| 70% | 53.10 | 20377 | 8.70 | 60.70 | 3000 | 3223.17 | 6.32 | ||
| 75% | 53.00 | 22314 | 9.60 | 70.30 | 3121 | 3725.90 | 5.99 | ||
| 80% | 52.90 | 23666 | 10.20 | 78.70 | 3238 | 4163.23 | 5.68 | ||
| 85% | 52.70 | 25424 | 11.00 | 89.10 | 3336 | 4695.57 | 5.41 | ||
| 90% | 52.60 | 26949 | 11.70 | 99.20 | 3438 | 5217.92 | 5.16 | ||
| 95% | 52.50 | 28497 | 12.40 | 110.80 | 3528 | 5817.00 | 4.90 | ||
| 100% | 52.30 | 30182 | 13.40 | 125.90 | 3621 | 6584.57 | 4.58 | ||
| BGS-EA113 12S KV110 36inch Folding Paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 45.80 | 9554 | 3.50 | 23.70 | 2532 | 1085.46 | 8.80 | 60 | |
| 50% | 45.60 | 13099 | 4.90 | 38.60 | 2964 | 1760.16 | 7.44 | ||
| 60% | 45.40 | 16780 | 6.30 | 56.40 | 3336 | 2560.56 | 6.55 | ||
| 65% | 45.30 | 18463 | 7.00 | 66.00 | 3499 | 2989.80 | 6.18 | ||
| 70% | 45.20 | 20022 | 7.70 | 75.90 | 3657 | 3430.68 | 5.84 | ||
| 75% | 45.10 | 21553 | 8.30 | 85.90 | 3799 | 3874.09 | 5.56 | ||
| 80% | 44.90 | 23354 | 9.10 | 98.00 | 3939 | 4400.20 | 5.31 | ||
| 85% | 44.80 | 24972 | 9.80 | 110.60 | 4068 | 4954.88 | 5.04 | ||
| 90% | 44.60 | 26657 | 10.60 | 124.90 | 4186 | 5570.54 | 4.79 | ||
| 95% | 44.50 | 27706 | 11.10 | 137.40 | 4291 | 6114.30 | 4.53 | ||
| 100% | 44.40 | 29206 | 11.20 | 142.10 | 4299 | 6309.24 | 4.63 | ||
| BGS-EA113 12S KV110 40inch Folding Paddle | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 40% | 53.50 | 9519 | 3.50 | 20.60 | 2534 | 1102.10 | 8.64 | 62 | |
| 45% | 53.50 | 11264 | 4.20 | 26.50 | 2759 | 1417.75 | 7.94 | ||
| 50% | 53.40 | 13060 | 4.90 | 33.30 | 2967 | 1778.22 | 7.34 | ||
| 55% | 53.30 | 14868 | 5.70 | 40.60 | 3159 | 2163.98 | 6.87 | ||
| 60% | 53.20 | 16784 | 6.50 | 48.80 | 3338 | 2596.16 | 6.46 | ||
| 65% | 53.10 | 18428 | 7.10 | 56.70 | 3503 | 3010.77 | 6.12 | ||
| 70% | 53.00 | 20053 | 7.80 | 65.30 | 3659 | 3460.90 | 5.79 | ||
| 75% | 52.90 | 21804 | 8.50 | 75.20 | 3803 | 3978.08 | 5.48 | ||
| 80% | 52.80 | 23335 | 9.20 | 84.30 | 3942 | 4451.04 | 5.24 | ||
| 85% | 52.60 | 24967 | 9.90 | 95.00 | 4070 | 4997.00 | 5.00 | ||
| 90% | 52.50 | 26701 | 10.60 | 107.50 | 4190 | 5643.75 | 4.73 | ||
| 95% | 52.30 | 28806 | 11.60 | 122.80 | 4305 | 6422.44 | 4.49 | ||
| 100% | 52.20 | 30142 | 12.20 | 137.00 | 4414 | 7151.40 | 4.21 |
