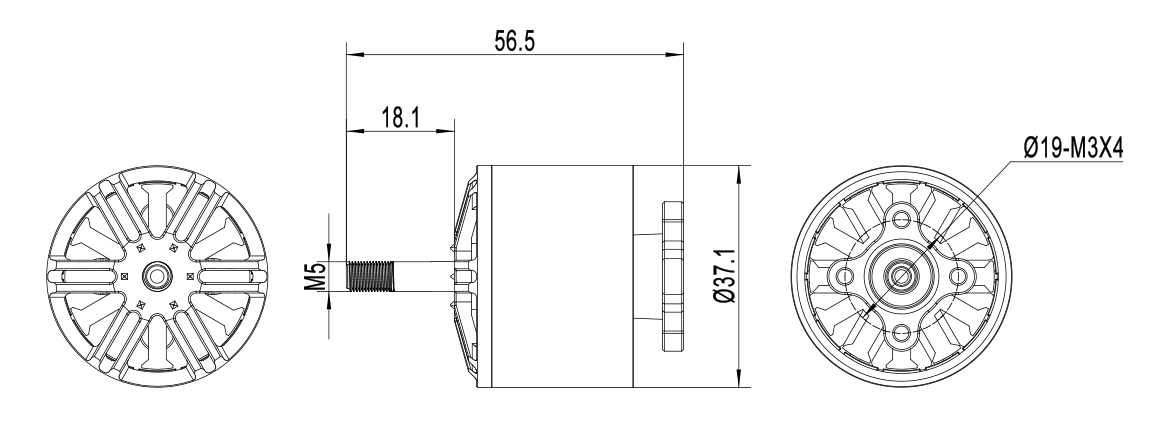

37.1*56.5mm
12N14P
200℃
IN: 5mm
146.5g
>1000h
| Recommended 3120 UAV Motor | |
| Model:BASIC3120 | Single Motor Weight:58.3±1.3g |
| Supported Voltage:12S LiPo Battery | Magnet Grade:Extra thick high-strength high-temperature resistant anti-demagnet magnet |
| Optional KV:500KV / 700KV / 1000KV | Matching Propeller:9-inch / 10-inch / 11-inch oversized high-load propeller |
| Stator Size:31mm × 20mm | Matching Propeller:9-inch / 10-inch / 11-inch oversized high-load propeller |
| Shaft Diameter:5mm | Typical Application:9~11-inch Large Frame Long Range, Freestyle, Cinematic, Survey & Heavy-Lift Multirotor Drone |
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Propeller | Battery Lipo Cells | ESC | |
| BGS-F3120 | KV | W | A | g | g/W | / | S | A | |
| 500 | 3242 | 68.91 | 6837 | 2.1 | H10x5-3 | 8S | 100 | ||
| 700 | 2453 | 79.41 | 6028 | 2.5 | H10x5-3 | 12S | 100 | ||
| Model | Throttle | Voltage | Current | Input Power | Speed | Thrust | Power Efficiency |
| % | V | A | W | RPM | gf | gf/W | |
| BGS-F3120-500KV 10×5×3 12S | 35 | 50 | 3.68 | 184 | 7238 | 1084 | 5.9 |
| 40 | 50 | 5.84 | 292 | 8385 | 1505 | 5.2 | |
| 45 | 50 | 7.77 | 388.5 | 9144 | 1826 | 4.7 | |
| 50 | 50 | 10.22 | 511 | 10256 | 2397 | 4.7 | |
| 55 | 50 | 12.34 | 617 | 10825 | 2629 | 4.3 | |
| 60 | 50 | 16.09 | 804.5 | 11658 | 3071 | 3.8 | |
| 65 | 50 | 19.73 | 986.5 | 12430 | 3501 | 3.5 | |
| 70 | 50 | 22.7 | 1135 | 12955 | 3813 | 3.4 | |
| 75 | 50 | 24.95 | 1247.5 | 13418 | 4173 | 3.3 | |
| 80 | 50 | 33.72 | 1686 | 14810 | 4810 | 2.9 | |
| 85 | 50 | 38.91 | 1945.5 | 15259 | 5190 | 2.7 | |
| 90 | 50 | 44.8 | 2240 | 15645 | 5491 | 2.5 | |
| 95 | 50 | 49 | 2450 | 15946 | 5771 | 2.4 | |
| 100 | 50 | 53.82 | 2691 | 16092 | 6068 | 2.3 |
1.Triple KV Custom Matching Scheme: 500KV ultra-large torque for heavy lifting; 700KV balance endurance & payload; 1000KV responsive for large-frame freestyle
2.Native 12S Extreme High Voltage Platform: Far higher peak power and ultimate thrust than 6S/8S motors, perfectly match ultra-large frame heavy-duty UAV demands
3.Oversized 3120 Thick Stator Design: Great current overload tolerance, low temperature rise under long-term full-load continuous operation
4.Extra Thick High-Temp Anti-Demagnet Magnet: Prevent permanent magnet demagnetization and power decay under ultra-high voltage high-load sustained flight
5.Optimized 12N14P Winding Structure: Smooth rotation, tiny cogging torque, linear throttle feel for stable and precise large aircraft control
6.Thickened 5mm Output Shaft & Reinforced Base: Strong anti-vibration and anti-bending capability to drive 9~11 inch huge propellers; widely compatible with large-size ESCs & frames, easy replacement & assembly
1.9/10/11-inch oversized freestyle FPV drone
2.Large-format long-endurance aerial photography & mapping UAV
3.Industrial multi-rotor heavy-lift payload drone
4.Custom long-distance survey, inspection, agricultural spraying large multirotor aircraft
