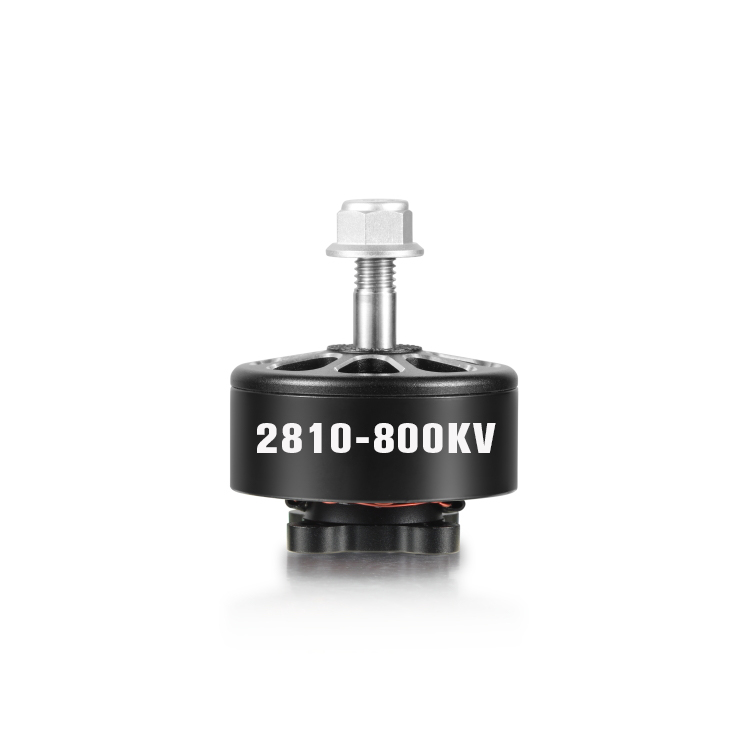

BGS-F2810 800KV 1350KV 2.3KG Payload FPV Motor for 7inch Drone

Compatible UAV Platforms

1.7-8 Inch Freestyle & Racing FPV Drones

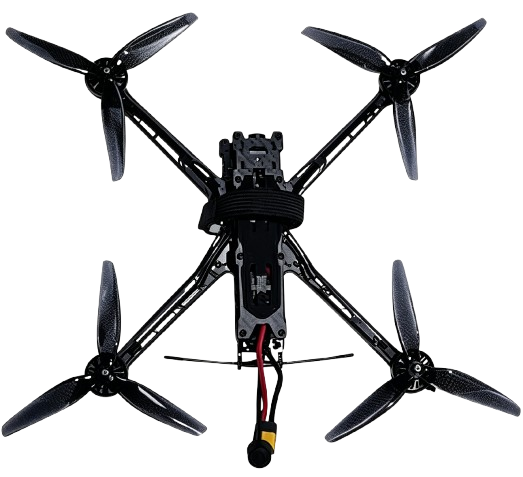

The 2810 motor's combination of high thrust and efficient power delivery makes it an excellent choice for 7-8 inch FPV freestyle and racing drones, where responsiveness and agility are critical.2.8-9 Inch Cinelifter & Medium-Lift Platforms

For more demanding applications, the 2810 motor provides the necessary power to carry heavier payloads, making it suitable for 8-9 inch cinelifter drones used in professional cinematography. The 900-950KV variants, when paired with 8-9 inch propellers on 6S systems, deliver excellent thrust for medium-lift missions.

3.Heavy-Lift Industrial UAVs (9.5-inch Max)
In multi-rotor configurations, the 2810 motor (especially the 900KV variant) can support UAVs up to 10kg takeoff weight, with a maximum of 8kg recommended for optimal performance. This makes it suitable for mapping, surveying, inspection, and light cargo delivery tasks. Some specifications indicate it is ideal for 9.5-inch frame setups with a recommended takeoff weight range of 5-10kg.

4.Fixed-Wing UAVs
The 2810 motor can also be adapted for fixed-wing UAV applications, providing efficient cruise performance for mapping and surveillance missions.

Why Choose Our 2810 Motors?

-Proven Performance: The 2810 delivers 2.34kg of maximum thrust per motor with 481W peak power, backed by documented test data and real-world flight results.

-Precision Engineering: ≤5mg dynamic balancing, CNC-machined components, and 12N14P architecture ensure smooth, reliable operation.

-Flexible Options: Available in multiple KV variants (900KV, 950KV, 1150KV, 1300KV, and others) to match different voltage systems (3-6S) and propeller setups.

-Versatile Applications: From 7-inch FPV racing to 9.5-inch industrial UAVs, one motor platform covers a wide spectrum of missions.

-Durable Construction: Premium materials, including galvanized arc magnets, high-temperature windings, and premium bearings, ensure long service life and consistent performance.

-OEM/ODM Ready: We offer customization options including KV value, shaft diameter, connector type, and wire length to meet your specific requirements.
