BGS-H110 100KV 140KV 12S 14S For extreme Heavy-lift operations

Product Number:H110

The 100xx series multirotor drone motors are ultra heavy-duty brushless DC external rotor motors, designed for extreme heavy-lift UAV platforms and specialized industrial applications. With a stator diameter of approximately 100 mm, these motors deliver maximum torque, ultra-high thrust, and unmatched power output, making them ideal for the most demanding drone systems in the market.

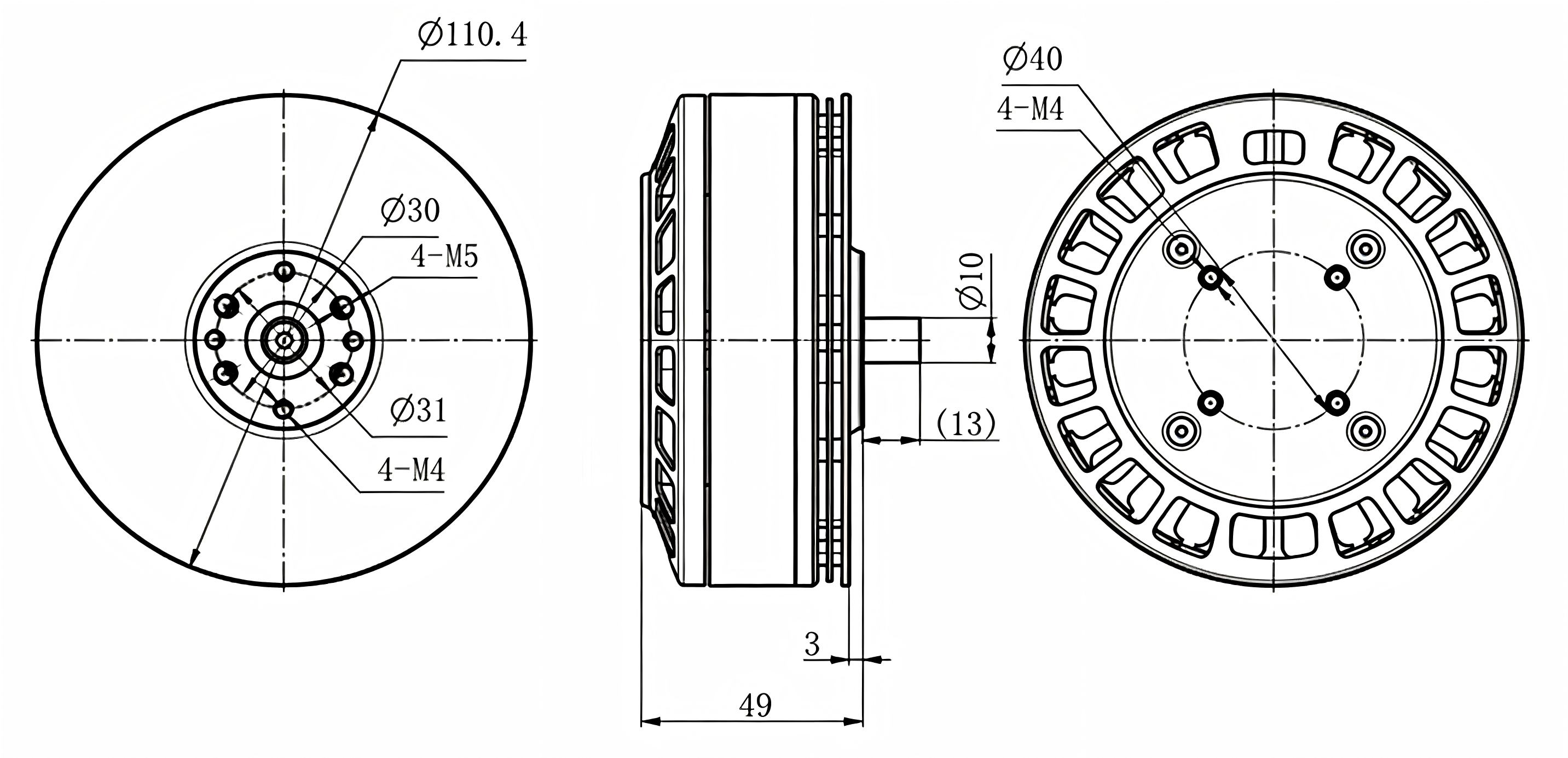

Motor dimensions
110.4*49mm
Number of slots
24N28P
Copper wire grade
200℃
Shaft diameter
/
Motor weight
900g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Propeller	Battery Lipo Cells	ESC
BGS-H110	KV	W	A	g	g/W	/	S	A
	100	3556.22	82.32	18363	5.16	34"	12S	120
	140	5496.71	128.94	22435	4.08	30"	12S	150
	160	5466.87	128.21	21042	3.85	28"	14S	150

test data

Model	Accelerator	Voltage	Pulling Force	Torque	Current	Speed	Power	Efficiency	Motor Temperature
BGS-H110 KV100	%	V	g	N.m	A	rpm	W	g/W	℃
	45%	44.07	5061	2.26	9.94	1850	438.06	11.55	75
	50%	44.06	6179	2.75	13.18	2020	580.71	10.64
	60%	43.91	8722	3.85	22.07	2404	969.09	9
	70%	43.79	11151	5.08	33.15	2729	1451.64	7.68
	80%	43.65	13152	6.23	45.47	3044	1984.77	6.63
	85%	43.54	14415	6.98	53.46	3185	2327.65	6.19
	90%	43.45	15683	7.73	62.17	3336	2701.29	5.81
	95%	43.35	17038	8.58	71.95	3471	3119.03	5.46
	100%	43.2	18363	9.42	82.32	3606	3556.22	5.16
