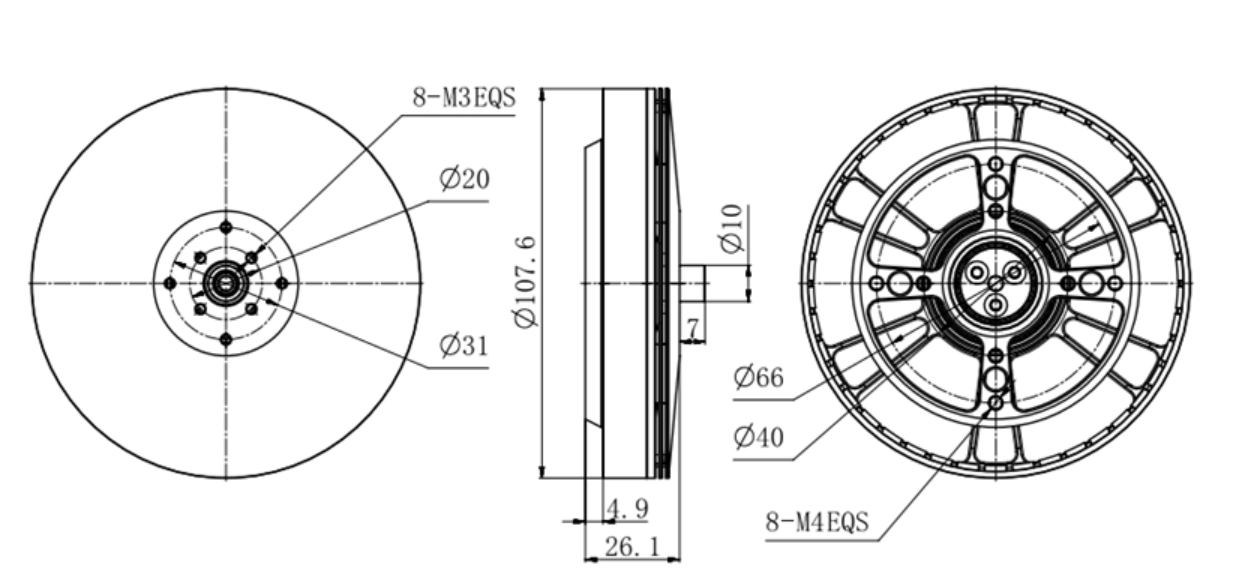

107.6*26.1mm
36N42P
200℃
17mm
399g
＞1000h
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Awe | Battery | ESC | |
| BG-H1010 | KV | W | A | g | g/W | / | S | A | |
| 78 | 1404.49 | 32.11 | 11038 | 7.8591 | 34"straight oar | 12S | 60 | ||
| 85 | 1461.46 | 33.42 | 10952 | 7.4939 | 32"straight oar | 12S | 60 | ||
| 95 | 1795.2 | 41.25 | 12292 | 6.8471 | 32"straight oar | 12S | 60 | ||
| Model | Accelerator | Voltage | Pulling Force | Torque | Current | Speed | Power | Efficiency | Motor Temperature |
| BG-H1010 KV78 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 45% | 44.64 | 2751 | 1.1803 | 3.84 | 1387 | 171.42 | 16.0485 | 72 | |
| 50% | 44.6 | 3455 | 1.429 | 5.17 | 1541 | 230.58 | 14.9838 | ||
| 60% | 44.51 | 4853 | 2.0584 | 8.91 | 1840 | 396.58 | 12.237 | ||
| 70% | 44.37 | 6346 | 2.6186 | 12.86 | 2081 | 570.6 | 11.1217 | ||
| 80% | 44.23 | 7701 | 3.3008 | 18.2 | 2329 | 804.99 | 9.5666 | ||
| 85% | 44.09 | 8692 | 3.7238 | 21.57 | 2439 | 951.02 | 9.1396 | ||
| 90% | 44.01 | 9469 | 4.1089 | 24.91 | 2548 | 1096.29 | 8.6373 | ||
| 95% | 43.91 | 10149 | 4.4777 | 28.35 | 2655 | 1244.85 | 8.1528 | ||
| 100% | 43.74 | 11038 | 4.8792 | 32.11 | 2749 | 1404.49 | 7.8591 |
