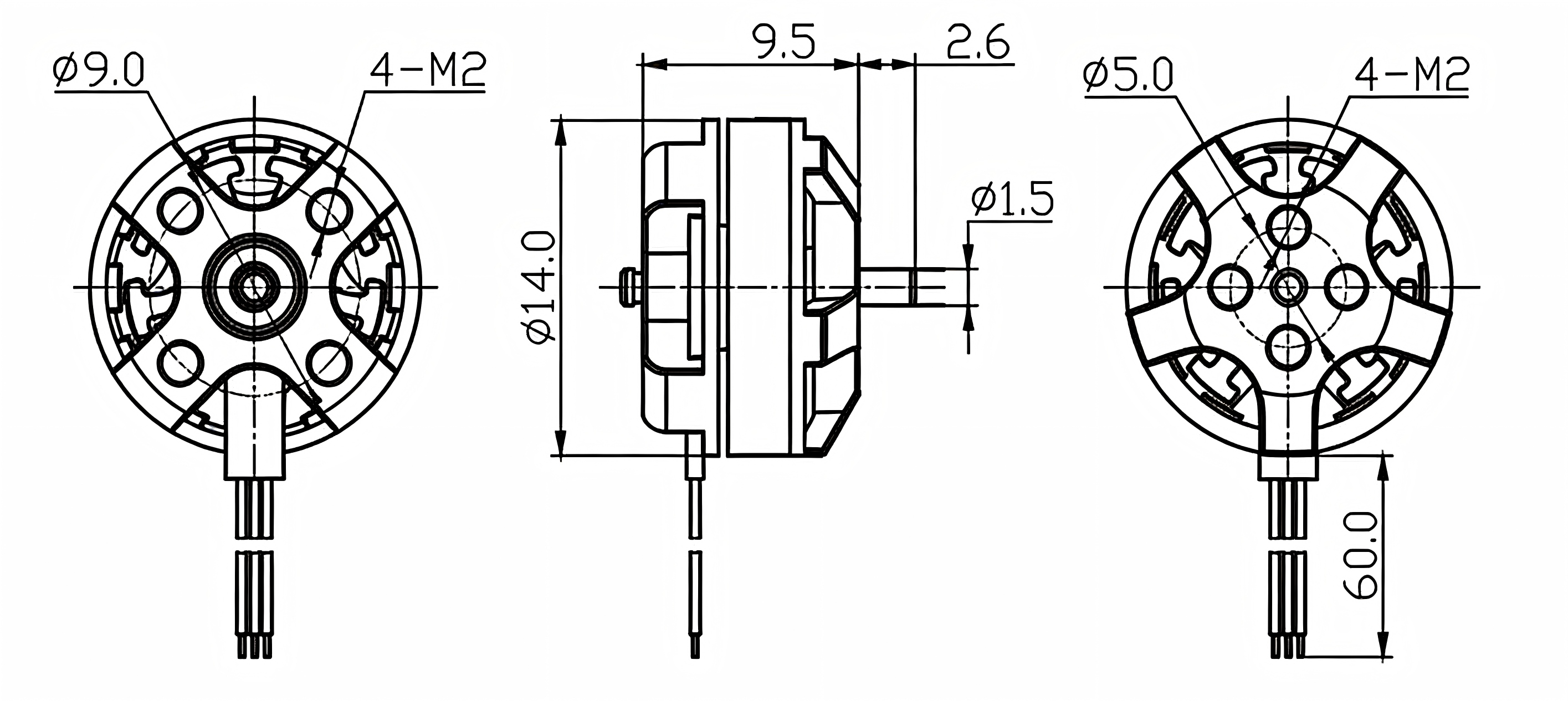

14*9.5mm
9N12P
200℃
1.5mm
3.4g
＞1000h
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Propeller | Battery Lipo Cells | ESC | |
| BGS-S1102 | KV | W | A | g | g/W | / | S | A | |
| 8000 | 36.6 | 3.3 | 75 | 2.1 | 3020 | 2S | 8 | ||
| 10000 | 40 | 7.8 | 122 | 1.4 | 2030 | 2S | 15 | ||
| 12000 | 45 | 6.1 | 92 | 2 | 2030 | 1S | 15 | ||
The 1102 motor is widely used in 1–2 inch nano drones, where minimal weight and high RPM are critical for rapid acceleration, sharp turns, and indoor racing precision.
Features:
·Extreme agility in confined spaces
·Quick throttle response for micro maneuvers
·Low power consumption for short, intense flights
In micro freestyle drones, where pilots navigate tight areas or indoor courses, the 1102 motor provides precise control, enabling flips, rolls, and transitions with minimal lag or overshoot.
The 1102 motor is a common choice for toothpick drones (small frames of 60–70 mm wheelbase), achieving excellent performance without exceeding weight constraints.
·Ultra-High RPM Output – Spins micro props extremely fast for agility.
·Rapid Throttle Response – Low rotor inertia ensures instantaneous power adjustments.
·Efficient Micro Power Delivery – Operates efficiently on 1–2S LiPo, minimizing heat.
