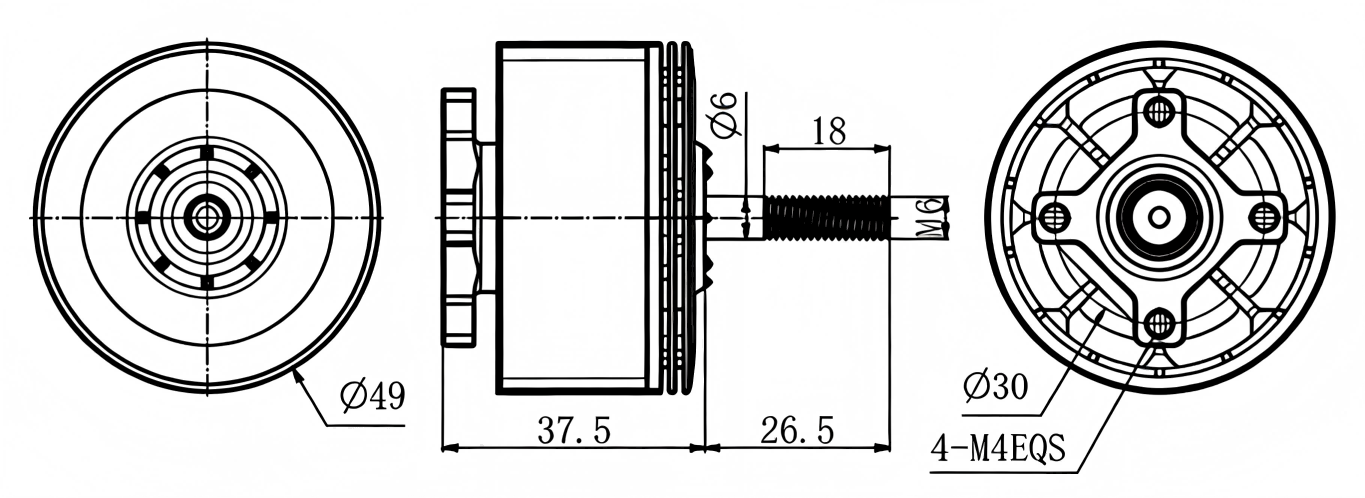

42*19mm
12N14P
200℃
6mm
279g
＞1000h
| MODEL | KV Value | maximum power | Maximum current | pull | Efficiency | Propeller | Battery Lipo Cells | ESC | |
| BGS-F4219 | KV | W | A | g | g/W | / | S | A | |
| 300 | 1775.53 | 38.92 | 6193 | 3.49 | APC14*5.5MR | 12S | 80 | ||
| 430 | 2433 | 80.77 | 6887 | 2.83 | HQ15*8-3 | 8S | 160 | ||
| 560 | 1857.18 | 83.77 | 4801 | 2.59 | APC15*10E | 6S | 160 | ||
| Model | accelerator | Voltage | Pulling Force | Torque | Current | speed | Power | Efficiency | Motor temperature |
| BG-F4219 KV300 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 45% | 45.97 | 1492 | 0.26 | 4.24 | 5576 | 194.91 | 7.65 | 65 | |
| 50% | 45.98 | 1895 | 0.33 | 5.87 | 6221 | 269.9 | 7.02 | ||
| 60% | 45.97 | 2615 | 0.46 | 9.59 | 7286 | 440.76 | 5.93 | ||
| 70% | 45.88 | 3310 | 0.58 | 13.91 | 8257 | 638.19 | 5.19 | ||
| 80% | 45.87 | 4314 | 0.79 | 20.51 | 9208 | 939.77 | 4.59 | ||
| 85% | 45.82 | 4846 | 0.9 | 24.64 | 9666 | 1128.27 | 4.30 | ||
| 90% | 45.73 | 5259 | 1 | 28.98 | 10100 | 1325.26 | 3.97 | ||
| 95% | 45.66 | 5703 | 1.09 | 33.29 | 10496 | 1520.02 | 3.75 | ||
| 100% | 45.02 | 6193 | 1.21 | 38.92 | 10884 | 1775.53 | 3.49 |
