BG-P5210A 340KV 6S Low Noise Drone Motor for Stable Multirotor Flight Performance

Product Number:P5210A

get free solutions compare

With a stator diameter of about 50 mm, these motors provide extremely high torque, strong thrust, and excellent efficiency, making them ideal for large industrial drones and agricultural UAV applications.

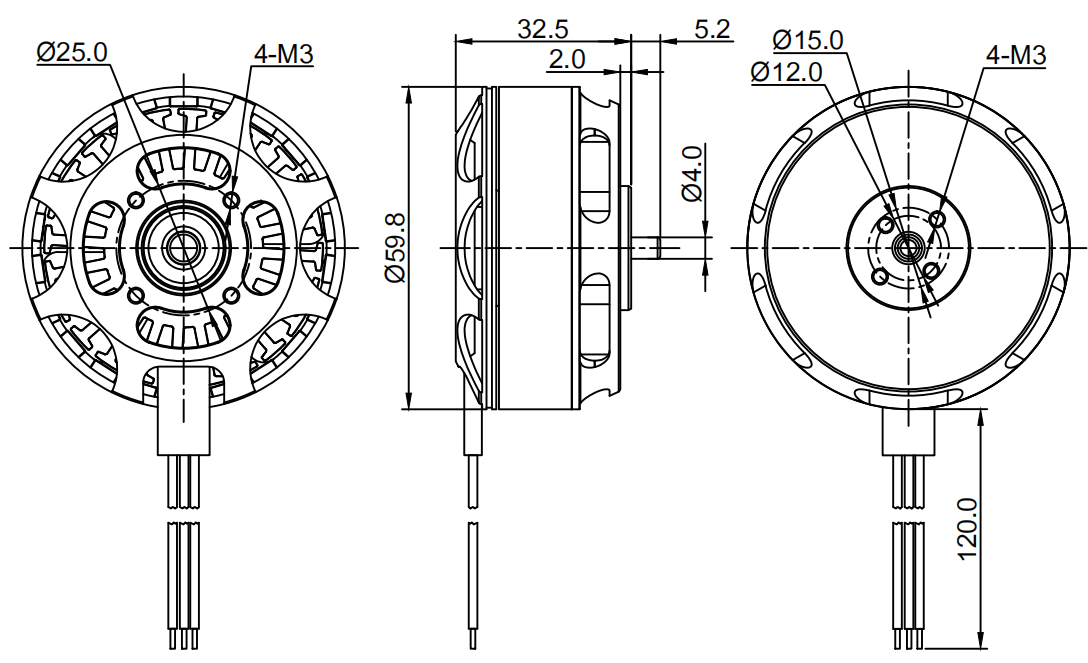

Motor dimensions
59.8*32.5mm
Number of slots
24N22P
Copper wire grade
200℃
Shaft diameter
4mm
Motor weight
212g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-P5210A	KV	W	A	g	g/W	/	S	A
	290	520	23.5	3080	5.9	1855	6S	50
	340	710	32	3780	5.3	1855	6S	60
	340	788	25.5	4100	5.2	2055	6S	50
