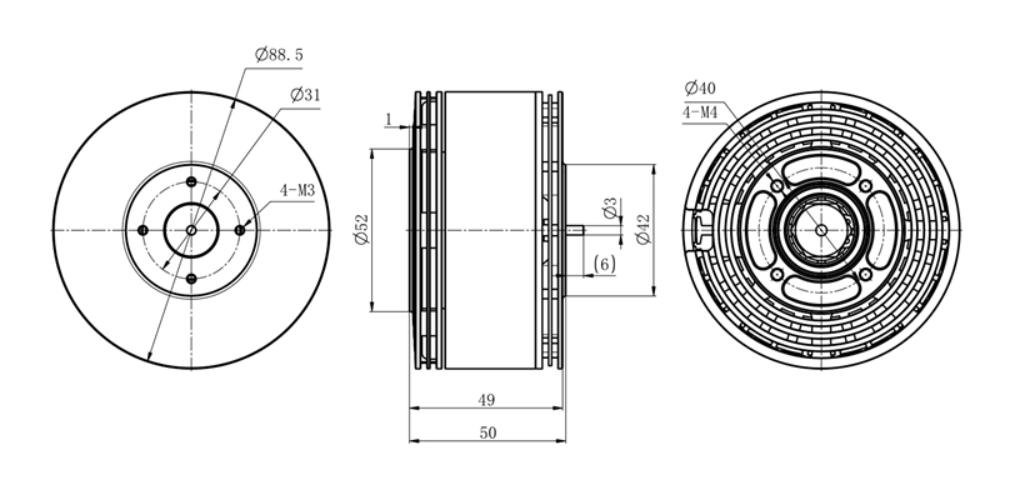

88.5*50mm
24N28P
200℃
15mm
856g
＞1000h
| Model | KV Value | Maximum Power | Maximum Current | Pull | Efficiency | Awe | Battery | ESC | |
| BG-H98 | KV | W | A | g | g/W | / | S | A | |
| 90 | 3365.15 | 66.23 | 18355 | 5.45 | 34"straight oar | 14S | 120 | ||
| 140 | 4136.14 | 96.1 | 17829 | 4.31 | 28"straight oar | 12S | 120 | ||
| 205 | 5206.29 | 121.87 | 14986 | 2.88 | 22*12wooden oar | 12S | 120 | ||
| Model | Accelerator | Voltage | Pulling Force | Torque | Current | Speed | Power | Efficiency | Motor Temperature |
| BG-H98 KV90 | % | V | g | N.m | A | rpm | W | g/W | ℃ |
| 45% | 51.53 | 4542 | 2.06 | 7.8 | 1861 | 401.93 | 11.3 | 78 | |
| 50% | 51.45 | 5559 | 2.4 | 9.97 | 2041 | 512.96 | 10.84 | ||
| 60% | 51.39 | 8057 | 3.45 | 17.13 | 2435 | 880.31 | 9.15 | ||
| 70% | 51.28 | 10306 | 4.5 | 25.49 | 2773 | 1307.13 | 7.88 | ||
| 80% | 51.17 | 12859 | 5.69 | 35.87 | 3081 | 1835.47 | 7.01 | ||
| 85% | 51.1 | 14061 | 6.33 | 42.01 | 3240 | 2146.71 | 6.55 | ||
| 90% | 51.02 | 15585 | 7.12 | 49.38 | 3381 | 2519.37 | 6.19 | ||
| 95% | 50.93 | 16808 | 7.82 | 56.62 | 3523 | 2883.66 | 5.83 | ||
| 100% | 50.81 | 18355 | 8.75 | 66.23 | 3671 | 3365.15 | 5.45 |
