BG-P3515 500KV 650KV Multi-axis Drone Motor

Product Number:P3515

get free solutions compare

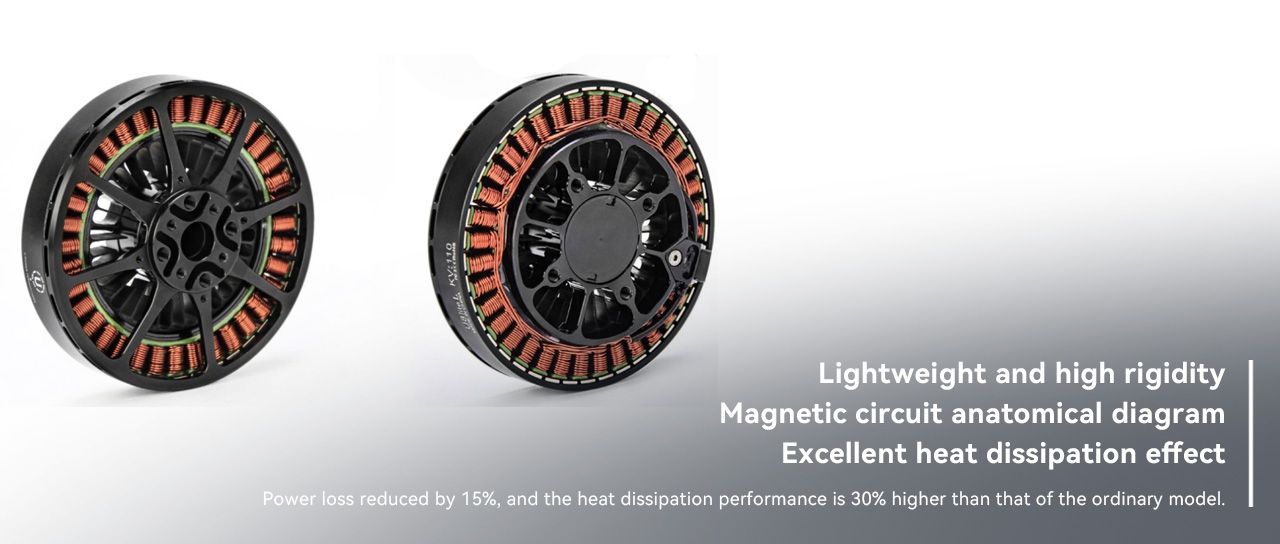

With a stator diameter of around 30 mm, these motors provide an excellent balance of power, efficiency, and lightweight structure, making them ideal for multirotor drones, aerial photography platforms, and industrial UAV equipment.

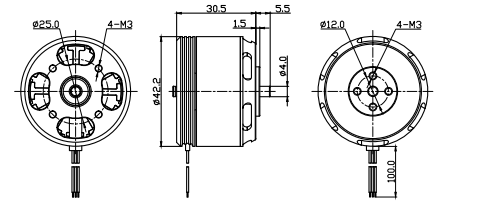

Motor dimensions
42.2*30.5mm
Number of slots
12N14P
Copper wire grade
200℃
Shaft diameter
4mm
Motor weight
145g
Service life
＞1000h

Basic Data

Model	KV Value	Maximum Power	Maximum Current	Pull	Efficiency	Awe	Battery	ESC
BG-P3515	KV	W	A	g	g/W	/	S	A
	500	566	25.5	2920	5.2	1550	6S	50
	650	550	24.8	2580	4.7	1238	6S	50
	650	677	30.5	3020	4.5	1550	6S	60
